Brugermanual til Thundeal TD93 Pro Mini-projektor

1. Introduktion

This manual provides detailed instructions for the setup, operation, and maintenance of your Thundeal TD93 Pro Mini Projector. Please read this manual thoroughly before using the product to ensure proper functionality and to extend its lifespan.

Image 1.1: Thundeal TD93 Pro Mini Projector overview.

2. Hvad er der i æsken

Bekræft, at alle nedenstående varer er inkluderet i din pakke:

• Thundeal TD93 Pro Projector
• Fjernbetjening
• Strømledning
• Brugervejledning (dette dokument)
• AV-kabel
• HDMI kabel
• Projektor linsedæksel

Image 2.1: Package contents of the TD93 Pro Projector.

3. Product Specifications and Features

3.1. Tekniske specifikationer

3.2. Nøglefunktioner

• High Definition Visuals: Native 1080P resolution with support for 2K/4K UHD signals, delivering clear and vibrant images.
• Smart Android OS: Integrated Android 9.0 operating system allows direct app downloads and streaming.
• Dual-Band WiFi: 2.4G and 5G WiFi connectivity for stable and fast wireless streaming and screen mirroring.
• Bluetooth-forbindelse: Tilslut eksterne Bluetooth-højttalere eller hovedtelefoner for forbedret lyd.
• Advanced Image Correction: 6D Keystone correction (4-point and vertical) for flexible placement and precise image alignment.
• Fleksibel projektion: Adjustable zoom from 50% to 100% and support for screen sizes up to 300 inches.
• Langvarig Lamp: LED lamp designed for up to 50,000 hours of operation.
• Multi-Media Compatibility: Supports various input sources including HDMI, USB, AV, and direct office file afspilning via USB.

Image 3.1: Visual comparison of projector brightness and resolution.

4. Opsætningsvejledning

4.1. Projektorplacering

The projector can be placed in various positions to suit your viewmiljø:

• På et skrivebord: Placer projektoren på en stabil, flad overflade.
• På et stativ: Utilize the 6mm screw hole on the bottom for tripod mounting.
• Ceiling Hoisting: Mount the projector to the ceiling using a compatible hanger.

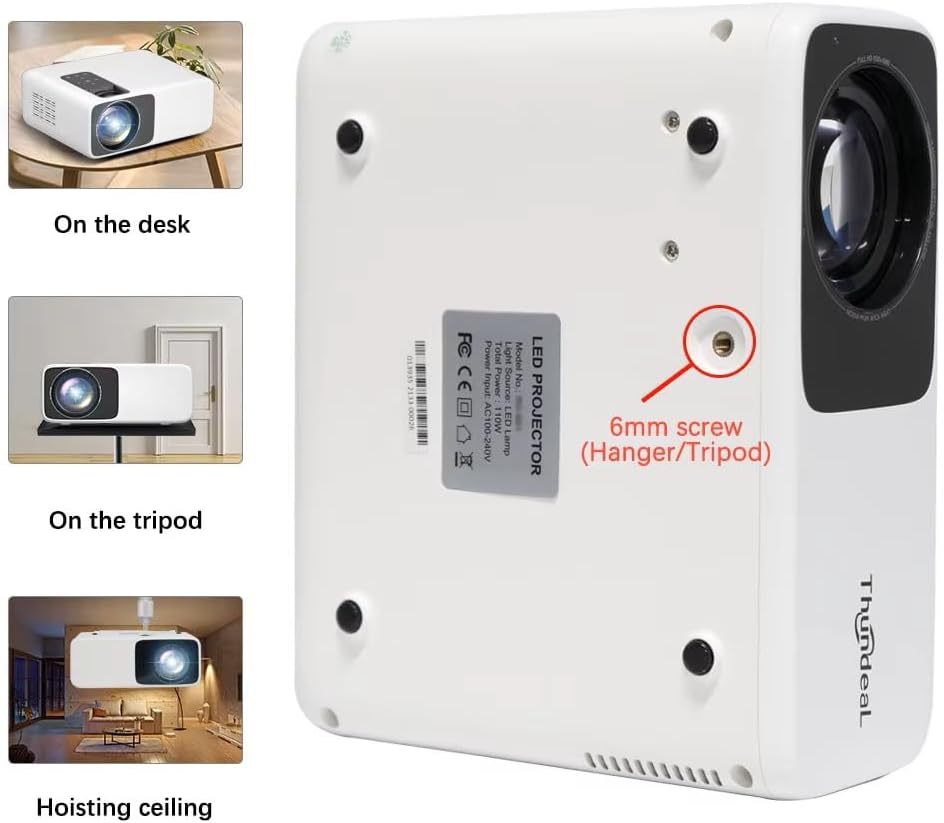

Image 4.1: Projector placement options and mounting point.

For optimalt viewing, ensure the projector is positioned perpendicular to the screen or wall. Adjust the projection distance (1.6 to 6.5 meters) to achieve your desired screen size (49 to 300 inches). A distance of 3-5 meters for a 93-150 inch screen is recommended for eye comfort.

4.2. Strømtilslutning

1. Tilslut netledningen til projektorens strømindgang.
2. Sæt den anden ende af netledningen i en almindelig stikkontakt.
3. Tryk på tænd/sluk-knappen på projektoren eller fjernbetjeningen for at tænde den.

5. Betjeningsvejledning

5.1. Multi-Media Connections

The TD93 Pro projector offers various ports for connecting external devices:

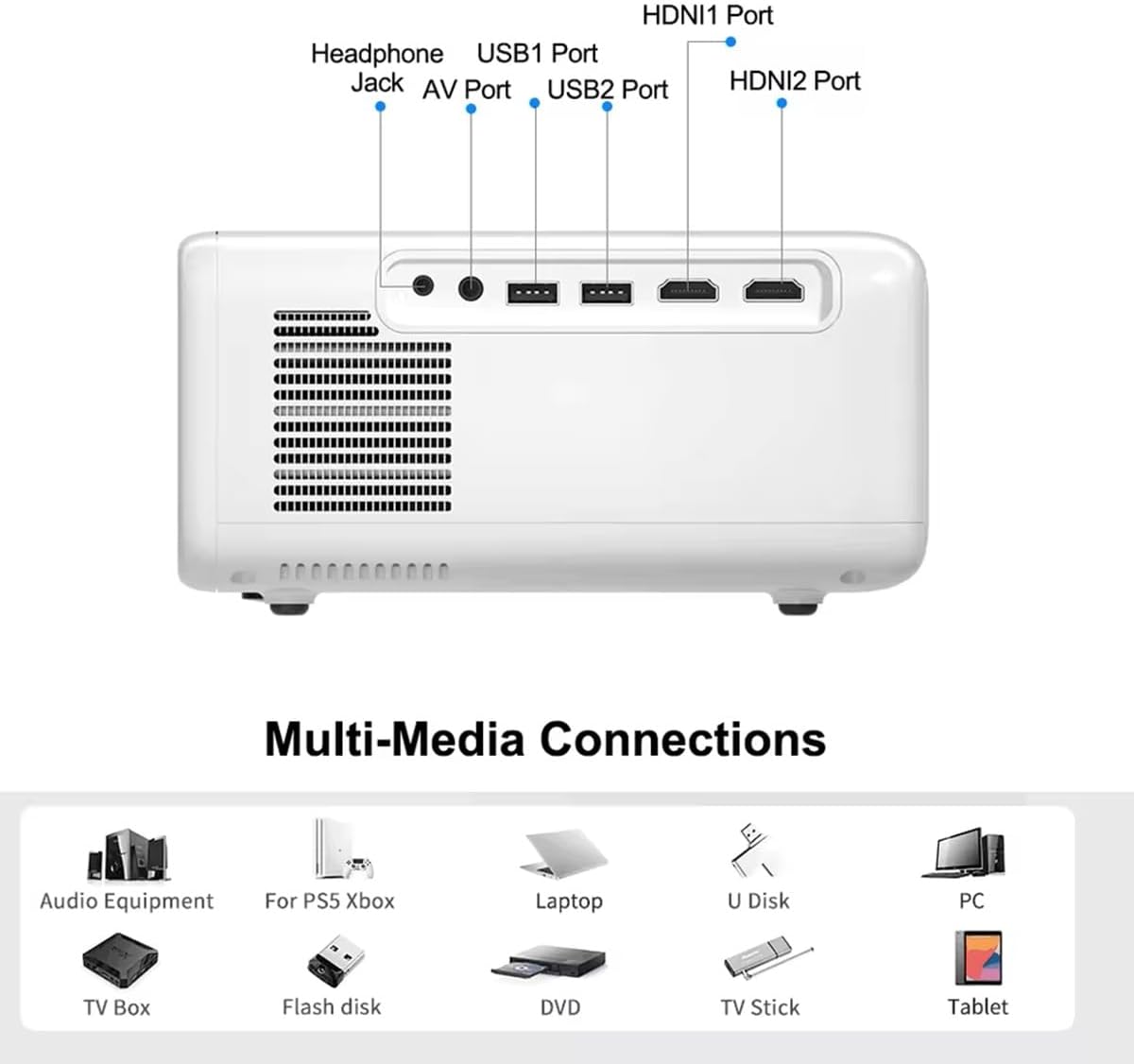

Image 5.1: Available multimedia connection ports.

• HDMI-porte (HDMI1, HDMI2): Connect devices such as TV boxes, gaming consoles (PS5, Xbox), laptops, or Blu-ray players.
• USB Ports (USB1, USB2): Connect USB flash drives for direct media playback (photos, videos, office documents).
• AV-port: Connect older devices using the provided AV cable.
• Hovedtelefonstik (3.5 mm): Tilslut eksterne hovedtelefoner eller højttalere.

To switch input sources, use the "Source" button on the remote control or the projector's control panel and select the desired input (HDMI1, HDMI2, AV, USB).

5.2. Trådløs forbindelse

5.2.1. WiFi Connection (2.4G/5G)

The projector supports dual-band WiFi for internet access and network features:

1. Navigate to the "Settings" menu on the projector's Android interface.
2. Select "Network & Internet" and then "Wi-Fi".
3. Tænd Wi-Fi, og vælg det ønskede netværk fra listen.
4. Indtast adgangskoden, hvis du bliver bedt om det, og opret forbindelse.

5.2.2. Bluetooth-forbindelse

Connect Bluetooth-compatible audio devices like speakers or headphones:

1. Go to "Settings" > "Connected devices" > "Bluetooth".
2. Slå Bluetooth til.
3. Sæt din Bluetooth -enhed i parringstilstand.
4. Vælg din enhed fra listen over tilgængelige enheder, der skal parres.

5.3. Screen Mirroring (Airplay/WiFi-Display)

Wirelessly display content from your Android or iOS phone:

Image 5.2: Screen mirroring from iOS and Android devices.

1. Ensure both your projector and mobile device are connected to the same Wi-Fi network.
2. On the projector's main interface, select the "Screen Mirroring" or "Airplay/WiFi-Display" application.
3. For iOS devices: Open Control Center, tap "Screen Mirroring" or "AirPlay Mirroring", and select the projector from the list.
4. For Android devices: Open the notification panel, find "Cast", "Smart View", "Wireless Display", or similar function, and select the projector.

5.4. Billedjustering

5.4.1. Keystone Correction (6D)

The projector features 6D keystone correction to adjust image shape:

• Vertical Keystone: Adjust +/- 60 degrees vertically using the remote control.
• 4-Point Corner Keystone: Adjust each of the four corners independently by +/- 60 degrees for side projection or irregular surfaces. This allows for precise rectangular image alignment.

Access keystone settings via the projector's menu or dedicated buttons on the remote.

5.4.2. Zoomfunktion

Adjust the display size from 50% to 100% proportionally without moving the projector. This feature is useful for fine-tuning the image size to fit your screen or wall.

Access the zoom function through the projector's menu settings.

5.5. Android OS and App Usage

The integrated Android 9.0 OS allows you to download and install applications directly from the Play Store. Ensure the projector is connected to Wi-Fi to access online services and apps.

• Play Butik: Access the Google Play Store to download streaming apps, games, and utilities.
• Medieafspilning: Use pre-installed media players or download alternatives (e.g., VLC player for AC3 audio support).

6. Vedligeholdelse

6.1. Støvfjerning

The projector is equipped with a built-in dust net for easy cleaning. Regularly clean the dust net to maintain optimal performance and prevent overheating. Press to pop out the dust net for cleaning.

6.2. Kølesystem

The advanced cooling system is designed to dissipate heat efficiently and extend the lamp's lifespan. Ensure proper ventilation around the projector and avoid blocking air vents during operation.

6.3. Lamp Livstid

LED lamp has an estimated lifespan of 50,000 hours. No lamp replacement is typically required during the product's operational life under normal usage conditions.

7. Fejlfinding

7.1. No Image Displayed

• Kontroller, om projektoren er tændt.
• Verify the input source is correctly selected (e.g., HDMI1, USB).
• Sørg for, at alle kabler er korrekt tilsluttet.
• Juster fokus og keystone-korrektion.

7.2. Ingen lyd

• Check the volume level on the projector and the connected source device.
• Ensure external speakers or headphones are properly connected and powered on if used.
• If using an external source, verify its audio output settings.
• For AC3 audio, ensure you are using a compatible player like VLC.

7.3. Connectivity Issues (WiFi/Bluetooth)

• Ensure WiFi is enabled and you are connected to the correct network.
• Genstart projektoren og din router/Bluetooth-enhed.
• For screen mirroring, confirm both devices are on the same Wi-Fi network.

7.4. Image is Blurry or Distorted

• Juster fokusringen på projektorlinsen.
• Use the keystone correction features to correct any trapezoidal distortion.
• Sørg for, at projektionsfladen er flad og glat.

8. Garanti og support

For garantioplysninger og teknisk support henvises til den dokumentation, der blev leveret ved køb, eller kontakt din forhandler. Gem din købskvittering som købsbevis.
