This manual provides detailed instructions for the installation, operation, and maintenance of your BvenuBigLite 72-inch 8-blade outdoor ceiling fan with integrated lighting. This large ceiling fan is designed for rooms larger than 18 ft. × 18 ft., making it suitable for various indoor and covered outdoor spaces such as living rooms, great rooms, covered patios, and porches. It features a reversible DC motor, dimmable LED light, and multiple control options.
Figure 1.1: The BvenuBigLite 72-inch ceiling fan with light, showcasing its large size and modern design, suitable for spacious outdoor covered areas. Remote control and smartphone app interface are also visible.
2. Sikkerhedsoplysninger
Læs alle sikkerhedsinstruktioner omhyggeligt inden installation og brug. Manglende overholdelse af disse instruktioner kan resultere i elektrisk stød, brand eller personskade.
- Sørg for, at strømmen er afbrudt ved afbryderen, før installation eller vedligeholdelse påbegyndes.
- Al ledningsføring skal være i overensstemmelse med nationale og lokale el-forskrifter. Hvis du er i tvivl, skal du kontakte en kvalificeret elektriker.
- The mounting structure must be capable of supporting the weight of the fan (refer to specifications for weight).
- Do not operate the fan if the blades are not properly installed. The DC motor has a built-in protection mechanism that will stop operation if no load (blades) is detected, preventing overheating or damage.
- Indsæt ikke genstande i ventilatorbladenes bane, mens ventilatoren er i drift.
- Denne ventilator er velegnet til damp locations (covered patios, porches) but should not be exposed directly to rain.
3. Pakkens indhold
Kontroller, at alle komponenter er til stede og ubeskadigede, før du fortsætter med installationen.
- Loftventilator motorhus
- Fan Blades (8 total, dual-finish)
- Downrods (5-inch, 10-inch, and 24-inch options)
- Monteringsbeslag
- Fjernbetjening med vægmontering
- LED-lys sæt
- Hardwarepakke (skruer, skiver, møtrikker osv.)
- Instruktionsmanual

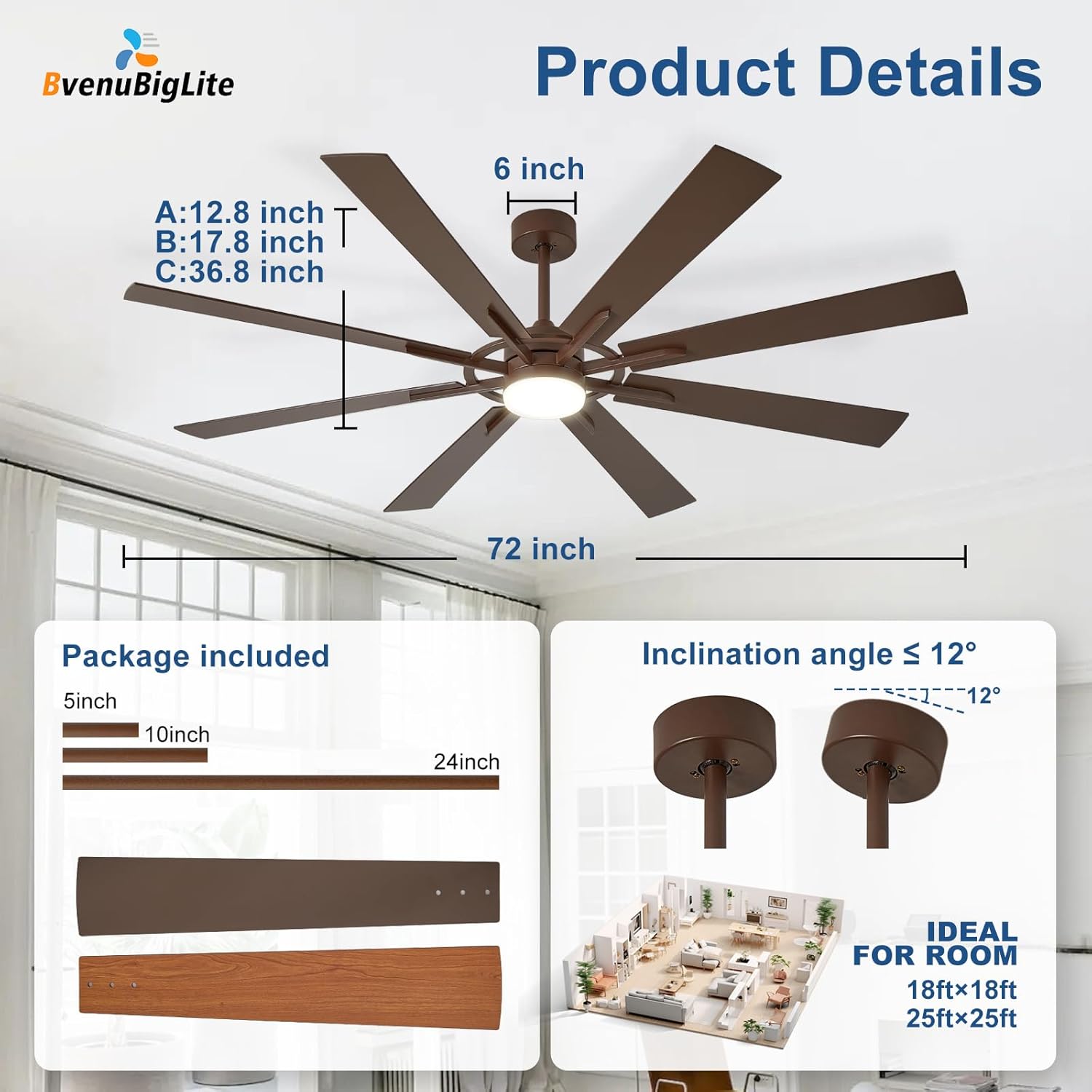

Figure 3.1: Visual representation of the fan's dimensions and included downrod lengths (5-inch, 10-inch, 24-inch) for flexible mounting.
4. Opsætning og installation
Follow these steps for proper installation. It is recommended to have two people for installation due to the fan's size.
- Forbered monteringsstedet: Ensure the electrical box is securely mounted to the building structure and can support the fan's weight. Turn off power at the circuit breaker.
- Monter monteringsbeslaget: Fastgør monteringsbeslaget til el-boksen ved hjælp af de medfølgende skruer.
- Saml nedstang og kaleche: Select the appropriate downrod (5", 10", or 24") for your ceiling height. This fan supports ceiling heights from 12 to 32 inches and vaulted ceilings up to 15°. Thread the wires through the downrod and attach it to the fan motor assembly. Slide the canopy over the downrod.
- Hæng ventilatoren: Løft forsigtigt ventilatorenheden op, og hæng den op fra monteringsbeslaget.
- Foretag elektriske forbindelser: Connect the fan's electrical wires to the household wiring according to the wiring diagram in the separate installation guide (not provided in this general manual). Ensure all connections are secure with wire nuts.
- Fastgør baldakinen: Skub baldakinen op, og fastgør den til monteringsbeslaget med de medfølgende skruer.
- Fastgør ventilatorblade: Attach each of the 8 fan blades to the motor housing. The blades are dual-finish, allowing you to choose between a classic brown or warm wood grain tone. Ensure all screws are tightened securely.
- Installer lyssæt: Connect the light kit wiring and attach the light kit to the bottom of the fan motor housing.
Figure 4.1: The dual-sided fan blades, offering a choice between a dark wood brown and a walnut finish to match different decor styles.
5. Betjeningsvejledning
Your BvenuBigLite ceiling fan can be controlled via the included remote control, a smartphone application, or a wall switch.
5.1 Ventilatordrift
- Tænd/sluk: Use the power button on the remote or app to turn the fan on or off.
- Hastighedskontrol: The fan features 6-speed settings. Adjust the speed using the dedicated buttons on the remote or the slider in the app.
- Vendbar funktion: The DC motor allows for reversible blade rotation.
- Summer Mode (Cooling): Blades rotate counter-clockwise to create a downward airflow, providing a cooling effect.
- Winter Mode (Air Circulation): Blades rotate clockwise to create an upward airflow, circulating warm air trapped near the ceiling.
- Timerindstilling: Set a timer for the fan to automatically turn off after 2 hours using the remote or app.

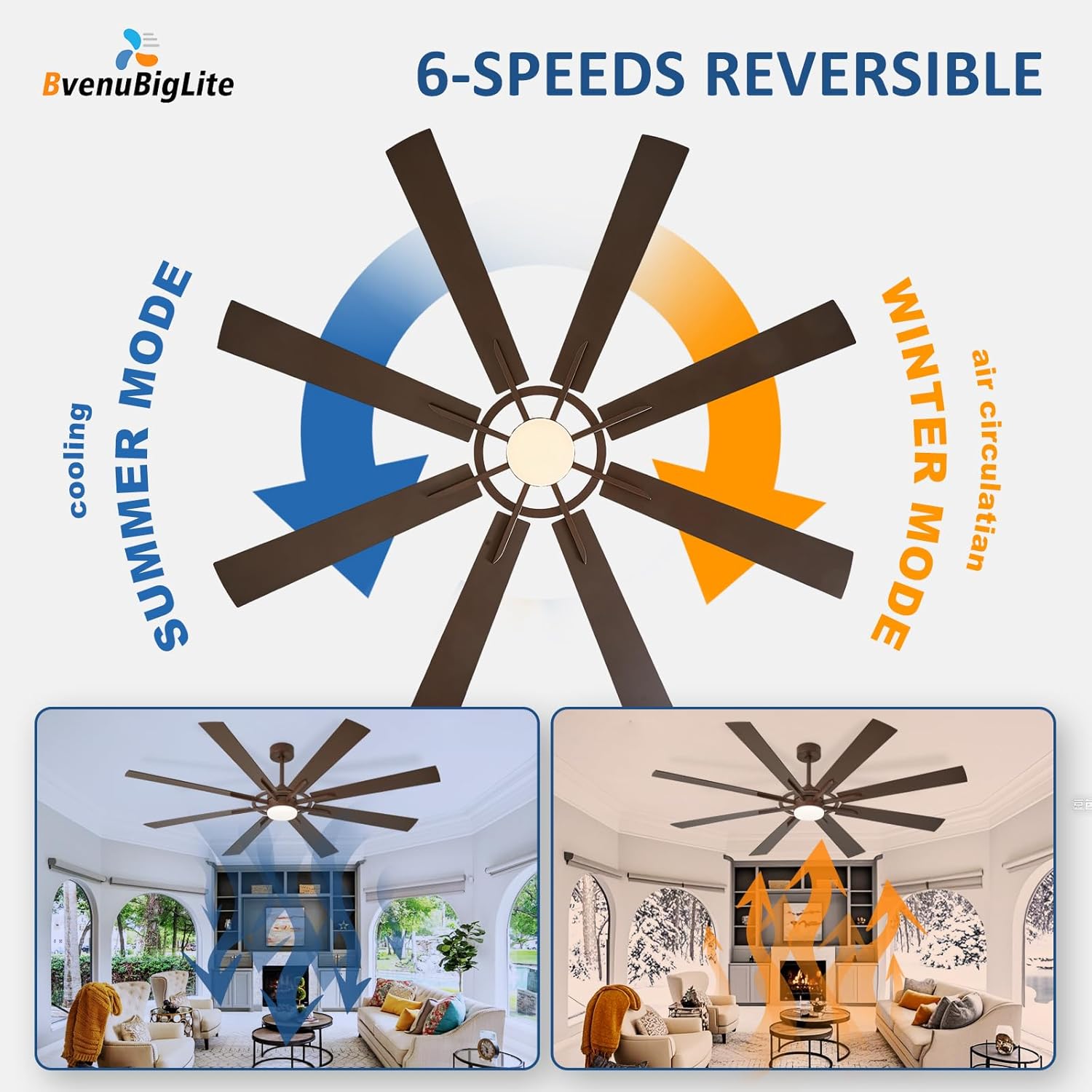

Figure 5.1: Illustration of the fan's reversible function, demonstrating airflow for cooling in summer mode and air circulation in winter mode.
5.2 Lysbetjening
- Lys til/fra: Toggle the light using the dedicated button on the remote or app.
- Dæmpbar funktion: Adjust the brightness from 10% to 100% using the remote or app.
- Farvetemperaturjustering: Change the light color temperature from 3000K (warm white) to 6000K (cool white) via the remote or app.
- Hukommelsesfunktion: The fan's smart memory function saves your last light brightness and color temperature settings, so they are recalled when the light is turned on again.
Figure 5.2: Demonstration of the stepless dimming and color temperature adjustment, ranging from cool white to warm white light.
5.3 APP kontrol
Download the official BvenuBigLite app from your smartphone's app store. Follow the in-app instructions to pair your fan. The app provides comprehensive control over all fan and light functions, including speed, direction, dimming, color temperature, and timer settings.
Figure 5.3: The fan can be controlled via a smartphone application, offering a user-friendly interface for all functions, in addition to the traditional remote control.
6. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer optimal ydeevne og levetid for din loftsventilator.
- Rensning: For at rengøre ventilatoren skal du tørre bladene og motorhuset af med en blød klud.amp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler. Sørg for, at strømmen er slukket, før rengøring.
- Knivbalance: If the fan wobbles, check that all blade screws are tight and that the blades are not warped. A balancing kit (not included) may be used if necessary.
- Lyskilde: The integrated LED light source is designed for long life and is not user-replaceable. If the light fails, contact customer support.
7. Fejlfinding
Se dette afsnit for almindelige problemer og deres løsninger.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ventilatoren starter ikke. | No power; Loose wire connections; Blades not installed (DC motor protection). | Check circuit breaker; Verify all wire connections are secure; Ensure all fan blades are properly installed and tightened. |
| Ventilator vakler. | Løse knivskruer; Ubalancerede knive; Løst monteringsbeslag. | Tighten all blade screws; Use a balancing kit if necessary; Ensure mounting bracket is securely fastened. |
| Lys virker ikke. | Loose wire connection to light kit; Faulty light kit. | Check light kit wiring connections; Contact customer support if light kit is faulty. |
| Fjernbetjening virker ikke. | Løbte batterier; Fjernbetjeningen er ikke parret med ventilatoren. | Replace remote batteries; Refer to the remote pairing instructions in the full manual. |
| Fan is noisy (e.g., humming). | Loose screws; Interference with ceiling or other objects. | Check all screws for tightness; Ensure fan blades are not hitting anything. This fan operates at less than 30dB, so significant noise indicates an issue. |
Figure 7.1: The fan's ultra-quiet DC motor ensures operation at less than 30dB, promoting a peaceful environment.
8. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | BvenuBigLite |
| Model | 72-Inch 8-Blade Outdoor Ceiling Fan |
| Farve | Brown (Dual-finish blades: Dark Wood Brown / Walnut) |
| Elektrisk ventilator design | Loft Fan |
| Strømkilde | DC motor |
| Produktdimensioner | 72" D x 72" B x 18" H |
| Kompatibilitet mellem rumtyper | Dining Room, Garage, Living Room, Patio, Porch (Covered Outdoor) |
| Særlige funktioner | LED Light, Memory function, Reversible 6 Speed, Timer, Ultra Quiet DC Motor |
| Anbefalede anvendelser | Air Circulation, Cooling, Lighting |
| Støjniveau | 30 dB |
| Downrod Lengths Included | 5", 10", 24" |
| Max Ceiling Angle | 15° (for vaulted ceilings) |
Figure 8.1: Energy Guide information, indicating an estimated yearly energy cost of $9 and airflow of 6199 Cubic Feet Per Minute.
9. Garanti og support
BvenuBigLite stands behind the quality of its products.
- Motorgaranti: Up to 5-years warranty on the DC motor.
- Other Components Warranty: 2 years warranty on all other parts of the ceiling fan.
- Kundesupport: We offer 24-hour customer support. If you have any questions during installation or use, please do not hesitate to contact us.
For support, please refer to the contact information provided with your purchase or visit the official BvenuBigLite webwebsted.
