Wet Sounds STEALTH-XT-8-B Stealth XT 8 Speaker All-in-One Amplified Bluetooth Soundbar Instruction Manual

Indledning

The Wet Sounds STEALTH-XT-8-B Stealth XT 8 is an all-in-one amplified Bluetooth soundbar designed for marine and powersports environments. This unit features an integrated 300W Class-D DSP amplifier and an 8-speaker configuration, delivering high-performance audio. It is IP67-rated for protection against water and dust, ensuring durability in harsh outdoor conditions. Key features include customizable RGB accent lighting, an integrated LED dome light, and the ability to wirelessly sync with up to three additional Stealth XT soundbars. This manual provides essential information for the proper installation, operation, and maintenance of your soundbar.

Vigtige sikkerhedsoplysninger

Læs venligst alle sikkerhedsinstruktioner omhyggeligt inden installation og betjening. Manglende overholdelse af disse retningslinjer kan medføre personskade eller beskadigelse af produktet.

Professionel installation anbefales: For optimal performance and safety, professional installation by a qualified technician is recommended.
Strømkilde: Connect the soundbar only to a 12V DC power source with a proper ground connection. Ensure correct polarity.
Ledningsføring: Use appropriate gauge wiring for power and ground connections to prevent overheating and ensure stable operation.
Vandeksponering: While the unit is IP67-rated, avoid submerging it. Ensure all connections are properly sealed to maintain water resistance.
Høreværn: Langvarig eksponering for høj lydstyrke kan forårsage høreskader. Juster lydstyrken til et sikkert niveau.
Monteringssikkerhed: Ensure the soundbar is securely mounted to prevent detachment during vehicle operation, which could cause injury or damage.

Pakkens indhold

Bekræft, at alle nedenstående varer er til stede i din pakke:

Wet Sounds STEALTH-XT-8-B Soundbar
Trådløs fjernbetjening
1.75" Round Clamps (2)
Slider Brackets (2)
Monteringsudstyr (bolte, skiver, møtrikker)

Wet Sounds STEALTH-XT-8-B Soundbar and included accessories — Image: The Wet Sounds STEALTH-XT-8-B soundbar shown with its complete set of included accessories, including the remote control, round clamps, and slider brackets.

Opsætning og installation

Proper installation is crucial for the performance and longevity of your soundbar. Consider professional installation if you are unsure about any steps.

Monteringsmuligheder

The STEALTH-XT-8-B comes with versatile mounting hardware, including slider brackets and 1.75" round clamps, allowing for secure installation on various tube or flat surfaces.

Wet Sounds 1.75 inch round clamps for soundbar mounting — Image: A pair of 1.75-inch black round clamps with associated bolts, washers, and nuts, used for mounting the soundbar to tubular structures.

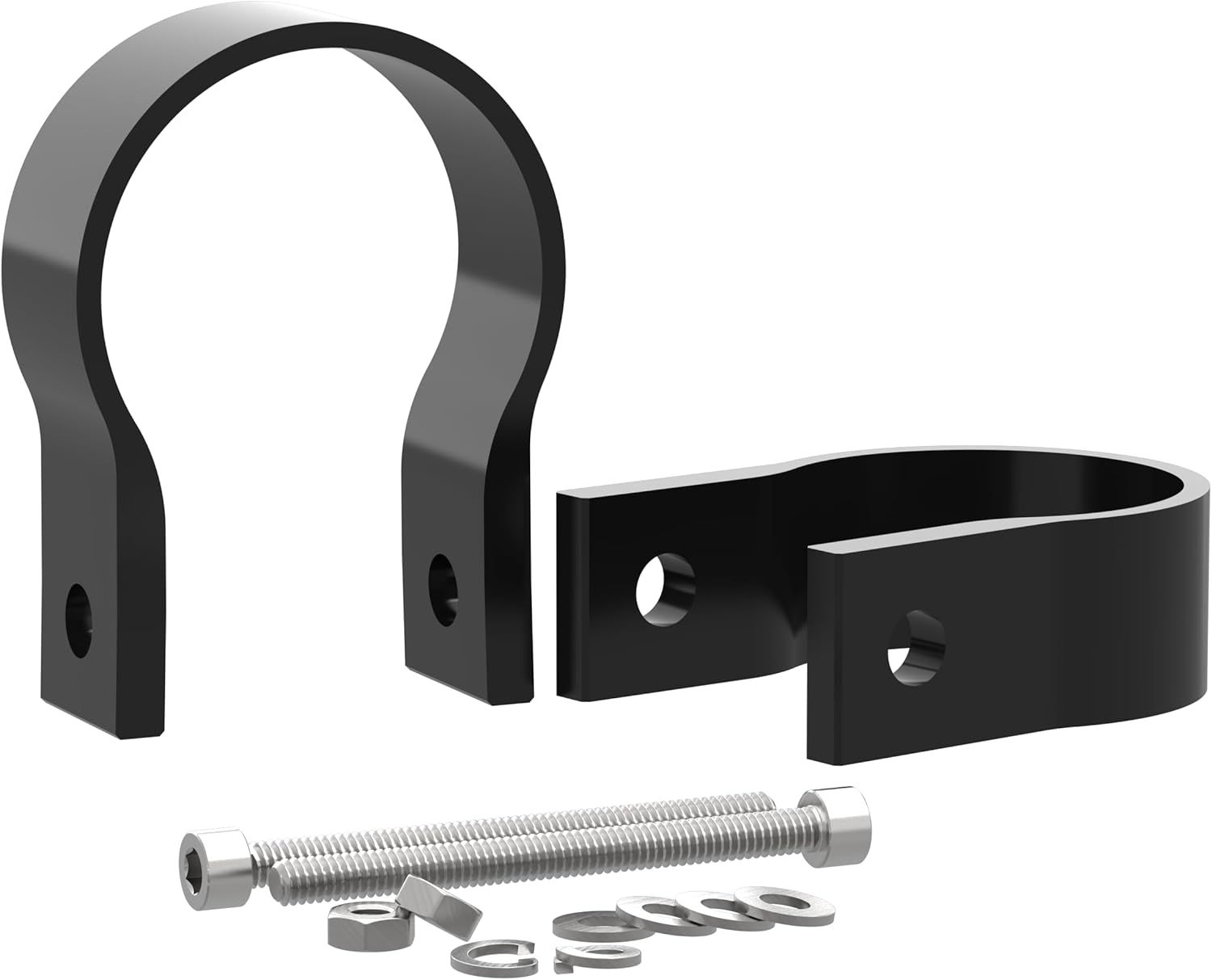

Wet Sounds slider brackets for soundbar mounting — Image: Two black slider brackets with mounting hardware, designed for flexible installation of the soundbar on flat surfaces or in conjunction with other mounting solutions.

General Mounting Steps:

Vælg placering: Choose a secure and appropriate mounting location on your vehicle or vessel, ensuring it does not obstruct vision or operation.
Attach Brackets/Clamps: Securely attach the chosen mounting hardware (slider brackets or round clamps) to the soundbar.
Mount Soundbar: Fasten the soundbar assembly to the desired surface using the provided hardware. Ensure all bolts are tightened to specification.
Bekræft stabilitet: Double-check that the soundbar is firmly mounted and will not vibrate loose during operation.

Strøm og ledninger

The soundbar requires a 12V DC power connection. Consult your vehicle's wiring diagram or a professional installer for proper connection points.

Power (RED wire): Connect to a switched 12V power source (e.g., ignition accessory circuit) capable of handling the soundbar's current draw. An inline fuse (not included) is highly recommended.
Ground (BLACK wire): Connect to a solid chassis ground point. Ensure a clean, secure connection.
Remote Turn-On (BLUE wire - if applicable): Hvis du tilslutter til en ekstern amplifier or other accessories, this wire provides a 12V output when the soundbar is on.

Betjeningsvejledning

This section details how to operate your Wet Sounds STEALTH-XT-8-B soundbar.

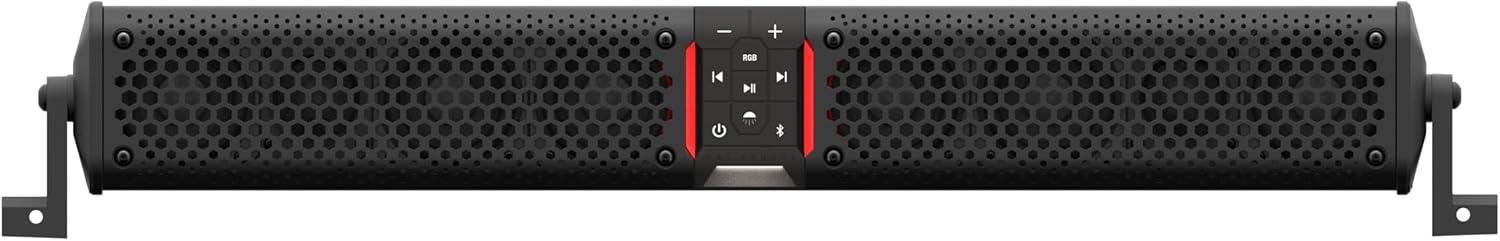

Front view of Wet Sounds STEALTH-XT-8-B soundbar with control panel — Billede: Forside view of the Wet Sounds STEALTH-XT-8-B soundbar, highlighting the central control panel with buttons for power, volume, track control, Bluetooth, and RGB lighting.

Tænd/sluk

Tryk og hold på Power-knap on the soundbar's control panel or the remote control to turn the unit on or off. A tone will indicate power status change.

Bluetooth-parring

Sørg for, at soundbaren er tændt.
Tryk på Bluetooth knap on the soundbar or remote. The Bluetooth indicator light will flash, indicating pairing mode.
On your mobile device, navigate to Bluetooth settings and select "Wet Sounds STEALTH XT" from the list of available devices.
Once connected, the Bluetooth indicator light will become solid, and a confirmation tone will sound.

Hjælpeindgang

To use the 3.5mm AUX input, connect your audio device to the AUX port on the soundbar. The soundbar will automatically switch to AUX input mode when a connection is detected, or you may need to cycle through input modes using the source button (if available).

Styring af lydstyrke og spor

Brug + og - buttons on the soundbar or remote to adjust the volume. Use the Forrige spor og Næste spor buttons to skip tracks during Bluetooth playback. The Afspil/pause button controls media playback.

Wet Sounds STEALTH-XT-8-B wireless remote control — Image: The compact wireless remote control for the Wet Sounds STEALTH-XT-8-B soundbar, featuring buttons for RGB lighting, volume, track control, Bluetooth pairing, and power.

RGB LED belysning

The soundbar features customizable RGB accent lights with 12 color modes. Press the RGB knap on the soundbar or remote to cycle through the available color options and effects. An integrated LED dome light provides additional utility.

Multi-Soundbar Sync

The STEALTH-XT-8-B allows for wireless audio synchronization with up to three additional Stealth XT soundbars within a 35-foot range. Refer to the specific instructions provided with your soundbar for initiating and managing multi-unit sync mode.

Opretholdelse

Regular maintenance helps ensure the longevity and optimal performance of your soundbar.

Rensning: Clean the soundbar with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, which can damage the finish or seals.
Inspektion: Periodically inspect all mounting hardware and wiring connections for tightness and signs of wear or corrosion.
Opbevaring: If storing the vehicle or vessel for an extended period, ensure the soundbar is clean and disconnected from power. Store in a dry, protected environment.

Fejlfinding

Hvis du støder på problemer med din soundbar, kan du se følgende almindelige problemer og løsninger:

Problem	Mulig årsag	Løsning
Ingen strøm	Løs strømforbindelse, sprunget sikring, forkert ledningsføring.	Check power and ground connections. Inspect inline fuse. Verify wiring polarity.
Ingen lydudgang	Incorrect source selected, device not paired, volume too low, faulty cable.	Ensure correct input source. Re-pair Bluetooth device. Increase volume. Test with a different AUX cable.
Problemer med Bluetooth-forbindelse	Device too far, interference, soundbar not in pairing mode.	Move device closer to soundbar. Ensure no major obstructions. Put soundbar into pairing mode. Forget device on phone and re-pair.
Forvrænget lyd	Volume too high, poor source quality, damaged speakers.	Reduce volume. Test with a different audio source. Contact support if distortion persists at low volumes.
RGB-lys virker ikke	RGB function off, wiring issue.	Press the RGB button to cycle modes. Check wiring if applicable.

Tekniske specifikationer

Below are the key technical specifications for the Wet Sounds STEALTH-XT-8-B Soundbar:

Feature	Specifikation
Modelnummer	WSBDL250226-39
Produktdimensioner	4.04" D x 26.85" B x 3.85" H
Varens vægt	16.4 pund
Højttaler Maksimal udgangseffekt	1200 watt
Frekvensrespons	20 KHz
Forbindelsesteknologi	Hjælpefunktion, Bluetooth
Lydudgangstilstand	Stereoanlæg
Vandmodstandsniveau	Waterproof (IP67-rated)
Bluetooth rækkevidde	35 fod
Strømkilde	Ledningsbaseret elektrisk (12V DC)
Inkluderede komponenter	Soundbar, 1.75" round clamps, slider brackets
Kompatible enheder	Smartphone
Type køretøjstjeneste	ATV, Boat, Golf Cart, UTV

Garanti og kundesupport

The Wet Sounds STEALTH-XT-8-B Soundbar comes with a 2 års producentgaranti. Denne garanti dækker fejl i materialer og udførelse ved normal brug.

For warranty claims, technical assistance, or any questions not covered in this manual, please contact Wet Sounds customer support. Refer to the official Wet Sounds webwebstedet for de seneste kontaktoplysninger og supportressourcer.

Wet Sounds Official Webwebsted: www.wetsounds.com
