Protec Advance 650 Portable Power Station User Manual

1. Introduktion

Thank you for choosing the Protec Advance 650 Portable Power Station. This device is designed to provide a reliable and versatile power source for various applications, including camping, travel, and emergency home use. With a 600W output and a 634Wh battery capacity, it ensures stable performance for your electronic devices. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting.

2. Sikkerhedsinstruktioner

• Read all instructions before using the power station.
• Enheden må ikke skilles ad, repareres eller ændres. Forkert samling kan forårsage brand eller personskade.
• Udsæt ikke enheden for ild eller høje temperaturer (over 60 °C/140 °F).
• Do not use or store the unit in direct sunlight, near heat sources, or in high humidity environments.
• Hold enheden væk fra vand og andre væsker.
• Enheden må ikke tabes, slås eller udsættes for kraftige stød.
• Opbevares utilgængeligt for børn.
• Sørg for tilstrækkelig ventilation under brug og opladning.
• Use only recommended accessories and chargers.
• In case of leakage from the battery, avoid contact with skin and eyes. If contact occurs, rinse with water and seek medical attention.

3. Produktet er slutview

3.1 Komponenter og funktioner

The Protec Advance 650 is equipped with multiple ports and features for versatile power delivery and charging:

• Strømudgang: 600W continuous, 634Wh battery capacity.
• AC stikkontakter: Two 230V pure sine wave AC outlets for sensitive electronics.
• USB-porte: One USB-C PD 60W port and three USB-A QC 3.0 ports (54W total).
• DC-udgang: One 12V DC car charger port.
• Trådløs opladning: Integrated 10W Qi wireless charging pad.
• Vise: Real-time LCD screen showing charge level and remaining runtime.
• Belysning: Emergency lighting (side and handle).
• Holdbarhed: IP54-klassificering for støv- og stænkbeskyttelse.
• Opladningsmuligheder: AC wall charger (100W included), compatible with Protec solar panels.

Front view of the Protec Advance 650 Portable Power Station, showing the main display, power button, AC outlets, DC car port, and USB ports.

Diagram illustrating the output capabilities of the Protec Advance 650, including two 500W AC outlets, a 1W torch, and three 18W USB-A ports.

Diagram highlighting the display features, a 60W USB-C Quick Charge port, and a 12V DC 10A car charger port on the Protec Advance 650.

4. Opsætning

4.1 Indledende opladning

Before first use, fully charge the Protec Advance 650. This ensures optimal battery performance and extends its lifespan.

1. Connect the included AC wall charger to the power station's input port.
2. Sæt opladeren i en almindelig stikkontakt.
3. The display will indicate charging status. Charge until the battery indicator shows 100%.

4.2 Placering

Place the power station on a stable, flat surface in a well-ventilated area. Avoid placing it near heat sources or in direct sunlight.

5. Betjeningsvejledning

5.1 Tænd/sluk

Press and hold the main power button for a few seconds to turn the unit on or off. The LCD display will illuminate when the unit is on.

5.2 Opladning af kraftværket

The Advance 650 can be recharged using multiple methods:

• AC-vægoplader: Use the included 100W AC adapter. Connect it to the input port and a wall outlet.
• Solpaneler: Connect compatible Protec solar panels (sold separately) to the DC input port. Ensure the solar panels are placed in direct sunlight for efficient charging.
• Biloplader: Use a 12V car charger adapter (not specified if included, typically sold separately) to charge from your vehicle's cigarette lighter port.

5.3 Brug af AC-udgange

The power station features two 230V pure sine wave AC outlets, suitable for powering sensitive electronics up to 600W total.

1. Tryk på strømknappen for at aktivere stikkontakterne. Strømindikatoren på displayet lyser.
2. Plug your device into one of the AC outlets.
3. Ensure the total power consumption of your devices does not exceed 600W.
4. When finished, press the AC power button again to turn off the AC outlets and conserve battery.

5.4 Using DC Outputs (USB-A, USB-C, Car Port)

The DC outputs are ideal for charging smartphones, tablets, laptops, and other 12V devices.

1. Press the DC power button to activate the DC outputs. The DC indicator on the display will light up.
2. Connect your device to the appropriate USB-A, USB-C, or 12V car charger port.
3. The USB-C port supports Power Delivery (PD) up to 60W, and USB-A ports support Quick Charge (QC 3.0) up to 54W total.
4. When finished, press the DC power button again to turn off the DC outputs.

5.5 Brug af trådløs opladning

The top of the power station features a 10W Qi wireless charging pad.

1. Sørg for, at kraftværket er tændt.
2. Place your Qi-compatible device directly onto the wireless charging pad.
3. Enheden burde begynde at oplade automatisk.

5.6 Brug af displayet

LCD-displayet giver information i realtid:

• Batteriniveau: Shows the current charge percentage.
• Indgangs-/udgangseffekt: Displays the current power input (charging) or output (discharging) in watts.
• Remaining Runtime: Estimates the remaining operating time based on current power consumption.
• Indikatorer: Icons for AC, DC, and fan status.

5.7 Using the Emergency Light

The power station includes integrated emergency lighting.

1. Press the light button to turn on the emergency light.
2. Press again to cycle through different brightness modes or turn off.

Examples of domestic use for the Protec Advance 650, showing estimated runtimes for a 60W TV (9h), a 50W PC (approx. 10 recharges), a 10W smartphone (53 recharges), and a 12W fan (45h).

Examples of professional use for the Protec Advance 650, showing estimated runtimes for a 500W lawnmower (1h), a 500W power tool (1h), and recharges for an 18V battery (4 recharges) and a double 18V battery (2 recharges).

6. Vedligeholdelse

6.1 Rengøring

Wipe the exterior of the power station with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure all ports are free of dust and debris.

6.2 Opbevaring

If storing the unit for an extended period, charge it to approximately 50-80% every 3-6 months to maintain battery health. Store in a cool, dry place, away from direct sunlight and extreme temperatures.

6.3 Pleje af batterier

The Protec Advance 650 uses a Lithium-phosphate battery. To maximize its lifespan:

• Undgå at aflade batteriet helt ofte.
• Undgå længere tids udsættelse for høje temperaturer.
• Charge the unit fully before long periods of inactivity.

7. Fejlfinding

• Enheden tænder ikke: Sørg for, at batteriet er opladet. Hvis ikke, skal du tilslutte det til en strømkilde.
• Ingen output fra porte: Check if the respective AC or DC output buttons are activated. Ensure the device is properly connected and within the power station's output limits.
• Langsom opladning: Verify that the charger is correctly connected and functioning. For solar charging, ensure panels are in direct sunlight and free of obstructions.
• Overbelastningsbeskyttelse: If the unit shuts down, it may be due to an overload. Disconnect some devices and restart the power station.
• Overophedning: If the unit feels excessively hot, disconnect all devices and allow it to cool down in a well-ventilated area.

8. Specifikationer

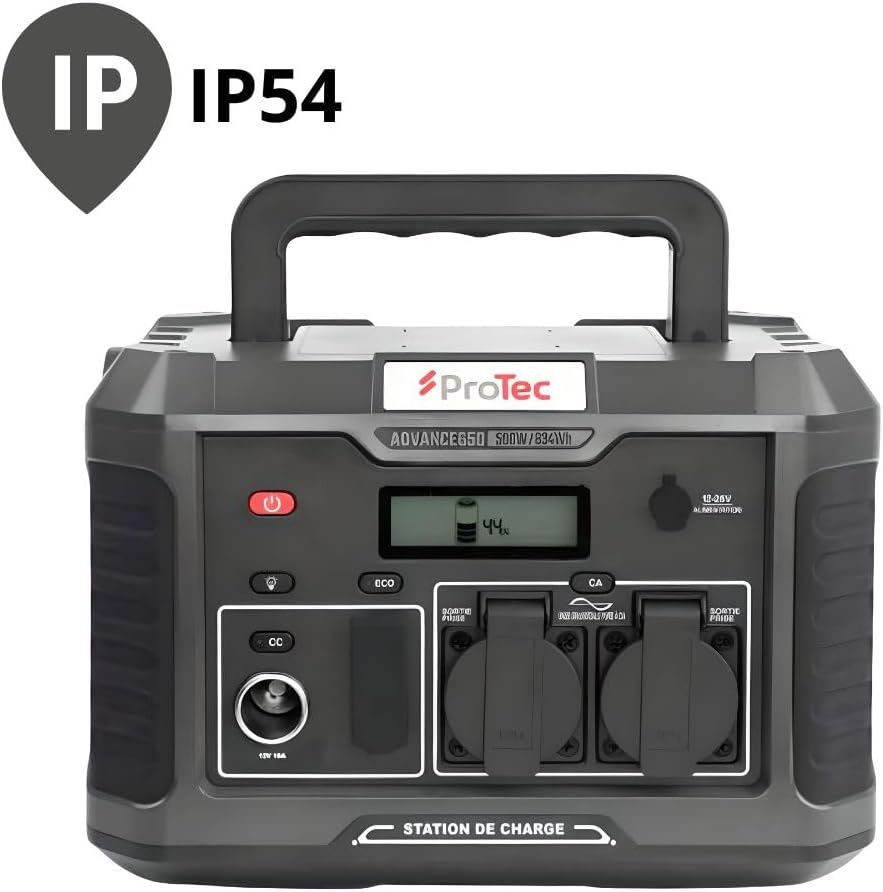

The Protec Advance 650 is rated IP54 for dust and splash resistance.

9. Garanti og support

9.1 Garantioplysninger

The Protec Advance 650 Portable Power Station comes with a 2-year availability for spare parts within the EU. For specific warranty terms and conditions, please refer to the documentation provided at the time of purchase or contact Protec customer service.

9.2 Kundesupport

For technical assistance, troubleshooting, or warranty claims, please contact Protec customer support through their official webwebstedet eller forhandleren, hvor produktet blev købt.

The Protec Advance 650 Portable Power Station is suitable for various outdoor activities.
