Battery Tender Charge N Start 1120 User Manual

Indledning

The Battery Tender Charge N Start 1120 is a versatile 2-in-1 device designed to provide both smart battery charging/maintaining and powerful jump-starting capabilities. Engineered for reliability and ease of use, this unit ensures your vehicle's battery remains in optimal condition and provides emergency starting power when needed. It is suitable for a wide range of vehicles including cars, SUVs, motorcycles, and ATVs.

Image: The Battery Tender Charge N Start 1120 unit, showcasing its compact design and integrated smart clamps.

Sikkerhedsoplysninger

Always read and understand all safety warnings and instructions before using this product. Failure to follow these instructions may result in electric shock, fire, or serious injury.

Generelle sikkerhedsforanstaltninger:

• Bær øjenværn og beskyttelsestøj, når du arbejder med batterier.
• Sørg for tilstrækkelig ventilation ved opladning af batterier.
• Hold børn og uautoriserede personer væk fra arbejdsområdet.
• Udsæt ikke enheden for regn eller våde forhold.
• Brug ikke enheden, hvis den har fået et hårdt slag, er blevet tabt eller på anden måde er beskadiget.

Integrerede sikkerhedsfunktioner:

The Charge N Start 1120 incorporates advanced safety mechanisms for worry-free operation:

• Gnistfri forbindelser: Prevents sparks during connection to the battery terminals.
• Omvendt polaritetsbeskyttelse: Protects against damage if clamps er forbundet forkert.
• Temperaturkompensation: Adjusts charging based on ambient temperature for optimal battery health.
• Microprocessor-Controlled Charging: Ensures precise and safe charging cycles.
• Over-bindtage Beskyttelse: Beskyttelse mod overdreven volumentage.
• Auto-Shutoff Technology: Automatically powers down when not in use or in case of fault.
• Kortslutningsbeskyttelse: Forhindrer skader fra kortslutninger.

Image: Visual representation of the multiple safety features integrated into the Charge N Start 1120.

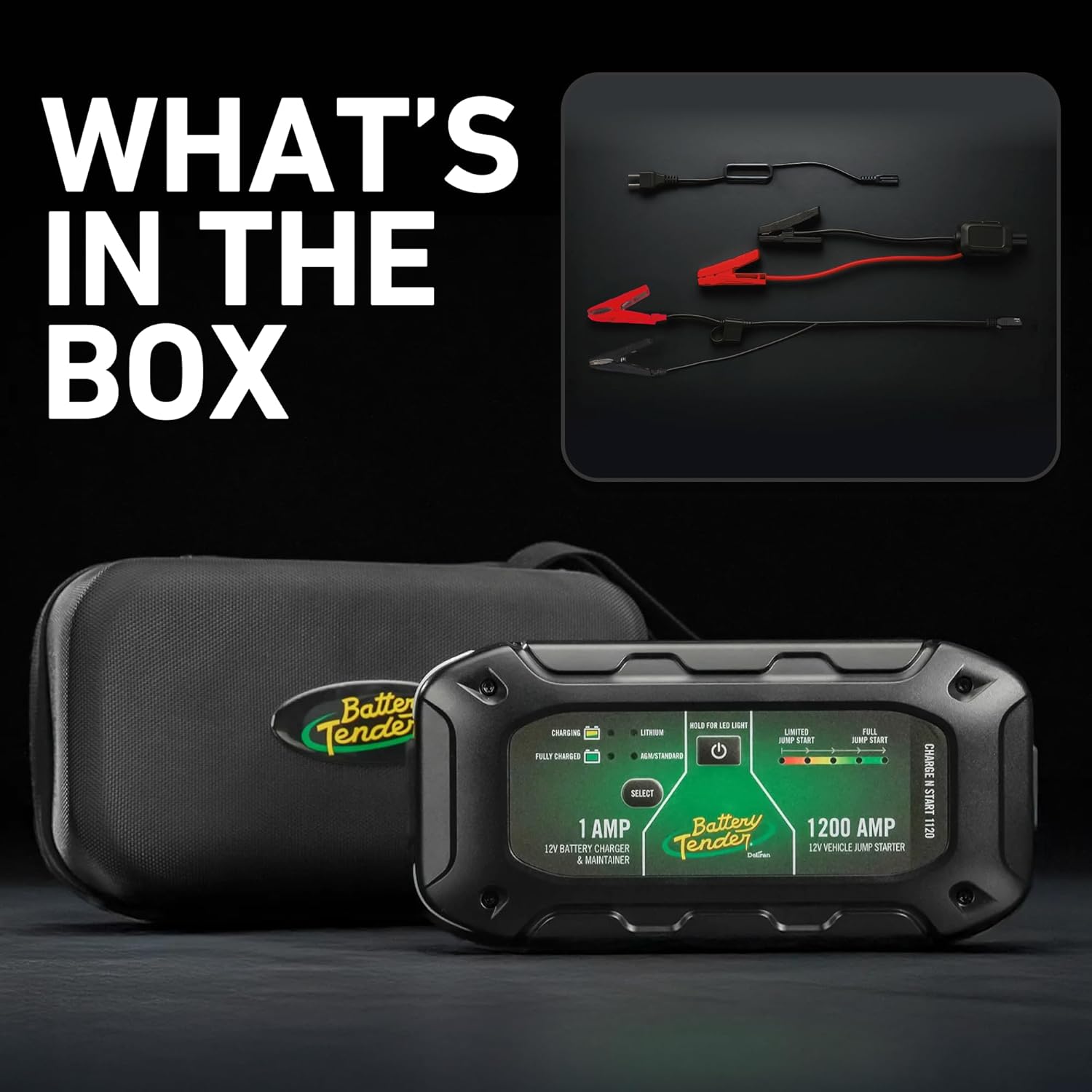

Pakkens indhold

Bekræft at alle varer er til stede i din pakke:

• Battery Tender Charge N Start 1120 Unit
• Heavy-duty Smart Clamps with Copper-Plated Jaws
• Premium opbevaringsetui
• 6-foot AC Input Cable
• 6-foot DC Output Cable
• Alligator Clips and Ring Terminal Cable Combo with 7.5 AMP Sikring

Image: The Charge N Start 1120 unit, emphasizing its intelligent power management capabilities.

Opsætning

Initial Charging of the Unit:

1. Connect the AC input cable to the Charge N Start 1120 unit.
2. Plug the AC input cable into a standard wall outlet.
3. Allow the unit to fully charge its internal battery before first use. The 'FULLY CHARGED' indicator will illuminate when complete.

Connecting to a Vehicle Battery (Charging/Maintaining):

1. Sørg for, at køretøjets tænding er slukket.
2. Tilslut den røde positive (+) clamp til den positive (+) batteripol.
3. Tilslut den sorte negative (-) clamp to the negative (-) battery terminal or a chassis ground point away from the battery.
4. Connect the DC output cable to the Charge N Start 1120 unit.
5. Plug the AC input cable into a standard wall outlet. The unit will automatically begin charging/maintaining the vehicle battery.

Image: The Charge N Start 1120 connected to a vehicle battery, illustrating proper clamp placement for charging.

Valg af batteritype:

The Charge N Start 1120 is compatible with various battery types:

• Standard bly-syre
• AGM (absorberet glasmåtte)
• Gelcelle
• Litium (LiFePO4)

Press the 'SELECT' button on the unit to cycle through the battery types (Lithium, AGM/Standard). Ensure the correct battery type is selected for optimal charging and maintenance.

Image: Display indicating the various battery types compatible with the Charge N Start 1120.

Tilslutningsmuligheder:

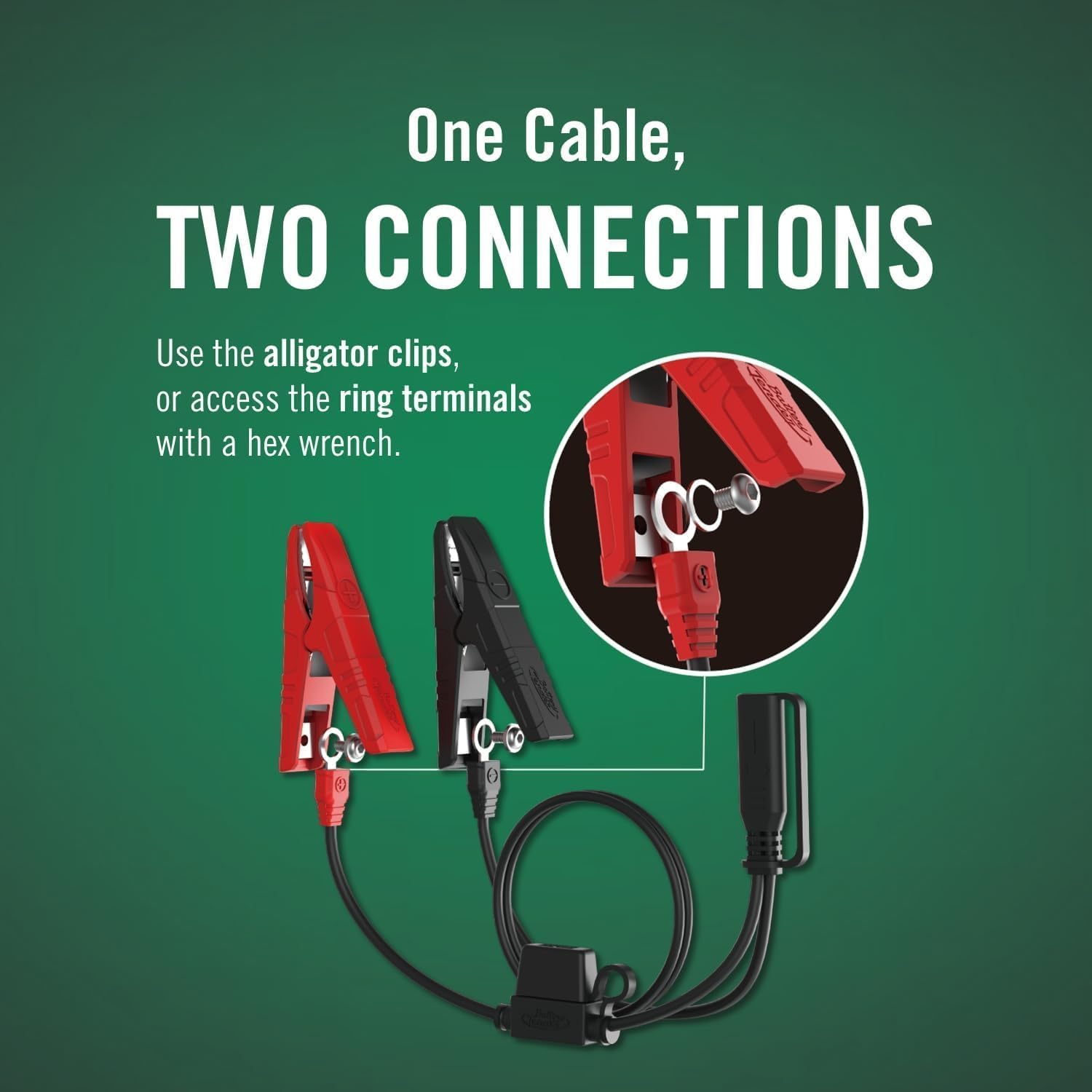

The unit comes with a versatile cable combo, offering both alligator clips and ring terminals for connection. Use the appropriate connection method for your battery terminals.

Image: The included cable with both alligator clips and ring terminal options for flexible connection.

Betjeningsvejledning

Battery Charging and Maintaining:

Once connected to a vehicle battery and plugged into an AC outlet, the Charge N Start 1120 will automatically begin its charging and maintenance cycle. The unit features exclusive auto-switch technology that intelligently maintains both the vehicle battery and its internal jump starter, switching charging between them to ensure both are always ready.

• Opladningsindikatorer: The display will show the charging status, progressing towards 'FULLY CHARGED'.
• Automatisk vedligeholdelse: After reaching full charge, the unit will switch to a maintenance mode to keep the battery at optimal voltage uden overopladning.

Billede: Nærbillede view of the Charge N Start 1120 display, showing charging status indicators.

Hopstart af et køretøj:

The Charge N Start 1120 can jump start vehicles with up to 6.5L gas engines and 3.5L diesel engines.

1. Ensure the Charge N Start 1120's internal battery is sufficiently charged (check the 'FULL JUMP START' indicator).
2. Tilslut den røde positive (+) clamp to the positive (+) battery terminal of the vehicle.
3. Tilslut den sorte negative (-) clamp to the negative (-) battery terminal or a solid, unpainted metal part of the vehicle's engine block or chassis, away from the battery.
4. Sørg for, at alle forbindelser er sikre.
5. Forsøg at starte køretøjet. Hvis køretøjet ikke starter med det samme, skal du vente et par minutter, før du prøver igen.
6. Når køretøjet starter, skal den sorte negative (-) pol afbrydes.amp først, derefter den røde positive (+) clamp.

Image: The Charge N Start 1120 positioned in a vehicle's engine bay, ready for jump starting.

Image: An infographic highlighting the jump start capacity and other key features of the unit.

LED nødlys:

The unit includes a built-in LED emergency light. To activate, press and hold the power button for a few seconds. Press again to cycle through light modes (e.g., steady, strobe, SOS) or turn off.

Produktvideo:

Opretholdelse

Rensning:

Periodically clean the unit and clamps with a dry cloth. Do not use abrasive cleaners or solvents. Ensure clamps are free of dirt and corrosion for optimal conductivity.

Opbevaring:

Store the Charge N Start 1120 in its premium storage case in a cool, dry place when not in use. Avoid extreme temperatures and direct sunlight.

Internal Battery Recharging:

To ensure the jump starter is always ready for emergency use, it is recommended to recharge the internal battery every 3-6 months, or after each jump start, even if the unit has been connected to an AC outlet for vehicle battery maintenance. The auto-switch technology helps maintain both, but periodic checks are advised.

Fejlfinding

Enhed oplader ikke:

• Check if the AC input cable is securely plugged into both the unit and the wall outlet.
• Kontroller, at stikkontakten fungerer.
• Inspect the AC input cable for any damage.

Vehicle Not Starting (Jump Start):

• Ensure the Charge N Start 1120's internal battery has sufficient charge (check 'FULL JUMP START' indicator).
• Kontroller, at clamps are securely connected to the correct battery terminals (red to positive, black to negative or chassis ground).
• Check for any corrosion on battery terminals and clean if necessary.
• Ensure the vehicle's battery is not severely damaged or completely dead, which may prevent a successful jump start.
• Allow a few minutes between jump start attempts to prevent overheating the unit.

Indikatorlamper virker ikke:

• Sørg for, at enheden er tændt.
• If the unit is connected to an AC source, check the power connection.
• Kontakt kundesupport, hvis problemerne fortsætter.

Specifikationer

Garantioplysninger

The Battery Tender Charge N Start 1120 comes with a 1 års begrænset garanti from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, abuse, unauthorized modifications, or improper installation.

Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, refer to the documentation included with your product or contact customer support.

Støtte

For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact Battery Tender customer support. Contact information can typically be found on the manufacturer's webwebstedet eller på produktemballagen.

When contacting support, please have your product model number (Charge N Start 1120) and serial number (if applicable) ready.
