Monarch 1131-01 Price Gun

Indledning

This manual provides comprehensive instructions for the setup, operation, and maintenance of your Monarch 1131-01 Price Gun. Designed for efficiency and durability, this one-line labeler is ideal for pricing, date coding, and general labeling tasks. Please read this manual thoroughly before use to ensure proper function and longevity of your device.

Pakkens indhold

Ved udpakning skal du kontrollere, at alle nedenstående varer er til stede:

• Monarch 1131-01 Price Gun
• One Sleeve (8 Rolls = 20,000 Labels) of White Genuine Monarch Labels (#000239)
• Label Scraper
• Ink Roller (one included with labeler purchase)

Image: The Monarch 1131-01 Price Gun, accompanied by a roll of white labels, a label scraper, and a replacement ink roller, demonstrating the complete package contents.

Opsætning

1. Indlæsning af etiketter

1. Open the label compartment door. Red "touch points" on the labeler guide this process.
2. Place the roll of labels onto the label spindle, ensuring the labels feed from the bottom of the roll.
3. Thread the first few labels through the feed mechanism, following the indicated path. Ensure the labels are flat and not creased.
4. Close the label compartment door securely.

Billede: En side view of the Monarch 1131-01 Price Gun, showing the label compartment where the roll of labels is inserted for operation.

2. Installing/Replacing Ink Roller

The ink roller is designed for easy replacement. Red "touch points" assist in this task.

1. Locate the ink roller compartment, typically near the print head.
2. If replacing, gently remove the old ink roller by pulling it out.
3. Unpack the new ink roller.
4. Insert the new ink roller into its designated slot until it clicks into place. Ensure it is seated correctly for clear printing.

Betjeningsvejledning

1. Setting Characters

The Monarch 1131-01 features one line of print with a maximum of 8 characters. Use the dial on the side of the gun to adjust the characters.

1. Locate the character adjustment dial, usually on the top or side of the labeler.
2. Rotate the dial to select the desired characters (numbers, symbols, etc.) for each position.
3. Verify the selected characters by printing a test label on a scrap surface.

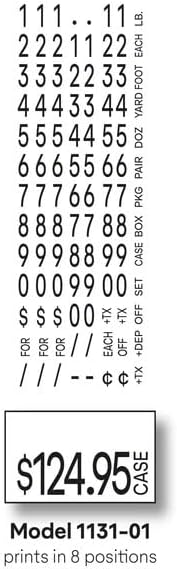

Image: A visual representation of the available characters for the Monarch 1131-01, including numbers and symbols, alongside an example of a printed label showing "124.95 CASE".

2. Applying Labels

1. Hold the price gun firmly with the label exit facing the surface you wish to label.
2. Squeeze the trigger handle completely to print and dispense a label.
3. Release the trigger. The label will be applied to the surface with strong adhesive.
4. For optimal adhesion, ensure the surface is clean and dry.

Opretholdelse

Rensning

Regular cleaning helps maintain optimal performance and extends the life of your price gun.

• Periodically wipe the exterior of the gun with a soft, damp klæde.
• Remove any adhesive residue from the label exit area using the provided label scraper or a non-abrasive tool.
• Ensure no dust or debris accumulates in the label feed mechanism.

Ink Roller Replacement

Replace the ink roller when prints become faint or inconsistent. Refer to the "Installing/Replacing Ink Roller" section under Setup for detailed steps. One ink roller is included with the labeler purchase.

Fejlfinding

Note: Instructional videos are easily accessed by scanning the QR code conveniently located on the labeler for common tasks like loading, clearing jams, and removing ink rollers.

Specifikationer

Garanti og support

Garantioplysninger

The Monarch 1131-01 Price Gun comes with a 1 års begrænset garanti. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, accidents, or unauthorized modifications.

Ved garantikrav eller service bedes du gemme din købsbevis.

Kundesupport

For further assistance, technical support, or to purchase genuine Monarch labels and ink rollers, please visit the Avery Dennison Store on Amazon eller se kontaktoplysningerne på din produktemballage.
