Einhell Professional Akku Buskrydder GP-BC 36/430 Li BL-Solo Brugermanual

1. Introduktion

Thank you for choosing the Einhell Professional GP-BC 36/430 Li BL-Solo Cordless Brushcutter. This powerful and versatile tool is designed for efficient and professional maintenance of various terrains, from tall grass to dense undergrowth. As part of the Power X-Change family, it offers cordless freedom and high performance.

This manual provides essential information for the safe and effective operation, assembly, maintenance, and troubleshooting of your brushcutter. Please read it thoroughly before first use and keep it for future reference.

Figure 1.1: Einhell Professional Cordless Brushcutter GP-BC 36/430 Li BL-Solo

Figure 1.2: The brushcutter is part of the Einhell Power X-Change battery system, allowing battery compatibility across many tools.

2. Sikkerhedsinstruktioner

ADVARSEL: Læs alle sikkerhedsadvarsler, instruktioner, illustrationer og specifikationer, der følger med dette elværktøj. Undladelse af at følge alle instruktionerne nedenfor kan resultere i elektrisk stød, brand og/eller alvorlig personskade.

Generelle sikkerhedsforanstaltninger:

• Always wear appropriate personal protective equipment (PPE), including eye protection (safety glasses or goggles), sturdy gloves, long pants, and non-slip footwear. Hearing protection is also recommended.
• Ensure the work area is clear of debris, rocks, and other objects that could be thrown by the cutting attachment.
• Hold tilskuere, børn og kæledyr på sikker afstand (mindst 15 meter / 50 fod) fra driftsområdet.
• Do not operate the brushcutter in wet conditions or in the rain.
• Never operate the tool if you are tired, under the influence of drugs, alcohol, or medication.
• Inspect the brushcutter before each use for any damaged parts, loose fasteners, or worn cutting attachments. Do not use if damaged.
• Hold altid buskrydderen fast med begge hænder under drift.
• Undgå at skære over skulderhøjde.
• Be aware of kickback when using the blade, especially when cutting thicker material.
• Frakobl batteripakken, før du foretager justeringer, skifter tilbehør eller opbevarer værktøjet.
• Store the brushcutter in a dry, secure place out of reach of children.

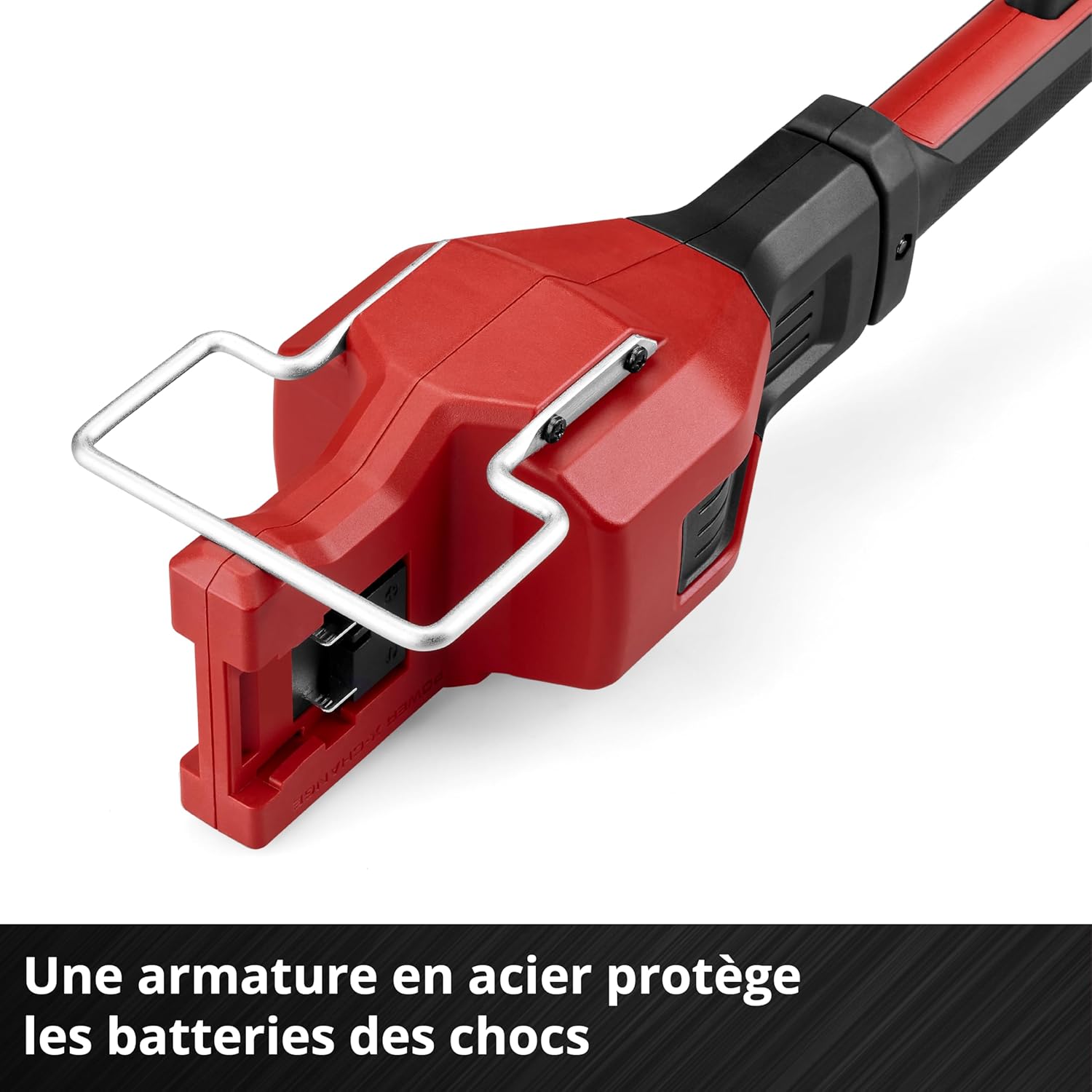

Figure 2.1: The integrated steel frame protects the batteries from impacts, enhancing safety and durability.

3. Produktkomponenter

Familiarize yourself with the main components of your Einhell Cordless Brushcutter:

Figure 3.1: Key components of the brushcutter, including the electronic speed control, brushless motor, adjustable double handle, detachable shaft, and cutting width.

• Børsteløs motor: Provides high power, longer runtime, and reduced maintenance.
• Double Handle (Bike Handle): Ergonomically designed with Softgrip surfaces for comfortable and controlled operation. It is adjustable for optimal user posture.
• Elektronisk hastighedskontrol: Integrated into the handle, allowing for 2-position speed adjustment.
• Batteriopladningsindikator: Located on the handle, displays the charge status of the two batteries.
• Detachable Aluminum Shaft: High-quality anodized aluminum shaft that can be separated for easy transport and compact storage.
• Beskyttende vagt: A 2-part guard that can be adapted for use with either the line spool or the blade, providing protection from thrown debris.
• Line Spool: Automatic double line spool for grass trimming.
• 3-tands klinge: High-quality metal blade for cutting thicker brush and undergrowth.
• Backpack Harness: Comfortable harness included for ergonomic weight distribution during extended use.

Figure 3.2: The adjustable double handle with Softgrip ensures comfortable and ergonomic operation.

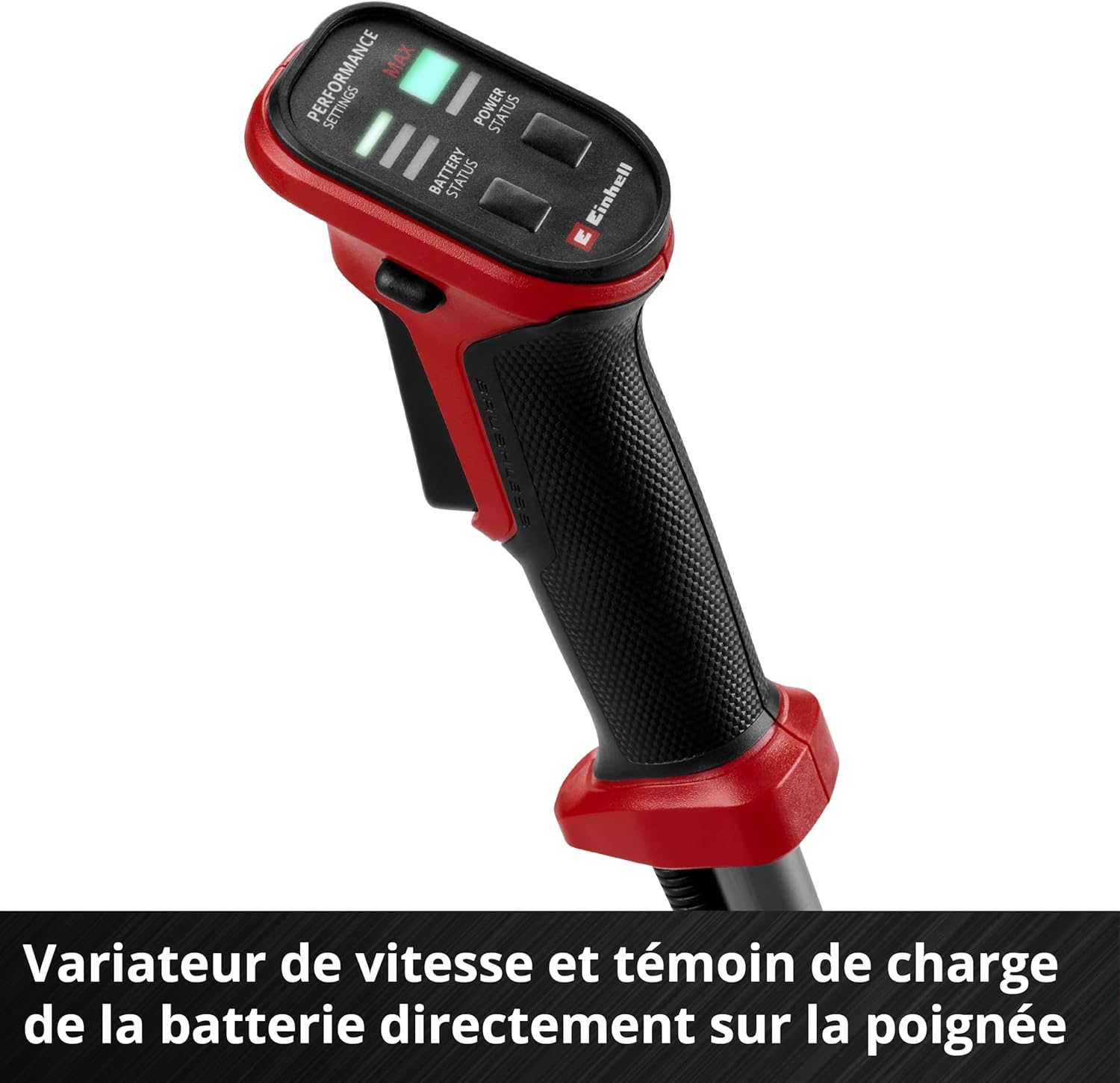

Figure 3.3: The handle features integrated electronic speed control and a battery charge indicator for convenience.

4. Opsætning og montering

Your Einhell Cordless Brushcutter requires some assembly before first use. Please follow these steps carefully:

4.1. Assembling the Shaft:

1. Connect the two parts of the aluminum shaft. Ensure they click securely into place.
2. Tighten any locking mechanisms on the shaft connection point.

4.2. Montering af håndtaget:

1. Slide the double handle onto the shaft.
2. Adjust the handle to a comfortable working position and secure it firmly using the provided fasteners.

4.3. Installing the Protective Guard:

1. Attach the 2-part protective guard to the lower part of the shaft, above the cutting head.
2. Ensure it is securely fastened and correctly positioned to deflect debris away from the user.

4.4. Attaching the Cutting Attachment (Line Spool or Blade):

The brushcutter allows for quick and easy switching between the line spool and the 3-tooth blade using the spindle lock mechanism.

1. For Line Spool: Ensure the line spool is correctly wound and attached to the cutting head.
2. Til 3-tandsklinge: Align the blade with the spindle and secure it using the provided nut and wrench. Ensure it is tightened securely.

Figure 4.1: The spindle lock allows for quick and easy switching between the 3-tooth blade and the automatic double line spool.

4.5. Installation af batterier:

This brushcutter requires two Power X-Change batteries (not included). Insert fully charged batteries into the battery compartments until they click into place.

Figure 4.2: Batteries and charger are sold separately. Ensure you use compatible Einhell Power X-Change batteries.

4.6. Attaching the Backpack Harness:

1. Put on the comfortable backpack harness.
2. Attach the brushcutter to the harness hook. Adjust the straps to distribute the weight evenly and ensure comfortable operation.

5. Betjeningsvejledning

Follow these guidelines for safe and effective operation of your brushcutter:

5.1. Start og stop:

1. Ensure batteries are fully charged and securely inserted.
2. Press the safety lock-off button (if present) and then squeeze the trigger to start the motor.
3. Slip aftrækkeren for at stoppe motoren.

5.2. Hastighedskontrol:

Use the 2-position electronic speed control on the handle to adjust the cutting speed according to the task. Lower speeds are suitable for lighter trimming, while higher speeds are for dense growth.

5.3. Skæreteknikker:

• For Line Spool (Trimming Grass): Swing the brushcutter in a sweeping motion from side to side, keeping the cutting head parallel to the ground. Overlap each pass slightly to ensure an even cut.
• For 3-Tooth Blade (Cutting Brush): Approach the material slowly and steadily. Use a controlled, deliberate motion. Be mindful of kickback, especially when cutting thicker stems or woody material. Cut from top to bottom for optimal results.
• Always maintain a firm grip on the handles and keep your balance.
• Undgå at ramme hårde genstande som sten, hegn eller beton, da dette kan beskadige skæreudstyret og værktøjet.

Figure 5.1: Operating the brushcutter to clear tall grass and weeds.

Figure 5.2: Maintain a comfortable and stable posture while operating, utilizing the backpack harness for support.

6. Vedligeholdelse

Regular maintenance ensures the longevity and optimal performance of your brushcutter. Always disconnect the battery pack before performing any maintenance.

6.1. Rengøring:

• After each use, clean the brushcutter thoroughly. Remove grass clippings, dirt, and debris from the cutting head, protective guard, and motor housing.
• Brug annonceamp cloth and mild soap for cleaning. Do not use harsh chemicals or abrasive cleaners.
• Ensure no moisture enters the motor or battery compartments.

Figure 6.1: Regularly clean the protective guard to ensure proper function and visibility.

6.2. Inspecting Cutting Attachments:

• Line Spool: Check the cutting line for wear and tear. Replace the line when it becomes too short or damaged. Refer to the setup section for changing the line spool.
• 3-tands klinge: Inspect the blade for sharpness, cracks, bends, or any other damage. A dull or damaged blade can reduce cutting efficiency and increase the risk of kickback. Sharpen or replace the blade as needed.

Figure 6.2: Proper inspection and replacement of cutting attachments are crucial for performance and safety.

6.3. Opbevaring:

• Store the brushcutter in a dry, well-ventilated area, away from direct sunlight and extreme temperatures.
• Ensure the battery packs are removed before storage. Store batteries in a cool, dry place.
• The detachable shaft and integrated wall mount allow for compact and convenient storage.

7. Fejlfinding

This section addresses common issues you might encounter with your brushcutter. For problems not listed here, please contact customer support.

8. Tekniske specifikationer

Detailed specifications for the Einhell Professional GP-BC 36/430 Li BL-Solo Cordless Brushcutter:

Figure 8.1: The advanced brushless motor offers increased power, longer runtime, and a 10-year warranty upon online registration.

8.1. Battery Runtime (Approximate)

Runtime varies depending on battery capacity and operating speed (max/min rotation speed). Values are approximate for two batteries.

Blade - Max. Rotation Speed:

Figure 8.2: Approximate battery runtime when using the blade at maximum rotation speed.

Blade - Min. Rotation Speed:

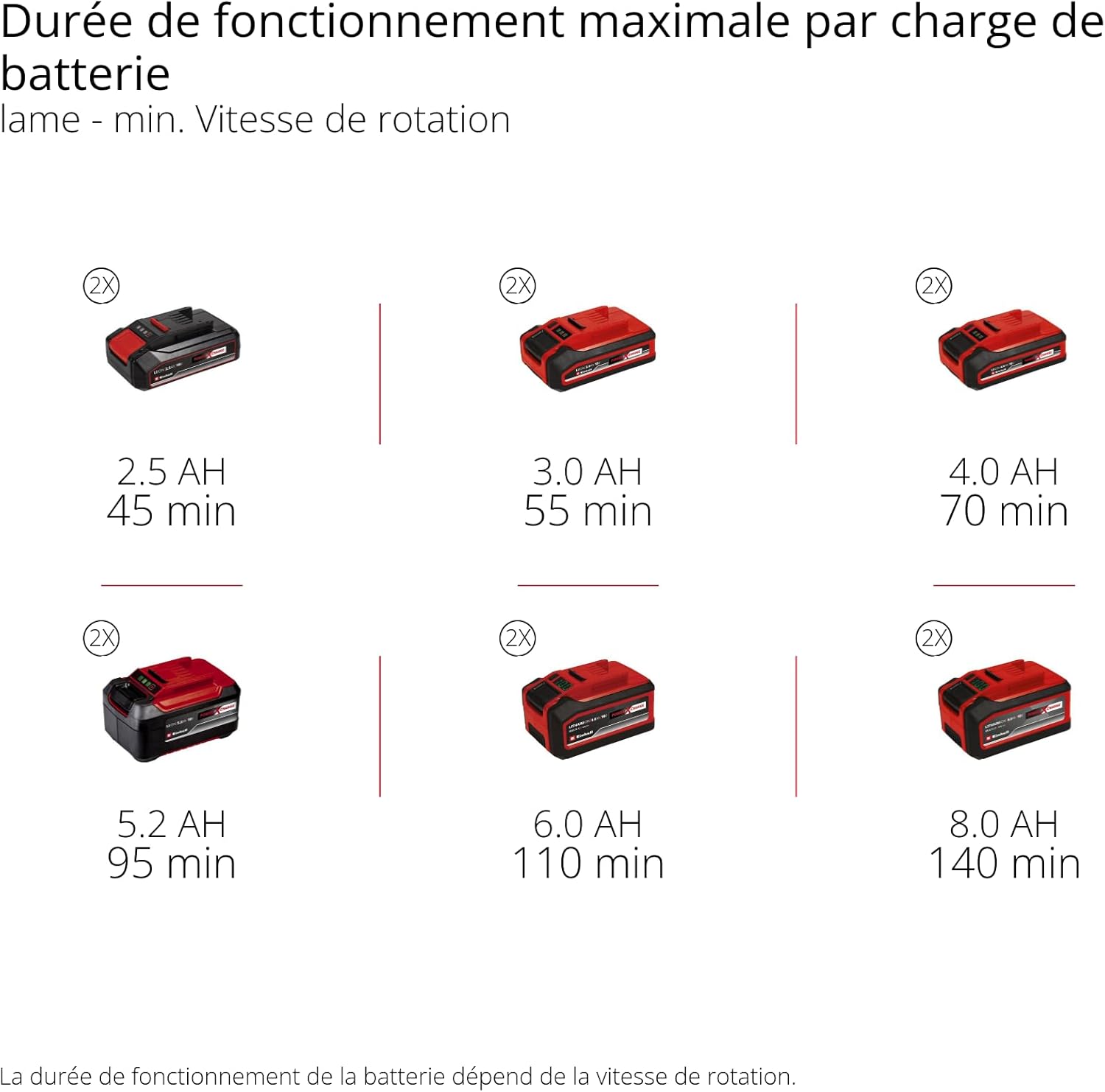

Figure 8.3: Approximate battery runtime when using the blade at minimum rotation speed.

Line Spool - Max. Rotation Speed:

Figure 8.4: Approximate battery runtime when using the line spool at maximum rotation speed.

Line Spool - Min. Rotation Speed:

Figure 8.5: Approximate battery runtime when using the line spool at minimum rotation speed.

9. Garanti og support

9.1. Garantioplysninger:

The Einhell Professional GP-BC 36/430 Li BL-Solo Cordless Brushcutter comes with a 10-year warranty on the brushless motor ved online registrering. Se venligst den officielle Einhell-brugsanvisning website for detailed warranty terms and conditions and registration instructions.

9.2. Kundesupport:

For technical assistance, spare parts, or any questions regarding your product, please contact Einhell customer support. Contact information can typically be found on the official Einhell webwebstedet eller på din produktemballage.

When contacting support, please have your product model number (GP-BC 36/430 Li BL-Solo) and serial number (if applicable) ready to assist with faster service.
