MFSTUDIO 10x20 ft Heavy Duty Metal Carport Instruction Manual

1. Vigtige sikkerhedsoplysninger

Before beginning assembly, please read and understand all instructions. Failure to follow these instructions may result in injury or damage to the product.

• Ensure all components are present and undamaged before starting assembly.
• Always assemble the carport on a level surface.
• Securely anchor the carport to a stable foundation according to local building codes and ordinances.
• Må ikke samles i kraftig vind eller ugunstige vejrforhold.
• Regularly clear snow from the roof to prevent excessive accumulation, which can damage the structure and pose a safety hazard.
• Wear appropriate safety gear during assembly, including gloves and eye protection.
• Det anbefales at være mindst to personer til montering.

Advarsel: Wind and snow loads are for reference only and assume a standalone unit without an enclosure kit, securely anchored according to local building codes. Local building code requirements vary by location; conformance to local codes is the responsibility of the purchaser.

2. Pakkens indhold

Verify that all parts listed in the packing list are present before proceeding with assembly. If any parts are missing or damaged, please contact customer support.

Billede 2.1: Illustration of the carport's frame components and the simplified assembly process. This diagram shows the frame being built in stages, highlighting the ease of construction.

3. Opsætning og montering

3.1 Forberedelse af stedet

• Select a flat, level surface for installation. The carport can be installed on dirt, asphalt, or concrete.
• Clear the area of any debris, rocks, or obstructions.
• Ensure adequate space around the carport for assembly and future use.

3.2 Monteringstrin

The MFSTUDIO carport features an innovative adaptive threaded pipe frame design for simplified assembly.

1. Udpak komponenter: Carefully unpack all boxes and lay out components, verifying against the parts list. Wait for all shipping boxes to arrive before starting installation.
2. Saml ramme: Follow the detailed instructions provided in the assembly guide. The adaptive threaded pipe frame design shortens the installation process.
3. Fastgør tagpaneler: Secure the corrugated galvanized steel roof panels to the frame. Ensure proper alignment and secure fastening to prevent leaks and ensure structural integrity.
4. Anchor Carport: Once the structure is complete, securely anchor the carport to the ground using the provided hardware. This is crucial for stability, especially in windy conditions.

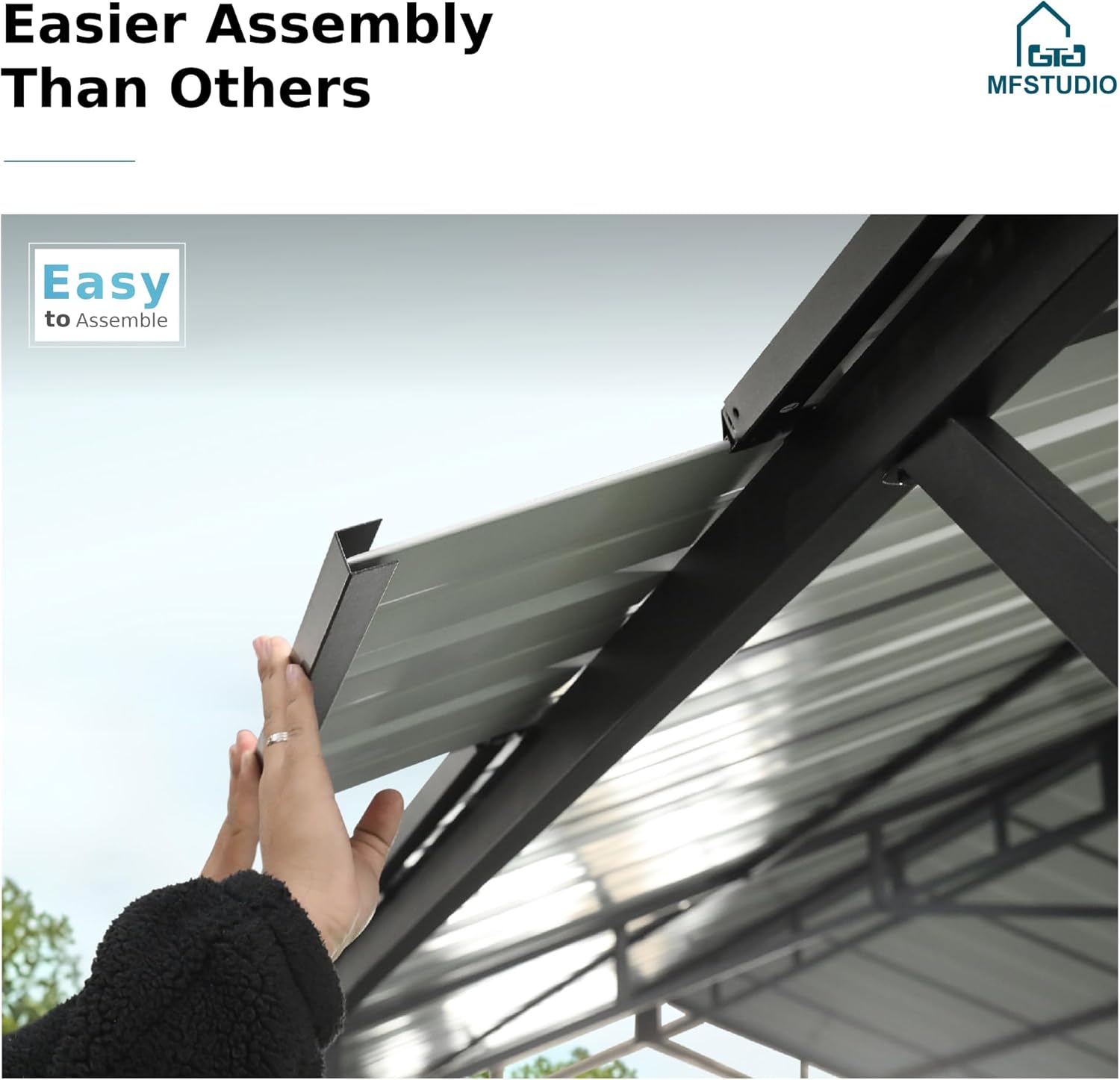

Billede 3.1: Et nærbillede view demonstrating the attachment of a roof panel to the carport frame, illustrating the ease of assembly.

Billede 3.2: Detail of the heavy-duty, corrosion-resistant steel tube frame, showcasing the robust construction and secure connections.

Instruktionsvideo: For a visual guide, please refer to the official instruction video available on the product page or by contacting MFSTUDIO customer support.

4. Betjeningsvejledning

The MFSTUDIO 10x20 ft Carport is designed to provide versatile outdoor shelter.

• Køretøjsbeskyttelse: Use the carport to protect cars, trucks, boats, and other vehicles from sun, rain, and light snow.
• Outdoor Shelter: The spacious design also makes it suitable for outdoor gatherings, temporary storage for dining sets, or as an event shelter for various occasions.

Billede 4.1: The MFSTUDIO carport providing shelter for a pickup truck, demonstrating its primary function.

Billede 4.2: The carport configured as an outdoor living area with seating and a dining table, showcasindens alsidighed.

5. Vedligeholdelse

Proper maintenance will extend the lifespan of your MFSTUDIO carport.

• Snerydning: Regularly clear snow from the roof. A heavy load of snow can damage the structure and create a safety hazard. Monitor weather conditions closely during winter.
• Rensning: Clean the roof and frame periodically with mild soap and water to remove dirt and debris. Avoid abrasive cleaners that could damage the finish.
• Inspektion: Periodically inspect all bolts, connections, and anchors to ensure they remain tight and secure. Check for any signs of rust or damage to the frame and roof panels.
• Rustforebyggelse: The frame is powder-coated and the roof is galvanized steel for rust resistance. However, promptly address any scratches or chips in the coating to prevent rust.

Billede 5.1: A carport with snow on its roof, illustrating the importance of regular snow removal for structural integrity.

Billede 5.2: A map highlighting regions prone to snowfall, accompanied by a reminder to clear snow from the carport roof.

6. Fejlfinding

• Issue: Carport feels unstable after assembly.

  Løsning: Ensure all bolts and connections are tightened securely. Verify that the carport is anchored properly to a stable foundation. Re-check the levelness of the installation surface.

• Issue: Water leakage from the roof.

  Løsning: Inspect roof panels for proper overlap and secure fastening. Ensure all screws are tight and any sealing elements are correctly installed. Check for any damage to the roof panels.
• Issue: Difficulty assembling pipes.

  Løsning: Ensure pipes are correctly oriented according to the manual. Applying a small amount of lubricant (e.g., white lithium grease) to the joints can aid in sliding components together, as suggested by user feedback.

7. Specifikationer

Billede 7.1: Detailed product dimensions, including length, width, and height measurements.

8. Garanti og support

8.1 Garantioplysninger

For specific warranty details regarding your MFSTUDIO Carport, please refer to the documentation included with your purchase or contact MFSTUDIO customer support directly. Protection plans may also be available for extended coverage.

8.2 Kundesupport

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact MFSTUDIO customer support.

• Online support: Visit the official MFSTUDIO webhjemmeside med ofte stillede spørgsmål og kontaktmuligheder.
• Kontakt sælger: For purchases made through Amazon, you can contact the seller "MODERN - FURNITURE" directly via your Amazon order history.
