Dell Pro 32 Plus 4K USB-C Hub-skærm (P3225QE) - Brugermanual

1. Introduktion

This manual provides essential information for setting up, operating, and maintaining your Dell Pro 32 Plus 4K USB-C Hub Monitor (P3225QE). Please read this guide thoroughly to ensure proper usage and to maximize the performance and longevity of your monitor.

The Dell Pro 32 Plus 4K USB-C Hub Monitor (P3225QE) is designed to deliver crisp, clear images with a native resolution of 3840 x 2160. Its 32-inch diagonal screen and wide 178-degree viewing angle provide an immersive visual experience. Features like anti-glare coating, flicker-free panel, and Low Blue Light technology are integrated to enhance user comfort during extended use.

2. Sikkerhedsoplysninger

Always follow these safety precautions to prevent damage to the monitor and to ensure your personal safety:

• Placer ikke skærmen på en ustabil vogn, stativ eller bord.
• Bloker ikke ventilationsåbninger.
• Use only the power cord provided with your monitor.
• Do not insert any objects into the monitor's slots or openings.
• If the monitor does not operate normally, refer to the Troubleshooting section of this manual.

3. Pakkens indhold

Bekræft at alle komponenter er til stede i pakken:

• Dell Pro 32 Plus 4K USB-C Hub Monitor (P3225QE)
• Monitor Stand
• Strømkabel
• USB-C kabel
• HDMI kabel
• Brugerdokumentation

4. Opsætning

4.1 Fysisk samling

Følg disse trin for at samle din skærm:

1. Tag forsigtigt skærmen og dens komponenter ud af emballagen.
2. Attach the monitor stand to the monitor panel. Ensure it clicks securely into place.
3. Placer den samlede skærm på en stabil, plan overflade.

The monitor features a sleek design with thin bezels, providing a modern aesthetic for any workspace. The stand allows for various adjustments to optimize your viewoplevelse.

4.2 Tilslutning af skærmen

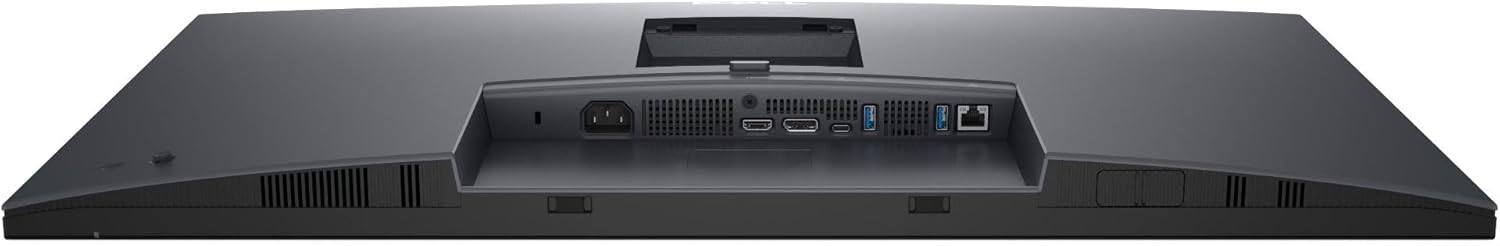

Connect the monitor to your computer and power source using the provided cables:

1. Tilslut strømkablet til skærmens strømindgang og derefter til en stikkontakt.
2. Connect the USB-C cable from your computer to the USB-C input on the monitor. This single cable can provide video, data, and up to 90W of power delivery to your laptop.
3. Alternatively, use the HDMI or DisplayPort cables to connect your computer for video input.
4. Utilize the integrated USB hub by connecting peripherals (e.g., keyboard, mouse) to the USB Type-A ports on the monitor.
5. For wired network connectivity, connect an Ethernet cable to the RJ45 port on the monitor.

5. Betjening af monitoren

5.1 Tænd/sluk

Tryk på tænd/sluk-knappen nederst til højre på skærmen for at tænde eller slukke den.

5.2 Skærmdisplay (OSD)-kontroller

The OSD menu allows you to adjust various monitor settings. The control buttons are located on the bottom edge of the monitor:

• Power knap: Tænder eller slukker for skærmen.
• Menu/Indstillinger-knap: Åbner hoved-OSD-menuen.
• Input/Source Switch: Selects the video input source (e.g., HDMI, DisplayPort, USB-C).
• Brightness/Contrast Controls: Adjusts display brightness and contrast levels.
• Quick Access Shortcut Button: Giver hurtig adgang til ofte anvendte funktioner.

5.3 Justering af skærmindstillinger

Navigate the OSD menu using the control buttons to customize settings such as:

• Lysstyrke og kontrast: Fine-tune the display's luminance.
• Farveindstillinger: Adjust color temperature, hue, and saturation.
• Forudindstillede tilstande: Select from various display modes optimized for different content (e.g., Movie, Game, Standard).
• Aspektforhold: Change the display's aspect ratio.
• Svartid: Adjust for smoother motion, especially useful for fast-paced content.
• PIP/PBP-tilstand: Konfigurer tilstandene Billede-i-billede eller Billede-efter-billede for viewbruger flere kilder samtidigt.

5.4 Ergonomiske justeringer

The monitor stand allows for ergonomic adjustments to enhance comfort:

• Højdejustering: Hæv eller sænk skærmen til øjenhøjde.
• Vip: Adjust the screen's vertical angle (-5° to +21°).
• Drejelig: Rotate the screen horizontally for optimal viewfra forskellige positioner.

6. Vedligeholdelse

Sådan bevarer du din skærms ydeevne og udseende:

• Rengøring af skærmen: Brug let en blød, fnugfri klud dampened with water or a screen cleaner. Do not use harsh chemicals.
• Rengøring af Casing: Tør skærmen c afasinmed en blød, tør klud.
• Ventilation: Ensure the ventilation openings are clear and not obstructed.

7. Fejlfinding

Hvis du støder på problemer med din skærm, kan du prøve følgende løsninger:

• Ingen strøm: Kontroller, om strømkablet er korrekt tilsluttet til både skærmen og stikkontakten. Sørg for, at stikkontakten fungerer.
• Intet signal: Verify that the video cable (USB-C, HDMI, or DisplayPort) is correctly connected to both the monitor and your computer. Select the correct input source via the OSD menu.
• Flimrende skærm: Ensure the video cable is securely connected. Adjust the refresh rate in your computer's display settings.
• Problemer med billedkvalitet: Reset the monitor to factory settings via the OSD menu. Adjust brightness, contrast, and color settings.

8. Specifikationer

9. Garanti og support

For warranty information and technical support, please refer to the documentation included in your product package or visit the official Dell support webwebsted. Gem din købskvittering for garantikrav.
