Indledning
This user manual provides important information for the safe and efficient operation of your Technaxx TX-315 10000mAh 3-in-1 Wireless Fast Charging Power Bank. Please read this manual thoroughly before using the device and keep it for future reference.
Sikkerhedsinstruktioner
- Udsæt ikke powerbanken for ekstreme temperaturer, direkte sollys eller ild.
- Du må ikke selv adskille, reparere eller ændre enheden. Overlad al service til kvalificeret personale.
- Hold powerbanken væk fra vand og andre væsker.
- Do not drop, hit, or subject the device to strong impacts.
- Sørg for ordentlig ventilation under opladning eller afladning.
- Opbevares utilgængeligt for børn.
- Bortskaf powerbanken i henhold til lokale regler for elektronisk affald.
Produkt overview
Familiarize yourself with the components of your Technaxx TX-315 power bank:

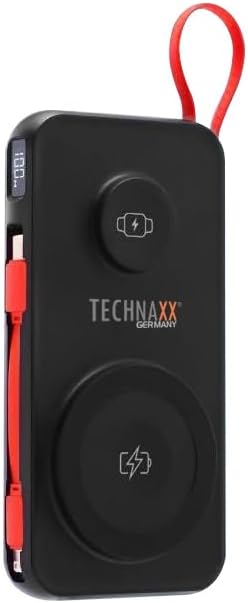

Image: The Technaxx TX-315 power bank, a black rectangular device with a red lanyard. It features a digital display on the side, a USB-C port, a USB-A port, a built-in red USB-C cable, a magnetic wireless charging pad for smartphones, and a smaller wireless charging pad for smartwatches. The Technaxx logo is visible on the front.
- Digital skærm: Viser batteriprocenttage.
- Magnetic Wireless Charging Pad (15W): Til kompatible smartphones.
- Smartwatch Wireless Charging Pad (3W): For compatible smartwatches.
- USB-A Output Port (22.5W): For wired charging of various devices.
- USB-C Input/Output Port (20W PD): For charging the power bank or wired charging of devices.
- Indbygget USB-C-kabel: Praktisk til opladning af enheder.
- Power knap: Activates the display and charging functions.
Opsætning
Opladning af Power Bank
- Connect the power bank to a USB wall charger (not included) using the built-in USB-C cable or a separate USB-C to USB-C cable via the USB-C port.
- Det digitale display viser opladningsstatus og angiver batteriprocenten.tage.
- Powerbanken er fuldt opladet, når displayet viser "100%".
Drift
Charging Smartphones Wirelessly (15W)
- Tryk på tænd/sluk-knappen for at aktivere powerbanken.
- Place your MagSafe-compatible or Qi-enabled smartphone onto the larger magnetic wireless charging pad. Ensure proper alignment for optimal charging.
- The phone's charging indicator will confirm charging has begun.
Charging Smartwatches Wirelessly (3W)
- Tryk på tænd/sluk-knappen for at aktivere powerbanken.
- Place your compatible smartwatch onto the smaller wireless charging pad.
- The smartwatch's display will indicate that it is charging.
Wired Charging via USB-A or USB-C Ports
- Tryk på tænd/sluk-knappen for at aktivere powerbanken.
- Connect your device to the USB-A port or the USB-C port using an appropriate charging cable.
- Powerbanken vil automatisk begynde at oplade din enhed.
- The built-in USB-C cable can also be used for convenient wired charging.
Forståelse af det digitale display
Det digitale display viser den aktuelle batteriprocenttage of the power bank. This allows you to monitor the remaining power and know when to recharge the unit.
Opretholdelse
- Rengør powerbanken med en blød, tør klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Opbevar powerbanken et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
- Hvis den ikke bruges i længere perioder, skal du oplade powerbanken mindst én gang hver tredje måned for at opretholde batteriets sundhed.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Powerbanken oplader ikke. | Cable not connected properly; charger not working; power bank battery depleted. | Check cable connections; try a different charger; allow power bank to charge for a few minutes. |
| Enheden oplades ikke fra powerbanken. | Power bank not activated; device not compatible; cable faulty; power bank battery low. | Press power button; ensure device supports wireless/wired charging; try a different cable; recharge power bank. |
| Wireless charging is slow or intermittent. | Misalignment of device; thick phone case; foreign objects between device and pad. | Realign device on charging pad; remove thick phone case; remove any metal objects or cards. |
| Digitalt display virker ikke. | Power bank battery depleted; internal fault. | Recharge power bank; if issue persists, contact support. |
Specifikationer
- Modelnavn: TX-315
- Batterikapacitet: 10000mAh
- Battericellesammensætning: Lithium polymer
- Wireless Charging (Smartphone): 15W (magnetisk)
- Wireless Charging (Smartwatch): 3W
- USB-A-output: 22.5W
- USB-C input/output: 20W strømforsyning (PD)
- Produktdimensioner: 144 x 73 x 16 mm (approx. 7.2L x 2W x 14Th centimetres)
- Varens vægt: 250g (approx. 0.56 Pounds)
- Fabrikant: Technaxx
- Oprindelsesland: Kina
Garanti og support
Your Technaxx TX-315 Power Bank comes with a standard manufacturer's warranty. For detailed warranty information, please refer to the warranty card included in the product packaging or visit the official Technaxx website. If you encounter any issues or require technical assistance, please contact Technaxx customer support or your retailer.
The product package includes the Powerbank 10000mAh TX-315 and this user manual.
