Husky 42-inch W x 18-inch D Standard Duty Black Tool Chest Combo

Vigtige sikkerhedsoplysninger

Please read and understand all instructions before assembling or operating this tool chest combo. Retain this manual for future reference.

• Klemmepunkter: Be cautious of pinch points when using the push handle and keep fingers away from closing drawers to prevent injury.
• Vægt kapacitet: Do not exceed the maximum weight capacity for drawers or the entire unit. Overloading can cause instability and damage.
• Stabilitet: Ensure the unit is placed on a level surface. Lock casters when the unit is stationary to prevent accidental movement.
• Børn: Keep children away from the tool chest, especially when drawers are open or during movement.

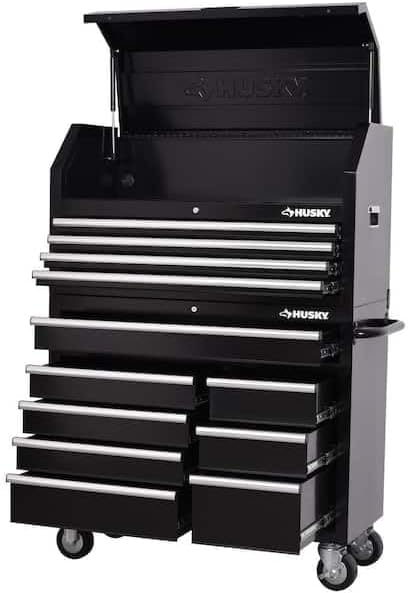

Produkt overview

The Husky 42-inch W x 18-inch D Standard Duty Black Tool Chest Combo provides organized storage for tools and equipment. It features a top chest and a bottom cabinet, both constructed from durable steel with a powder-coated finish.

This combo unit is designed for standard duty use, offering robust construction and convenient features for various workshop or garage environments.

Nøglefunktioner

• Holdbar konstruktion: All-welded steel construction with a tough, rust-resistant powder coat black paint finish.
• Soft-Close skuffer: 100 lbs. rated full extension ball-bearing drawer slides with a soft-closing feature to prevent slamming and keep tools in place.
• Integreret strømskinne: Top till includes a power strip with 6 outlets and 2 USB ports for charging tools and electronic devices.
• Gas Strut Supported Lid: The top till lid is supported by dual gas struts for easy and safe access.
• Ergonomisk håndtag: A push handle can be installed on either side of the cabinet for convenient maneuverability.
• Hjul: Equipped with 5 in. x 2 in. casters for easy movement around the workspace.

Opsætning og montering

This Husky tool chest combo is designed for minimal assembly. The main chest and cabinet units come pre-assembled. Only the handle and casters require attachment.

Montering af håndtaget

1. Locate the ergonomic push handle and the corresponding mounting holes on either side of the bottom cabinet.
2. Align the handle with the desired mounting holes.
3. Secure the handle using the provided hardware (screws/bolts). Ensure it is tightly fastened.

Montering af hjulene

1. Carefully tilt the cabinet to access the bottom. It is recommended to have assistance for this step.
2. Attach the 5-inch x 2-inch casters to the designated mounting points on the bottom of the cabinet using the provided hardware.
3. Ensure all casters are securely fastened. Two of the casters typically include locking mechanisms.
4. Return the cabinet to an upright position. Lock the casters to prevent movement during use.

Operation

Åbning og lukning af skuffer

• To open a drawer, pull the handle firmly. The ball-bearing slides will allow for smooth extension.
• To close a drawer, push it gently until the soft-closing mechanism engages, pulling the drawer fully shut. Avoid forcing drawers closed.
• Each drawer includes a pre-cut liner to protect tools and the drawer surface.

Using the Top Till and Power Strip

• Lift the lid of the top till. The gas struts will assist in holding it open.
• The integrated power strip inside the top till can be used to power or charge electronic devices and tools. Ensure the tool chest is connected to a power source.
• Close the lid gently when not in use.

Opretholdelse

• Rensning: Tør de udvendige overflader af med en blød, damp cloth. Avoid abrasive cleaners that may damage the powder coat finish.
• Skuffeslider: Periodically inspect drawer slides for smooth operation. If necessary, apply a small amount of silicone lubricant to the ball bearings.
• Hardware: Check all bolts and screws periodically to ensure they remain tight. Tighten as needed.
• Hjul: Hold hjulene fri for snavs for at sikre jævn rulning.

Fejlfinding

Skuffer er vanskelige at åbne eller lukke:

• Check if the drawer is overloaded. Redistribute contents if necessary.
• Inspect drawer slides for obstructions or damage. Clean or lubricate as needed.
• Sørg for, at enheden er på en plan overflade.

Unit is unstable or wobbles:

• Verify that the unit is placed on a firm, level surface.
• Ensure all casters are locked when the unit is stationary.
• Check that all caster mounting bolts are securely tightened.

Produktspecifikationer

Garantioplysninger

This Husky Standard Duty Tool Chest Combo typically comes with a 3-year limited warranty. Please refer to the warranty card included with your purchase or contact Husky customer support for specific terms and conditions.

Kundesupport

For assistance with assembly, parts, or any questions regarding your Husky tool chest combo, please contact Husky customer support. Contact information can typically be found on the product packaging or the manufacturer's official webwebsted.
