Comfytemp Bærbar Fodmassager med Varme (Model FM-07-CB1) Brugermanual

1. Introduktion

Thank you for choosing the Comfytemp Portable Foot Massager with Heat. This device is designed to provide dynamic compression massage and soothing heat to your feet and ankles, promoting relaxation and temporary relief from discomfort. This manual provides essential information for safe and effective use, setup, operation, and maintenance of your massager.

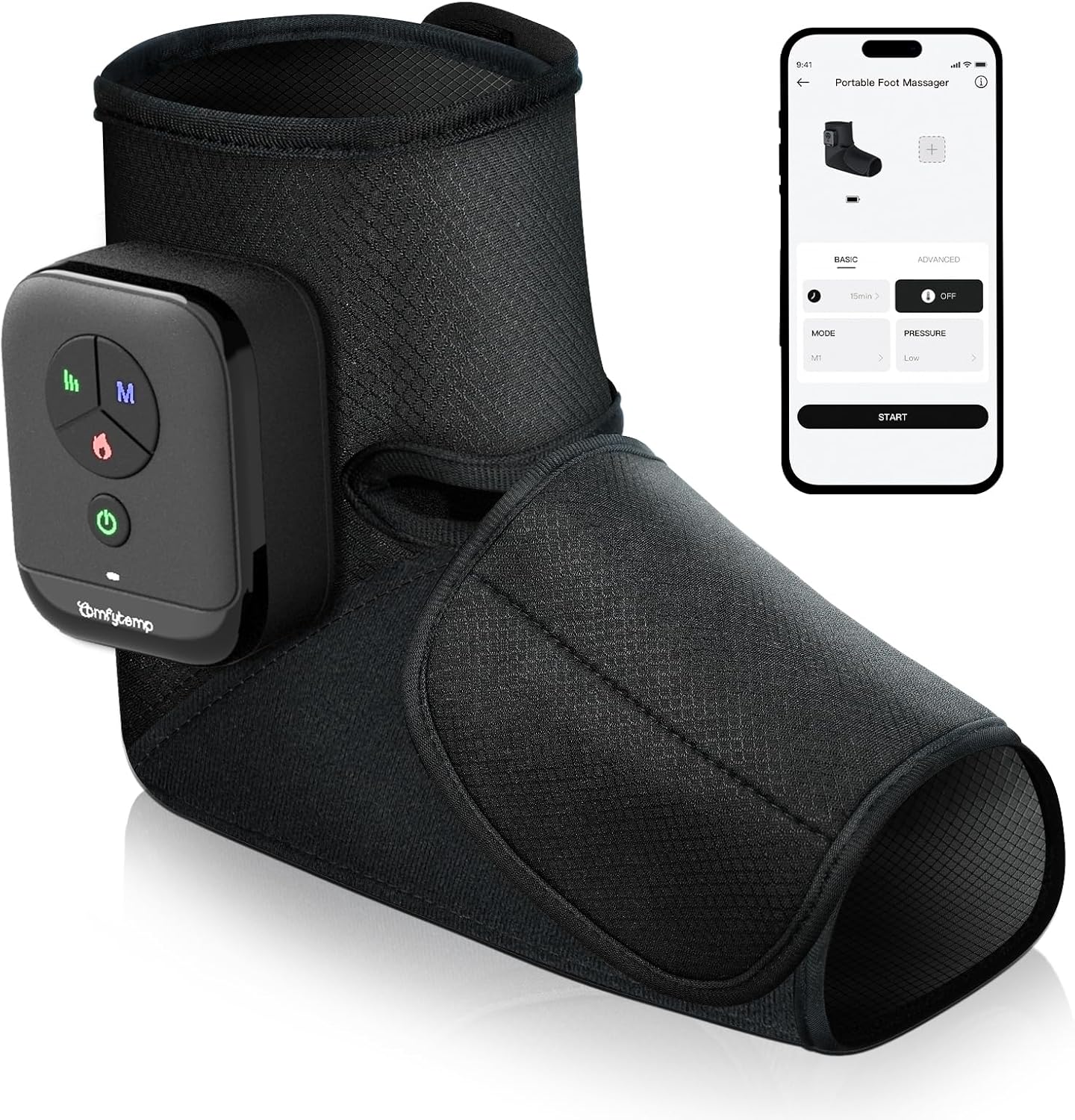

Figure 1: The Comfytemp Portable Foot Massager, showcasing its design and the mobile application interface.

2. Vigtige sikkerhedsinstruktioner

Please read all instructions carefully before using this product. Failure to follow these instructions may result in injury or damage to the device.

• Do not use this product if you have any medical conditions such as pacemakers, heart disease, blood clots, or are pregnant, without consulting a physician.
• Hold enheden væk fra vand eller overdreven fugt.
• Do not use the massager on swollen, inflamed, or injured areas.
• Avoid using the device for prolonged periods. A 15-minute auto-off timer is included for safety.
• Hvis du oplever ubehag eller smerter under brugen, skal du straks stoppe.
• Sørg for, at enheden er fuldt opladet før første brug.
• Dette apparat er ikke beregnet til brug af personer med nedsatte fysiske, sensoriske eller mentale evner, eller manglende erfaring og viden, medmindre de er under opsyn eller har fået instruktion i brugen af ​​apparatet af en person, der er ansvarlig for deres sikkerhed.

3. Pakkens indhold

• Comfytemp Portable Foot Massager (Model FM-07-CB1)
• USB-C ladekabel
• Brugermanual

4. Produktet er slutview og funktioner

The Comfytemp Portable Foot Massager is designed for convenience and effective relief. Key features include:

• Trådløst design: Enjoy unrestricted movement and use the massager anywhere. Equipped with a 2500mAh battery, it offers 80 to 150 minutes of use per charge.
• Dynamic Compression Massage: Features 3 independent airbags that apply rhythmic pressure across your forefoot, arch, heel, and ankle.
• Beroligende varmefunktion: A built-in heating element provides warmth up to 118°F (48°C) at the sole.
• Justerbar pasform: Two adjustable Velcro straps accommodate US shoe sizes 6 to 10. Pressure can be adjusted by loosening or tightening the straps.
• Dobbelt kontrolmuligheder: Control the massager using the built-in buttons or through the dedicated mobile application.

Figure 2: A user demonstrating the cordless operation of the foot massager, highlighting its portability and battery life.

Figure 3: An internal diagram showing the three airbag zones for compression and the foot bottom heating area.

5. Kom godt i gang

5.1 Opladning af enheden

1. Connect the provided USB-C charging cable to the charging port on the massager's control unit.
2. Plug the other end of the USB-C cable into a 5V/2A USB power adapter (not included).
3. The indicator light on the control unit will blink red during charging and turn solid red when fully charged.
4. En fuld opladning tager typisk cirka 2-3 timer.

5.2 Sådan bærer du massageapparatet

1. Unfold the massager and place your foot inside, ensuring your heel is comfortably seated.
2. Wrap the forefoot strap around your foot and secure it with the Velcro.
3. Wrap the ankle/calf strap around your ankle and secure it with the Velcro.
4. Ensure the control unit is positioned on your ankle, not upside down, for proper operation.
5. Adjust the straps to achieve a comfortable yet secure fit. Loosen for less pressure, tighten for more intense compression.

Figure 4: Sizing and adjustment guide for the foot massager, indicating suitability for US shoe sizes 6-10 and how to adjust straps for pressure.

6. Betjeningsvejledning

The massager can be controlled via its built-in buttons or a mobile application.

6.1 Using the Built-in Controller

The control unit features several buttons for direct operation:

• Tænd/sluk-knap (⏻): Tryk og hold nede for at tænde/slukke enheden.
• Tilstandsknap (M): Press to cycle through 3 massage modes (M1, M2, M3).
• Intensity Button (|||): Press to adjust between 3 intensity levels (Low, Medium, High).
• Heat Button (♨): Press to turn the heating function ON/OFF.

The device has a default 15-minute auto-off timer for each session.

6.2 Brug af mobilappen

For enhanced customization and control, download the Comfytemp app (available for iOS and Android) by scanning the QR code in the included manual.

• The app allows for custom massage combinations.
• Expanded timer options are available through the app.
• You can monitor and adjust settings remotely via the app.

Figure 5: Illustration of the dual control system, detailing functions available via physical buttons and the mobile application.

7. Pleje og vedligeholdelse

7.1 Rengøring

• Sørg for, at enheden er slukket og taget ud af stikkontakten før rengøring.
• Tør ydersiden af ​​med en blød, damp klæde. Brug ikke slibende rengøringsmidler eller nedsænk enheden i vand.
• Lad enheden lufttørre helt, før den opbevares eller tages i brug igen.

7.2 Opbevaring

• Opbevar massageapparatet et køligt, tørt sted, væk fra direkte sollys og ekstreme temperaturer.
• Opbevares utilgængeligt for børn og kæledyr.

8. Fejlfinding

9. Specifikationer

• Modelnummer: FM-07-CB1
• Produktdimensioner: 2 x 1 x 3 tommer (5.08 x 2.54 x 7.62 cm)
• Varens vægt: 1.57 pund (0.71 kilo)
• Strømkilde: Batteridrevet (2500mAh)
• Nominel voltage: 5V
• Heat Temperature: Up to 118°F (48°C) at the sole
• Auto-sluk timer: 15 minutter (standard)
• Fabrikant: Shenzhen Yicai Health Technology Co., Ltd

10. Support og garanti

For product support, technical assistance, or warranty inquiries, please contact Comfytemp customer service through the contact information provided on the product packaging or the official Comfytemp webwebsted. Gem venligst din købsbevis til garantikrav.
