WOPET W03 Lite Keramisk Kattevandfontæne Brugermanual

1. Introduktion

Thank you for choosing the WOPET W03 Lite Ceramic Cat Water Fountain. This automatic pet fountain is designed to provide fresh, filtered water for your cats and small dogs, encouraging healthy hydration. Please read this manual thoroughly before use to ensure proper setup, operation, and maintenance.

Image 1.1: The WOPET W03 Lite Ceramic Cat Water Fountain.

2. Vigtige sikkerhedsinstruktioner

• Læs alle instruktioner, inden du betjener apparatet.
• Do not immerse the power adapter or electrical plug in water or other liquids.
• Supervise children when they are near the pet fountain.
• Do not operate the appliance if it has a damaged cord or plug, or if it malfunctions or has been damaged in any manner.
• Brug kun tilbehør anbefalet eller solgt af producenten.
• Brug ikke apparatet til andet end det tilsigtede.
• Tag stikket ud af stikkontakten, når det ikke er i brug, før du sætter dele på eller af, og før rengøring.
• Ensure the power cord is placed where it cannot be tripped over or damaged.
• Kun til indendørs brug.

3. Produktkomponenter

Familiarize yourself with the parts of your WOPET W03 Lite Ceramic Cat Water Fountain:

1. Ceramic Base (Water Reservoir)
2. Ceramic Top Lid
3. Flower Spout (optional)
4. Vandpumpe
5. Filterbakke
6. Filter (Sponge and Carbon Filter)
7. Strømadapter

Billede 3.1: Eksploderet view of the filtration system, showing the ceramic top lid, filter tray, and multi-layer filter.

4. Opsætningsvejledning

Follow these steps to assemble and prepare your pet fountain for first use:

1. Udpak komponenter: Fjern forsigtigt alle dele fra emballagen.
2. Rengøring af komponenter: Wash the ceramic base, ceramic top lid, and flower spout with warm soapy water. Rinse thoroughly. The ceramic parts are dishwasher-safe.
3. Klargør filter: Rinse the filter under cold running water for several minutes to remove any loose carbon dust.
4. Saml pumpen: Attach the filter tray to the water pump. Ensure the sponge filter is placed correctly in the filter tray, followed by the carbon filter.
5. Place Pump: Position the assembled pump and filter tray into the designated area in the ceramic base.
6. Fyld vandbeholder: Fill the ceramic base with clean water up to the maximum fill line. Do not overfill. The fountain has a 3L (101oz) capacity.
7. Place Top Lid: Carefully place the ceramic top lid onto the base, ensuring it sits securely.
8. Install Flower Spout (Optional): If desired, insert the flower spout into the opening on the ceramic top lid for a bubbling water flow. For a gentle fountain flow, the flower spout can be omitted.
9. Tilslut strøm: Connect the power adapter to the fountain's pump cable, then plug the adapter into a wall outlet.

Image 4.1: The WOPET W03 Lite fountain in operation, providing continuous flowing water.

5. Betjeningsvejledning

Once assembled and plugged in, the WOPET W03 Lite Ceramic Cat Water Fountain will begin operating automatically, circulating and filtering water for your pet.

5.1 Water Flow Options

The fountain offers two distinct water flow designs:

• Flower Waterfall: Achieved by installing the flower spout. This provides a bubbling, multi-stream flow that many pets find appealing.
• Gentle Fountain: Achieved by removing the flower spout. Water gently bubbles up from the center, creating a calm surface flow.

Image 5.1: Illustration of the two water flow designs: Gentle Fountain (without flower spout) and Flower Waterfall (with flower spout).

5.2 Water Level Monitoring

Regularly check the water level to ensure the pump is always submerged. The 3L capacity can provide hydration for up to 5 days, but this may vary based on pet size, number of pets, and environmental factors. Refill as needed to prevent the pump from running dry, which can shorten its lifespan.

5.3 Ultra-Quiet Operation

The W03 Lite features an ultra-quiet pump designed to operate at approximately 30dB, minimizing noise disturbance for both pets and owners.

Image 5.2: A cat drinking from the fountain while a person sleeps nearby, highlighting the ultra-quiet operation.

6. Vedligeholdelse og rengøring

Regular cleaning and filter replacement are crucial for maintaining water quality and extending the life of your fountain. It is recommended to clean the pump and replace filters every 2 weeks.

6.1 Adskillelse til rengøring

1. Tag stikket til springvandet ud af stikkontakten.
2. Remove the ceramic top lid and flower spout.
3. Remove the filter tray and filter.
4. Carefully remove the water pump from the ceramic base.
5. Empty any remaining water from the ceramic base.

6.2 Cleaning the Fountain Components

• Ceramic Parts: The ceramic base and top lid are dishwasher-safe. Alternatively, wash them with warm soapy water and rinse thoroughly.
• Pumpe: Disassemble the pump by removing the front cover and impeller. Clean all parts with a small brush to remove any hair or debris. Rinse thoroughly.
• Filter Tray & Spout: Vask med varmt sæbevand og skyl.

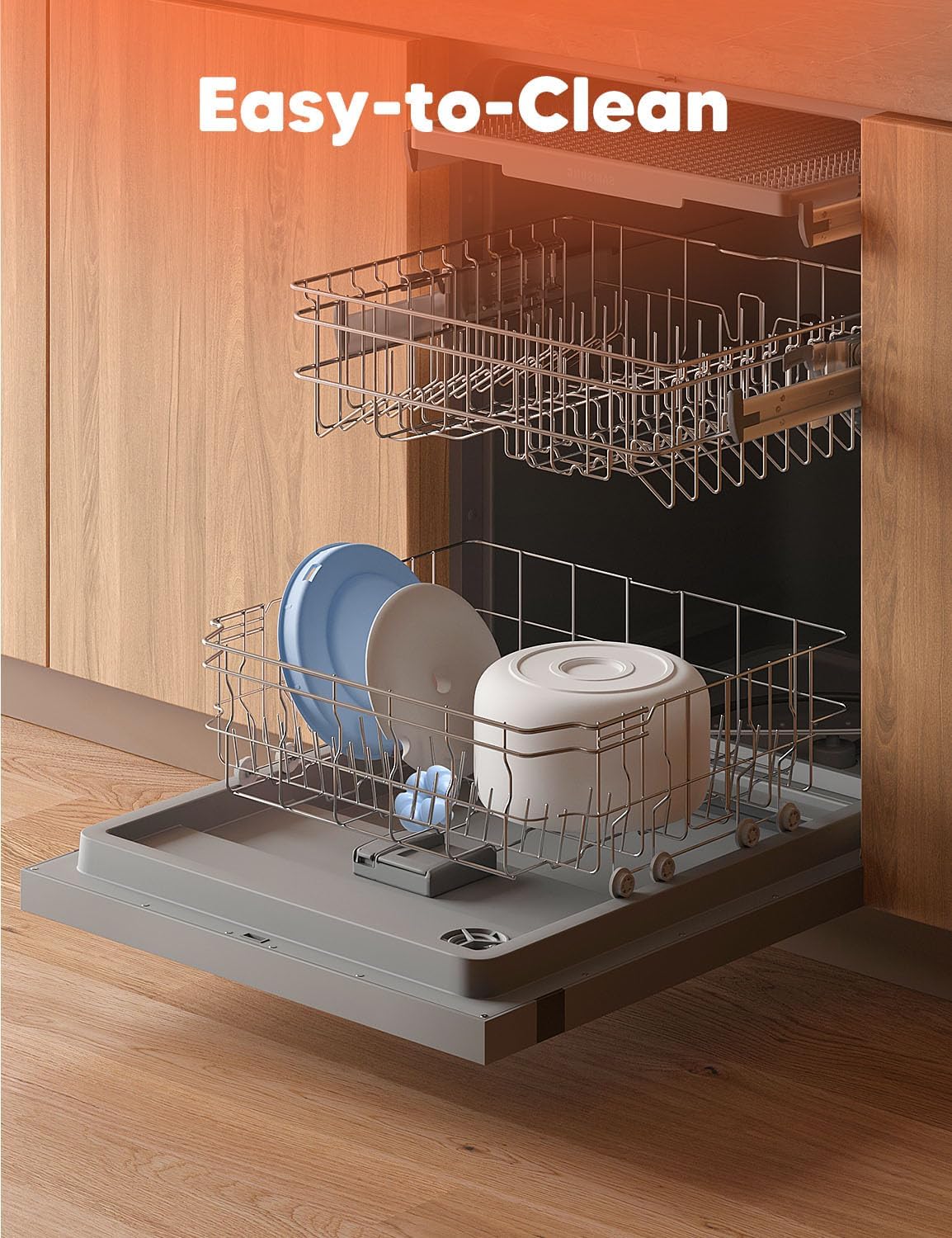

Image 6.1: The ceramic components of the WOPET W03 Lite fountain are dishwasher-safe for easy cleaning.

6.3 Filterudskiftning

Replace the filter every 2 weeks, or more frequently if you have multiple pets or notice reduced water flow. Always rinse new filters before use.

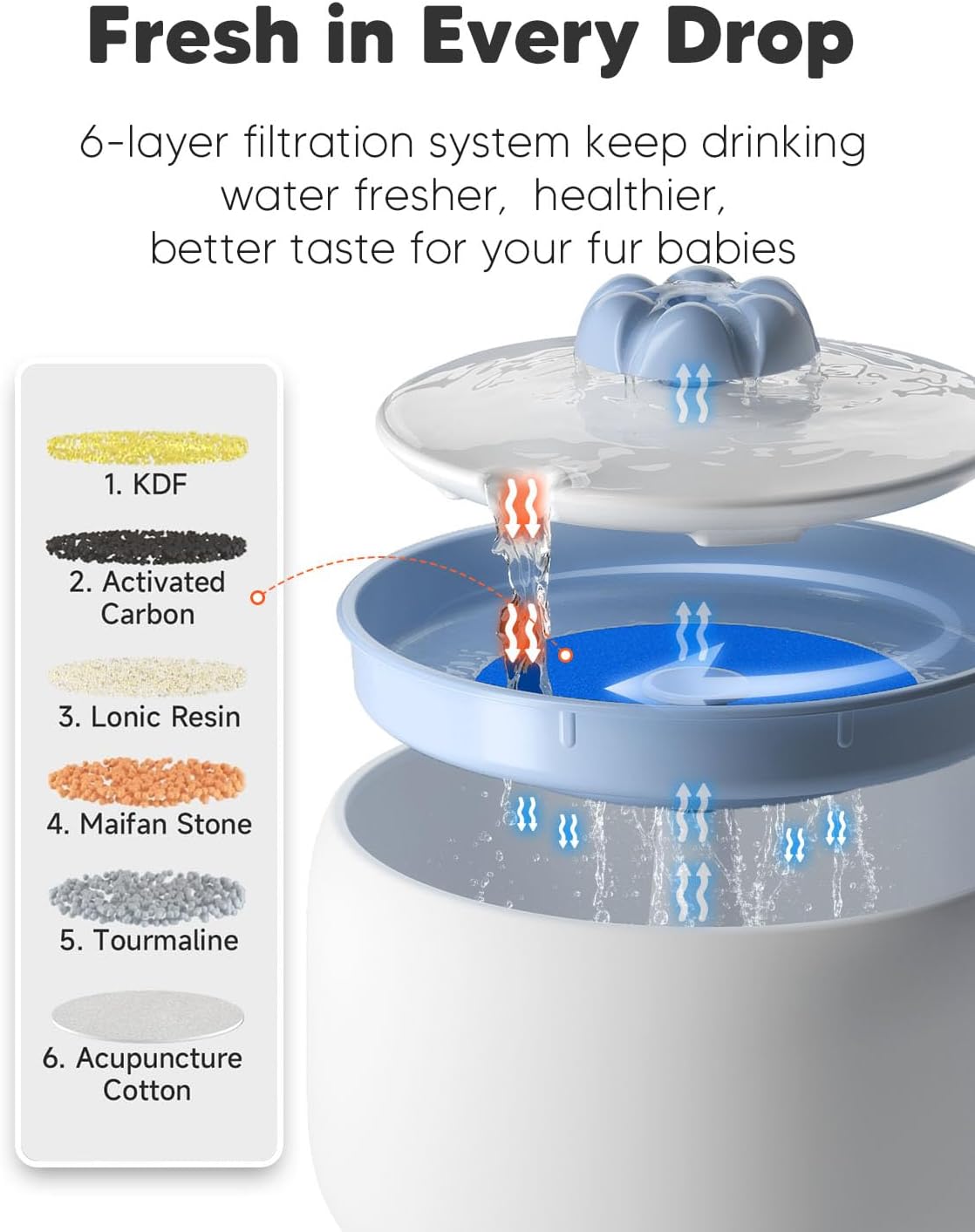

Image 6.2: The multi-layer filtration system, including sponge and carbon filters, ensures clean and fresh water.

6.4 Preventing Chin Acne

The WOPET W03 Lite is made of high-quality ceramic, which is beneficial for pets prone to chin acne or sensitivities, as it is less porous than plastic and easier to keep clean.

Image 6.3: The smooth, non-porous ceramic surface helps prevent chin acne in sensitive pets.

7. Fejlfinding

8. Produktspecifikationer

9. Garanti og kundesupport

9.1 Garantioplysninger

The WOPET W03 Lite Ceramic Cat Water Fountain comes with a 1 års garanti fra købsdatoen. Denne garanti dækker fabrikationsfejl og funktionsfejl ved normal brug. Den dækker ikke skader forårsaget af misbrug, ulykker, uautoriserede ændringer eller manglende overholdelse af instruktionerne i denne manual.

Gem venligst dit købsbevis for garantikrav.

9.2 Kundesupport

For any questions, concerns, or technical assistance, please contact WOPET Customer Support. Our team is available to help you with product inquiries, troubleshooting, and warranty services.

Kontaktoplysninger:

• Webwebsted: Visit the WOPET Store on Amazon
• E-mail: [Insert WOPET Customer Service Email Here, if available]
• Telefon: [Insert WOPET Customer Service Phone Number Here, if available]

Please have your model number (W03Lite) and purchase date ready when contacting support.
