Indledning
Thank you for choosing the Husky 5000 Lumen LED Portable Work Light. This manual provides important information regarding the safe operation, setup, maintenance, and troubleshooting of your new work light. Please read this manual thoroughly before using the product and retain it for future reference.
The Husky 5000 Lumen LED Work Light is designed for versatility, offering powerful illumination for various tasks. It can be used independently or mounted on its included tripod, providing flexible lighting solutions. Its durable construction and long-lasting LED bulb ensure reliable performance.
Sikkerhedsoplysninger
Følg altid grundlæggende sikkerhedsforanstaltninger, når du bruger elektriske apparater, for at mindske risikoen for brand, elektrisk stød og personskade.
- Do not look directly into the illuminated LED light.
- Ensure the power source matches the light's voltage-krav (55 volt).
- Keep the work light away from flammable materials.
- Brug ikke lyset, hvis ledningen eller stikket er beskadiget.
- Nedsænk ikke lyset i vand.
- Always unplug the light before cleaning or performing maintenance.
- Use only as intended for general illumination.
Pakkens indhold
- Husky 5000lm LED Portable Work Light
- Adjustable Stand/Tripod Base
- Strømledning
- 2 AA batteries (included for remote, if applicable, or internal component)
Opsætning
Assembling the Work Light
- Fjern forsigtigt alle komponenter fra emballagen.
- Unfold the adjustable stand base. Ensure the legs are fully extended for stability.
- Align the mounting hole on the work light with the screw on the stand.
- Securely attach the work light to the stand by tightening the knob.
- Adjust the angle of the light head as desired using the side adjustment knobs.
Figur 1: Forside view of the Husky 5000lm LED Portable Work Light assembled on its stand.

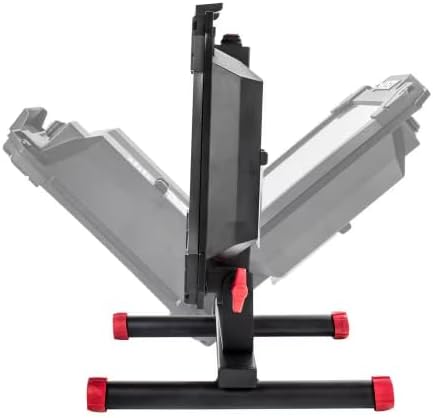

Figur 2: Side view illustrating the adjustable angle of the light head on its stand.
Detaching for Handheld Use
The work light can be easily detached from the stand for portable, handheld use.
- Loosen the knob securing the light to the stand.
- Carefully lift the light off the stand.
- The integrated easy-grip handle allows for comfortable transport and positioning.
Betjeningsvejledning
Tænd/sluk
- Ensure the work light is placed on a stable, level surface or held securely.
- Plug the power cord into a standard electrical outlet (120V AC, 60Hz).
- Locate the power switch, typically on the back or side of the unit.
- Press the power switch to turn the light ON.
- Press the power switch again to turn the light OFF.
Figur 3: Bagside view of the work light, highlighting the power input and additional outlets.
Using Integrated Outlets (if applicable)
Some models may feature integrated power outlets or USB ports for convenience. Refer to Figure 3 for location.
- AC stikkontakt: For powering other tools or devices (e.g., 120V, 15A max). Do not exceed the maximum current rating.
- USB-port: For charging small electronic devices (e.g., 5V, 2.1A max).
Note: Using the integrated outlets may slightly reduce the overall brightness of the work light if the total power draw exceeds the unit's capacity.
Opretholdelse
Regular maintenance ensures the longevity and optimal performance of your Husky work light.
- Rensning: Disconnect the power cord before cleaning. Use a soft, damp klud til at tørre ydersiden af. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Opbevaring: Store the work light in a cool, dry place when not in use. If storing for extended periods, ensure it is clean and free of debris.
- LED pære: The integrated LED bulb is designed for long life and does not require replacement.
- Ledningsinspektion: Periodically inspect the power cord for any signs of damage, cuts, or fraying. If damaged, discontinue use and have it repaired by a qualified technician.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | Ingen strøm til stikkontakten. Netledningen er beskadiget. Lyskontakten er slukket. | Kontrollér afbryderen, eller prøv en anden stikkontakt. Undersøg ledningen for skader; afbryde brugen, hvis den er beskadiget. Sørg for, at afbryderen er i positionen ON. |
| Lyset flimrer eller er svagt. | Lav voltage. Overbelastet kredsløb. | Sørg for, at strømkilden er stabil. Disconnect other devices from the same circuit or integrated outlets. |
| Light gets hot. | Normal drift. Utilstrækkelig ventilation. | The light is designed to be "cool to the touch" but some warmth is normal. Ensure adequate airflow around the unit. Do not cover the light. |
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | HD5000PUO |
| Lysstyrke | 5000 lumen |
| Lyskildetype | Integreret LED |
| Farvetemperatur | 4000 Kelvin |
| Strømkilde | Plug-In (AC) |
| Voltage | 55 Volts (Input assumed 120V AC, output to LED 55V) |
| Materiale | Aluminium |
| Dimensioner (L x B x H) | 2 cm x 10.62 cm x 12.88 cm |
| Vægt | (Not specified in input) |
| Batterier medfølger | 2 AA (for remote, if applicable, or internal component) |
| UPC | 819286019503 |
Garantioplysninger
Husky products are manufactured to high-quality standards and are warranted against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Husky webwebsted.
Gem venligst dit købsbevis for garantikrav.
Kundesupport
If you have any questions or require assistance with your Husky 5000lm LED Portable Work Light, please contact Husky Customer Service:
- Webwebsted: www.huskytools.com (Examplinket, det faktiske link kan variere)
- Telefon: Se produktemballagen eller den officielle webhjemmeside for kontaktnumre.
When contacting support, please have your model number (HD5000PUO) and purchase date available.
