RAPIQUE R102 Ultralet Trådløs Mus Brugsanvisning

Indledning

This manual provides detailed instructions for the setup, operation, and maintenance of your RAPIQUE R102 Ultra-Light Wireless Mouse. Designed for comfort and versatility, the R102 features dual-mode connectivity (Bluetooth 5.1 and 2.4GHz wireless), silent clicks, and adjustable DPI settings, making it suitable for various computing environments.

This image highlights the ultra-lightweight design of the RAPIQUE R102 mouse, emphasizing its 53-gram weight for comfortable, all-day use. It shows the mouse from different angles, illustrating its sleek profile.

Pakkens indhold

• R102 Lightweight Wireless Mouse x1
• USB -modtager x1
• USB-C Charge cable x1
• Manual x1

Produkt overview

Familiarize yourself with the components and controls of your RAPIQUE R102 mouse.

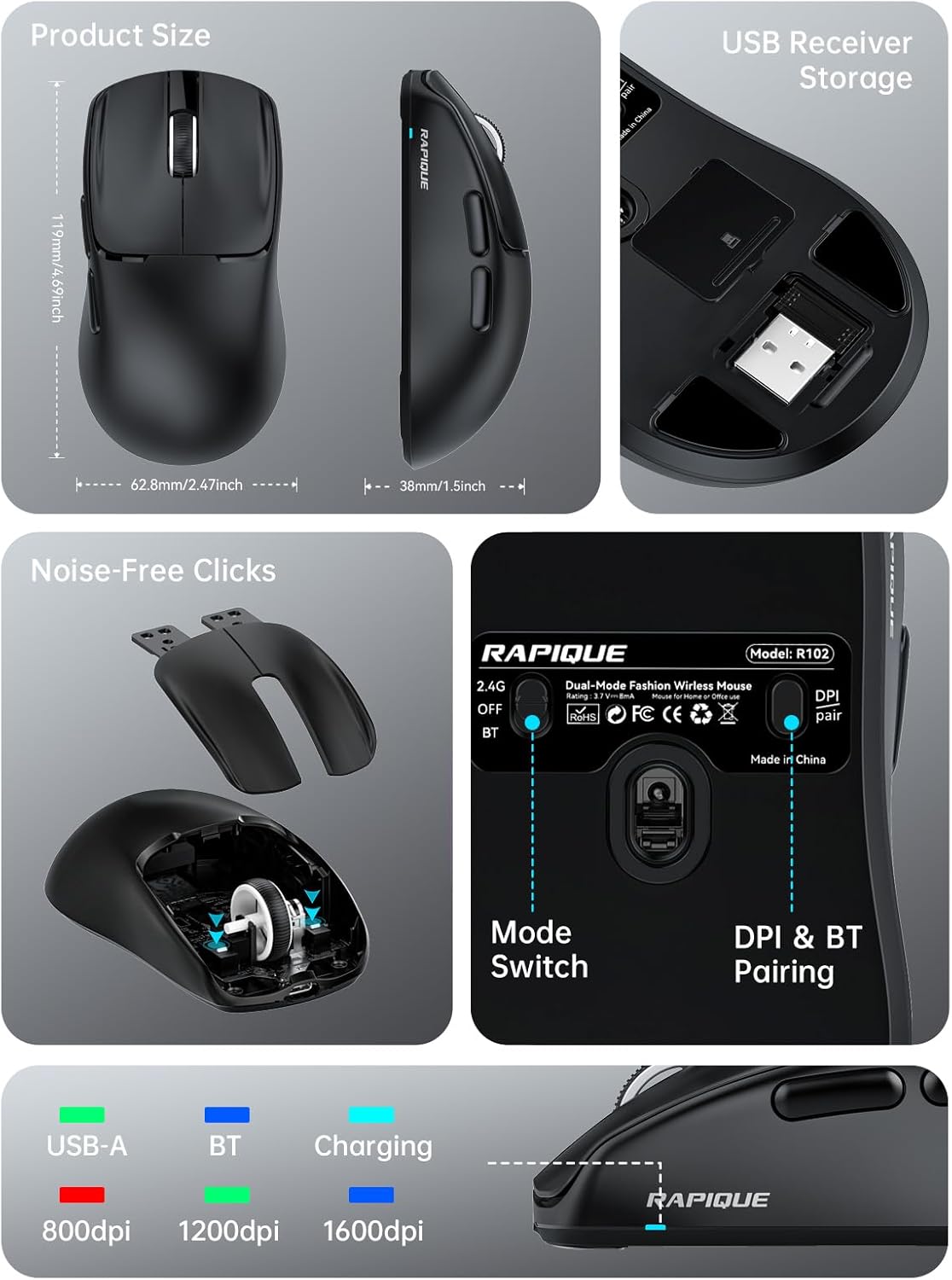

This comprehensive image provides a detailed look at the RAPIQUE R102 mouse. It includes precise product dimensions, shows the convenient storage location for the USB receiver, illustrates the internal mechanism for noise-free clicks, and clearly labels the mode switch and DPI/Bluetooth pairing button on the mouse's underside.

Nøglekomponenter

• Venstre/højre klikknapper: Designed for silent operation.
• Scrollhjul: For smooth vertical scrolling.
• DPI knap: Located on the top, cycles through DPI settings.
• Frem/Tilbage-knapper: Located on the left side for quick navigation.
• USB-C opladningsport: Located at the front for recharging.
• Mode Switch: On the bottom, selects between 2.4G, Off, and Bluetooth modes.
• DPI & BT Pairing Button: On the bottom, used for DPI adjustment and Bluetooth pairing.
• USB Receiver Storage Slot: On the bottom, for convenient storage of the 2.4GHz USB receiver.

Opsætning

Oplader musen

The RAPIQUE R102 mouse is equipped with a built-in rechargeable battery. Before first use, or when the battery is low, connect the provided USB-C charging cable to the mouse's USB-C port and the other end to a USB power source (e.g., computer USB port, USB wall adapter). A full charge typically takes 1-2 hours.

This image demonstrates the USB-C charging capability of the R102 mouse. It highlights the 500mAh battery and indicates that 1-2 hours of charging can bring the battery to 98%, while 24 hours of use results in 86% power remaining, emphasizing its long-lasting battery.

Tilslutning af musen

The R102 mouse supports two connectivity modes: 2.4GHz Wireless via USB receiver and Bluetooth 5.1.

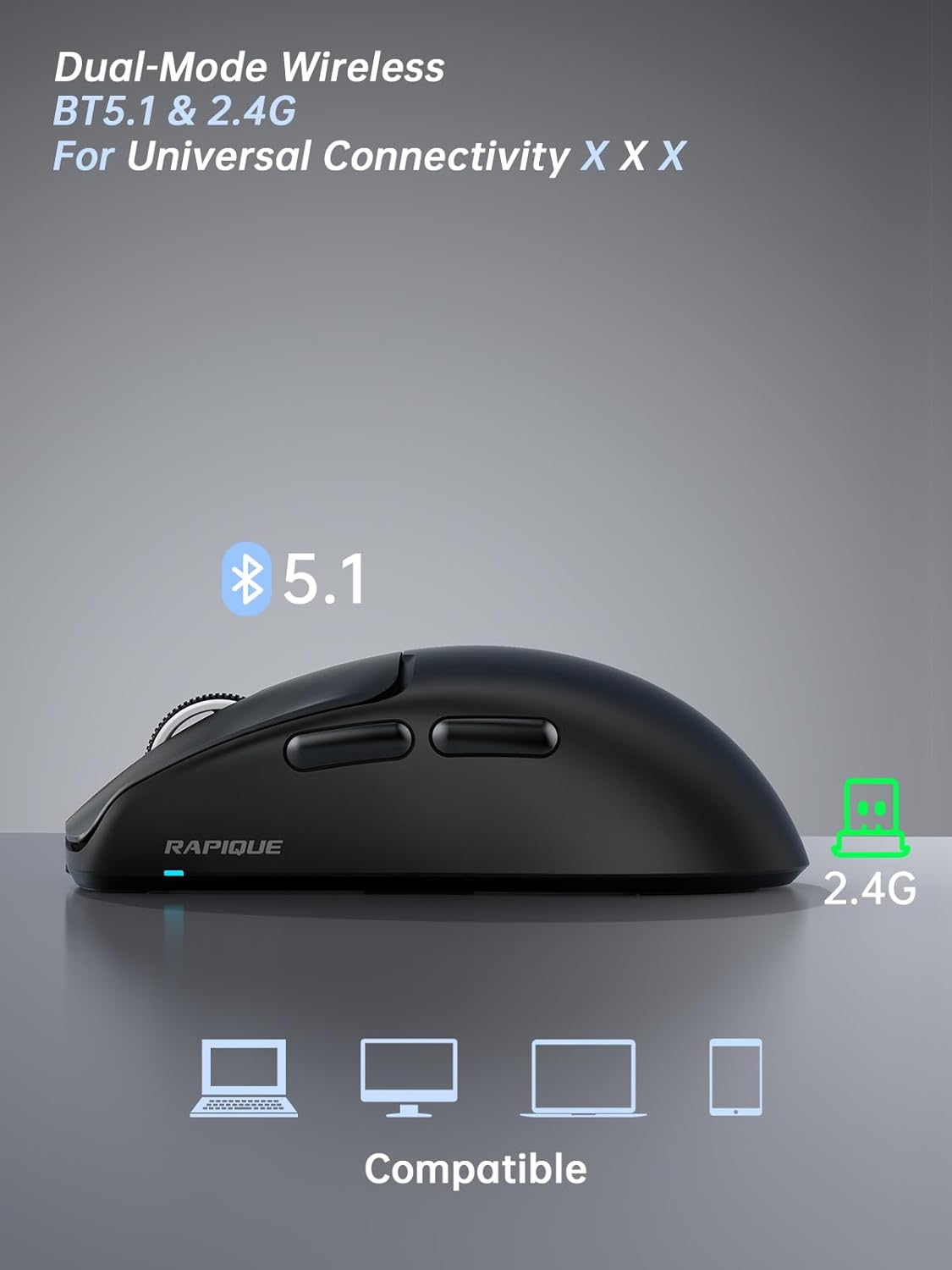

This image illustrates the dual-mode connectivity of the RAPIQUE R102 mouse, supporting both Bluetooth 5.1 and 2.4GHz connections for broad compatibility across various devices.

2.4 GHz trådløs tilstand

1. Find USB-modtageren, der er opbevaret i rummet i bunden af ​​musen.
2. Sæt USB-modtageren i en ledig USB-A-port på din computer.
3. Skub tilstandsknappen på undersiden af ​​musen til "2.4G"-positionen.
4. The mouse should automatically connect to your computer. No drivers are required.

Bluetooth-tilstand

1. Skub tilstandsknappen på undersiden af ​​musen til "BT"-positionen.
2. Press and hold the "DPI & BT Pair" button on the bottom of the mouse for 3-5 seconds until the indicator light starts blinking, indicating it's in pairing mode.
3. On your device (MacBook, iPad, Android, etc.), go to Bluetooth settings and search for "RAPIQUE R102".
4. Select "RAPIQUE R102" to pair. Once connected, the indicator light will stop blinking.

Betjeningsvejledning

DPI justering

The R102 mouse offers three adjustable DPI (Dots Per Inch) levels: 800, 1200, and 1600. To change the DPI, press the DPI button located on the top of the mouse, just below the scroll wheel. Each press will cycle through the available DPI settings, allowing you to customize cursor sensitivity for different tasks.

This image focuses on the bottom of the R102 mouse, illustrating the DPI & BT pairing button. It highlights the three DPI levels (800, 1200, 1600) that can be cycled through by pressing this button, allowing users to adjust cursor sensitivity.

Brug af sideknapper

The two side buttons on the left of the mouse function as "Forward" and "Back" buttons by default. These are useful for quick navigation in web browsere og file explorers, enhancing productivity.

Strømstyring

To conserve battery life, the mouse will enter a sleep mode after a period of inactivity. To wake it up, simply move the mouse or click any button. For extended storage or travel, slide the mode switch to the "OFF" position.

This image demonstrates the versatility of the RAPIQUE R102 mouse in different settings, including office, home, and travel. It shows the mouse being used with a desktop setup, a tablet, and a laptop, emphasizing its adaptability for various computing needs.

Opretholdelse

• Rensning: Brug en blød, tør klud til at rengøre musen. Ved genstridigt snavs, brug en let tør klud.amp en klud kan bruges, så det sikres, at der ikke kommer væske ind i de indvendige komponenter. Undgå barske kemikalier eller slibende materialer.
• Opbevaring: When not in use for extended periods, store the mouse in a cool, dry place. Ensure the mode switch is set to "OFF" to prevent battery drain.
• Batteripleje: Undgå at aflade batteriet helt for ofte. Genoplad musen, når indikatoren for lavt batteri vises.

Fejlfinding

Musen reagerer ikke

• Tjek batteri: Ensure the mouse is sufficiently charged. Connect the USB-C charging cable and allow it to charge for a few minutes.
• Kontroller tilstandsskifter: Verify that the mode switch on the bottom of the mouse is set to the correct position (2.4G or BT) for your connection type.
• Re-pair 2.4GHz: For 2.4GHz mode, try unplugging and re-plugging the USB receiver into a different USB port on your computer.
• Genparr Bluetooth: For Bluetooth mode, delete "RAPIQUE R102" from your device's Bluetooth list and repeat the pairing process.
• Genstart enhed: Nogle gange kan genstart af din computer eller enhed løse forbindelsesproblemer.

Cursor Movement is Erratic or Laggy

• Rengør sensor: Ensure the optical sensor on the bottom of the mouse is clean and free from dust or debris.
• Overflade: Brug musen på en ren, ikke-reflekterende og ensartet overflade. En musemåtte anbefales.
• Interferens: Move the mouse closer to the USB receiver (for 2.4GHz) or your Bluetooth device. Avoid using it near strong electromagnetic interference sources.
• DPI -indstilling: Adjust the DPI setting to a level that suits your preference and task.

Silent Click Feature Not Working

• The R102 is designed with silent click switches. If you experience loud clicks, ensure the mouse is not damaged. Contact customer support if the issue persists.

Specifikationer

Garanti og support

For warranty information and technical support, please refer to the official RAPIQUE webwebstedet eller kontakt deres kundeservice direkte. Du kan også besøge RAPIQUE Store on Amazon for yderligere ressourcer og kontaktoplysninger.
