Brugermanual til ATTACK SHARK X11 mus og X60 HE tastatur trådløs gaming-kombination

1. Introduktion

This manual provides detailed instructions for the setup, operation, and maintenance of your ATTACK SHARK X11 Wireless Gaming Mouse and X60 HE Magnetic Switch Gaming Keyboard Combo. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

2. Pakkens indhold

Bekræft at alle varer er til stede i din pakke:

ATTACK SHARK X60 HE Magnetic Switch Gaming Keyboard
ATTACK SHARK X11 Wireless Gaming Mouse
USB-C to USB-A Cable (for charging and wired connection)
2.4GHz USB Receiver Dongle
RGB Charging Dock for X11 Mouse
Brugervejledning (dette dokument)

Image 2.1: ATTACK SHARK X11 Mouse and X60 HE Keyboard Combo. The image displays the black X60 HE keyboard, the black X11 mouse, a 2.4GHz USB receiver, and the RGB charging dock.

3. Produktet er slutview

3.1. ATTACK SHARK X60 HE Keyboard

The X60 HE is a 60% layout magnetic switch keyboard designed for high-performance gaming. It features Hall effect switches with adjustable actuation points, rapid trigger functionality, and an 8000Hz polling rate for ultra-low latency response.

Magnetiske afbrydere: Hall effect switches with adjustable actuation from 0.1mm to 3.2mm.
Hurtig udløser: Enables faster key resets and re-presses.
8000Hz pollinghastighed: Provides 0.125ms response time in wired mode.
Dynamisk tastetryk (DKS): Supports advanced key functionalities.
Tri-mode-tilslutning: USB-C wired, 2.4GHz wireless, and Bluetooth.
RGB-baggrundsbelysning: Customizable 16.8 million color RGB effects.
Hot-Swappable: Allows switch replacement without soldering.
Batteri: Integreret genopladeligt batteri på 4000 mAh.

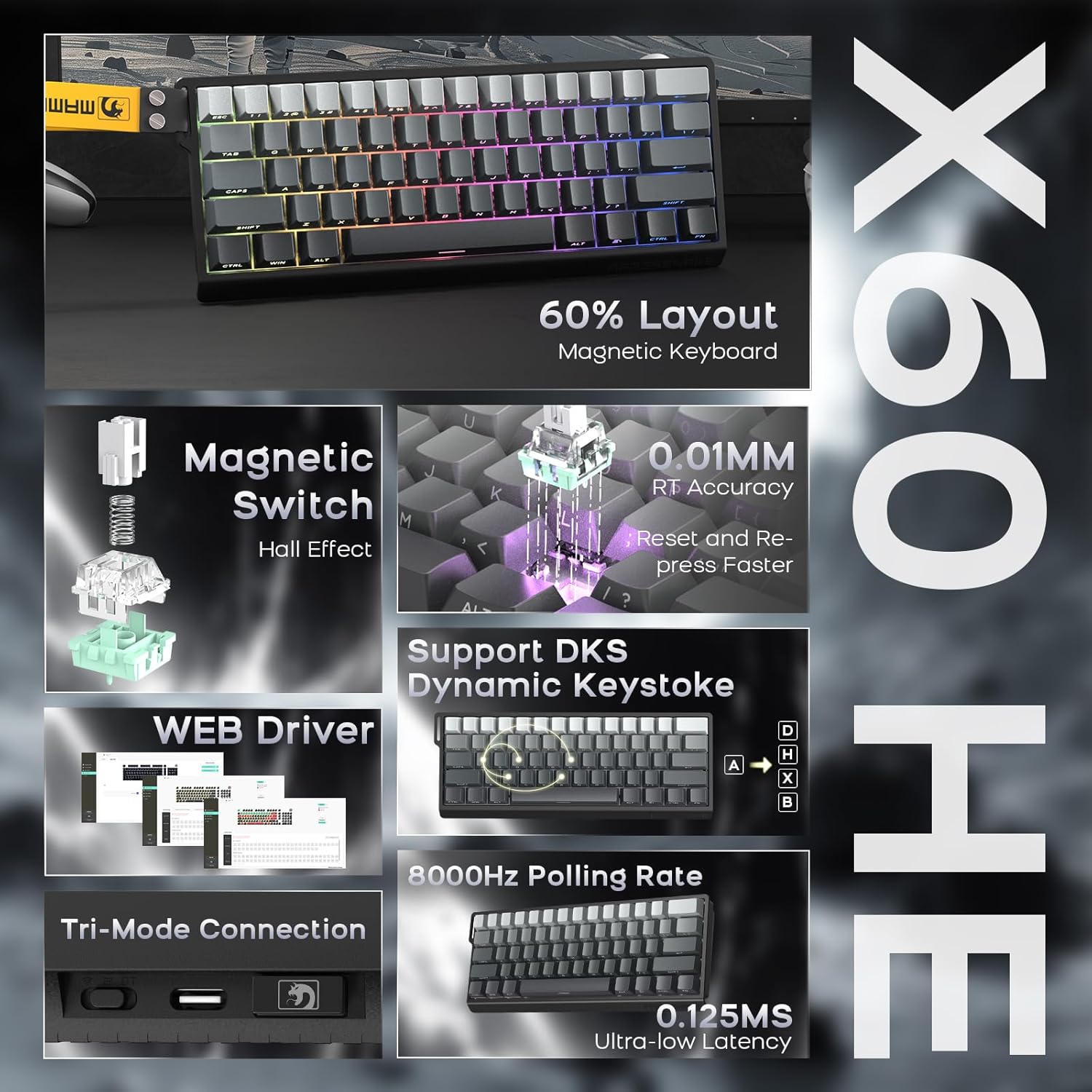

Funktioner i ATTACK SHARK X60 HE-tastaturet — Billede 3.1: Overview of the X60 HE Keyboard's key features, including its 60% layout, magnetic switches, DKS support, web driver, 8000Hz polling rate, and tri-mode connection options.

ATTACK SHARK X60 HE Hot-Swappable Magnetic Keyboard — Billede 3.2: Detaljeret view of the X60 HE keyboard's hot-swappable magnetic switches, highlighting adjustable actuation points (0.1-3.4mm), linear type, 40±5gf operation force, pre-lubed switches, and support for RS, SOCD, DKS, TGL, MT functions.

3.2. ATTACK SHARK X11 Mouse

The X11 is a lightweight wireless gaming mouse equipped with a high-precision PAW3311 optical sensor and tri-mode connectivity. It features a magnetic charging dock that also functions as a 2.4GHz wireless receiver hub.

Sensor: PAW3311 optical sensor.
DPI: Up to 22,000 DPI with 6 adjustable levels.
Afstemningsfrekvens: 1000 Hz.
Vægt: Approximately 62g for effortless control.
Kontakter: HUYU switches with 20 million+ click lifespan.
Tri-mode-tilslutning: USB-C wired, 2.4GHz wireless, and Bluetooth.
Opladning: Magnetic fast charging via RGB dock.
Batterilevetid: Up to 65 hours of interval usage.

ATTACK SHARK X11 Mouse Features — Billede 3.3: Overview of the X11 Mouse's key features, including the PAW3311 sensor, 22000 DPI, lightweight design, HUANO switches, tri-mode switch, Broadcom BK3633 master chip, magnetic fast charging, 65 hours battery life, TTC encoders, and RGB lighting.

ATTACK SHARK X11 Mouse Lightweight Design and DPI — Image 3.4: The X11 mouse, showcasing its ultra-lightweight design (59g) and 6-level adjustable DPI settings up to 22,000 for precision control.

4. Opsætning

4.1. Første opladning

Before first use, it is recommended to fully charge both the keyboard and mouse.

Tastatur: Connect the USB-C cable to the keyboard and a power source (e.g., computer USB port, USB wall adapter).
Mus: Place the X11 mouse onto its RGB charging dock. Connect the USB-C cable to the charging dock and a power source. The dock will also serve as the 2.4GHz wireless receiver hub.

ATTACK SHARK Keyboard and Mouse Charging — Image 4.1: The X60 HE keyboard with its 4000mAh battery and the X11 mouse magnetically charging on its RGB dock, illustrating the long battery life and quick charging capabilities.

4.2. Forbindelsestilstande

Both the X60 HE keyboard and X11 mouse support three connection modes: 2.4GHz wireless, Bluetooth, and USB-C wired.

ATTACK SHARK X60HE+X11 Tri-Modes Connection — Image 4.2: The X60 HE keyboard and X11 mouse connected via tri-mode to various devices, including a laptop (2.4GHz wireless), a PC (USB-C wired), and demonstrating Bluetooth low-latency mode. Compatible with Mac, Win, PC, Laptop, Tablet, Switch, Xbox, and PlayStation.

4.2.1. 2.4 GHz trådløs tilstand

Tastatur: Ensure the keyboard is in 2.4GHz mode (check indicator light). Plug the 2.4GHz USB receiver dongle into an available USB port on your computer.
Mus: The 2.4GHz USB receiver dongle is integrated into the RGB charging dock. Connect the charging dock to your computer via the USB-C cable. Ensure the mouse is in 2.4GHz mode.

4.2.2. Bluetooth-tilstand

Tastatur: Switch the keyboard to Bluetooth mode. Activate Bluetooth on your device (computer, tablet, etc.) and search for available devices. Select "ATTACK SHARK X60 HE" to pair.
Mus: Switch the mouse to Bluetooth mode. On your device, search for and select "ATTACK SHARK X11" to pair. The X11 mouse supports connecting to two Bluetooth devices (BT1/BT2) and can be switched between them.

4.2.3. USB-C kablet tilstand

Tastatur: Connect the USB-C cable directly from the keyboard to your computer. The keyboard will automatically switch to wired mode and begin charging.
Mus: Connect the USB-C cable directly from the mouse to your computer. The mouse will automatically switch to wired mode and begin charging.

5. Betjening

5.1. X60 HE Keyboard Functions

Justerbart aktiveringspunkt: Use the dedicated software (web driver) to customize the actuation distance of each magnetic switch from 0.1mm to 3.2mm.
Hurtig udløser: This feature allows keys to activate and deactivate based on movement rather than a fixed point, enabling faster repeated inputs. Configure via the web chauffør.
Dynamisk tastetryk (DKS): Assign up to four different actions to a single keypress based on how far the key is pressed.
RGB-baggrundsbelysning: Cycle through various preset RGB lighting effects using keyboard shortcuts (refer to the keyboard's specific function key combinations) or customize extensively via the web chauffør.
Web Chauffør: Få adgang til web-baseret chauffør hos www.gmk.top for advanced customization of key functions, actuation points, DKS, macros, and lighting effects.

ATTACK SHARK X60 HE Keyboard Customization Software — Image 5.1: Screenshot of the ATTACK SHARK web driver interface, showing options to customize game settings, including DKS, Snap Tap, Zero Deadzone, key remapping, and RGB lighting effects for the X60 HE keyboard.

5.2. X11 Mouse Functions

DPI-justering: The mouse features a DPI button (usually on the bottom or top) to cycle through 6 preset DPI levels: 800, 1600, 2400, 3200, 5000, and 22000 DPI.
Tri-Mode Switching: Use the switch on the bottom of the mouse to select between 2.4GHz, Bluetooth (BT1/BT2), and wired modes.
RGB Charging Dock: The dock provides magnetic charging and features customizable RGB lighting. It also acts as the 2.4GHz receiver.
X11 Driver Software: Download the dedicated X11 driver software for advanced customization, including button remapping, macro creation, DPI fine-tuning, polling rate adjustment, and RGB lighting control.

ATTACK SHARK X11 Mouse Driver Software — Image 5.2: Screenshots of the X11 Driver software interface, illustrating options for button settings, DPI adjustments, power management, and macro creation for the X11 mouse.

6. Vedligeholdelse

Proper maintenance ensures the longevity and performance of your gaming combo.

Rensning: Brug en blød, tør klud til at tørre tastatur og mus af. Ved genstridigt snavs, tør letamp cloth with mild soap can be used, ensuring no liquid enters the devices. Use compressed air to clear debris from between keycaps.
Batteripleje: Avoid fully discharging the batteries frequently. For optimal battery health, charge the devices when the battery level is low, but avoid leaving them plugged in for extended periods after reaching full charge.
Opbevaring: Opbevar enhederne et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.

7. Fejlfinding

Hvis du støder på problemer, kan du bruge følgende almindelige løsninger:

Problem	Mulig løsning
Device not connecting wirelessly	Ensure the device is switched to the correct mode (2.4GHz or Bluetooth). For 2.4GHz, ensure the USB receiver is properly connected and the device is close to it. For Bluetooth, ensure your computer's Bluetooth is on and the device is in pairing mode. Kontroller batteriniveauet, og oplad det om nødvendigt.
Lag eller inputforsinkelse	Move the device closer to the receiver/computer. Ensure there are no strong interfering signals (e.g., other wireless devices). Switch to wired mode to rule out wireless interference. Update drivers/firmware via the web driver/software.
RGB-belysning virker ikke	Check lighting settings in the web driver/software. Sørg for, at enheden har tilstrækkelig batteriopladning. Try resetting the device (refer to specific product documentation for reset procedures).
Keyboard keys not responding	Sørg for, at tastaturet er tændt og tilsluttet. Kontrollér for eventuelle fysiske forhindringer under tastaturet. If hot-swappable, ensure the switch is seated correctly. Test in wired mode.

If the problem persists, please contact ATTACK SHARK customer support.

8. Specifikationer

8.1. ATTACK SHARK X60 HE Keyboard

Switch Type: Hall Effect Magnetic Switches (Linear)
Aktiveringspunkt: Adjustable 0.1mm - 3.2mm (via software)
Afstemningsfrekvens: 8000Hz (Wired), 1000Hz (2.4GHz Wireless/Bluetooth)
Forbindelse: USB-C Wired, 2.4GHz Wireless, Bluetooth
Batteri: 4000mAh genopladelig
Særlige funktioner: Rapid Trigger, Dynamic Keystroke (DKS), RGB Backlighting, Hot-Swappable

8.2. ATTACK SHARK X11 Mouse

Sensor: PAW3311 Optisk Sensor
DPI: Up to 22,000 (6 adjustable levels: 800/1600/2400/3200/5000/22000)
Afstemningsfrekvens: 1000 Hz
Vægt: Ca. 62 g
Kontakter: HUYU (20 Million+ Clicks)
Forbindelse: USB-C Wired, 2.4GHz Wireless, Bluetooth
Batterilevetid: Up to 65 hours (interval usage)
Opladning: Magnetic Fast Charging Dock (with RGB)

8.3. Generelle specifikationer

Pakkedimensioner: 14.75 x 7 x 4.75 tommer
Varens vægt: 2.94 pund
Kompatible enheder: Personal Computer, Laptop, Tablet (Windows, macOS, Switch, Xbox, PlayStation)
Fabrikant: ANGREDE HAJ

9. Garanti og support

For warranty information or technical support, please contact the seller or visit the official ATTACK SHARK webwebstedet. Behold din købskvittering som købsbevis.

Sælger: ATTACK SHARK US

Officiel Webwebsted: ATTACK SHARK Butik på Amazon
