1. Introduktion
This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your PECRON E2400LFP Portable Power Station and accompanying 4x200W Solar Panels. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.
Image 1.1: PECRON E2400LFP Portable Power Station with four 200W solar panels.
2. Sikkerhedsinstruktioner
- Enheden må ikke skilles ad, repareres eller ændres. Forkert samling kan forårsage brand eller elektrisk stød.
- Placer ikke enheden i nærheden af ild, og udsæt den ikke for varme. Holdes væk fra direkte sollys.
- Do not charge, use, or store the unit in a bathroom or an area exposed to water.
- Use only the provided or approved accessories.
- Brug ikke enheden, hvis den er beskadiget eller har været tabt.
- Opbevares utilgængeligt for børn og kæledyr.
- Sørg for tilstrækkelig ventilation under brug og opladning for at forhindre overophedning.
- When handling solar panels, avoid bending or applying excessive pressure to prevent damage.
- Disconnect all cables when the unit is not in use.
3. Pakkens indhold
Bekræft at alle varer er til stede i din pakke:
- PECRON E2400 LFP Power Station (x1)
- 200W solpanel (x4)
- AC-opladekabel (x1)
- Solcelleopladningskabel (x1)
- Car Charging Cable (x1)
- 12V Alligator Clips (x1)
- Accessory Pouch (x1)
- Brugervejledning (x1)
4. Produktet er slutview
The PECRON E2400LFP is a high-capacity portable power station designed for various applications, from emergency backup to outdoor adventures. It features a robust LiFePO4 battery and multiple output options.
4.1. Nøglefunktioner
- Høj kapacitet: 2048Wh LiFePO4 battery, expandable up to 8192Wh with optional EP3000-48V extra batteries.
- Kraftig output: 2400W continuous AC output.
- Alsidige porte: 3x AC outlets, 2x USB-C ports, 4x USB-A ports, 1x XT60-F output, 1x Cigar Port, 1x DC 5525 output.
- Hurtig opladning: Recharges fully in approximately 90 minutes via AC input.
- Holdbart batteri: LiFePO4 battery offers 3500 complete charge cycles while retaining 80% of its original capacity.
- Smart kontrol: Monitor and control the power station via a dedicated mobile application.

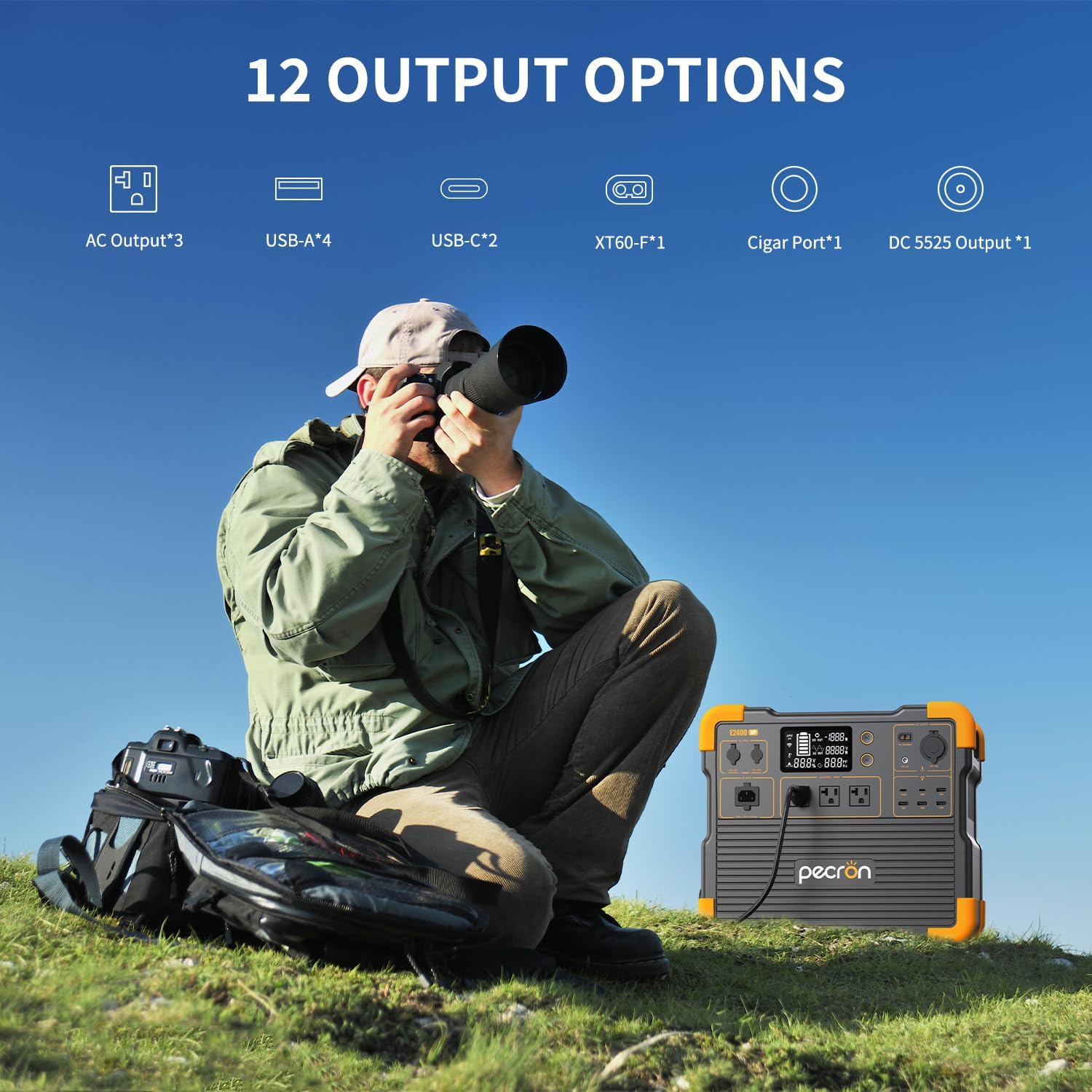

Image 4.1: The PECRON E2400LFP features 12 output options for various devices.

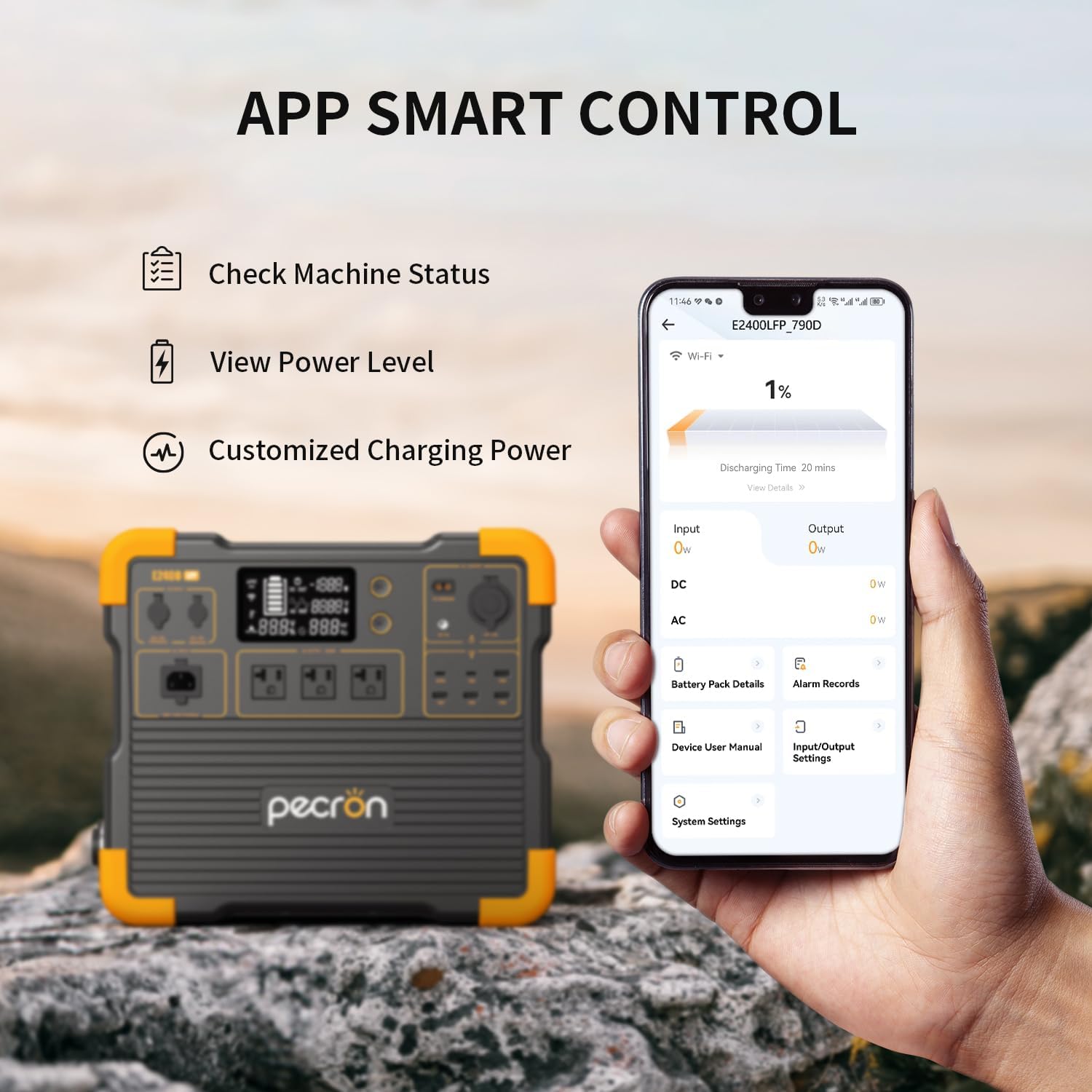

Image 4.2: The PECRON E2400LFP can be monitored and controlled via a smartphone app.
5. Opsætning
5.1. Initial Inspection and Charging
- Unpack all components and inspect for any visible damage.
- Before first use, fully charge the PECRON E2400LFP Power Station using the provided AC charging cable. Connect the AC charging cable to the AC input port on the power station and then to a standard wall outlet. The display will indicate charging status.
5.2. Solar Panel Deployment
- Unfold the 200W solar panels and position them in direct sunlight. Ensure no shadows are cast on the panels for maximum efficiency.
- Connect the solar panels to the power station using the provided solar charging cable. Refer to the 'Connecting Solar Panels' section for detailed instructions.
6. Betjeningsvejledning
6.1. Opladning af kraftværket
The E2400LFP can be charged via multiple methods:
- AC vægopladning: Connect the AC charging cable to the power station's AC input and a wall outlet. Full charge in approximately 1.5 hours.
- Opladning af solpanel: Connect the solar panels to the power station using the solar charging cable. With 800W solar input (4x200W panels), a full charge can be achieved in approximately 3 hours under optimal sunlight conditions.
- Bilopladning: Use the provided car charging cable to connect the power station to your vehicle's 12V cigarette lighter port. A full charge takes approximately 4.5 hours with 500W car charging.
Image 6.1: The PECRON E2400LFP can be recharged from a wall outlet, solar panels, or a car charger.
Image 6.2: The PECRON E2400LFP supports fast charging, reaching 100% in 1.5 hours via AC.
6.2. Discharging and Using Outputs
Sådan strømforsyner du dine enheder:
- Press the master power button to turn on the unit.
- Activate the desired output section (AC, USB, DC) by pressing its respective button. The indicator light will illuminate.
- Tilslut dine enheder til de relevante udgangsporte.
- The display will show real-time input and output wattage, as well as remaining battery capacity.
- When finished, turn off the output sections and then the master power button.
Image 6.3: The PECRON E2400LFP can power multiple devices, such as laptops and mini-fridges, for extended periods.
6.3. Expanding Capacity
The PECRON E2400LFP's capacity can be expanded by connecting optional EP3000-48V extra batteries. One extra battery expands capacity to 5120Wh, and two extra batteries expand it to 8192Wh. Refer to the extra battery's manual for specific connection instructions.
Image 6.4: The PECRON E2400LFP supports scalable power solutions, expanding up to 8192Wh with additional batteries.
7. Vedligeholdelse
- Rensning: Use a dry, soft cloth to wipe the surface of the power station and solar panels. Do not use harsh chemicals or abrasive materials.
- Opbevaring: Opbevar enheden et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer. Ved langtidsopbevaring skal batteriet oplades til 50-80% hver 3.-6. måned for at opretholde batteriets sundhed.
- Batteriets sundhed: The LiFePO4 battery is designed for 3500 complete charge cycles to 80% capacity. Avoid consistently fully discharging the battery to prolong its lifespan.
Image 7.1: The PECRON E2400LFP utilizes LiFePO4 battery technology for long-lasting performance.
8. Fejlfinding
If you encounter issues with your PECRON E2400LFP, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke | Battery fully discharged; Power button not pressed correctly | Oplad enheden; Tryk på tænd/sluk-knappen og hold den nede i 3 sekunder |
| Ingen output fra porte | Output section not activated; Overload protection triggered; Cable issue | Activate the specific output (AC/USB/DC); Reduce connected load; Check cable connections |
| Langsom solopladning | Insufficient sunlight; Panels not angled correctly; Dirty panels; Damaged cable | Reposition panels for direct sunlight; Clean panel surfaces; Check cable integrity |
| Advarsel om overophedning | Dårlig ventilation; Overbelastning | Ensure unit is in a well-ventilated area; Reduce connected load; Allow unit to cool down |
If the problem persists, please contact PECRON customer service for assistance.
9. Specifikationer
| Feature | Detalje |
|---|---|
| Model | E2400LFP |
| Batteritype | LiFePO4 |
| Kapacitet | 2048 Wh (kan udvides til 8192 Wh) |
| AC udgang | 2400W (Continuous), 120V |
| USB-C udgang | x2 Ports |
| USB-A-output | x4 Ports |
| XT60-F Output | x1 Port |
| Cigarport udgang | x1 Port |
| DC 5525 udgang | x1 Port |
| AC opladningstid | Ca. 1.5 timer |
| Solopladningstid | Approx. 3 hours (with 800W solar input) |
| Bilopladningstid | Approx. 4.5 hours (with 500W car charging) |
| Dimensioner (L x B x H) | 14.8 cm x 9.3 cm x 13 cm |
| Vægt | 45 lbs |
| Included Solar Panels | 4x 200W Foldable Solar Panels |
10. Garanti og support
PECRON provides a 2+1 year worry-free warranty for the E2400LFP Portable Power Station and included solar panels. This warranty covers defects in materials and workmanship under normal use.
For technical support, warranty claims, or any questions regarding your product, please contact PECRON customer service. Our team is available 24 timer i døgnet, 7 dage om ugen to provide friendly and helpful assistance.
Please visit the official PECRON website or refer to the contact information provided in your warranty card for the most up-to-date support details.
