Indledning
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your PECRON Portable Power Station E2400LFP with Extra Battery. Please read this manual thoroughly before using the product and retain it for future reference.

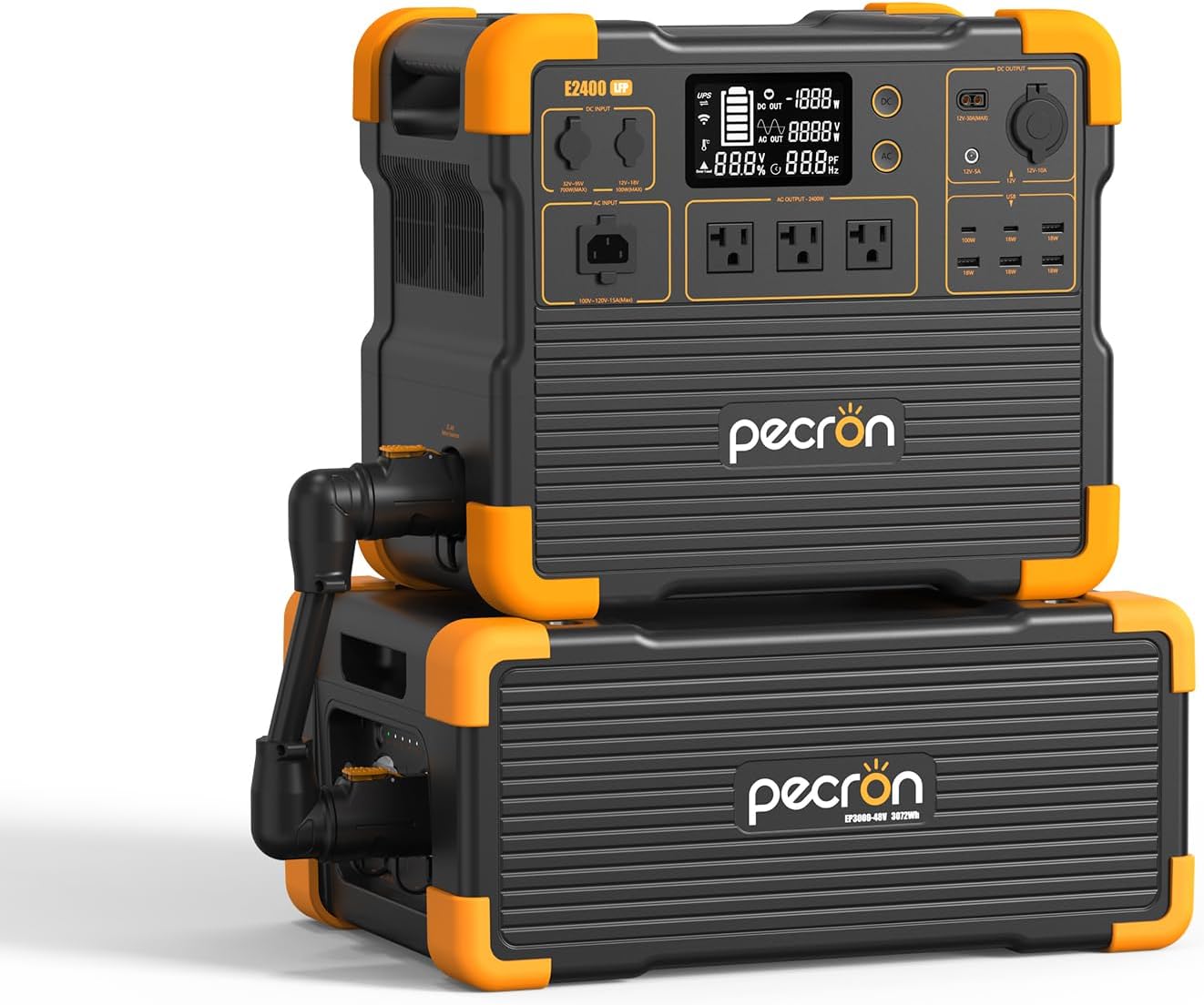

Image: The PECRON E2400LFP Portable Power Station (top unit) connected to its EP3000-48V Extra Battery (bottom unit), showcasing the compact and stackable design.
Pakkens indhold
Upon unpacking, please verify that all items listed below are included and in good condition. If any items are missing or damaged, contact customer service immediately.
- PECRON E2400 LFP Power Station x 1
- EP3000-48V Extra Battery x 1
- AC ladekabel x 1
- Solar Charging Cable x 1
- Bilopladningskabel x 1
- 12V Alligator Clips x 1
- Accessory Pouch x 1
- Brugervejledning x 1
Opsætning og første opladning
Before first use, it is recommended to fully charge the power station. The E2400LFP supports multiple charging methods.
Connecting the Extra Battery
The E2400LFP is designed to connect seamlessly with the EP3000-48V Extra Battery to expand its capacity. Ensure both units are powered off before connecting the dedicated expansion cable between them. Refer to the connection ports on the side of each unit.
Image: The PECRON E2400LFP Power Station connected to two EP3000-48V Extra Batteries, demonstrating the expandable power solution.
Opladningsmetoder
The E2400LFP offers fast charging capabilities, reaching a full charge in approximately 90 minutes via AC wall outlet.
- AC vægopladning: Connect the provided AC charging cable to the power station's AC input port and then to a standard wall outlet. Full charge in approximately 1.5 hours.
- Opladning af solpanel: Connect compatible solar panels (not included) to the power station using the provided solar charging cable. Charging time varies based on solar intensity and panel wattage. Approximately 3 hours with optimal solar input.
- Bilopladning: Use the provided car charging cable to charge the power station from your vehicle's 12V cigarette lighter port. Approximately 4.5 hours for a full charge.
Image: Illustrations showing the PECRON E2400LFP being recharged via a wall outlet (1.5 hours), solar panels (3 hours), and a car charger (4.5 hours).
Operation
The PECRON E2400LFP is designed for versatile power delivery, suitable for various applications from home backup to outdoor adventures.
Udgangsporte
Strømstationen har 12 udgangsporte, der passer til en bred vifte af enheder:
- AC-udgang x 3
- USB-C x 2
- USB-A x 4
- XT60-F Output x 1
- Cigar Port x 1
- DC 5525 udgang x 1
Billede: Et nærbillede view of the PECRON E2400LFP's control panel, highlighting the 12 different output options including AC, USB-C, USB-A, XT60-F, Cigar Port, and DC 5525 outputs.
Strømforsyning af enheder
With a continuous power output of 2400W, the E2400LFP can run multiple devices simultaneously, from small electronics to larger appliances. Its 2048Wh capacity (expandable up to 8192Wh with additional batteries) provides extended runtime.
Image: A visual representation of the PECRON E2400LFP's capacity (2048Wh) and output (2400W), demonstrating its ability to power devices like a phone (108 times), laptop (29 times), and mini-fridge (40 hours).
Smart kontrol via app
The PECRON E2400LFP can be monitored and controlled via a dedicated smartphone application. This allows you to check machine status, view power levels, and customize charging power remotely.
Image: A smartphone displaying the PECRON E2400LFP's app interface, showing options to check machine status, view power level, and customize charging power.
Opretholdelse
Proper maintenance ensures the longevity and optimal performance of your PECRON Power Station.
Batteripleje
The E2400LFP utilizes a LiFePO4 battery, known for its durability and long cycle life. It is designed to retain 80% of its original capacity after 3500 complete charge cycles.
- Opbevaring: If storing the power station for an extended period, ensure it is charged to approximately 50-80% and recharge it every 3-6 months to prevent deep discharge. Store in a cool, dry place away from direct sunlight.
- Temperatur: Operate and store the unit within the recommended temperature range specified in the specifications section to maximize battery life.
- Rensning: Brug en tør, blød klud til at rengøre enhedens yderside. Brug ikke skrappe kemikalier eller slibende materialer.
Billede: En eksploderet view of the PECRON E2400LFP, revealing the internal LiFePO4 battery cells, emphasizing its long-lasting nature with 3500 complete charge cycles.
Fejlfinding
Dette afsnit omhandler almindelige problemer, du kan støde på. Ved problemer, der ikke er nævnt her, bedes du kontakte kundesupport.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke. | Batteriet er helt afladet; Tænd/sluk-knappen er ikke trykket korrekt ind. | Charge the unit using an AC adapter. Press and hold the power button for 3-5 seconds. |
| AC-udgangen virker ikke. | AC output not enabled; Overload protection activated; Device power exceeds unit's capacity. | Ensure AC output is turned on. Reduce connected load. Check device wattage against 2400W limit. |
| Enheden oplader ikke. | Charging cable loose or damaged; Charger not connected to power source; Over-temperature protection. | Check all cable connections. Ensure wall outlet/solar panel/car charger is active. Allow unit to cool down if hot. |
| Displayet viser en fejlkode. | Intern systemfejl. | Note the error code and refer to the full user manual (if available) or contact customer service. Try restarting the unit. |
Specifikationer
Detailed technical specifications for the PECRON E2400LFP Portable Power Station and EP3000-48V Extra Battery.
| Feature | Specifikation |
|---|---|
| Model | E2400LFP+EP3000-48V Extra Battery |
| Mærke | PECRON |
| Batteritype | LiFePO4 |
| Capacity (E2400LFP) | 2048Wh |
| Capacity (EP3000-48V Extra Battery) | 3072Wh |
| Udvidbar kapacitet | Up to 8192Wh (with two EP3000-48V extra batteries) |
| Nominel udgangseffekt | 2400W |
| Voltage | 120 volt |
| AC opladningstid | Approx. 1.5 hours (90 minutes) |
| Produktdimensioner | 14.8"L x 9.3"W x 13"H (E2400LFP unit) |
| Varens vægt | 45 Pounds (E2400LFP unit) |
| Særlige funktioner | Portable, Fast Charging, Large Capacity, Long Last, Safety, Smart Control, UPS |
Garanti og support
PECRON offers comprehensive support for its products.
- Garanti: The PECRON E2400LFP comes with a 2+1 years worry-free warranty. Please retain your proof of purchase for warranty claims.
- Kundeservice: For any inquiries, technical assistance, or warranty support, PECRON provides 24 hours/7 days friendly customer service.
- Online ressourcer: Visit the official PECRON store for additional product information, FAQs, and support resources: PECRON Official Store
Vigtige sikkerhedsoplysninger
Følg altid disse sikkerhedsretningslinjer for at forhindre personskade eller beskadigelse af produktet:
- Enheden må ikke skilles ad, repareres eller modificeres.
- Do not expose the unit to fire, heat sources, or direct sunlight for prolonged periods.
- Do not use or store the unit in a bathroom or in an area exposed to rain or moisture.
- Hold enheden væk fra børn og kæledyr.
- Sørg for tilstrækkelig ventilation under brug og opladning. Ventilationsåbningerne må ikke blokeres.
- Brug kun originale eller certificerede opladningskabler og tilbehør.
- If the unit emits smoke, strange odors, or unusual noise, stop using it immediately and contact customer service.
