Brugermanual til vandpumpe med kvart hestekræfter

1. Introduktion og overview

Thank you for choosing the Quarter Horsepower Water Pump. This manual provides essential information for the safe and efficient operation of your new pump. Please read it thoroughly before installation and use, and keep it for future reference.

Produktegenskaber:

• Kompakt og let design: Engineered for easy installation and portability, making it suitable for spaces with limited room.
• Stille drift: Designed to ensure a comfortable and noise-free environment during use.
• Rust and Corrosion Resistance: Constructed from high-quality materials to guarantee a long service life and durability.
• Energieffektivitet: Helps save on electricity costs and contributes to a reduced carbon footprint.
• Overophedningsbeskyttelse: Features an integrated system to prevent motor damage and ensure safe, reliable operation.

2. Sikkerhedsinstruktioner

Følg altid grundlæggende sikkerhedsforanstaltninger for at reducere risikoen for brand, elektrisk stød og personskade.

• Sørg for, at strømforsyningen stemmer overens med pumpens specifikationer.
• Brug ikke pumpen med en beskadiget ledning eller stik.
• Hold alle elektriske forbindelser tørre og væk fra vand.
• Lad ikke børn betjene pumpen.
• Afbryd strømmen, før du udfører vedligeholdelse eller rengøring.
• Install the pump on a stable, level surface to prevent tipping.
• Sørg for tilstrækkelig ventilation omkring pumpen for at forhindre overophedning.

3. Opsætning

Follow these steps for proper installation of your water pump:

1. Udpakning: Carefully remove the pump from its packaging. Inspect for any shipping damage.
2. Placering: Position the pump on a firm, level surface in a dry, well-ventilated area, protected from direct sunlight and extreme weather.
3. Rørforbindelse: Connect the inlet and outlet pipes securely. Ensure all connections are watertight to prevent leaks. Use appropriate thread sealant if necessary.
4. Elektrisk tilslutning: Connect the pump to a grounded power outlet that matches the voltage and frequency requirements specified on the pump's label. Ensure the circuit has appropriate overcurrent protection.
5. Priming (if applicable): For self-priming pumps, ensure the pump casing is filled with water before the first operation. Refer to the specific instructions for your model.

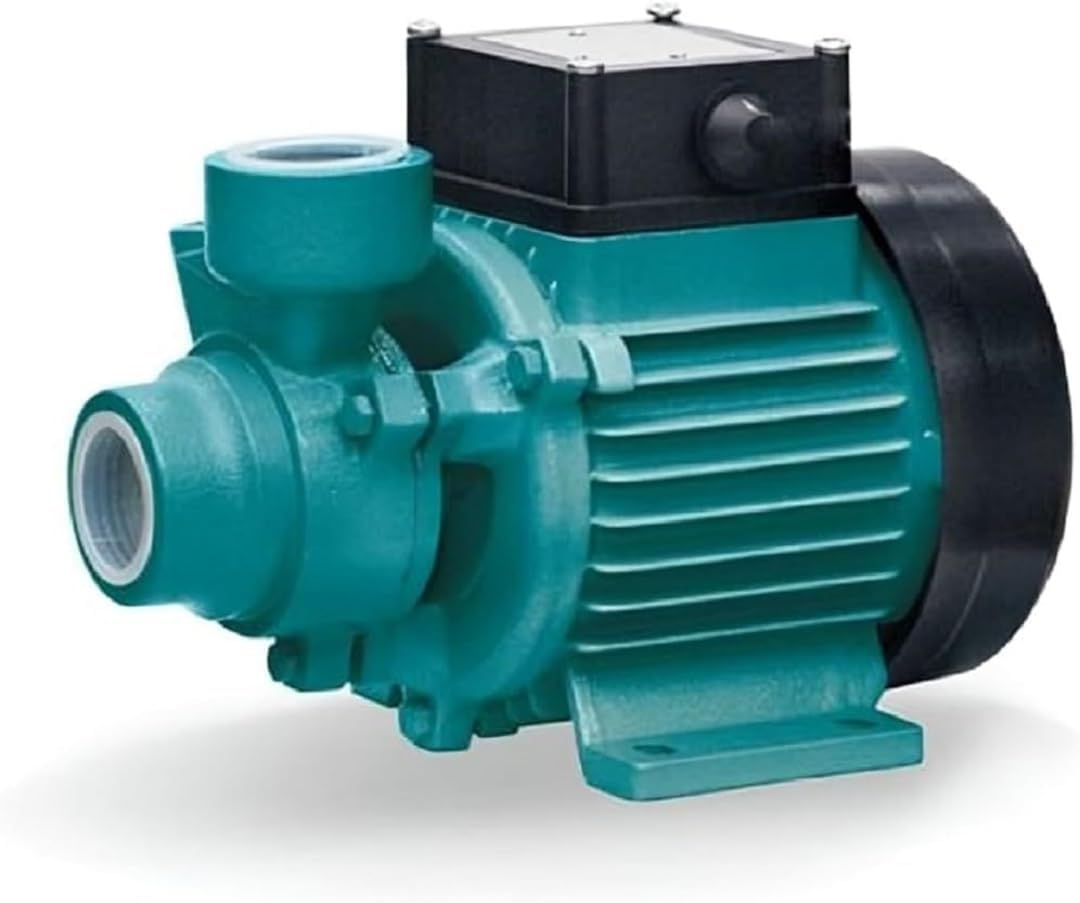

Figur 3.1: Overview of the Quarter Horsepower Water Pump. This image shows the compact design of the pump, highlighting its main body, motor housing, and inlet/outlet ports.

Figure 3.2: Diagram illustrating the internal components of the water pump. This detailed view highlights key parts such as the motor, impeller, and various protective elements, demonstrating the pump's robust construction.

4. Betjeningsvejledning

Operating the water pump is straightforward:

1. Indledende opstart: After ensuring all connections are secure and the pump is primed (if required), plug the pump into the power outlet.
2. Tænd: The pump will typically start automatically upon receiving power. Some models may have an on/off switch.
3. Overvågning: Observe the pump during its first few minutes of operation to ensure there are no leaks and that water is flowing correctly. Listen for any unusual noises.
4. Luk ned: To turn off the pump, simply unplug it from the power source or use the designated on/off switch.

5. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer pumpens levetid og optimale ydeevne:

• Rensning: Periodically clean the exterior of the pump to prevent dust and debris buildup.
• Inspektion: Regularly check all connections for leaks and ensure the power cord is not damaged.
• Vinterisering (hvis relevant): If the pump is used outdoors in cold climates, drain all water from the pump and pipes to prevent freezing damage. Store in a dry, frost-free location.
• Motorventilation: Ensure the motor's cooling fins are free from obstructions to allow proper airflow and prevent overheating.

6. Fejlfinding

Her er nogle almindelige problemer og deres potentielle løsninger:

Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte kundesupport.

7. Specifikationer

8. Garanti og support

For garantioplysninger eller teknisk support henvises til de kontaktoplysninger, der fulgte med dit køb, eller besøg producentens officielle webwebsted. Gem din købsbevis i tilfælde af garantikrav.

For further assistance, you may contact the seller directly via the platform where the product was purchased.
