1. Introduktion
This manual provides detailed instructions for the IINE Wireless Controller with Charging Dock. It covers setup, operation, maintenance, and troubleshooting to ensure optimal performance and user experience. This controller is designed for multi-platform compatibility, including PC, Nintendo Switch, Android, and iOS devices.
2. Pakkens indhold
- IINE Wireless Controller
- Opladningsdock
- USB-C ladekabel
- Cat Tail USB Adapter (for wireless connection)
- Brugermanual
3. Produktet er slutview
The IINE Wireless Controller features an ergonomic design with a unique kitten aesthetic, optimized for comfortable use, especially for smaller hands. It includes advanced functionalities such as programmable macro buttons, turbo function, 6-axis motion control, and adjustable rumble feedback.
Billede 3.1: Forside view of the IINE Wireless Controller with its charging dock.
Image 3.2: The charging dock with the removable cat tail USB adapter. The adapter can be used for wireless connectivity.
Controllerkomponenter:
- Venstre/højre analoge pinde: With paw print caps for precise movement.
- D-Pad: Retningsbestemt input.
- Handlingsknapper (A, B, X, Y): Standard gaming inputs.
- Shoulder Buttons (L, R, ZL, ZR): Top-mounted buttons and triggers.
- Back Buttons (ML, MR): Programmable buttons located on the rear grip.
- Hjemknappen: For system menu access.
- Skærmbillede-knap: Captures in-game screenshots.
- Turbo knap: Aktiverer turbofunktionen.
- 3.5 mm hovedtelefonstik: For audio output (functional in wired mode).
- USB-C-port: Til opladning og kabelforbindelse.
4. Opsætning og tilslutning
4.1 Opladning af controlleren
Before first use, fully charge the controller. Connect the USB-C cable to the charging dock and a power source. Place the controller onto the charging dock. The indicator light on the controller will show charging status.
Image 4.1: The controller placed on its charging dock. A unique meowing sound may play upon docking.
A full charge typically takes approximately 3 hours and provides up to 6 hours of gameplay.
4.2 Tilslutning til enheder
The controller supports both wireless (Bluetooth or USB adapter) and wired connections.
4.2.1 Wireless Connection (Bluetooth)
- Sørg for, at controlleren er slukket.
- Tryk og hold på Hjem button for 3 seconds until the indicator lights flash rapidly, indicating pairing mode.
- On your device (Switch, PC, Android, iOS), navigate to Bluetooth settings and select the IINE controller from the list of available devices.
- Once connected, the indicator light will become solid.
4.2.2 Wireless Connection (USB Adapter)
- Remove the Cat Tail USB Adapter from the charging dock.
- Plug the adapter into a USB port on your PC or other compatible device.
- Power on the controller. It should automatically connect to the adapter.
4.2.3 Kabelforbindelse
- Connect the USB-C cable to the controller and then to your device (PC, Switch dock).
- Controlleren skifter automatisk til kablet tilstand.
5. Betjeningsvejledning
5.1 Grundlæggende kontroller
Se Produkt Overview section for button identification. The controller functions as a standard gamepad for navigation and gameplay.
5.2 Særlige funktioner
5.2.1 Makrofunktion
The ML and MR buttons on the back of the controller are programmable. Use the IINE app (if available for your device) or specific button combinations to record and assign complex sequences of button presses to these macro buttons.
Image 5.1: Illustration of the programmable ML/MR buttons for macro functions.
5.2.2 Turbofunktion
The Turbo button allows for rapid-fire input. To activate:
- Tryk og hold på Turbo button, then press the desired action button (e.g., A, B, X, Y, L, R, ZL, ZR). The button will now continuously register input when held.
- To adjust turbo speed, press Turbo and push the left joystick up or ned.
- To deactivate, press and hold Turbo again, then press the same action button.
Image 5.2: Visual guide for activating and adjusting the Turbo function.
5.2.3 Adjustable Rumble
The controller features adjustable vibration feedback. To modify the intensity:
- To increase rumble intensity: Press Turbo + push the left joystick up.
- To decrease rumble intensity: Press Turbo + push the left joystick ned.
Image 5.3: Diagram showing how to adjust rumble intensity levels.
5.2.4 6-Axis Motion Control
The integrated 6-axis gyroscope provides precise motion sensing for compatible games. This feature is automatically active when connected to a supported platform like Nintendo Switch.
Image 5.4: Visual representation of the 6-axis gyro motion control in action with a Nintendo Switch.
5.2.5 Hovedtelefonstik
A 3.5mm headphone jack is located at the bottom of the controller. Please note that the headphone jack functions only when the controller is connected via a wired USB-C connection.

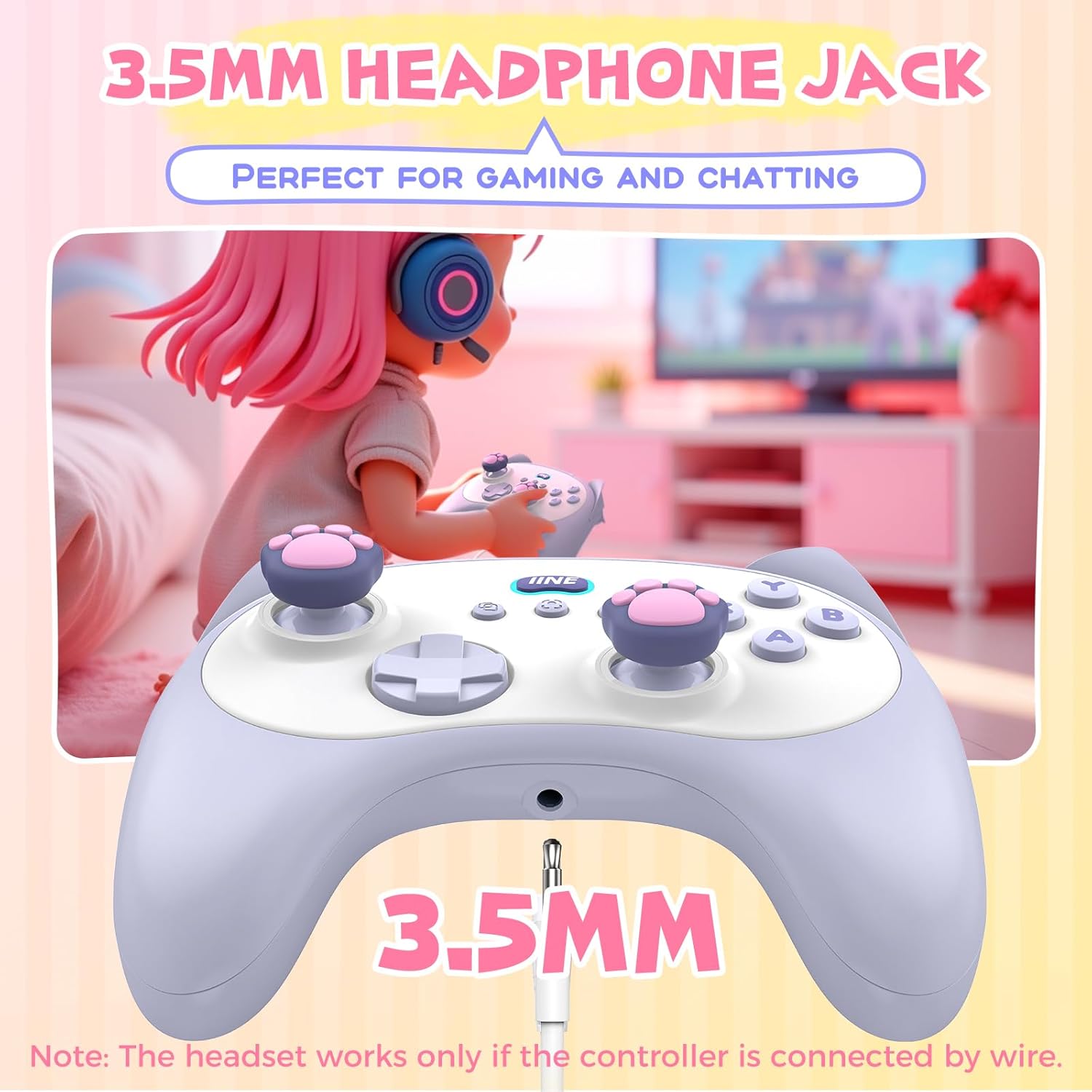

Image 5.5: Close-up of the 3.5mm headphone jack on the controller.
5.3 Batteristatuskontrol
To check the controller's battery status, press the Turbo button + the Er lig med (=) button. The indicator lights will display the current battery level.
Image 5.6: Visual guide for checking the controller's battery status.
5.4 Meowing Sound Control
The charging dock emits a meowing sound when the controller is placed on it. To turn this sound on or off, press the Hjem knap + Er lig med (=) knap + X knappen samtidigt.
Image 5.7: Instructions for enabling or disabling the meowing sound feature.
6. Vedligeholdelse
6.1 Rengøring
Brug en blød, tør klud til at rengøre controlleren og opladningsdokken. Ved genstridigt snavs, tør letampen the cloth with water. Avoid using harsh chemicals or abrasive materials, as these can damage the surface.
6.2 Opbevaring
Store the controller and dock in a cool, dry place away from direct sunlight and extreme temperatures. When not in use for extended periods, ensure the controller is fully charged before storage to preserve battery life.
7. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Controlleren tænder ikke. | Lavt batteri. | Charge the controller using the charging dock or USB-C cable. |
| Kan ikke oprette forbindelse via Bluetooth. | Controlleren er ikke i parringstilstand; enhedens Bluetooth er slukket; interferens. | Ensure controller is in pairing mode (flashing lights). Check device Bluetooth settings. Move closer to the device. |
| Hovedtelefonstikket virker ikke. | Controller is in wireless mode. | Connect the controller via USB-C cable to enable the headphone jack. |
| Knapperne reagerer ikke eller er forsinkede. | Low battery; wireless interference; firmware issue. | Charge the controller. Reduce distance to device. Check for firmware updates (via IINE app if available). |
| Meowing sound not playing/stopping. | Sound feature toggled off/on. | Press Home + Equals (=) + X to toggle the sound. |
8. Specifikationer
- Model: IINE Wireless Controller with Charging Dock
- Forbindelse: Bluetooth, Wired (USB-C), 2.4GHz Wireless (via USB adapter)
- Kompatibilitet: PC, Nintendo Switch, Android, iOS
- Batteri: 500mAh (approx. 6 hours playtime, 3 hours charge time)
- Funktioner: Macro function, Turbo function, 6-Axis Motion Control, Adjustable Rumble, Hall Effect Joysticks, Hall Effect Triggers, 3.5mm Headphone Jack
- Dimensioner: Approximately 5.19 x 3.77 x 2.12 inches (Controller)
- Vægt: Cirka 15.5 ounce
Image 8.1: Diagram illustrating the dimensions of the IINE Wireless Controller.
9. Garanti og support
9.1 Garantioplysninger
IINE products are covered by a limited warranty against manufacturing defects. Please refer to the warranty card included in your package or visit the official IINE webhjemmeside for detaljerede garantivilkår.
9.2 Kundesupport
For technical assistance, troubleshooting, or warranty claims, please contact IINE customer support through their official webwebstedet eller kontaktoplysningerne på din produktemballage. Hav venligst din produktmodel og købsoplysninger klar, når du kontakter support.
