Happybuy ZD-50L Mælkepasteuriseringsapparat Brugsanvisning

1. Introduktion

This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your Happybuy ZD-50L Milk Pasteurizer. Please read this manual thoroughly before operating the unit to ensure proper usage and to prevent damage or injury. This commercial-grade pasteurizer is designed for processing various types of milk and other liquid foods, featuring a 50-liter capacity and constructed from food-grade 304 stainless steel.

2. Sikkerhedsoplysninger

Overhold altid følgende sikkerhedsretningslinjer:

• Ensure the unit is placed on a stable, level surface away from flammable materials.
• Connect the unit to a grounded power outlet with the correct voltage.
• Do not operate the pasteurizer with wet hands or in wet conditions.
• The unit contains heating elements and processes hot liquids. Exercise extreme caution to avoid burns.
• Afbryd altid strømmen før rengøring eller vedligeholdelse.
• Hold børn og uautoriseret personale væk fra betjeningsenheden.
• Do not immerse the control panel or electrical components in water.

3. Produktkomponenter

The Happybuy ZD-50L Milk Pasteurizer package includes the following items:

• 1 x Milk Pasteurizer Unit (Main Tank with Control Panel)
• 1 x Butterfly Valve
• 1 x Water Level Tube
• 1 x Silicone Gasket for Heating Rod
• 1 x Spare Heating Rod
• 1 x Silicone Gasket for Butterfly Valve
• 1 x klip

4. Opsætning

1. Udpakning: Fjern forsigtigt alle komponenter fra emballagen. Undersøg for eventuelle forsendelsesskader.
2. Placering: Position the pasteurizer on a stable, heat-resistant, and level surface. Ensure adequate clearance around the unit for ventilation and safe operation. Refer to the specifications for dimensions.
3. Forsamling:
   • Attach the butterfly valve to the outlet port at the bottom of the tank, ensuring the silicone gasket is properly seated to prevent leaks.
   • Install the water level tube into its designated slot on the side of the tank.
   • Ensure the heating rod is securely in place with its gasket.
4. Indledende rengøring: Before first use, thoroughly clean the interior of the tank and all components that will come into contact with food products using a mild detergent and warm water. Rinse thoroughly and dry.
5. Strømtilslutning: Connect the power cord to a suitable grounded electrical outlet. Ensure the power switch on the unit is in the OFF position before connecting.

5. Betjeningsvejledning

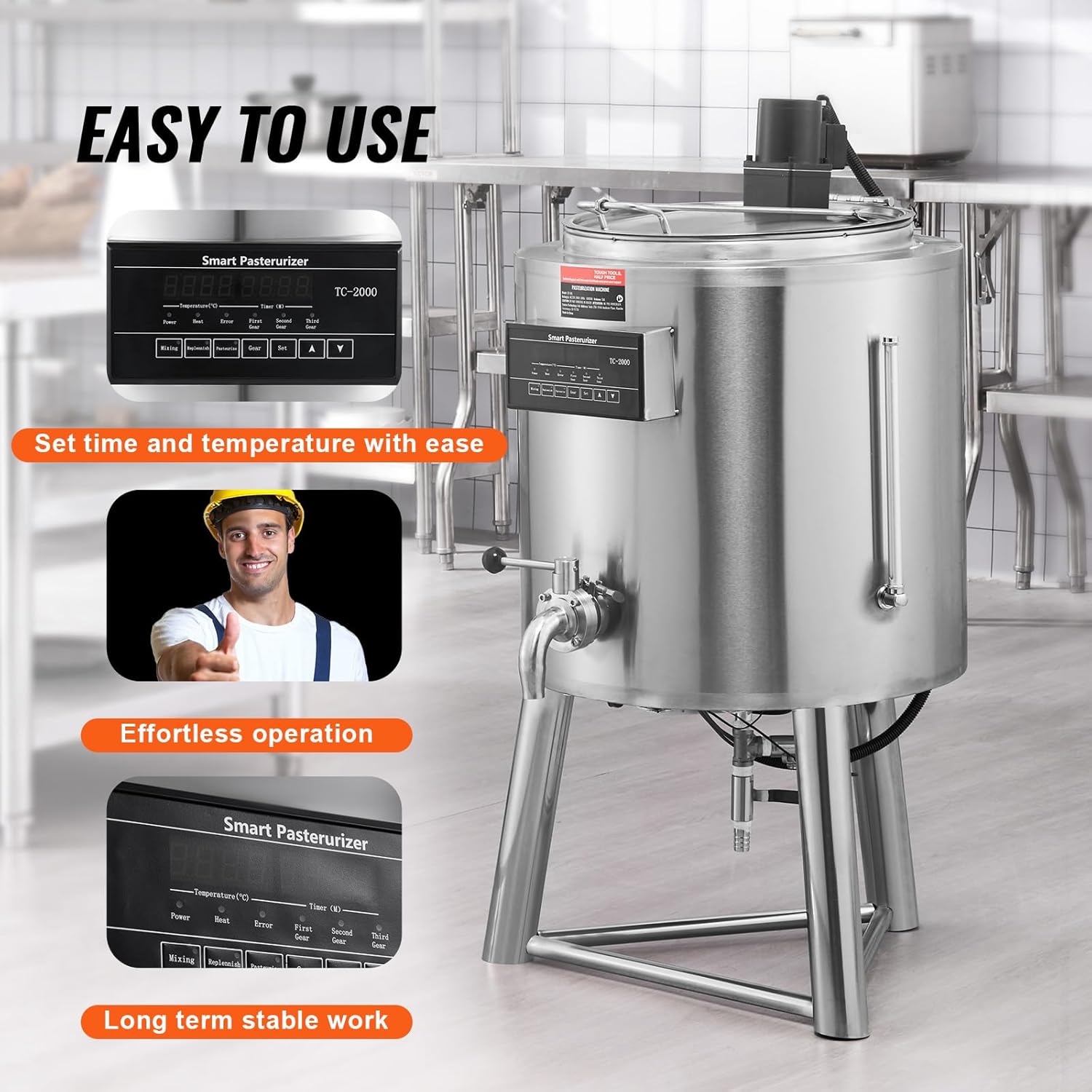

The Happybuy ZD-50L features a user-friendly control panel for precise operation.

1. Fyld tanken: Open the lid and carefully pour the liquid to be pasteurized into the stainless steel tank. Do not exceed the maximum fill line indicated by the water level tube.
2. Luk låget: Securely close the lid to maintain temperature and prevent contamination.
3. Tænd: Turn on the main power switch. The control panel display will illuminate.
4. Indstil temperatur: Use the temperature adjustment buttons on the control panel to set the desired pasteurization temperature. Common pasteurization temperatures for milk range from 63°C (145°F) for 30 minutes (batch pasteurization) to 72°C (161°F) for 15 seconds (HTST, though this unit is typically for batch). Consult local food safety guidelines for specific requirements.
5. Indstil tid: Use the time adjustment buttons to set the holding time for pasteurization once the target temperature is reached.
6. Start opvarmning: Press the 'Heat' button to begin the heating process. The unit will automatically heat the liquid to the set temperature. The display will show the current temperature.
7. Mixing (Optional): If your model includes a mixing function, activate it to ensure even heat distribution throughout the liquid.
8. Holding Phase: Once the target temperature is reached, the unit will maintain this temperature for the set duration.
9. Køling: After the holding time is complete, the unit will initiate a cooling phase. The cooling time can also be adjusted.
10. Dræning: Once the pasteurization and cooling cycles are complete, open the butterfly valve to drain the pasteurized liquid into a clean, sanitized container.
11. Sluk: Turn off the main power switch and disconnect the unit from the power supply after use.

6. Vedligeholdelse

Regular cleaning and maintenance are crucial for the longevity and hygienic operation of your pasteurizer.

1. Daglig rengøring: After each use, immediately drain any remaining liquid. Rinse the interior of the tank with warm water. Use a soft brush or sponge with a mild, food-safe detergent to clean all internal surfaces, the lid, and the butterfly valve. Rinse thoroughly with clean water until all detergent residue is removed.
2. Sanering: After cleaning, it is recommended to sanitize all food-contact surfaces according to local food safety regulations. This typically involves using a food-grade sanitizer solution.
3. Udvendig rengøring: Tør enhedens ydre af med adamp cloth. Do not use abrasive cleaners or immerse the control panel.
4. Komponentinspektion: Regularly inspect gaskets, the heating rod, and the butterfly valve for wear or damage. Replace any worn components promptly to ensure proper sealing and operation. The unit's components are designed to be easily detachable and replaceable.
5. Opbevaring: Store the pasteurizer in a clean, dry environment when not in use.

7. Fejlfinding

If you encounter issues with your Happybuy ZD-50L Milk Pasteurizer, refer to the following common problems and solutions:

• Enheden tænder ikke:
  • Kontroller, om netledningen er sat ordentligt i en fungerende stikkontakt.
  • Ensure the main power switch is in the 'ON' position.
  • Kontroller, at afbryderen eller sikringen til stikkontakten ikke er udløst.
• Unit Heats Slowly or Not at All:
  • Confirm the temperature setting is correct.
  • Ensure the heating rod is properly installed and not damaged.
  • Check for any error codes on the control panel display and consult the manufacturer for specific meanings.
• Liquid Leaks from Outlet:
  • Ensure the butterfly valve is fully closed.
  • Inspect the silicone gasket for the butterfly valve for proper seating or damage. Replace if necessary.
• Unøjagtig temperaturaflæsning:
  • Ensure the temperature sensor is clean and properly positioned.
  • Kontakt kundesupport, hvis problemet fortsætter.

For issues not covered here, please contact Happybuy customer support.

8. Specifikationer

Key technical specifications for the Happybuy ZD-50L Milk Pasteurizer:

9. Garanti og support

For warranty information, please refer to the documentation provided at the time of purchase or contact your seller. For technical support, spare parts, or further assistance, please visit the official Happybuy website or contact their customer service department. You can often find support resources and contact information on the Happybuy Store.
