Husky 500-Lumens Dual Power Focusing Aluminum Flashlight User Manual

Indledning

The Husky 500 Lumens Ultra-Compact Dual-Power Focusing EDC Aluminum Flashlight is designed for versatile illumination with precise beam control. It offers high-definition output and a compact design for easy portability. This manual provides essential information for the safe and effective use, setup, operation, and maintenance of your flashlight.

Sikkerhedsoplysninger

• Se ikke direkte ind i lysstrålen for at undgå øjenskader.
• Opbevares utilgængeligt for børn.
• Skil ikke lommelygten ad; dette kan ugyldiggøre garantien og forårsage skade.
• Ensure proper battery polarity when installing batteries.
• Bortskaf batterier i henhold til lokale regler.

Pakkens indhold

• Husky 500-Lumens Dual Power Focusing Aluminum Flashlight
• Ladekabel
• Klip
• Genopladeligt litium-ion-batteri (forinstalleret eller separat)
• AA Battery Adapter (for optional AA battery use)

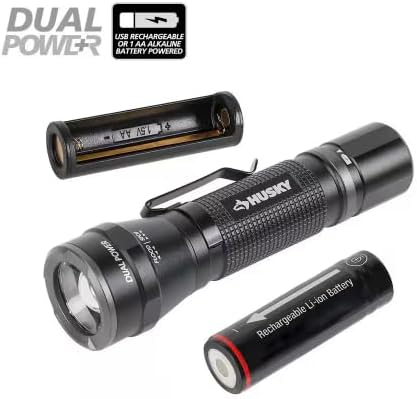

Image: The Husky flashlight shown with its rechargeable lithium-ion battery and the adapter for optional AA battery use, highlighting its dual power capability.

Opsætning

Installation af batteri

1. Skru hætten på lommelygten af.
2. Insert the rechargeable lithium-ion battery with the positive (+) end facing towards the head of the flashlight.
3. Alternatively, if using AA batteries (not included), insert them into the provided AA battery adapter, ensuring correct polarity, then insert the adapter into the flashlight.
4. Skru halehætten sikkert på igen.

Opladning af lommelygten

The flashlight is rechargeable via its integrated USB-C port. To charge:

1. Locate the USB-C input port, typically near the tail end of the flashlight.
2. Connect the provided charging cable to the flashlight's USB-C port.
3. Connect the other end of the charging cable to a USB power source (e.g., wall adapter, computer USB port).
4. An indicator light will show charging status (refer to product for specific light behavior).

Image: The Husky flashlight displayed alongside its USB-C charging cable, illustrating the charging method.

Billede: En detaljeret view of the USB-C input port on the flashlight, indicating where the charging cable connects.

Betjeningsvejledning

Tænd/sluk og valg af tilstand

• Press the power button (usually located on the tail cap or side) to turn the flashlight on.
• Press the power button repeatedly to cycle through the available modes: Turbo, High, Medium, Low, ECO, and Strobe.
• To activate Turbo Mode: Hold the button in High mode for 3 seconds.
• To activate Dimming Function: Press and hold the mode button for 3 seconds.
• The flashlight features mode memory intelligence, powering up in the last mode used if left on for 10 seconds.
• Tryk og hold tænd/sluk-knappen nede for at slukke lommelygten.

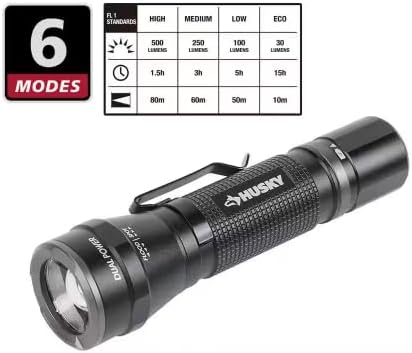

Image: The Husky flashlight accompanied by a table detailing its 6 operational modes, including lumens, runtime, and beam distance for each setting.

Fokusering af strålen

The flashlight features precision twist focusing to adjust the beam from a wide flood to a narrow spot.

• Gently twist the head of the flashlight to adjust the beam focus.
• Twist in one direction for a wider floodlight beam.
• Twist in the opposite direction for a concentrated spot beam, reaching up to 80 meters.

Image: Two illustrations of the Husky flashlight demonstrating its twist-to-focus feature, showing both a wide flood beam and a narrow spot beam.

Opretholdelse

• Rensning: Tør lommelygtens hus af med en blød kludamp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Batteripleje: If storing for extended periods, remove the battery to prevent leakage. Recharge the battery periodically to maintain its lifespan.
• Vandtæthed: The flashlight is water resistant. Ensure all caps and seals are properly closed before exposure to water.

Image: A close-up of the Husky flashlight on a wet surface, with a "Water Resistant" icon, illustrating its durability against moisture.

Fejlfinding

Specifikationer

Garanti og support

This Husky flashlight is covered by a begrænset livstidsgaranti. For warranty claims or technical support, please refer to the contact information provided with your purchase or visit the official Husky tools webwebsted.

For further assistance, please contact Husky Customer Service.
