Brugermanual til Vive Mobility Carbon Crossover elektrisk kørestol

1. Introduktion

This manual provides essential information for the safe and effective operation, maintenance, and care of your Vive Mobility Carbon Crossover Electric Wheelchair. Please read this manual thoroughly before using the wheelchair to ensure proper understanding and to maximize your mobility experience.

The Vive Carbon Crossover Electric Wheelchair is designed for adults seeking a lightweight, foldable, and motorized mobility solution. Its carbon fiber frame offers exceptional strength while maintaining an ultra-lightweight profile, making it ideal for travel and daily use.

2. Sikkerhedsoplysninger

WARNING: Always consult with a healthcare professional to determine if this device is appropriate for your specific mobility needs.

• Always wear the seatbelt provided.
• Ensure the anti-tip wheels are properly installed and engaged before operation.
• Do not operate the wheelchair on inclines exceeding 6 degrees.
• Avoid sudden stops or turns, especially on uneven surfaces.
• Keep hands and clothing clear of moving parts, especially wheels and motor.
• Do not expose the wheelchair to excessive moisture or rain.
• Always turn off the power and remove the key (if applicable) when not in use or when transferring.

Juridisk ansvarsfraskrivelse: Udsagn vedrørende kosttilskud er ikke blevet evalueret af FDA og er ikke beregnet til at diagnosticere, behandle, helbrede eller forebygge nogen sygdom eller helbredstilstand.

3. Komponenter overview

Familiarize yourself with the main components of your electric wheelchair:

• Carbon Fiber Frame: Ultra-lightweight yet strong, designed for durability and portability.
• 5-Speed Joystick Controller: Provides effortless control and maneuverability.
• Dual Lithium Battery System: Offers an extended range of up to 12.8 miles per charge.
• 12-inch All-Terrain Rear Wheels: Designed for stable navigation across various surfaces.
• Anti-Tip Wheels: Enhance stability and safety.
• Breathable Padded Seat and Backrest: Ensures lasting comfort.
• Justerbare armlæn: For personalized comfort.
• Folding Footrest: Provides support and folds for compact storage.

Billede: Overview of the Vive Carbon Crossover Electric Wheelchair, highlighting its ultra-lightweight carbon fiber frame, comfortable seating, all-day battery life, and ease of use with a 360-degree joystick controller.

4. Opsætning og montering

Your Vive Carbon Crossover Electric Wheelchair arrives pre-assembled and is designed for quick deployment.

1. Udfoldning af kørestolen: Gently pull up on the seat frame until the chair locks into its open position. Ensure all locking mechanisms are secure.
2. Installation af batterier: Locate the battery compartments under the seat. Insert the rechargeable lithium batteries firmly until they click into place. The chair supports a dual battery system for extended range.
3. Attaching the Joystick: Slide the joystick controller into the bracket on the armrest (typically the right side, but can be adjusted). Tighten the knob to secure it. Connect the joystick cable to the corresponding port on the wheelchair.
4. Adjusting Armrests and Footrest: Adjust the armrests to your preferred height. Lower the footrest into position.
5. Pudeplacering: Place the breathable padded seat and backrest cushions onto the chair, securing them with any attached Velcro strips.

Image: The Vive Carbon Crossover Electric Wheelchair shown in both its compact, folded state and its fully assembled, ready-to-use configuration, demonstrating its portability.

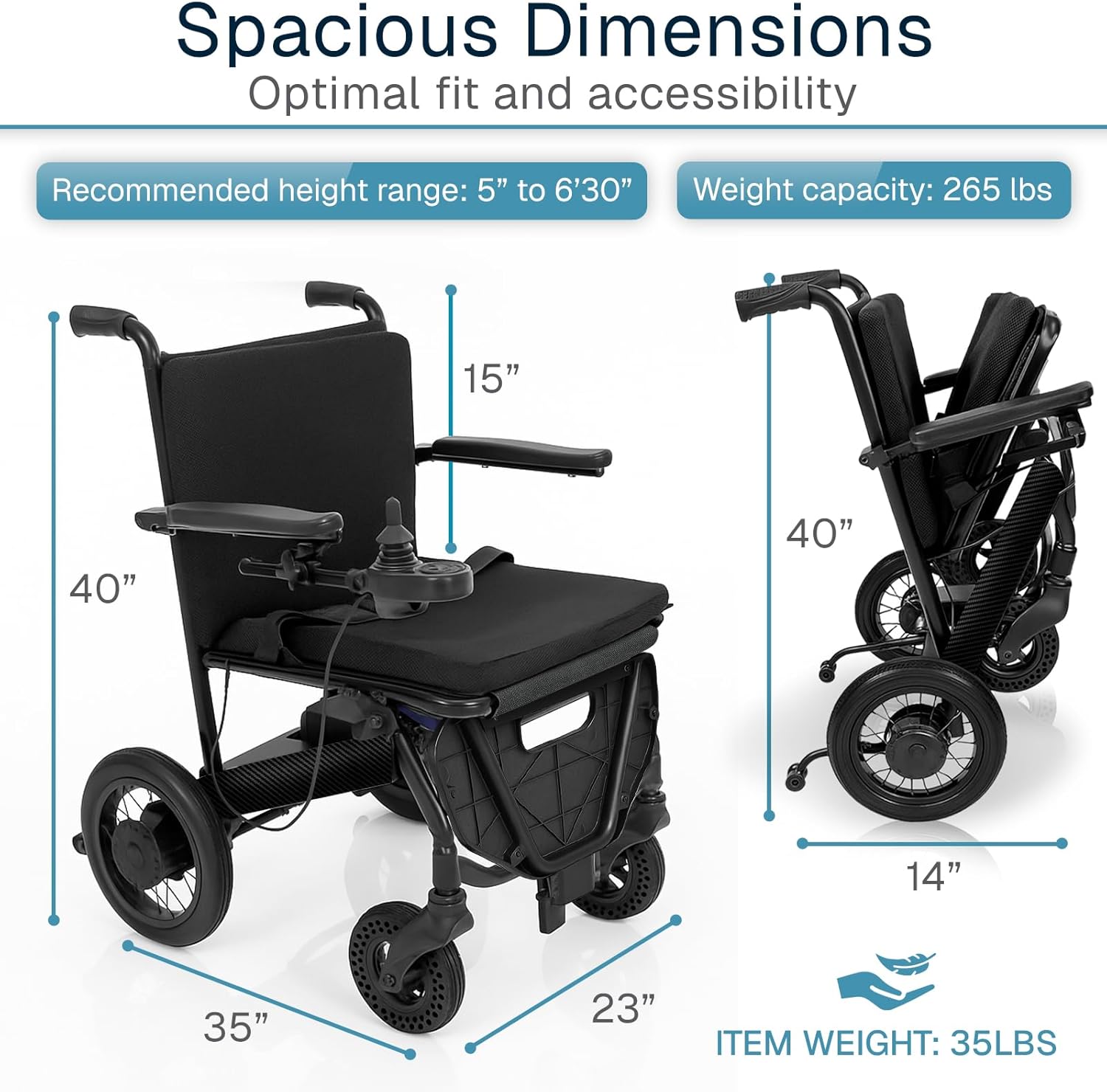

Image: A diagram illustrating the dimensions of the Vive Carbon Crossover Electric Wheelchair, including its height, width, depth, and folded dimensions, along with its 265 lbs weight capacity.

5. Betjeningsvejledning

5.1 Tænd/sluk

1. For at tænde: Locate the main power switch near the batteries under the seat and turn it ON. Then, press the power button on the joystick controller.
2. For at slukke: Press the power button on the joystick controller. It is recommended to also turn off the main power switch under the seat when not in use for extended periods.

5.2 Using the Joystick Controller

The 5-speed joystick allows for precise control:

Image: A close-up diagram of the joystick controller, labeling the power button, speed display, power display, speed adjustment buttons (+/-), and the 360-degree joystick.

• Bevægelse: Gently push the joystick in the desired direction (forward, backward, left, right). The chair will move smoothly.
• Hastighedstilpasning: Use the '+' and '-' buttons on the controller to adjust between 5 speed settings. The current speed level will be indicated on the speed display.
• Bremsning: Release the joystick, and the electromagnetic brakes will automatically engage, bringing the wheelchair to a smooth stop.
• Reverse Alert: When moving in reverse, a soft beeping sound will activate to alert those behind you.

5.3 Batterilevetid og opladning

The wheelchair is equipped with a dual lithium battery system for extended use.

• Batteriindikator: The power display on the joystick controller shows the remaining battery charge.
• Opladning: To charge, ensure the main power switch under the seat is ON and the joystick controller is OFF. Plug the charger into the charging port on the armrest. The charger indicator light will typically show blue while charging and green when fully charged.
• Rækkevidde: A full charge provides up to 12.8 miles of travel.

Image: A user comfortably operating the Vive Carbon Crossover Electric Wheelchair outdoors, demonstrating its ease of use and extended battery life for daily activities.

6. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer din kørestols levetid og optimale ydeevne.

• Rensning: Tør stellet og sædet af med en kludamp klæde. Undgå at bruge slibende rengøringsmidler eller for meget vand.
• Batteripleje: Charge batteries regularly, even if the wheelchair is not in frequent use, to maintain battery health. Do not overcharge.
• Dæktryk: Periodically check the tire pressure (if applicable) and inflate to the recommended levels.
• Inspektioner: Regularly inspect all connections, bolts, and moving parts for any signs of wear or looseness. Tighten as necessary.
• Opbevaring: Store the wheelchair in a dry, cool place away from direct sunlight.

Billede: Et nærbillede view of the 12-inch rear wheels and anti-tip wheels, highlighting their robust design for stability and all-terrain capability.

Billede: En eksploderet view illustrating the internal components of the powerful intuitive motor, designed for efficient operation and climbing inclines up to 6 degrees.

7. Fejlfinding

Hvis du støder på problemer, kan du se følgende almindelige problemer og løsninger:

8. Specifikationer

Image: Details of the extra wide and cushioned seat, showing its 17-inch width and 16.5-inch depth, along with icons for thick padding, lumbar support, and breathable material for long-lasting comfort.

9. Garanti og support

Your Vive Mobility Carbon Crossover Electric Wheelchair is backed by a 5 års garanti, ensuring quality and peace of mind.

For technical support, warranty claims, or any questions regarding your product, please contact Vive Health Direct, the manufacturer and seller.

Kontaktoplysninger:

• Mærke: Vive Mobility
• Sælger: Vive Health Direct
• Refer to your product packaging or the Vive Mobility webhjemmeside for de seneste kontaktoplysninger.
