Indledning
This manual provides detailed instructions for the TECKNET Wired RGB Keyboard, model TK-KB037. Please read this manual thoroughly before using the product to ensure proper operation and maintenance.
Figure 1: TECKNET Wired RGB Keyboard (Model TK-KB037)
1. Opsætning
1.1 Pakkens indhold
- TECKNET Wired RGB Keyboard (Model TK-KB037)
- Brugervejledning (dette dokument)
1.2 Tilslutning af tastaturet
The TECKNET Wired RGB Keyboard features a simple plug-and-play design, requiring no additional drivers for most operating systems.
- Locate an available USB-A port on your computer (PC, Laptop, Desktop, Raspberry Pi 3/4).
- Insert the USB connector of the keyboard into the USB-A port.
- The keyboard will be automatically recognized by your operating system and ready for use.
Figure 2: Connecting the USB cable to a computer.
Kompatibilitet: Compatible with Windows 2000/XP/7/8/10, Vista, Raspberry Pi 3/4, and Mac OS. Note that multimedia keys may have limited functionality on Mac OS.
Figure 3: Operating system compatibility overview.
2. Betjeningsvejledning
2.1 Quiet and Comfortable Typing
Tastaturet har lavprofile membrane keys designed for soft keystrokes and reduced typing noise, suitable for quiet environments.
Figur 4: Lav-profile keycaps for quiet typing.
2.2 Ergonomic Design and Adjustable Tilt
The full-size 104-key layout includes adjustable tilt legs and anti-slip pads, allowing you to customize the typing angle for comfort during extended use.
Figure 5: Adjustable tilt legs for ergonomic comfort.
2.3 RGB-baggrundsbelysningskontrol
The keyboard features 7 different lighting colors, 4 brightness levels (High/Medium/Low/Off), and 2 lighting modes (Static or Breathing).
- To change lighting color: Press FN + * (asterisk key).
- To adjust brightness: Press FN + + (plus key) to increase, or FN + - (minus key) to decrease.
- To switch between Static and Breathing modes: Press FN + Pæreikon nøgle.
Figur 6: Eksamples of 7-color RGB backlighting.
Figure 7: Three levels of adjustable backlight brightness.
2.4 Multimediegenveje
Utilize the 12 FN+F key combinations for quick access to various functions:
| Nøglekombination | Fungere |
|---|---|
| FN + F1 | Musikafspiller |
| FN + F2 | Lydstyrke ned |
| FN + F3 | Lydstyrke op |
| FN + F4 | Stum |
| FN + F5 | Stop afspilning |
| FN + F6 | Forrige spor |
| FN + F7 | Afspil/pause |
| FN + F8 | Næste spor |
| FN + F9 | Internet browser |
| FN + F10 | Email Client |
| FN + F11 | Lås computer |
| FN + F12 | Kalkulator |
Figure 8: FN key multimedia shortcuts.
3. Vedligeholdelse
3.1 Spill-Resistant Design
The keyboard is built with a spill-resistant conductive film to protect against accidental water splashes. In case of a spill, promptly wipe the liquid clean from the keyboard surface.

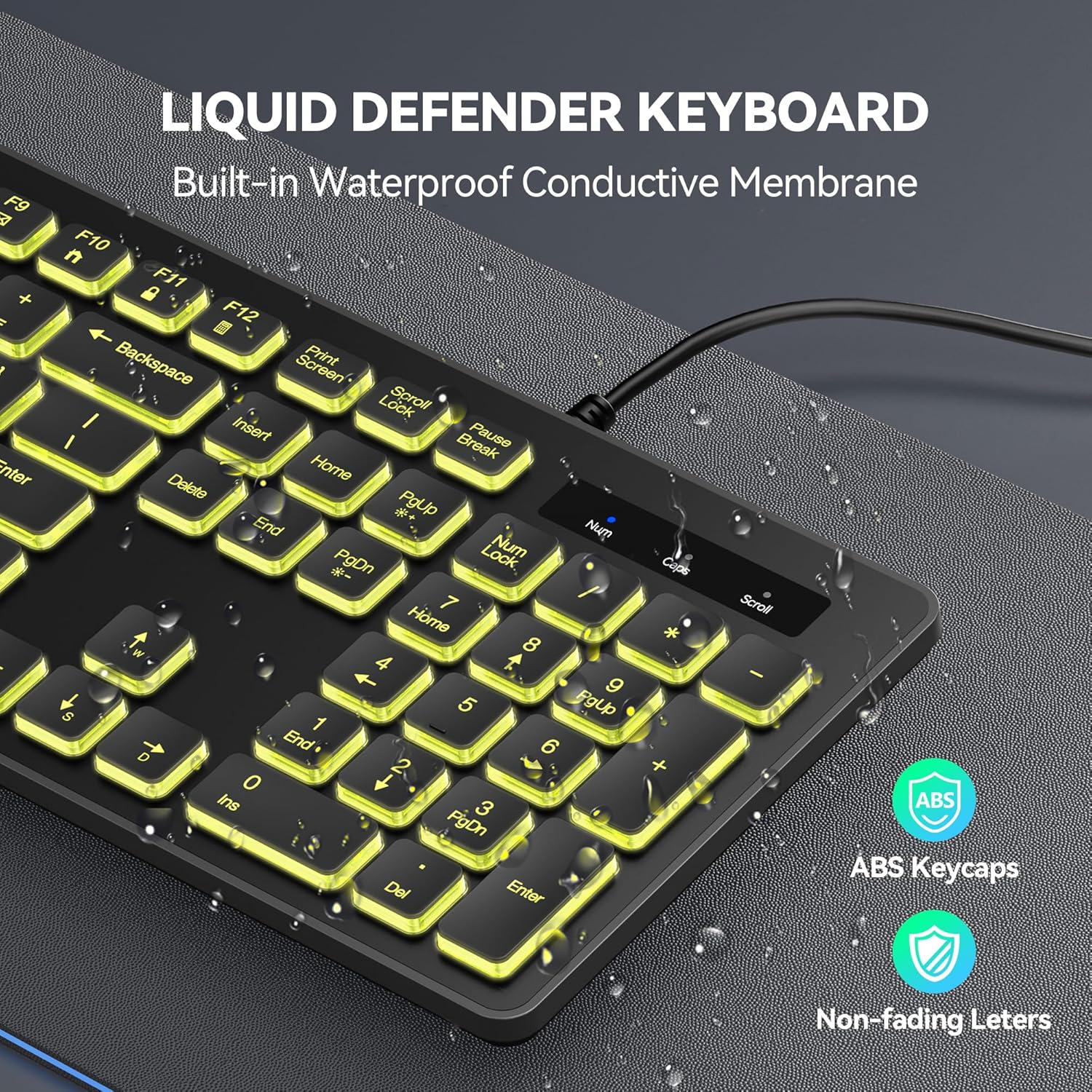

Figure 9: Spill-resistant keyboard design.
3.2 Generel rengøring
To clean the keyboard, use a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these may damage the surface or key legends.
4. Fejlfinding
4.1 Tastaturet reagerer ikke
- Ensure the USB cable is securely connected to a working USB-A port on your computer.
- Try connecting the keyboard to a different USB-A port.
- Genstart din computer.
- Test tastaturet på en anden computer for at afgøre, om problemet er med tastaturet eller computeren.
4.2 Baggrundsbelysning virker ikke eller er forkert
- Sørg for, at tastaturet er korrekt tilsluttet.
- Bruge FN + + or FN + - for at justere lysstyrken.
- Bruge FN + * at cykle gennem farver.
- Bruge FN + Pæreikon to change lighting modes.
4.3 Multimedia Keys Not Functioning on Mac OS
As noted in the compatibility section, some multimedia keys may have limited functionality when used with Mac OS. This is due to differences in operating system key mapping and is not a product defect.
5. Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | TK-KB037 |
| Mærke | TECNET |
| Forbindelsesteknologi | USB-A (Wired) |
| Tastaturbeskrivelse | Membran |
| Nøglelayout | Full-size, 104 keys |
| Baggrundsbelysning | 7-Color RGB, 4 Brightness Levels, 2 Modes (Static/Breathing) |
| Særlige funktioner | Backlit, Spill-Resistant, Adjustable Tilt Legs, Multimedia Shortcuts |
| Kompatible enheder | PC (Windows 2000/XP/7/8/10, Vista), Raspberry Pi 3/4, Mac OS |
| Produktdimensioner | 43.9 x 13.2 x 2.8 cm (L x B x H) |
| Varens vægt | 0.634 ounce (ca. 18 gram) |
6. Garanti
Each TECKNET product provides a lifetime warranty (registered only). If you are not satisfied with your product or service, please contact TECKNET customer support.
7. Support
For technical support, warranty claims, or further assistance, please visit the official TECKNET website or contact their customer service directly. Refer to the product packaging or the TECKNET webhjemmeside for de seneste kontaktoplysninger.
Du kan også besøge TECKNET-butik på Amazon for yderligere produktinformation og supportressourcer.
Produkt overview Video
Video 1: En overview of the TECKNET wired backlit keyboard, demonstrating its features such as plug-and-play setup, adjustable legs, quiet typing, RGB lighting modes, and spill resistance.
