Brugermanual til Lockly Vision og Model 6S Smart Lock

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of your Lockly Vision and Model 6S Smart Lock. This smart lock system offers advanced security features including a built-in camera, fingerprint sensor, and a unique PIN Genie Keypad. Please read this manual thoroughly before installation and use to ensure proper functionality and safety.

Figure 1.1: Lockly Vision and Model 6S Smart Lock System Overview. This image displays the main components of the Lockly smart lock system, including the exterior camera and keypad unit, the interior handle and battery unit, and the separate Wi-Fi bridge for remote connectivity.

2. Sikkerhedsoplysninger

• Do not expose the lock to direct water spray or submersion.
• Brug kun den angivne batteritype, og sørg for korrekt polaritet under installationen.
• Undgå at bruge slibende rengøringsmidler eller opløsningsmidler på låsens overflade.
• Hold fingrene væk fra bevægelige dele under drift.
• Ensure all components are securely fastened during installation to prevent accidental dislodgement.

3. Pakkens indhold

Bekræft, at alle nedenstående varer er til stede i din pakke:

• Lockly Vision Elite Smart Lock (Exterior Assembly with Camera and Keypad)
• Lockly 6S Smart Lock (Interior Assembly with Handle)
• Wi-Fi bro
• Mounting Hardware (Screws, Bolts, Strike Plate)
• Installationsskabelon
• Brugermanual (dette dokument)
• Rechargeable Lithium Batteries (2x)

4. Opsætning og installation

The Lockly Vision and Model 6S Smart Lock is designed for easy DIY installation without the need for drilling or complex wiring. Follow the step-by-step guidance provided in the included installation template and the Lockly Home app.

4.1 Tjekliste før installation

1. Ensure your door meets the specified thickness requirements.
2. Confirm the backset measurement of your door.
3. Download the Lockly Home app from your device's app store.

4.2 Installationstrin

Refer to the detailed instructions within the Lockly Home app for visual and audio guidance. General steps include:

1. Remove your existing deadbolt and handle.
2. Installer den nye lås og slutblege.
3. Mount the exterior keypad assembly.
4. Connect the interior handle assembly.
5. Indsæt de genopladelige batterier.
6. Perform the door handing process via the app.

5. Betjeningsvejledning

5.1 PIN Genie Keypad Operation

The patented PIN Genie keypad features a unique number-shuffling design to prevent PIN theft. The numbers on the keypad dynamically rearrange after each use.

Figure 5.1: PIN Genie Keypad in operation. This image illustrates how the numbers on the keypad shuffle dynamically, making it difficult for onlookers to guess your PIN based on finger placement.

• To unlock: Touch the screen to activate the keypad. Enter your 6-8 digit access code. The numbers will shuffle after each digit entry. Press the Lockly button to confirm.
• To lock: Press the Lockly button on the keypad.

5.2 3D Biometric Fingerprint Access

The integrated biometric fingerprint sensor allows for quick and secure unlocking in approximately 0.3 seconds. The lock can store up to 99 unique fingerprints.

Figure 5.2: Using the 3D Biometric Fingerprint Sensor. A hand is shown placing a finger on the side-mounted fingerprint sensor of the Lockly smart lock for quick and secure access.

• To unlock: Place your registered finger on the sensor. The lock will unlock upon successful recognition.
• To register fingerprints: Use the Lockly Home app to add and manage fingerprints.

5.3 Lockly Home App Control

The Lockly Home app provides comprehensive control and monitoring features for your smart lock.

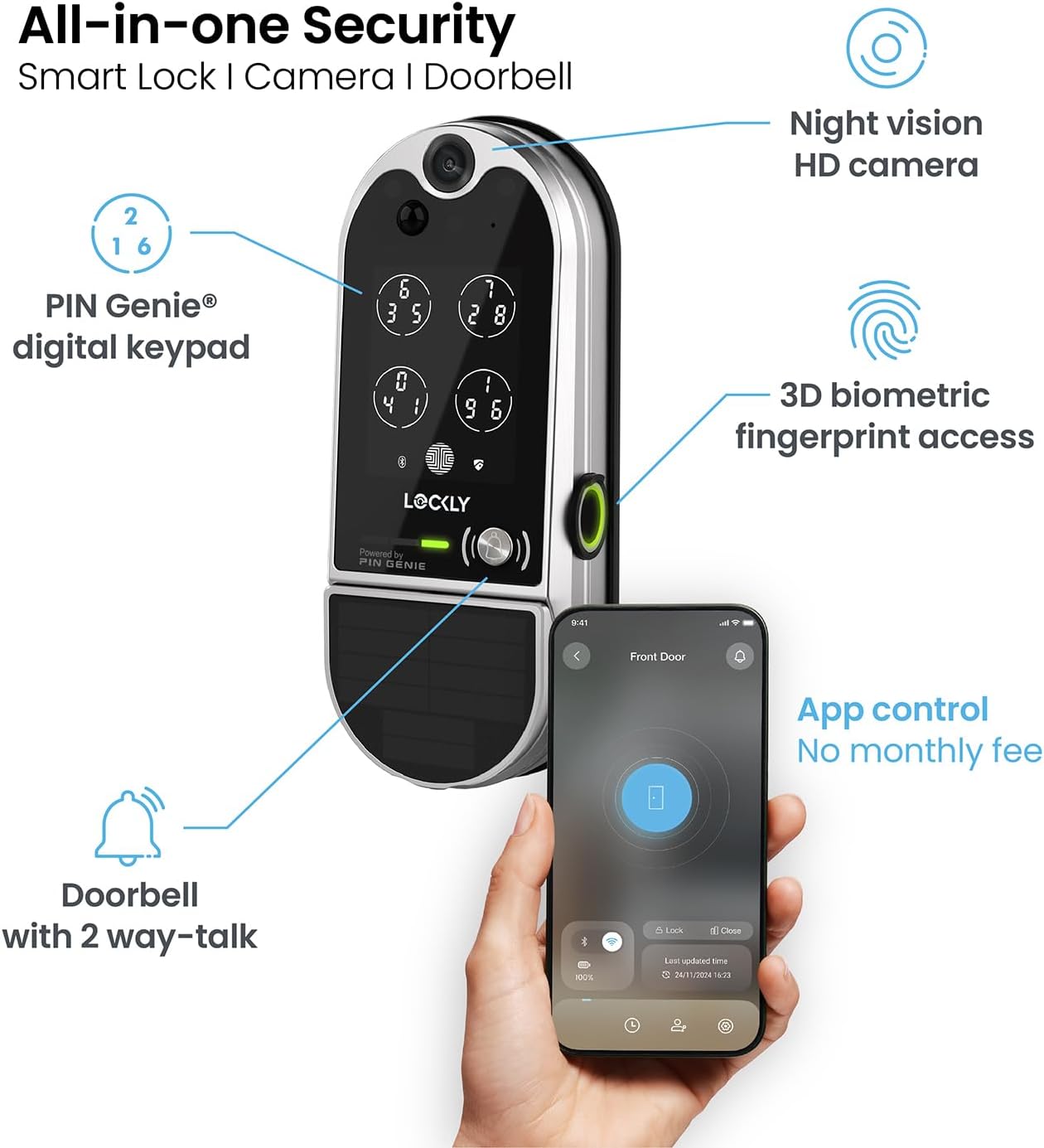

Figure 5.3: All-in-one Security Features. This image highlights the integrated features of the Lockly Vision smart lock, including its night vision HD camera, 3D biometric fingerprint access, app control, and doorbell with two-way talk functionality.

• Fjernbetjening: Lock or unlock your door from anywhere using the app.
• Adgangsstyring: Create, modify, or delete access codes and fingerprints.
• Realtidsadvarsler: Receive notifications for motion detection, door activity, and low battery.
• Tovejs lyd: Communicate with visitors at your door via the built-in doorbell and speaker.

5.4 Video Doorbell and Motion Detection

The Lockly Vision Elite features an HD camera with night vision and motion detection capabilities.

Figure 5.4: Day and Night Full HD Camera with Motion Detection. This image shows the camera's ability to capture clear footage both day and night, along with a notification indicating a visitor at the front door.

• Levende View: Access a live video feed of your doorstep through the app.
• Bevægelsesdetektion: The camera detects motion and sends real-time alerts to your phone.
• Recorded Footage: Footage is stored for review (check app for storage options).

5.5 Share Access

Easily share temporary or permanent access with trusted individuals using eKeys, eBadges, or Offline Access Codes™.

Figure 5.5: Sharing Access. This image depicts a user receiving an access code via text message, demonstrating the ease of sharing temporary or permanent access to the Lockly smart lock.

• e-nøgler: Grant app-based access to other Lockly users.
• Offline Access Codes™: Generate codes that work without internet connectivity.

5.6 Access Log History

The Lockly Home app maintains a detailed log of all access events, allowing you to review who entered and exited your property.

Figure 5.6: Access Log History. This image shows a family entering their home, with an inset displaying the Lockly app's access log, which records all entry and exit events for review.

• View mest tidamps and entry methods (e.g., fingerprint, code, mobile).
• Filter logs by date or user.

6. Vedligeholdelse

6.1 Batteristyring

The Lockly Vision and Model 6S Smart Lock is powered by rechargeable lithium batteries, offering up to 6 months of battery life. The Vision Elite model includes a solar panel for extended battery life.

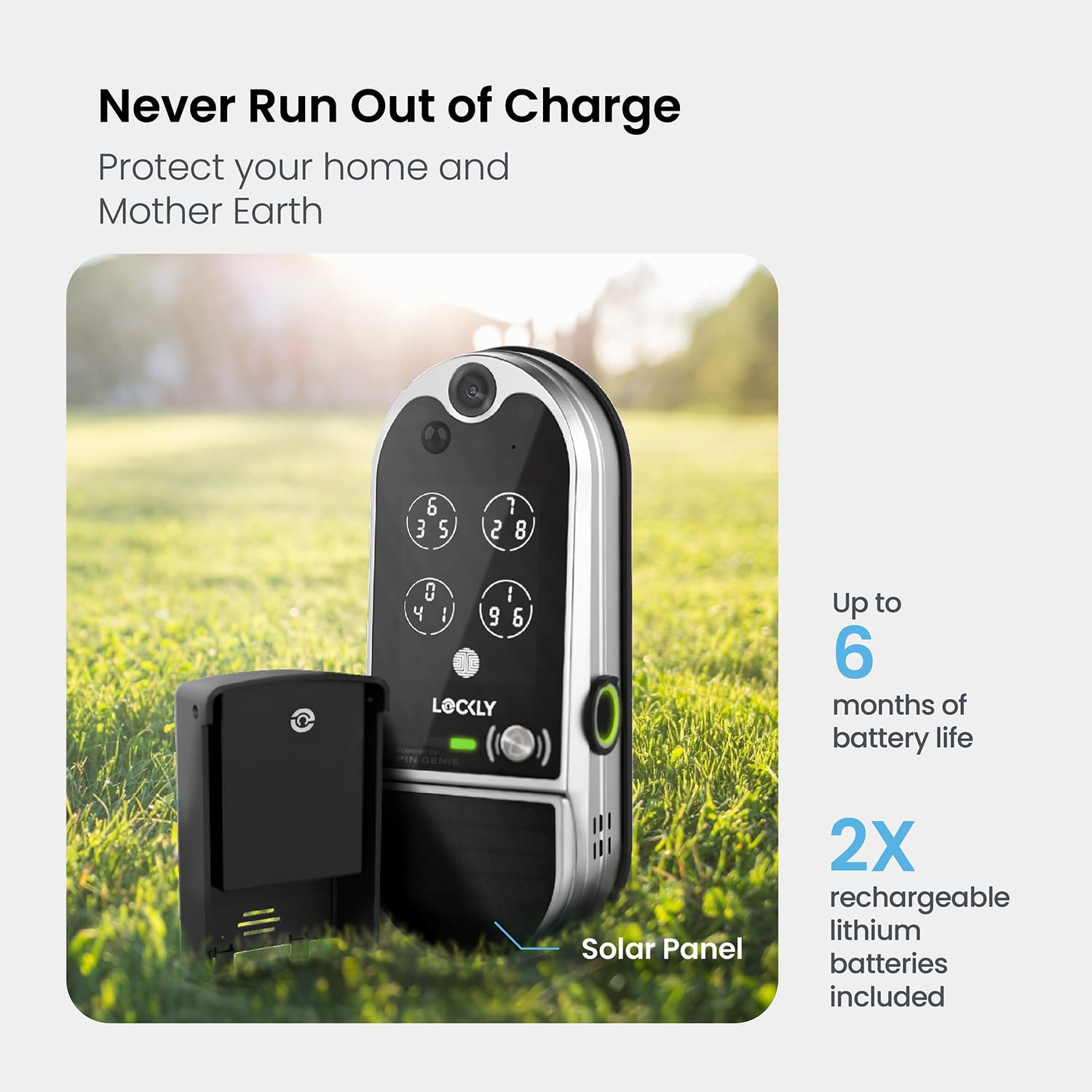

Figure 6.1: Battery Life and Solar Panel. This image highlights the long battery life of up to 6 months and the inclusion of a solar panel for continuous charging, ensuring the lock remains powered.

• Overvåg batteriniveauet via Lockly Home-appen.
• Recharge batteries when prompted by the app or low battery indicator.
• The solar panel on the Vision Elite model helps maintain battery charge with adequate sunlight exposure.

6.2 Rengøring

Wipe the lock's surface with a soft, damp klæde. Brug ikke skrappe kemikalier eller slibende materialer.

7. Fejlfinding

• Låsen svarer ikke: Check battery levels. Ensure batteries are correctly inserted. Try restarting the lock by removing and reinserting batteries.
• Fingeraftryk ikke genkendt: Sørg for, at din finger er ren og tør. Registrer dit fingeraftryk igen, hvis problemerne fortsætter.
• Tastatur lyser ikke: Touch the screen firmly. Check battery levels.
• Problemer med app-forbindelse: Ensure your Wi-Fi bridge is powered on and within range of both the lock and your Wi-Fi router. Check your home internet connection.
• Døren låser/oplåses ikke problemfrit: Check for any obstructions around the deadbolt. Ensure the lock is properly aligned with the strike plate.

8. Specifikationer

9. Garanti og support

Lockly products typically come with a limited manufacturer's warranty. Please refer to the warranty card included in your product packaging or visit the official Lockly webhjemmeside for detaljerede garantivilkår.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Lockly Customer Service:

• Webwebsted: www.lockly.com/support
• E-mail: Der henvises til webwebsted for kontaktformular eller e-mailadresse.
• Telefon: Der henvises til website for phone number.

When contacting support, please have your product model and ASIN (B0DZXCG42K) readily available.
