Husky 3/8 in. Drive 6-Point Pass-Thru Ratchet and Socket Set (35-Piece)

Indledning

This instruction manual provides important information for the safe and effective use of your Husky 3/8 in. Drive 6-Point Pass-Thru Ratchet and Socket Set. Please read this manual thoroughly before operation and retain it for future reference.

The Husky 35-Piece 3/8 in. Drive Pass-Through Socket Wrench Set features an innovative pass-through design. This design allows the hollow sockets and ratchet head to accommodate threaded rods and bolts, providing superior access in situations where standard socket sets may not fit. This feature virtually eliminates the need for deep sockets for many applications. The set is organized in a durable tool tray with a clear case, designed for convenient storage in most toolbox drawers.

Pakkens indhold

Verify that all items listed below are included in your set. If any parts are missing or damaged, please contact Husky customer support.

• 1 x 3/8 in. Drive Pass-Through Ratchet
• 1 x 3 in. Pass-Through Extension Bar
• 1 x Bit Adapter Socket
• 17 x Skruetrækker Bits
• 15 x 3/8 in. Drive Pass-Through Sockets:
• SAE Sizes: 3/8 in., 7/16 in., 1/2 in., 9/16 in., 5/8 in., 11/16 in., 3/4 in.
• Metric Sizes: 10 mm, 11 mm, 12 mm, 13 mm, 14 mm, 15 mm, 16 mm, 17 mm

Image: The Husky 35-Piece Pass-Thru Ratchet and Socket Set, neatly organized within its transparent red storage case, showcasing the ratchet, sockets, and bit adapter.

Image: The Husky 35-Piece Pass-Thru Ratchet and Socket Set with the clear case lid open, providing a full view of the ratchet, various sockets, and screwdriver bits arranged in their designated slots.

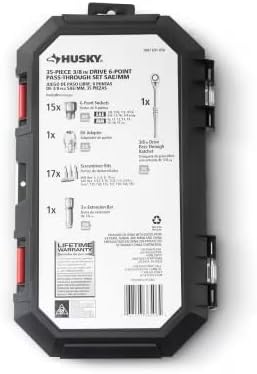

Billede: Bagsiden view of the Husky 35-Piece Pass-Thru Ratchet and Socket Set case, displaying a label with a list of included components, product features, and warranty information.

Opsætning og forberedelse

The Husky Pass-Thru Ratchet and Socket Set is designed for immediate use. No assembly is required for the individual tools. Simply open the storage case and select the appropriate tool for your task.

1. Inspicer værktøjer: Before each use, visually inspect the ratchet, sockets, extension bar, and bits for any signs of wear, damage, or corrosion. Do not use damaged tools.
2. Vælg den rigtige størrelse: Choose the correct size pass-through socket (SAE or Metric) that matches the fastener you are working with.
3. Fastgør stikkontakt: Firmly press the selected pass-through socket onto the drive end of the pass-through ratchet. Ensure it is securely seated.
4. Brug af forlængerstang: For fasteners in recessed areas, attach the 3 in. pass-through extension bar between the ratchet and the socket.
5. Using Bit Adapter: To use the screwdriver bits, attach the bit adapter socket to the ratchet, then insert the desired screwdriver bit into the adapter.

Betjeningsvejledning

The pass-through design allows for unique applications, especially with long threaded rods or bolts.

1. Engaging the Fastener: Place the pass-through socket over the fastener. For threaded rods, the rod will pass through the center of the socket and the ratchet head, allowing you to tighten or loosen nuts without bottoming out on the rod.
2. Ratchet Direction: Use the directional switch on the head of the ratchet to select clockwise (tighten) or counter-clockwise (loosen) rotation.
3. Anvendelse af moment: Apply steady, even pressure to the ratchet handle. Avoid using excessive force or striking the handle, as this can damage the tool or fastener.
4. Removing Socket: To remove a socket, firmly pull it straight off the ratchet drive.

Sikkerhedsforanstaltninger:

• Brug altid passende personlige værnemidler (PPE), såsom sikkerhedsbriller, når du bruger håndværktøj.
• Do not use cheater bars or extensions on the ratchet handle, as this can overload the tool and cause breakage or injury.
• Ensure the socket is fully engaged on the fastener to prevent slipping and potential injury.
• Hold værktøjet rent og fri for fedt eller olie for at opretholde et sikkert greb.

Opretholdelse

Proper maintenance will extend the life of your Husky tool set.

• Rensning: After each use, wipe down the tools with a clean, dry cloth to remove dirt, grease, and debris. For stubborn grime, a mild degreaser can be used, followed by thorough drying.
• Smøring: The ratchet mechanism is factory lubricated. Avoid disassembling the ratchet head. If the action feels stiff, a small amount of light machine oil can be applied to the moving parts of the directional switch, but avoid over-lubrication.
• Opbevaring: Store the set in its original durable case in a dry environment to prevent rust and corrosion. Keep tools away from excessive heat or cold.
• Inspektion: Periodically inspect all components for wear, cracks, or deformation. Replace any damaged tools immediately.

Fejlfinding

Specifikationer

Garanti og support

This Husky product comes backed by Husky's warranty for your peace of mind. For specific warranty details, claims, or technical support, please refer to the warranty information provided with your product packaging or visit the official Husky Tools webwebsted.

Kontaktoplysninger:

• For the most current support information, please visit the official Husky Tools webwebsted.
• Have your model number (H3DTHRU35PCSWS) and UPC (037103365064) ready when contacting support.
