MCY USB C Hub - 10-in-1 Laptop Docking Station

Indledning

The MCY USB C Hub is a versatile 10-in-1 multiport adapter designed to expand the connectivity of your USB-C enabled laptop, tablet, or smartphone. This docking station provides comprehensive port expansion, including dual HDMI outputs for multi-monitor setups, high-speed data transfer ports, power delivery, Ethernet connectivity, and a card reader, enhancing productivity and convenience for various computing needs.

Produkt overview

The MCY USB C Hub (Model KCH101) integrates multiple essential ports into a compact and portable design. It features:

• 1 x HDMI 1-port: Supports up to 8K resolution.
• 1 x HDMI 2-port: Understøtter op til 4K@60Hz opløsning.
• 2 x USB-A 3.0-porte: 5Gbps data transfer speed.
• 2 x USB-C Data Ports: 5Gbps data transfer speed.
• 1 x USB-C PD Charging Port: Up to 100W Power Delivery pass-through.
• 1 x SD-kortlæser: Supports various SD card formats.
• 1 x TF (MicroSD) Card Reader: Supports various MicroSD card formats.
• 1 x RJ45 Ethernet Port: Supports 10/100/1000Mbps network speeds.

Figur 1: Overview of the MCY USB C Hub's 10-in-1 versatile extension ports.

Opsætningsvejledning

1. Verify Host Device Compatibility: Ensure your computer's USB-C port supports audio and video transmission (DisplayPort Alternate Mode) and Power Delivery. This is typically indicated by a Thunderbolt 3/4 or USB 4.0 logo next to the USB-C port.
2. Tilslut Hub: Plug the integrated USB-C cable of the MCY Hub into an available USB-C port on your laptop or compatible device.
3. Tilslut strøm (valgfrit men anbefalet): For stable operation and to charge your host device, connect your laptop's original power adapter or a compatible USB-C PD charger (up to 100W) to the USB-C PD input port on the hub.


   Figure 2: Connecting the MCY USB C Hub for power delivery.

4. Tilslut ydre enheder:
   • Monitorer: Connect HDMI cables from your monitors to the HDMI 1 (8K) and HDMI 2 (4K) ports on the hub.
   • USB-enheder: Plug in USB-A or USB-C peripherals (e.g., mouse, keyboard, external hard drive) into the corresponding data ports.
   • Ethernet: Tilslut et Ethernet-kabel fra din router/modem til RJ45-porten på hubben.
   • Hukommelseskort: Insert SD or TF cards into the respective card reader slots.
5. Systemgenkendelse: Your operating system should automatically detect and configure the connected devices. No drivers are typically required for basic functionality (Plug and Play).

Betjeningsvejledning

Dual Display Configuration

The MCY USB C Hub supports both mirror and extend modes for dual displays. Performance and resolution capabilities vary by operating system and DisplayPort (DP) protocol version of your host device.

Bemærkning til macOS-brugere: For macOS, the display on both external monitors will be identical in extend mode. True extended display with different content on each external monitor is not supported due to macOS limitations with MST (Multi-Stream Transport) via a single Thunderbolt/USB-C port for multiple external displays.

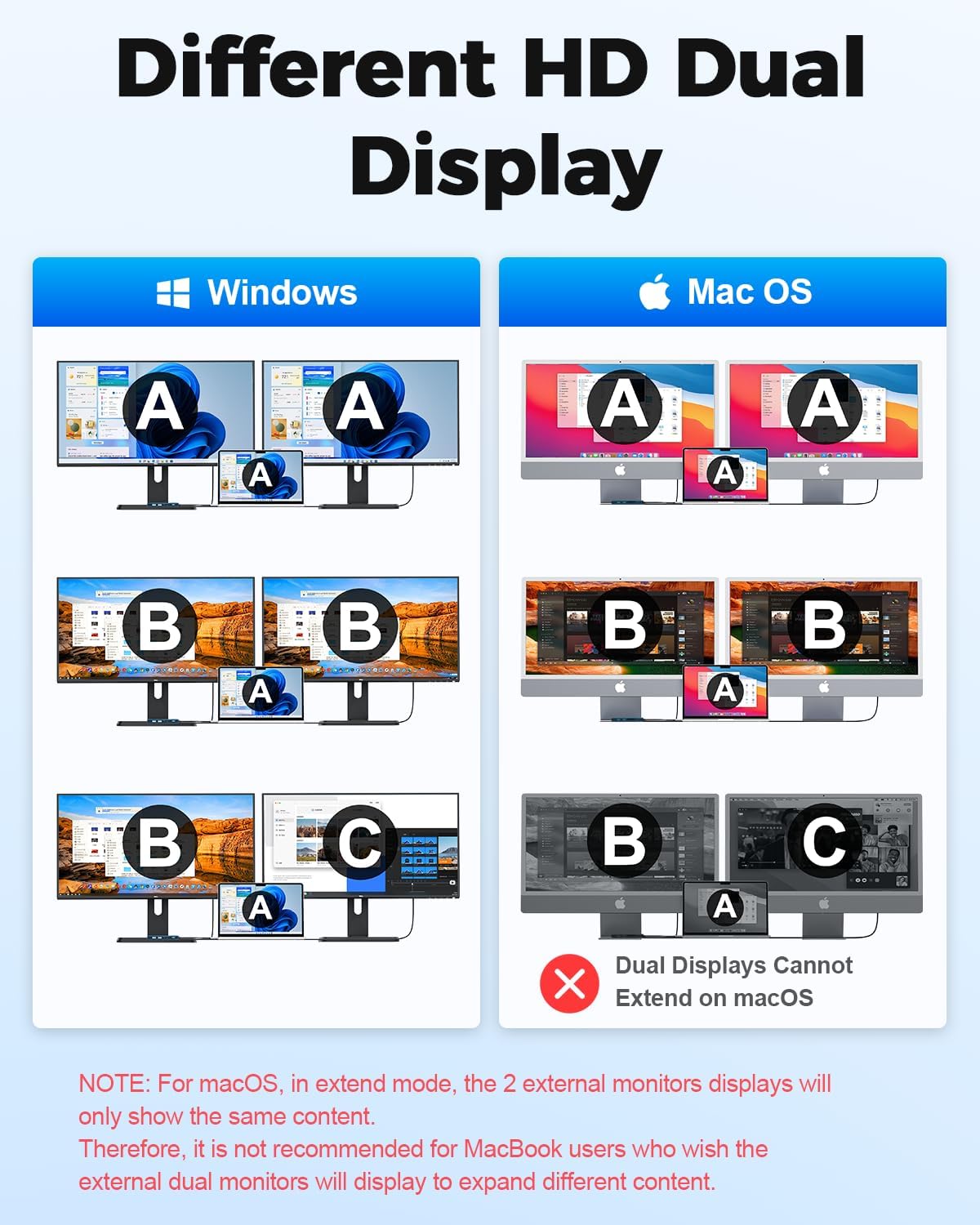

Figure 3: Different HD Dual Display configurations for Windows and macOS.

Strømforsyning (PD)

The USB-C PD port supports up to 100W pass-through charging. This allows you to power your laptop while using the hub, ensuring stable operation even with multiple peripherals connected. The actual charging wattage delivered to your laptop will be slightly less than the input due to power consumption by the hub itself.

Hurtig dataoverførsel

The 2 USB-A 3.0 ports and 2 USB-C data ports support data transfer speeds of up to 5Gbps, enabling quick transfer of large files, such as 1GB movies in 3-5 seconds. This is ideal for connecting external hard drives, USB flash drives, and other high-bandwidth peripherals.

Figure 4: High-speed data transfer via USB 3.0 and USB-C data ports.

Ethernet-forbindelse

The integrated RJ45 Ethernet port provides a stable and fast wired network connection up to 1000Mbps (Gigabit Ethernet). This is beneficial for online gaming, video conferencing, and large file downloads where a reliable connection is crucial.

Figure 5: Fast and stable Ethernet connection.

SD/TF-kortlæser

The built-in SD and TF (MicroSD) card readers support data transfer speeds up to 25MB/s. This allows for quick access to photos and videos from cameras and other devices. Note that SD and TF cards cannot be read simultaneously.

Kompatibilitet

The MCY USB C Hub is designed for broad compatibility with various USB-C and Thunderbolt 3/4 enabled devices and operating systems.

Kompatible enheder:

• MacBook Pro, MacBook Air, Dell XPS, Pixelbook
• Asus, Xiaomi, Lenovo, HP, Razer computers
• Samsung S10/S10+, S20, S21, iPhone 15 and 16 series
• Android phones and tablets that support Type-C interface video and data output
• Steam Deck, Nintendo Switch, ROG Ally, PS5 (for display output where supported)

Kompatible systemer:

• Windows
• macOS
• iPadOS
• ChromeOS
• UNIX
• LINUX

Figure 6: Wide compatibility with various USB-C host devices and operating systems.

Specifikationer

Fejlfinding

• Ingen skærmoutput:
  • Sørg for, at din værtsenheds USB-C-port understøtter DisplayPort Alternative Mode.
  • Check that HDMI cables are securely connected to both the hub and the monitors.
  • Verify monitor input settings are correctly selected (e.g., HDMI 1, HDMI 2).
  • Prøv at tilslutte én skærm ad gangen for at isolere problemet.
  • Genstart din computer.
• Intermitterende forbindelse/flimrende display:
  • Ensure the hub is receiving sufficient power, especially when connecting multiple power-hungry devices. Connect a PD charger to the hub.
  • Tjek for løse forbindelser.
  • Reduce the number of connected peripherals to see if it resolves the issue.
• Langsomme dataoverførselshastigheder:
  • Sørg for at du bruger USB 3.0-kompatible enheder og kabler.
  • Verify that the connected device itself is capable of 5Gbps speeds.
• Ethernet virker ikke:
  • Kontroller Ethernet-kabelforbindelsen til både hubben og din router/modem.
  • Bekræft netværksindstillingerne på din computer.
  • Genstart din router/modem og computer.
• SD/TF-kort ikke fundet:
  • Sørg for, at kortet er sat helt ind i det korrekte slot.
  • Remember that SD and TF cards cannot be read simultaneously. Remove one if both are inserted.
  • Test the card directly on your computer if possible, or try a different card.

Opretholdelse

• Rensning: Use a soft, dry cloth to clean the surface of the hub. Avoid liquid cleaners or abrasive materials.
• Opbevaring: Opbevar hubben et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
• Håndtering: Undgå at tabe enheden eller udsætte den for hårde stød. Forsøg ikke at skille hubben ad.
• Kabelpleje: Do not bend or pull the integrated USB-C cable excessively to prevent damage.

Garanti og support

MCY provides the following support for this product:

• 30-dages pengene-tilbage-garanti: For 30 days after the date of purchase, you may return your undamaged MCY product for a full refund for any reason.
• 18-Month Quality-Related Issues: For 18 months after the date of purchase, MCY will take care of all quality-related issues with a replacement or full refund.

For kundeservice og support, kontakt venligst: jiejieelss@outlook.com
