Indledning
Thank you for choosing the Extol Premium Electric Wheelbarrow. This manual provides essential information for the safe and efficient operation, assembly, maintenance, and troubleshooting of your new electric wheelbarrow. Please read this manual thoroughly before using the product and retain it for future reference.

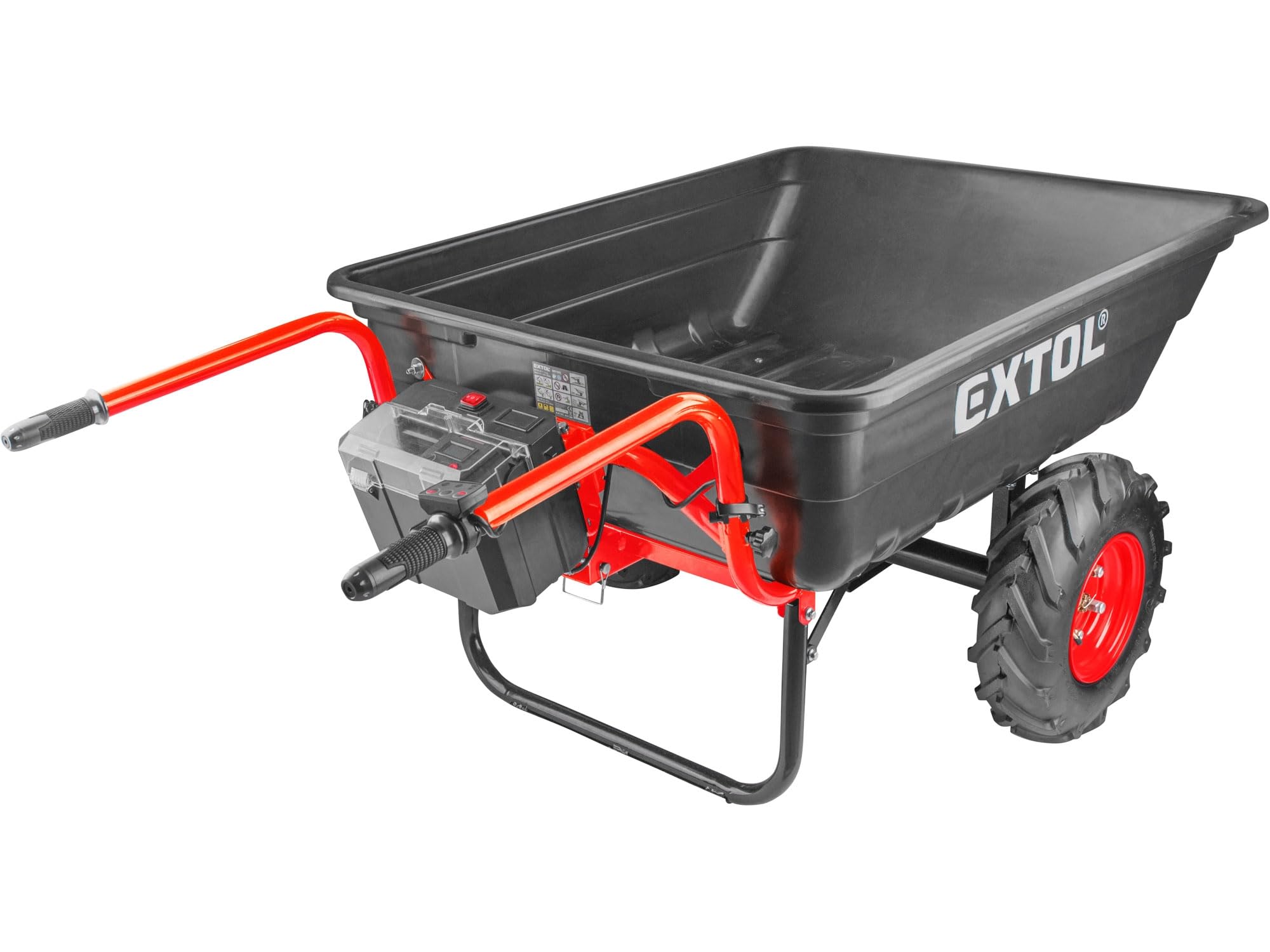

Image: The Extol Premium Electric Wheelbarrow, featuring a large black trough, a robust red frame, and durable off-road tires. The control panel and battery housing are visible near the handles.
Sikkerhedsinstruktioner
Overhold altid følgende sikkerhedsforanstaltninger for at forhindre personskade eller beskadigelse af produktet:
- Læs alle instruktioner før brug.
- Ensure the battery is fully charged and securely installed before use.
- Do not exceed the maximum load capacity of 300 kg (660 lbs) or 300 liters.
- Operate the wheelbarrow on stable ground. Be cautious on inclines and uneven terrain.
- Hold hænder og fødder væk fra bevægelige dele.
- Wear appropriate personal protective equipment (PPE), such as sturdy footwear and gloves.
- Do not operate the wheelbarrow under the influence of alcohol or medication.
- Store the battery in a dry, isolated environment when not in use.
Opsætning og montering
The Extol Premium Electric Wheelbarrow requires some assembly. Follow these general steps:
- Udpakning: Carefully remove all components from the packaging. Verify that all parts listed in the packing list (not provided in this manual, refer to product packaging) are present.
- Rammeenhed: Assemble the main frame components, ensuring all bolts and nuts are securely tightened.
- Hjulmontering: Attach the off-road wheels to the axle. Ensure they are properly aligned and secured.
- Trough Attachment: Mount the 300 L trough to the assembled frame.
- Handlebar and Control Unit: Attach the handlebars and the control unit. Ensure all electrical connections are secure. The handles can be folded for transport or storage.
- Batteri installation: Insert the charged 40 V Li-Ion 6000 mAh battery into its designated compartment. Ensure it clicks into place securely.
- Indledende opkrævning: Fully charge the battery before first use. The battery features an LED indicator for charge status.
Note: For detailed assembly instructions, refer to the specific diagrams and instructions included in your product packaging.
Betjeningsvejledning
Operating the electric wheelbarrow is straightforward. Familiarize yourself with the controls before loading materials.
Batteristyring
- The removable 40 V Li-Ion 6000 mAh battery powers the wheelbarrow.
- An LED indicator on the battery displays the current charge status and voltage.
- To charge, remove the battery and connect it to the provided charger in a dry, isolated environment.
- The battery is protected against over-discharge, overload, overcharging, short circuits, and sudden temperature increases.
Kontrolenhed
The control unit is located on the right handle. It allows for precise control of the wheelbarrow's movement.
- Hastighedstilpasning: Use the controller to adjust the speed for both forward and reverse movement.
- Valg af tilstand: Switch between different modes:
- Bremsetilstand: Engages the electric brake to prevent movement, especially useful on inclines.
- Normal hastighed: Standard operating speed for general tasks.
- Turbo hastighed: Provides maximum power for challenging terrain or heavier loads.
- Manuel tilstand: The electric motor can be completely switched off, allowing the wheelbarrow to be used manually without power assistance.
Loading and Transporting
- Load materials evenly in the trough, ensuring the weight is centered over the wheel axle to minimize operator effort.
- Do not exceed the 300 kg (660 lbs) or 300 L capacity.
- When navigating inclines, utilize the appropriate speed setting and the electric brake for controlled movement. The built-in gear with differential enhances off-road capability and uphill performance.
- The deep off-road tread tires provide excellent traction on various surfaces.
Opretholdelse
Regular maintenance ensures the longevity and optimal performance of your electric wheelbarrow.
- Rensning: After each use, clean the trough and frame to remove dirt, debris, and corrosive materials. Use a damp klud; undgå højtryksspuling direkte på elektriske komponenter.
- Batteripleje:
- Opbevar batteriet et køligt, tørt sted, væk fra direkte sollys og ekstreme temperaturer.
- Charge the battery regularly, even during periods of non-use, to maintain its health. Do not allow it to fully discharge for extended periods.
- Inspect the battery and charger for any signs of damage.
- Dæktryk: Periodically check and maintain the recommended tire pressure for optimal performance and traction.
- Fastgørelsesmidler: Regularly inspect all bolts, nuts, and fasteners for tightness. Tighten any loose components to ensure structural integrity.
- Motor- og elektriske komponenter: Keep the motor and electrical connections clean and free from moisture. Do not attempt to service internal electrical components yourself.
Fejlfinding
If you encounter issues with your electric wheelbarrow, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Wheelbarrow does not power on. | Batteriet er ikke opladet eller ikke korrekt installeret. | Ensure battery is fully charged and securely seated in its compartment. Check LED indicator on battery. |
| Motoren er svag eller stopper under drift. | Low battery charge; Overload; Motor overheating. | Recharge battery. Reduce load. Allow motor to cool down. |
| Wheelbarrow moves erratically or with difficulty. | Uneven load distribution; Low tire pressure; Obstruction. | Distribute load evenly. Check and adjust tire pressure. Inspect wheels for obstructions. |
| Electric brake not engaging. | Control unit malfunction; Electrical connection issue. | Check control unit settings. If problem persists, contact customer support. |
If the problem persists after attempting these solutions, please contact Extol Premium customer support.
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Extol Premium |
| Model | B0DYK2W1GK |
| Belastningskapacitet | 300 kg (660 lbs) |
| Trough Volume | 300 liter |
| Motortype | Brushless Electric Motor (500W) |
| Batteritype | 40 V Li-Ion, 6000 mAh |
| Batteribeskyttelse | Against discharge below minimum level, overload, overcharging, short circuit, sudden temperature rise. IP64 rated. |
| Særlige funktioner | Electric motor, off-road compatible, adjustable speed (forward/reverse), electric brake, normal/turbo modes, foldable handles. |
| Produktmål (L x B x H) | 71.26" D x 37.99" B x 30.71" H |
| Materiale | Metal, Gummi, Plast |
| Montering påkrævet | Ja |
Garanti og support
Extol Premium products are manufactured to high-quality standards and are guaranteed against manufacturing defects. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official Extol Premium webwebsted.
For technical support, spare parts, or warranty claims, please contact Extol Premium customer service. Have your product model number (B0DYK2W1GK) and purchase date ready when contacting support.
Kontaktoplysninger: (Please refer to your product packaging or the official Extol Premium webhjemmeside for de seneste kontaktoplysninger.)
