1. Produktet er slutview
The BougeRV CRD2 52 Quart Portable Fridge Freezer is a versatile dual-zone cooling unit designed for various outdoor and travel applications, including overlanding, camping, RV trips, and truck use. It features independent temperature control for each zone, allowing for simultaneous refrigeration and freezing. The unit is equipped with wheels and a telescopic handle for easy portability and can be controlled via a dedicated mobile application.
This portable refrigerator operates quietly, with a noise level of less than 45dB, ensuring a peaceful environment. It offers multiple power options, including DC (12/24V), AC (110-240V), and is compatible with solar charging when paired with a suitable battery and solar panel (sold separately).
Image: The BougeRV CRD2 52 Quart Portable Fridge Freezer, showcasing its dual compartments, control panel, wheels, and a smartphone displaying the control app.
2. Nøglefunktioner
- Dual Zone with Independent Temperature Control: Two separate zones with adjustable temperatures from -4°F to 68°F (-20°C to 20°C), allowing for cooling and freezing simultaneously.
- APP kontrol: Monitor and adjust temperature settings, switch modes, and power on/off via the BougeRV App (Bluetooth connection, distance limit: 32ft).
- Spacious 52 Quart Capacity: Ample storage for food and drinks, featuring two removable baskets for organization and built-in LED lights for visibility.
- Nem transport: Equipped with durable wheels and a telescopic handle for convenient mobility.
- Flere strømindstillinger: Supports 12/24V DC, 110~240V AC, and includes a solar charging port (60W max, 12V 5A) for extended outdoor use with compatible accessories.
- Stille drift: Operates at a noise level of less than 45dB.
- Vendbar dørdesign: Lids can be configured for opening from either side.
- Easy Drainage System: Simple clean-up with a handy drain plug.
- USB-udtag: Convenient for charging small electronic devices.
- 8 Tie-Down Holes: For securing the unit during transport (ropes not included).
Image: An illustration demonstrating the dual-zone capability of the refrigerator, showing how each compartment can function as a fridge or freezer independently.
Image: A person pulling the portable fridge freezer using its retractable handle and rugged wheels, demonstrating its ease of transport in an outdoor setting.
3. Hvad er der i æsken
Ved udpakning skal du kontrollere, at alle nedenstående komponenter er inkluderet:
- 1 x BougeRV CRD2 52 Quart Portable Refrigerator
- 1 x DC-strømledning (12V/24V)
- 1 x AC-adapter (100-240V)
- 2 x Wire Baskets
- 1 x brugermanual
Image: A visual representation of the items included in the product box: the portable refrigerator, two wire baskets, a DC cord, an AC adapter, and the user manual.
4. Opsætning
4.1 Indledende placering
Place the portable fridge freezer on a flat, stable surface. Ensure there is adequate ventilation around the unit, especially near the air intake and exhaust vents, to allow for efficient cooling. Avoid placing the unit in direct sunlight or near heat sources.
4.2 Strømtilslutning
Connect the appropriate power cord (DC or AC) to the unit's power input port. Then, connect the other end to a compatible power source. For optimal performance, ensure the power source meets the voltage requirements (12/24V DC or 110-240V AC).
4.3 Reversible Door Configuration
The lids of the CRD2 can be reversed to open from either the front or the back, depending on your preference and setup. Refer to the detailed instructions in the included user manual for steps on how to reverse the door hinges.
Image: A series of diagrams illustrating the reversible door design, showing how the lids can be adjusted to open in different directions for user convenience.
4.4 Optional Battery Installation
If using the optional BougeRV 173Wh battery (sold separately), insert it into the designated battery compartment. Ensure it is securely seated. The battery provides extended operation time, especially when off-grid.
Billede: Et nærbillede view of the portable fridge, highlighting the compartment where the optional BougeRV 173Wh battery can be installed, indicating up to 8.5 hours of operation.
5. Betjeningsvejledning
5.1 Tænd/sluk
Press and hold the power button on the control panel to turn the unit on or off. The digital display will illuminate, showing the current temperatures of both zones.
5.2 Temperaturkontrol
Use the '+' and '-' buttons on the control panel to adjust the desired temperature for each zone. The left and right zones can be set independently. The temperature range is from -4°F to 68°F (-20°C to 20°C).
5.3 Modeskift
The unit typically features different operating modes (e.g., ECO for energy saving, MAX for rapid cooling). Refer to the control panel or app interface for specific mode selection options.
5.4 Intern LED-lampe
The built-in LED light inside each zone provides illumination for easy access to contents, especially in low-light conditions. This light typically activates when the lid is opened.
Billede: Et nærbillede view inside one of the refrigerator compartments, showing the built-in LED light illuminating the contents, designed for easy access at night.
5.5 Using Wire Baskets
The included wire baskets can be placed inside the compartments to organize items and facilitate easy removal of contents. Ensure items are placed securely within the baskets to prevent rattling during transport.
Billede: A view of the refrigerator's interior with wire baskets holding beverages, demonstrating their utility for organized storage and easy access.
6. Appkontrol
The BougeRV App allows for convenient remote control and monitoring of your portable fridge freezer via Bluetooth. The app can be downloaded from your device's app store.
6.1 Oprettelse af forbindelse til appen
- Sørg for, at Bluetooth er aktiveret på din smartphone.
- Open the BougeRV App.
- Follow the in-app instructions to search for and connect to your CRD2 unit.
6.2 App-funktioner
Når du er tilsluttet, kan du:
- Adjust temperature settings for both zones.
- Switch between operating modes (e.g., ECO, MAX).
- Tænd eller sluk enheden.
- Monitor the current operating status and battery voltage.
The effective Bluetooth range is approximately 32 feet (10 meters).
Image: A hand holding a smartphone displaying the BougeRV app interface, showing temperature controls and monitoring options for the portable fridge freezer.
7. Strømstyring
The BougeRV CRD2 offers flexible power input options to suit various environments:
- Jævnstrøm (12V/24V): Ideal for use in vehicles, RVs, and boats. Connect the DC power cord to your vehicle's cigarette lighter socket or a compatible DC power outlet.
- AC Power (110~240V): For use with standard household outlets. Connect the AC adapter to the unit and then to a wall outlet.
- Solar Power (Optional): The unit features a solar charging port (60W max, 12V 5A). This allows you to extend outdoor usage time by connecting a compatible BougeRV 173Wh battery and a BougeRV 100W solar panel (both sold separately).

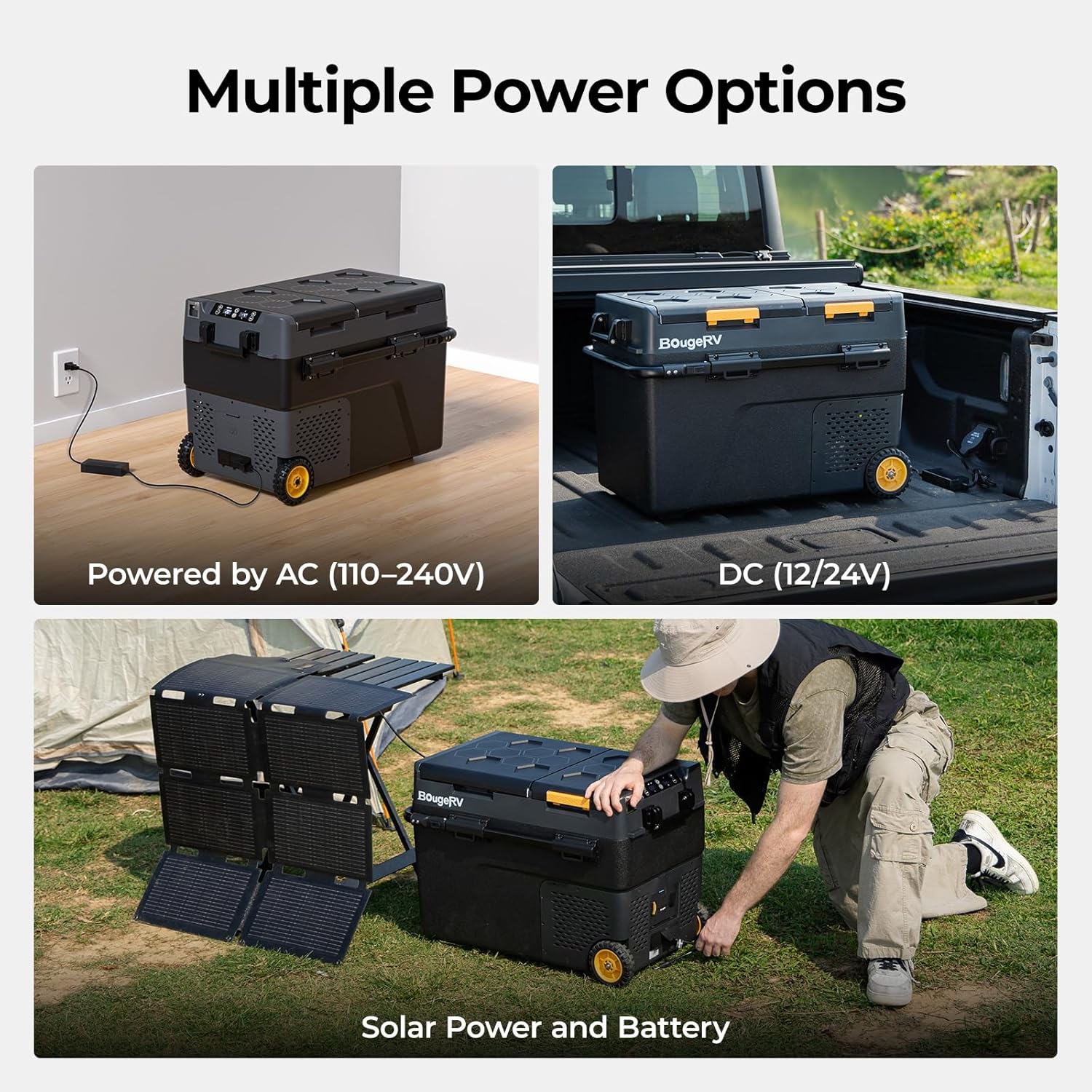

Image: Three panels illustrating the different power options: AC (wall outlet), DC (car trunk), and solar power with an external battery and solar panel.
8. Vedligeholdelse
8.1 Rengøring
Regularly clean the interior and exterior of the fridge freezer. Use a soft cloth with mild detergent and water. Avoid abrasive cleaners or solvents that could damage the surfaces. Ensure the unit is unplugged before cleaning.
8.2 Dræningssystem
The unit is equipped with an easy drainage system for convenient clean-up. Locate the drain plug at the bottom of the interior compartment. Open the plug to drain any accumulated water, then close it securely after cleaning.
Billede: Et nærbillede view of the interior of the refrigerator, showing the drain plug at the bottom, indicating an easy drainage system for simple clean-up.
8.3 Optøning
This unit features manual defrost. If ice buildup occurs, especially in the freezer zone, turn off the unit and allow the ice to melt naturally. Use a soft cloth to wipe away melted water. Do not use sharp objects to remove ice, as this can damage the cooling elements.
9. Fejlfinding
If you encounter issues with your BougeRV CRD2, please refer to the following common troubleshooting tips:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Unit not cooling or powering on | Ingen strømforsyning; løs forbindelse; defekt netledning. | Check power source and connections. Ensure power cord is fully inserted. Test with a different power outlet if possible. |
| Temperature display shows '0' or fluctuates after power cycle | Software reset after power interruption. | This is normal behavior. The unit will stabilize to the set temperature within approximately one hour. Ensure stable power supply. |
| Enheden er støjende | Normal compressor operation; rattling from empty baskets. | The unit operates quietly (below 45dB) during normal compressor cycles. If rattling occurs, ensure items are securely placed in baskets or remove empty baskets. |
| Appen forbinder ikke | Bluetooth slukket; uden for rækkevidde; app-problem. | Ensure Bluetooth is on and you are within 32ft of the unit. Restart the app or your phone. |
| Utilstrækkelig køleydelse | Overloaded; poor ventilation; high ambient temperature. | Do not overload the unit. Ensure proper ventilation around the unit. Allow more time for cooling in high ambient temperatures. |
If the problem persists after attempting these solutions, please contact BougeRV customer support for further assistance.
10. Specifikationer
| Feature | Specifikation |
|---|---|
| Mærkenavn | BougeRV |
| Model info | CRD05001 |
| Varens vægt | 45.2 pund |
| Produktdimensioner | 17.6 x 29.7 x 19.7 tommer (44.7 x 75.4 x 50 cm) |
| Kapacitet | 52 Quarts (approx. 49 Liters per zone) |
| Årligt energiforbrug | 167.54 kilowatttimer pr. år |
| Installationstype | Frit stående |
| Formfaktor | Transportabel |
| Farve | Sort |
| Voltage | 12 volt (DC) |
| Optøningssystem | Manuel |
| Dørhængsler | Vendbar |
| Antal døre | 1 |
| Hylder | 2 (Wire Baskets) |
11. Garanti og support
BougeRV provides 2-year technical support for the CRD2 Portable Fridge Freezer. If you have any questions, require assistance with setup, operation, or troubleshooting, or need to inquire about warranty services, please reach out to BougeRV customer support. Contact information can typically be found on the official BougeRV webhjemmeside eller gennem den forhandler, hvor produktet blev købt.
