1. Introduktion
This manual provides essential instructions for the safe and effective operation, setup, and maintenance of your Happybuy MR8014-1 Ratchet Wheel Mover. Please read this manual thoroughly before using the product to ensure proper function and to prevent injury or damage.

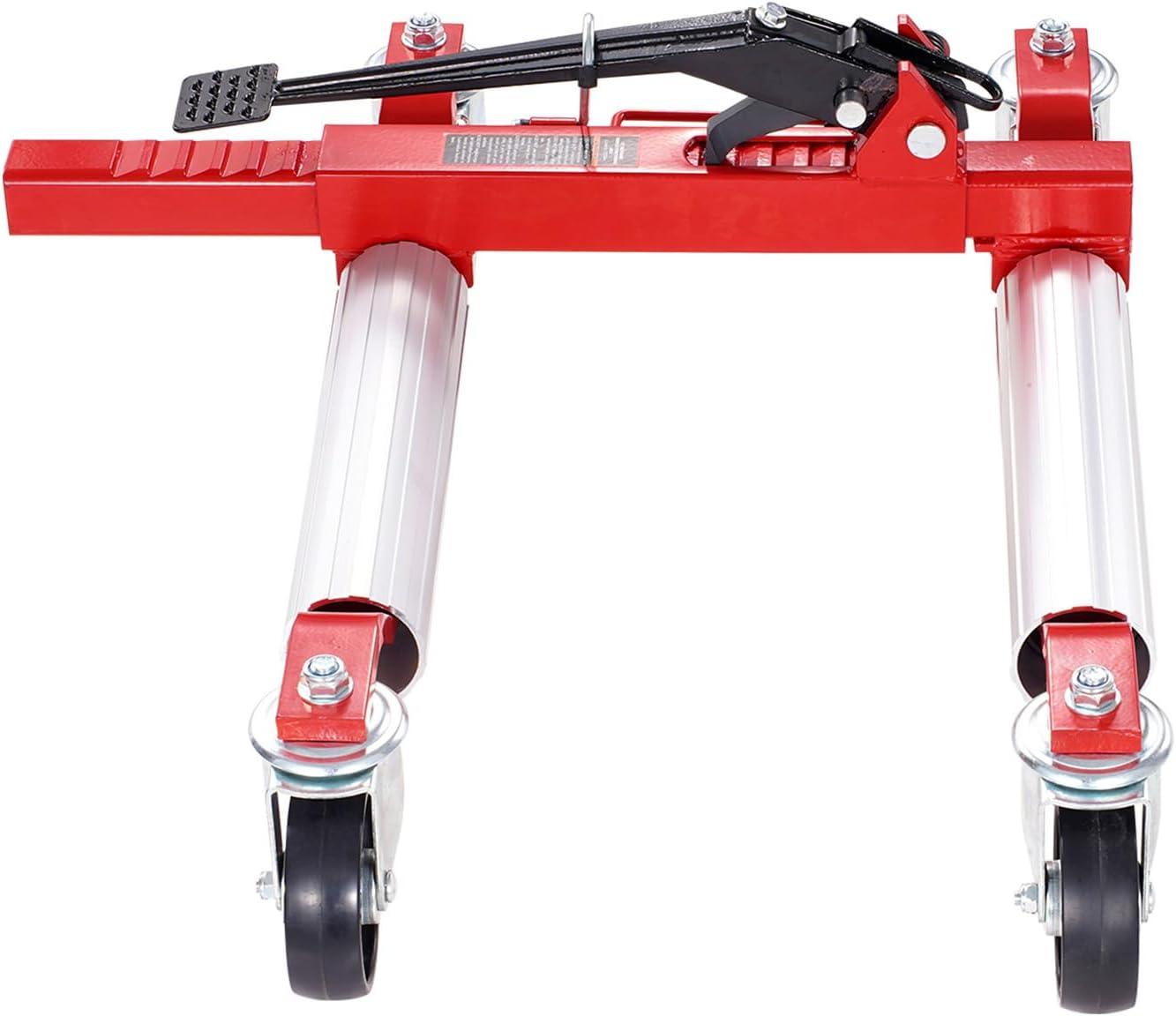

Billede 1.1: Front view of the Happybuy MR8014-1 Ratchet Wheel Mover. This image displays the overall structure of the red and silver mover, highlighting its casters and the ratchet mechanism.
2. Sikkerhedsoplysninger
ADVARSEL: Manglende overholdelse af disse sikkerhedsinstruktioner kan resultere i alvorlig personskade eller materielle skader.
- Always ensure the vehicle is on a flat, stable, and level surface before using the wheel mover.
- Do not exceed the maximum load capacity of 1500 lbs (680 kg) per mover.
- Wear appropriate personal protective equipment, such as safety gloves and closed-toe shoes.
- Hold hænder og fødder væk fra bevægelige dele under drift.
- Ensure the vehicle's parking brake is engaged before positioning the mover, and disengage only when ready to move.
- Do not use the mover on damaged or deflated tires.
- Inspect the mover for any damage or wear before each use. Do not use if damaged.
- Hold børn og omkringstående væk fra arbejdsområdet.
3. Produktet er slutview og funktioner
The Happybuy MR8014-1 Ratchet Wheel Mover is designed to facilitate the movement and positioning of vehicles in confined spaces. Its robust construction and efficient design make it a valuable tool for garages and workshops.
- Quick Ratchet Lifting: Features a foot-operated ratchet system for lifting vehicles without the need for hydraulic oil maintenance. This allows for single-person operation.
- Forbedret lasteevne: Capable of lifting vehicles up to 1500 lbs (680 kg) per mover, suitable for various vehicle types including cars, SUVs, and light trucks.
- Built to Last Construction: Constructed from high-quality steel for pressure resistance and durability. The rollers are made of premium aluminum alloy, designed to be strong, resistant to deformation, and gentle on tires.
- Alsidig anvendelse: Accommodates vehicles with a maximum tire width of 12 inches (305 mm) and offers a roller stretch range of 15.6 to 28.3 inches (397-718 mm).
- 360° bevægelse: Equipped with 4-inch swivel casters made of durable nylon with needle bearings, ensuring smooth and omnidirectional movement on various surfaces.
Billede 3.1: Diagram illustrating key components of the wheel mover, including the rust-proof aluminum alloy roller, non-slip pedal, heavy-duty steel frame, carrying handle, and safety hook. This image highlights the robust construction and user-friendly design elements.
Billede 3.2: Nærbillede view of the 4-inch durable casters, emphasizing smooth movement, needle bearings, and flexible nylon material. The image also shows a vehicle being moved with the dolly, demonstrating its 360-degree maneuverability.
4. Opsætning
The Happybuy MR8014-1 Ratchet Wheel Mover typically comes pre-assembled. Before first use, perform the following checks:
- Udpakning: Carefully remove the wheel mover from its packaging.
- Visuel inspektion: Inspect all components for any signs of shipping damage, loose bolts, or missing parts. Ensure the casters rotate freely and the ratchet mechanism operates smoothly.
- fortrolighed: Familiarize yourself with the non-slip pedal, safety hook, and carrying handle as shown in Image 3.1.
5. Betjeningsvejledning
Follow these steps to safely lift and move a vehicle using the Happybuy Ratchet Wheel Mover:
- Klargør køretøjet: Ensure the vehicle is on a flat, level surface. Engage the parking brake.
- Position the Mover: Slide the wheel mover under the tire you wish to lift. Ensure the tire is centered between the two rollers of the mover. The adjustable range of the rollers should accommodate the tire width.
- Løft køretøjet: Step on the non-slip pedal repeatedly to engage the ratchet mechanism. This will cause the rollers to close in and lift the tire off the ground. Continue until the tire is fully clear of the ground and the mover is securely locked in place.
- Secure the Mover: Once the tire is lifted, ensure the safety hook is engaged to prevent accidental release.
- Repeat for Other Wheels (if necessary): For full vehicle mobility, repeat steps 2-4 for each wheel you intend to move.
- Move the Vehicle: Once all desired wheels are lifted, disengage the vehicle's parking brake. Carefully push or pull the vehicle to its desired position. The 360° swivel casters allow for easy maneuverability.
- Sænk køretøjet: To lower the vehicle, release the safety hook and carefully operate the ratchet mechanism in reverse, or use the release lever if present, to slowly lower the tire back onto the ground.
- Remove the Mover: Once the tire is fully on the ground, slide the mover out from under the wheel.
Billede 5.1: The wheel mover positioned correctly under a vehicle tire, ready for lifting. The tire is centered between the mover's rollers.
Billede 5.2: The ratchet wheel dolly actively lifting a vehicle tire. This image demonstrates the foot-operated mechanism in action, showing the tire being raised from the ground.

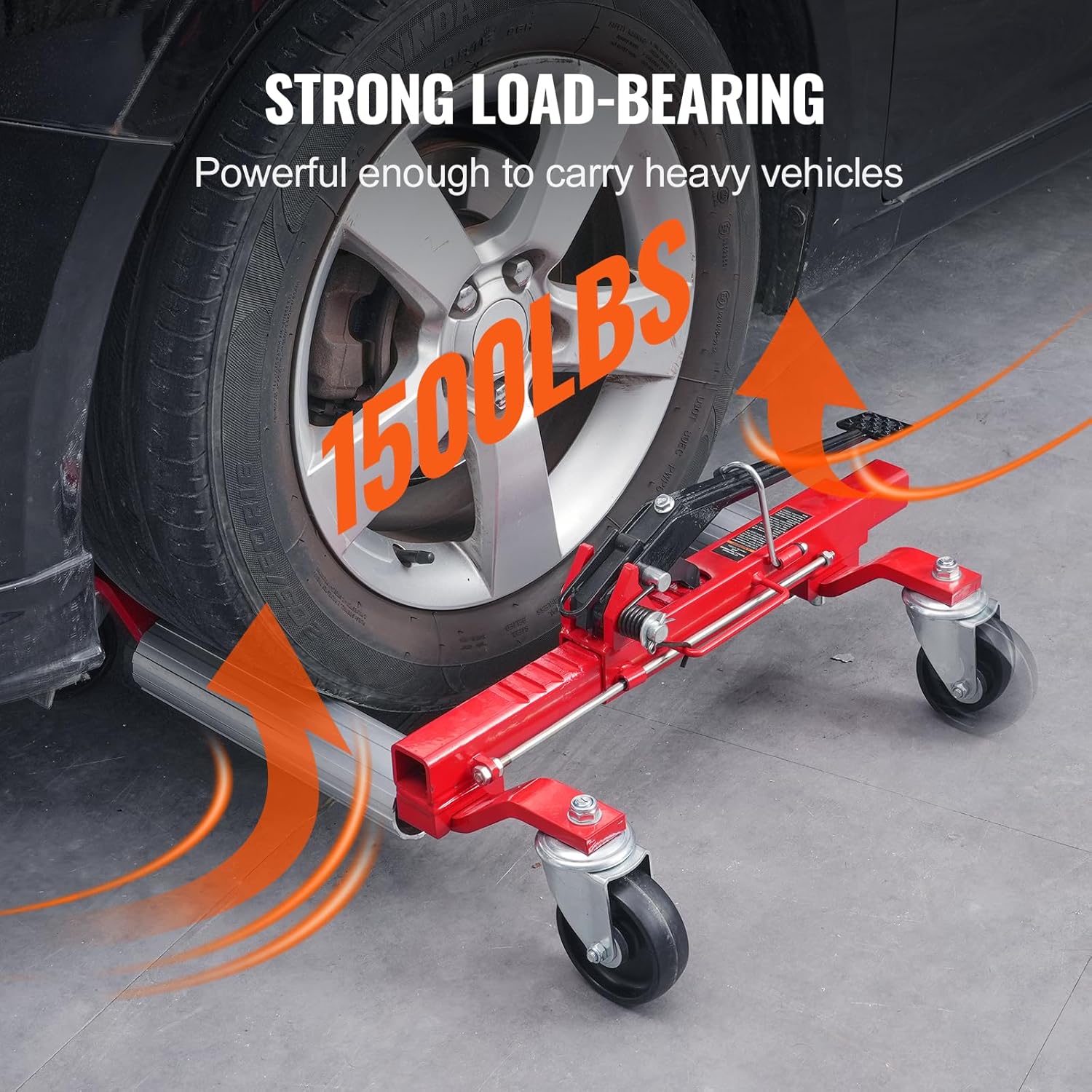

Billede 5.3: The wheel mover supporting a vehicle, illustrating its strong load-bearing capacity of 1500 lbs. This image shows the mover effectively holding the weight of a car tire.
6. Vedligeholdelse
- Rensning: After each use, wipe down the mover with a clean cloth to remove dirt, grease, and debris.
- Smøring: Periodically apply a light lubricant to the moving parts of the ratchet mechanism and caster swivel points to ensure smooth operation.
- Inspektion: Regularly check for loose bolts, worn casters, or any damage to the frame or rollers. Tighten any loose fasteners. Replace worn or damaged parts immediately.
- Opbevaring: Store the wheel mover in a dry, clean place, away from extreme temperatures and corrosive materials. The integrated carrying handle facilitates easy storage.
7. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Mover not lifting vehicle. | Vehicle weight exceeds 1500 lbs capacity; Mover not positioned correctly; Ratchet mechanism jammed. | Verify vehicle weight; Reposition mover to center tire; Inspect ratchet for obstructions and lubricate. |
| Difficulty moving vehicle. | Parking brake engaged; Casters are dirty or damaged; Surface is uneven. | Disengage parking brake; Clean casters or replace if damaged; Move vehicle on a smooth, level surface. |
| Mover slips from under tire. | Tire not centered; Mover not fully engaged/lifted; Safety hook not engaged. | Ensure tire is centered; Fully lift and secure the mover; Engage safety hook. |
8. Specifikationer
| Modelnummer | MR8014-1 |
| Mærke | Happybuy |
| Belastningskapacitet | 1500 lbs (680 kg) |
| Maksimal dækbredde | 12 tommer (305 mm) |
| Roller Stretch Range | 15.6 - 28.3 tommer (397 - 718 mm) |
| Hjuldiameter | 4 tommer |
| Type hjul | 360° Universal Casters (Nylon with Needle Bearings) |
| Nettovægt | 35.0 lbs (15.9 kg) |
| Produktmål (L x B x H) | 15.6-28.3 x 22.4 x 15.4 inches (397-718 x 570 x 390 mm) |
| Materiale | Heavy-duty Steel, Aluminum Alloy Rollers |
Billede 8.1: A visual representation of the Happybuy Wheel Mover with key dimensions labeled, accompanied by a table summarizing its specifications including model number, dimensions, weight, and caster details.
9. Garanti og support
Specific warranty information for the Happybuy MR8014-1 Ratchet Wheel Mover is not provided in this manual. For warranty details, product support, or to inquire about replacement parts, please contact Happybuy customer service directly or visit their official webwebsted.
For further assistance, please refer to the contact information provided with your purchase or on the Happybuy brand store page.
Fabrikant: Happybuy
