TOSOT 34,000 BTU Cosmo-seriens kanalbaserede mini-split klimaanlæg brugermanual

1. Introduktion

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your TOSOT 34,000 BTU Cosmo Series Ducted Mini Split Air Conditioner. Please read this manual thoroughly before installation and use, and retain it for future reference. This system is designed for both cooling and heating, offering versatile climate control for various spaces.

2. Sikkerhedsoplysninger

Vigtig: Installation must be performed by certified technicians to ensure safety and system optimization. The ceiling structure must have adequate load-bearing capacity for the indoor unit.

Afbryd altid strømmen før service eller rengøring af enheden.
Bloker ikke luftindtag eller -udtag.
Sørg for korrekt jording for at forhindre elektrisk stød.
Use only the specified refrigerant (R32) and follow all handling guidelines.
Hold børn væk fra enheden under drift og vedligeholdelse.

The unit is equipped with an R32 sensor for safety. Refer to the diagram below for visual reference.

Diagram of R32 sensor in air conditioner — **Figur 2.1:** R32 Sensor. This sensor monitors refrigerant levels to ensure safe operation.

3. Produktet er slutview

The TOSOT Cosmo Series Ducted Mini Split Air Conditioner provides efficient and discreet climate control. It features a concealed indoor unit designed for integration into ceiling structures and an outdoor condenser unit.

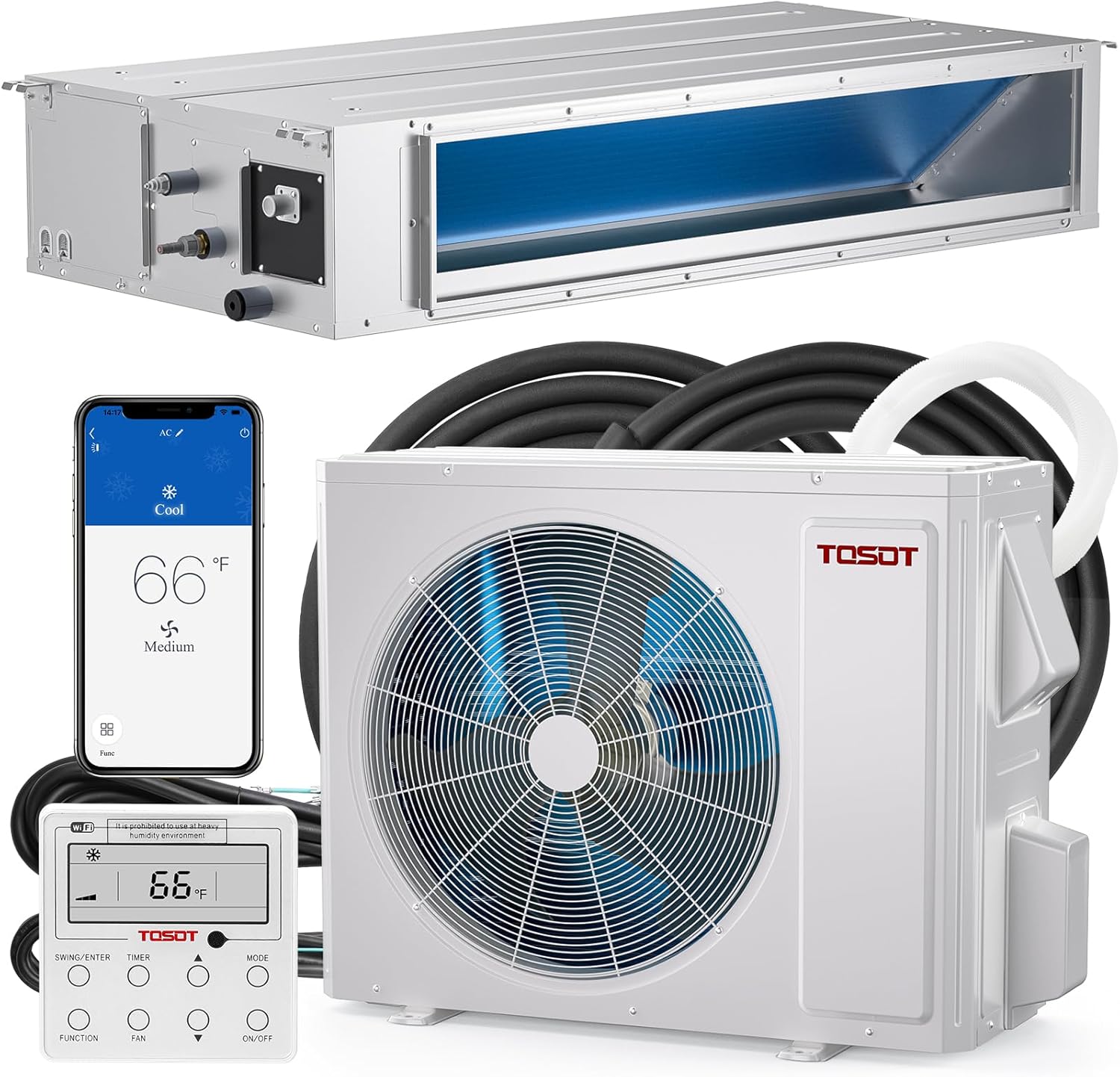

TOSOT 34,000 BTU Ducted Mini Split Air Conditioner components — **Figur 3.1:** Main components of the TOSOT Ducted Mini Split system, including the indoor unit, outdoor unit, wired controller, and a smartphone displaying the app control interface.

3.1 Nøglefunktioner

Kraftig køling og opvarmning: Delivers up to 1,324 CFM airflow with 6 fan speeds, including Turbo mode. Operates efficiently from -13°F to 122°F.
Energibesparende: Equipped with an inverter compressor and R32 refrigerant for optimized energy use. Features an energy-saving mode.
Design med højt statisk tryk: Suitable for long-distance ducting and high-ceiling spaces, with adjustable external static pressure (0-1.106 inch WC).
Fleksibel installation: Default side return air can be converted to bottom return. Versatile placement of supply and return vents.
Automatisk dræning: Built-in pump actively discharges condensation, reducing clogging risks and preventing ceiling leaks.
Smart kontrol: Includes a wired controller and supports app control for remote adjustments, timer, dehumidification, and sleep mode.

3.2 Hvad er der i æsken

Ensure all items are received before scheduling professional installation.

Diagram of all components included in the TOSOT Ducted Mini Split Air Conditioner package — **Figur 3.2:** Detailed list of included components for both indoor and outdoor units, such as signal cable, plastic tie, app quick guide, user manuals, wired controller, adhesive-back foam, connection wire, refrigerant pipe insulation sleeve, nuts/washers, soleplate fixing screws, wall cuff, drain joint, tape, sealing gum, drain hose, and refrigerant pipe set.

4. Opsætning

Professional installation is required for this system. The following information provides an overview of key installation aspects.

4.1 Installationsovervejelser

The indoor unit is designed for concealed installation within ceiling structures, saving wall and floor space.
The unit supports flexible air return options (side or bottom) and multi-duct configurations.
Ensure the ceiling has sufficient load-bearing capacity.

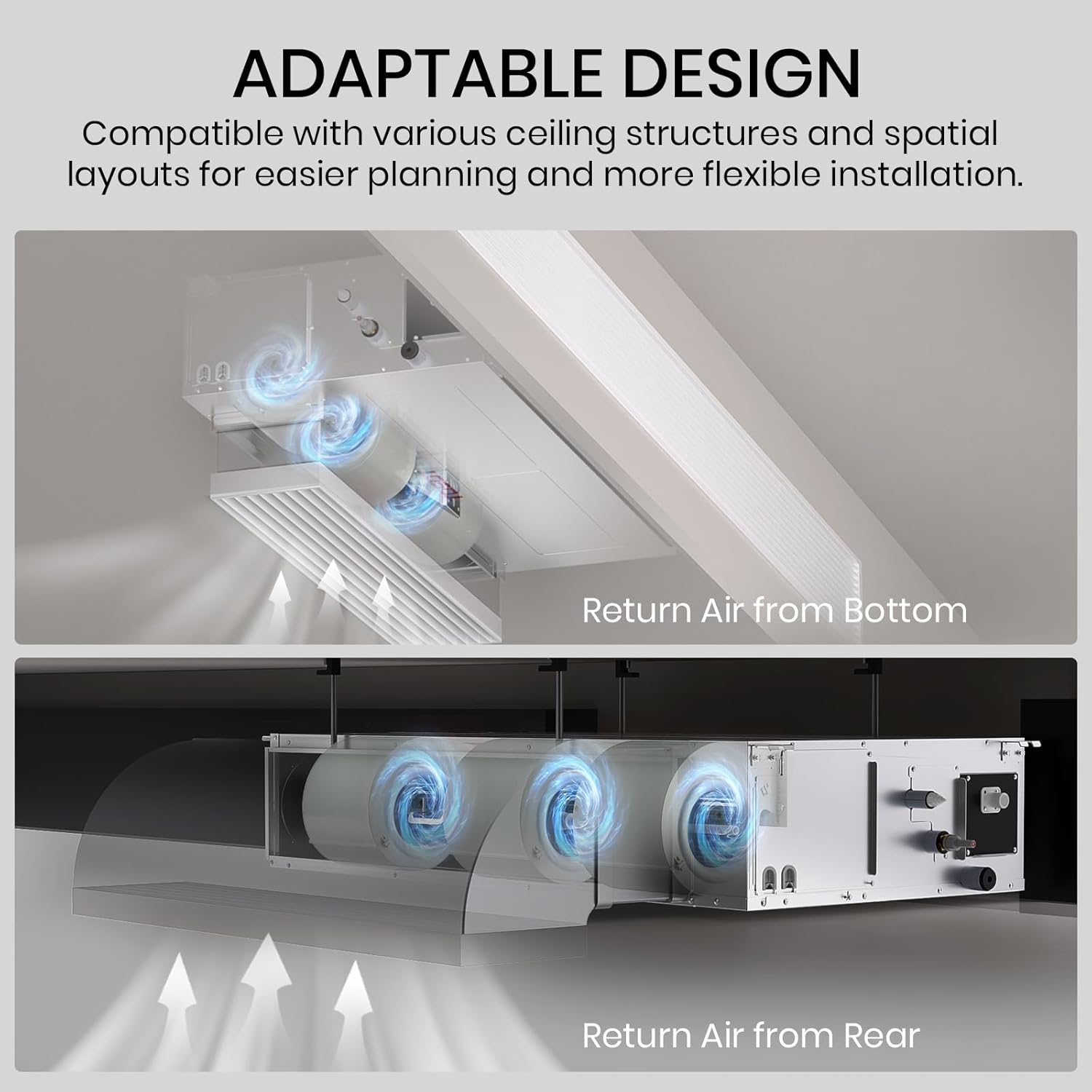

Diagram showing adaptable design for bottom and rear return air configurations — **Figur 4.1:** Adaptable design of the indoor unit, showing options for return air from the bottom or rear, allowing for flexible integration into various ceiling structures.

Comparison of concealed ducted AC with wall-mounted and floor-standing units — **Figur 4.2:** Space-saving design of the ceiling-concealed unit compared to wall-mounted and floor-standing air conditioners.

Diagrams illustrating multi-duct flexibility for various room layouts — **Figur 4.3:** Multi-duct flexibility for various space layouts, demonstrating how adjustable external static pressure allows for custom ductwork and airflow distribution. Note: Ducts and grilles are not included.

4.2 Elektriske ledninger

All electrical connections must comply with local and national electrical codes and be performed by a qualified electrician.

Ensure all power sources are turned off before connecting any wires.
Connect numbered wires from the indoor unit to the corresponding numbers in the outdoor unit's compartment.
Connect the grounding wire (green to green).
Connect power cables: black wire to letter N and red wire to letter L.

For a general understanding of wiring a mini-split unit, refer to the video below. Note that specific wiring diagrams for your TOSOT model should always be followed.

Video 4.1: General guide on how to wire a mini split unit. This video demonstrates the process of connecting electrical wires to the condenser, including grounding and power cables. Always consult your specific TOSOT manual for detailed wiring instructions.

4.3 Drainage System

The built-in water pump enables upward pipe routing, saving ceiling space and actively discharging condensation. A float switch monitors water levels and triggers an alarm if too high, preventing leaks.

Diagram comparing AC units with and without a built-in drainage pump — **Figur 4.4:** Comparison of drainage systems. The TOSOT unit features an auto-drainage pump for upward pipe installation, reducing ceiling leak risks, unlike gravity drainage systems.

5. Betjeningsvejledning

Your TOSOT Ducted Mini Split system offers multiple control options for optimal comfort.

Image showing wired control and app control options for the AC unit — **Figur 5.1:** Two control options: a wired wall-mounted controller and a smartphone app for remote adjustments.

5.1 Kablet controller

The intuitive wired controller allows direct adjustment of settings such as temperature, mode, and fan speed.

5.2 Smart Control (App Control)

Utilize the dedicated app for remote adjustments and advanced features. This includes setting timers, activating dehumidification, and sleep mode. The app also supports Geo Location functions.

Video 5.1: Tutorial on setting up Geo Location functions via the app. This video explains how to configure your unit to respond to your arrival or departure from a preset location, enabling automated climate control.

5.3 driftstilstande

Køling: Provides powerful cooling with up to 1,324 CFM airflow.
Opvarmning: Delivers warmth efficiently, operating in conditions down to -13°F.
Energibesparende tilstand: Automatically adjusts cooling to maintain comfort while reducing power consumption.
affugtning: Reduces humidity levels in the space.
Sove mode: Adjusts temperature for comfortable sleep and reduced energy use.
Turbo tilstand: Provides rapid cooling or heating when quick temperature changes are desired.

Image illustrating cooling for large spaces with 33,600 BTU and 1,324 CFM airflow — **Figur 5.2:** The unit's cooling capacity for large spaces, highlighting 33,600 BTU cooling and 1,324 CFM airflow, suitable for ambient temperatures up to 122°F.

Image illustrating heating for large home spaces with 34,000 BTU — **Figur 5.3:** The unit's heating capacity for large home spaces, showing 34,000 BTU heating and efficient operation down to -13°F ambient temperature.

Video 5.2: Overview of the TOSOT Mini-Split Air Conditioner, highlighting its 24.0 SEER2 ENERGY STAR rating and features for efficient heating and cooling.

Video 5.3: Demonstration of a Central AC Heat Pump with Inverter Technology. This video illustrates how inverter technology contributes to energy efficiency and consistent temperature control in heating and cooling modes.

Video 5.4: Overview af TOSOT centrale klimaanlægs varmepumpesystem, vistasing its capabilities for whole-home climate control.

Video 5.5: Demonstration of a Central AC Split System Heat Pump with Inverter technology, highlighting its ability to maintain stable temperatures and provide optimal comfort.

6. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer optimal ydeevne og levetid for din enhed.

6.1 Filterrensning

Regularly clean or replace air filters as per the instructions in the full user manual to maintain air quality and system efficiency.

6.2 Generel rengøring

Wipe down the exterior of the indoor and outdoor units with a soft, damp klæde. Brug ikke skrappe kemikalier eller slibende rengøringsmidler.

6.3 Kontrol af drænsystem

Periodically inspect the drainage system for any blockages or leaks. The built-in pump helps prevent issues, but regular checks are recommended.

7. Fejlfinding

If you encounter issues, refer to the following common troubleshooting tips. For complex problems, contact a certified technician.

Problem	Mulig årsag	Løsning
Enheden tænder ikke	No power, circuit breaker tripped, remote control battery low	Check power supply, reset breaker, replace remote batteries
Utilstrækkelig køling/opvarmning	Dirty air filters, blocked outdoor unit, incorrect mode setting, low refrigerant	Clean filters, clear obstructions, select correct mode, contact technician for refrigerant check
Usædvanlig støj	Loose parts, fan obstruction, refrigerant flow noise (normal)	Check for loose parts or obstructions, if persistent or loud, contact technician
Vandlækage	Blocked drain pipe, improper installation	Check and clear drain pipe, ensure proper slope, contact technician for installation review

8. Specifikationer

Feature	Detalje
Mærke	TOSOT
Model info	SU-COSMO36D/I;SU-COSMO36-230/O
Kølekraft	34,000 britiske termiske enheder
Kapacitet	3 tons
Voltage	230.0 V
Wattage	9965 W
Støjniveau	36 decibel
Produktdimensioner	39.37 x 29.37 x 16.81 tommer
Varens vægt	248 pund
Installationstype	Opdelt system
Særlige funktioner	Fast Cooling, Heating & Cooling Function, Remote Controlled, WiFi Enabled
Sæsonbestemt energieffektivitetsforhold (SEER)	14

9. Garanti

Warranty information is typically provided with your product documentation. Please ensure that installation is carried out by certified technicians, as improper installation may void the warranty. Keep your purchase receipt and installation records for warranty claims.

10. Support

For technical assistance, troubleshooting beyond this manual, or to inquire about service, please contact TOSOT customer support. Refer to the contact information provided in your product packaging or visit the official TOSOT webwebsted.
