1. Introduktion
The Thermal Master NV300 Max is an advanced automotive thermal night vision dashcam designed to enhance driving safety, particularly in low-visibility conditions. It features a long-range thermal sensor, AI-powered collision warning, and multiple display modes to provide a clearer view af vejen forude.
Nøglefunktioner omfatter:
- 328 Yards Long Distance Vision: Detects pedestrians and animals up to 300 meters away.
- AI Collision Warning: Utilizes deep learning algorithms to identify potential hazards and provide visual and audible alerts.
- 3-Vision Infrared Dashcam: Offers Visible Light, Infrared (Thermal), and Fusion display modes.
- Smart stemmestyring: Allows hands-free operation for various settings.
- Hurtig installation: Designed for easy setup in various vehicle types.
2. Pakkens indhold
Upon unboxing your NV300 Max, please verify that all components are present:
- NV300 Max Camera Module
- In-Car Display Host
- Bluetooth OBD-modul
- Strømkabel til cigarettænder
- In-Car/Out-Car Connection Cable (x2)
- Brugervejledning (dette dokument)
Image: The NV300 Max camera module and its accompanying display host.
3. Opsætning og installation
The NV300 Max is designed for quick and easy installation, typically taking around 5 minutes. It is compatible with a wide range of vehicles, including cars, pickups, RVs, trucks, and buses.
3.1 Mounting the Camera Module
The camera module is typically mounted on the dashboard or windshield, ensuring a clear, unobstructed view of the road ahead. Use the provided adhesive or mounting bracket to secure the module firmly.
3.2 Positioning the Display Host
The 6.4-inch floating display features magnetic 3D adjustment, allowing you to position it for optimal viewuden at hindre din kørsel view. Place it in a convenient location on your dashboard.
3.3 Connecting Power and OBD
Connect the camera module to the display host using the provided connection cable. Power the system using the cigarette lighter power cable. For advanced features and vehicle data, connect the Bluetooth OBD module to your vehicle's OBD-II port.
4. Betjeningsvejledning
4.1 Tænd/sluk
The device will typically power on automatically when your vehicle starts and power off when the ignition is turned off. A manual power button may also be present on the display host for direct control.
4.2 Skærmtilstande
The NV300 Max offers three distinct display modes to adapt to various driving conditions:
- Synligt lys-tilstand: Standard kamera view, similar to a regular dashcam.
- Infrared (Thermal) Mode: Displays heat signatures, ideal for pitch-dark conditions, fog, or heavy rain.
- Fusionstilstand: Combines visible light and thermal imaging for a comprehensive view, highlighting thermal objects within the visible scene.
Image: Visual comparison of Visible Light, Thermal, and Fusion Vision modes, demonstrating enhanced visibility in challenging conditions.
4.3 AI Collision Warning System
The built-in AI algorithm continuously analyzes the road ahead for potential hazards such as vehicles, pedestrians, and animals. When a potential collision is detected, the system provides visual alerts (green, yellow, red indicators) and audible warnings to prompt timely driver reaction.

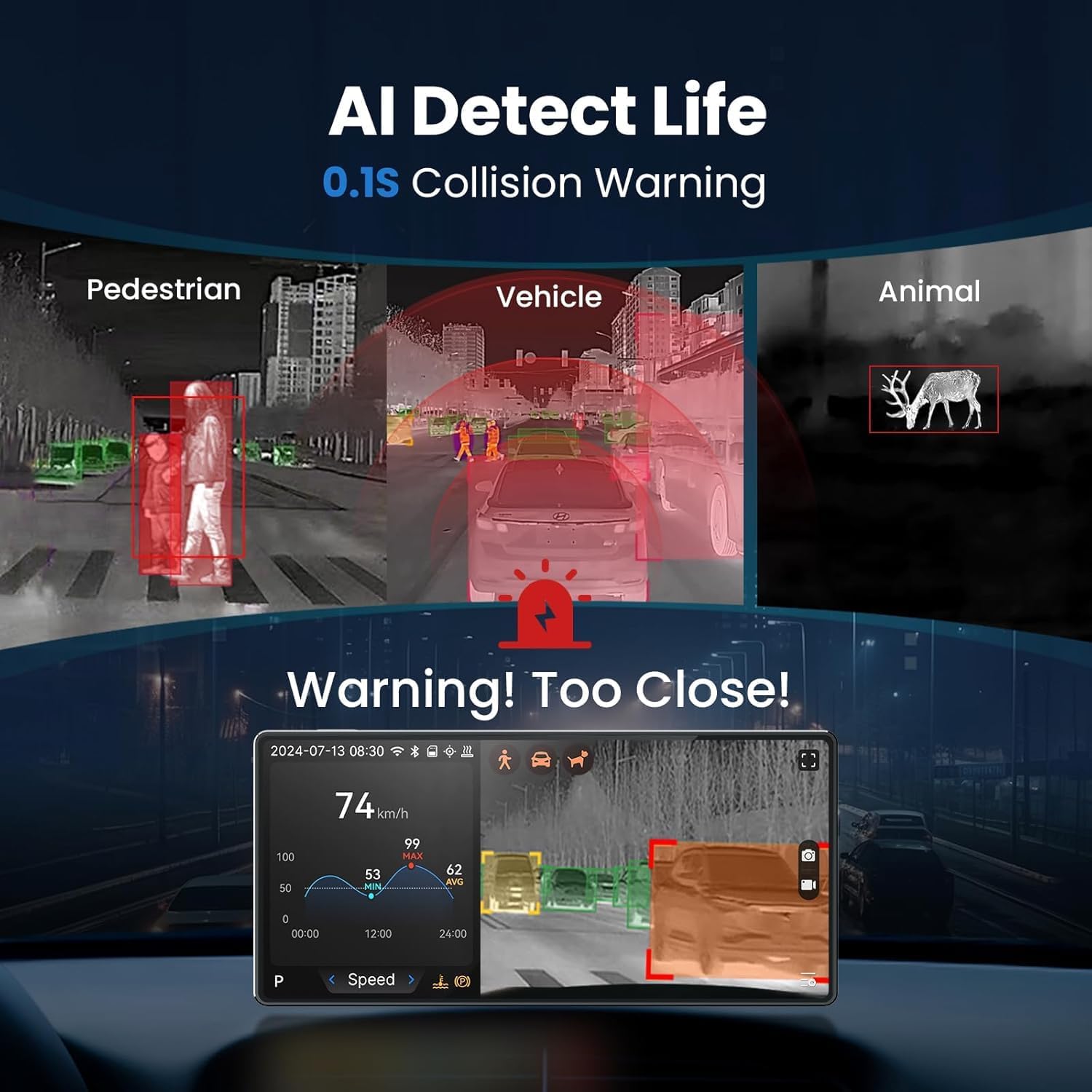

Image: The AI collision warning system actively identifying and highlighting pedestrians, vehicles, and animals on the road.
4.4 Smart stemmestyring
The NV300 Max supports voice commands for hands-free operation. You can adjust settings such as display modes, volume, and brightness by speaking commands directly to the device, allowing you to maintain focus on driving.
5. Funktioner overview
5.1 Long-Range Vision
The NV300 Max provides a clear view up to 328 yards (300 meters), significantly extending your perception range in challenging conditions like darkness, heavy rain, or fog. This allows for earlier detection of obstacles and potential hazards.
Image: The NV300 Max's long-range night vision capability, demonstrating detection of a deer on the road at a significant distance.
5.2 High-Resolution Thermal Sensor
Equipped with a high-sensitivity thermal sensor, the NV300 Max delivers clear thermal images even in complete darkness. The 512x384 Super IR Resolution ensures detailed thermal imaging for accurate object recognition.
Image: A side-by-side comparison illustrating the enhanced clarity and detail provided by the 512x384 Super IR Resolution.
5.3 Shutterless Zero Freezing Technology
The latest seamless infrared technology ensures a smooth, uninterrupted image feed, preventing any freezing or stuttering that could disrupt your view af vejen.
5.4 OBD Functionality
Beyond its vision capabilities, the NV300 Max also functions as an On-Board Diagnostics (OBD) tool, providing additional vehicle data and insights to help you drive more safely and confidently.
Image: Illustrates the device's 'Spaceship Design', its core Thermal Camera function, and its integrated OBD capabilities.
5.5 All-Weather Performance
The NV300 Max is designed to operate reliably in a wide range of environmental conditions, from extreme cold to high temperatures, ensuring 24/7 performance regardless of the weather.
6. Vedligeholdelse
To ensure the longevity and optimal performance of your NV300 Max, follow these maintenance guidelines:
- Rensning: Gently wipe the camera lens and display screen with a soft, lint-free cloth. Avoid abrasive cleaners or solvents that could damage the surfaces.
- Kabelstyring: Sørg for, at alle kabler er korrekt tilsluttet og ikke er klemt eller udsat for overdreven slitage.
- Softwareopdateringer: Kontroller jævnligt producentens website for any available firmware or software updates to ensure your device has the latest features and performance enhancements.
- Opbevaring: If storing the device for an extended period, keep it in a cool, dry place away from direct sunlight and extreme temperatures.
7. Fejlfinding
This section addresses common issues you might encounter with your NV300 Max.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke. | Ingen strømforsyning; løs forbindelse. | Check if the cigarette lighter power cable is securely plugged in and the vehicle's power outlet is functional. Ensure all cables are firmly connected. |
| Skærmen er tom eller frosset. | Softwarefejl; strømafbrydelse. | Restart the device by unplugging and re-plugging the power cable. If the issue persists, check for firmware updates. |
| AI warning not functioning. | Feature disabled; sensor obstruction. | Ensure the AI collision warning feature is enabled in the device settings. Check that the camera lens is clean and unobstructed. |
| Dårlig billedklarhed. | Dirty lens; incorrect mode. | Clean the camera lens. Ensure you are using the appropriate display mode (e.g., Thermal Mode for darkness). |
8. Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | Black (NV300 Max) |
| Mærke | Termisk mester |
| Skærmstørrelse | 6.4 tommer |
| Displayteknologi | LCD |
| Linsetype | Wide Angle (Fixed) |
| Optisk sensorstørrelse | 1/4 tomme |
| Varens vægt | 4.62 pund |
| Pakkedimensioner | 11.26 x 8.7 x 4.25 tommer |
| Batterier | 1 Lithium Metal batteri (medfølger) |
| Forbindelse | Trådløs |
9. Garanti og support
For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official Thermal Master webwebsted. Behold din købskvittering som købsbevis i tilfælde af garantikrav.
