HBEZON medicinskab med LED-lys og spejl

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of your HBEZON Medicine Cabinet with LED Lights and Mirror. Please read this manual thoroughly before installation and use to ensure proper function and safety. This cabinet is designed to enhance your bathroom with smart features and efficient storage.

2. Vigtige sikkerhedsoplysninger

WARNING: Always follow the manufacturer's instructions for installation and use. Do not attempt to install the cabinet if you are not comfortable doing so. If the cabinet is to be hardwired, it should be done by a licensed electrician. Keep electrical outlets and USB ports dry and away from water. Do not overload the outlets or use damaged cords.

• Ensure all electrical connections are made by a qualified professional if hardwiring.
• Do not expose the electrical components to excessive moisture or water.
• Afbryd altid strømmen, før du udfører vedligeholdelse eller rengøring.
• This product contains glass components; handle with care to prevent breakage and injury.

3. Pakkens indhold

Kontroller, at alle komponenter er til stede, før installationen påbegyndes:

• Medicinskab med spejl
• Monteringshardware
• Adjustable Shelves (3 included)

4. Produktfunktioner

The HBEZON Medicine Cabinet is equipped with advanced features for convenience and functionality:

• 3 farvebelysningstilstande og justerbar lysstyrke: LED-lysstribe med høj lysstyrke på 6000 lumen med varme, naturlige og kolde hvide farver. Lysstyrken er fuldt justerbar fra 0 % til 100 %.
• Hukommelsesfunktion: Remembers your last light setting for added convenience.
• Anti-dug funktion: Built-in defogger keeps your reflection clear in steamy environments.
• Stikkontakt og USB-port: Built-in outlets and USB ports for easy device charging.
• DTC-hængsler med blød lukning: Rustproof hinges with silent buffering technology for smooth and quiet door closure.
• Pladsbesparende design: Adjustable shelves maximize storage space, keeping items organized and dust-free.
• Holdbar konstruktion: Aluminum frame designed to withstand bathroom humidity.

Figur 1: Overview af nøglefunktioner og -funktioner.

5. Installationsvejledning

5.1 Monteringsmuligheder

This medicine cabinet supports both surface wall-mounted and recessed installation:

• Overflademontering: Skabet er monteret direkte på væggen.
• Forsænket montering: With detachable glass panels, the cabinet can be recessed into a wall cutout for a flush, integrated look.

Figure 2: Recessed Mount vs. Wall Mount Installation.

5.2 Dimensioner

Ensure your installation area accommodates the cabinet's dimensions:

• Produktmål: 5 cm D x 24 cm B x 30 cm H
• For recessed installation, a cutout of approximately 23"W x 29"H x 4"D is required.

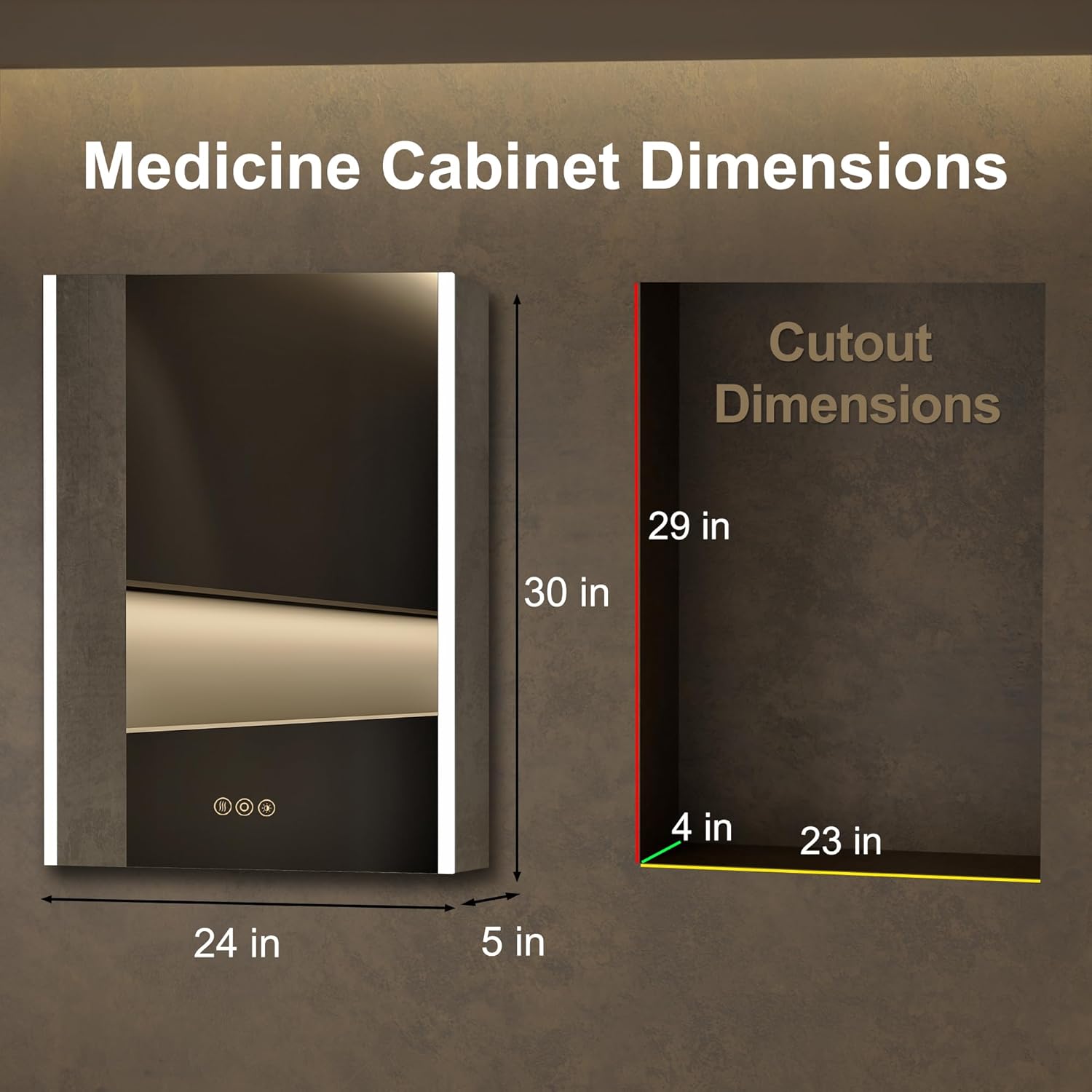

Figure 3: Medicine Cabinet and Cutout Dimensions.

5.3 Elektrisk tilslutning

The cabinet is designed for hardwired installation. It is strongly recommended that a licensed electrician perform the electrical wiring to ensure safety and compliance with local codes.

6. Betjeningsvejledning

6.1 Smarte berøringskontroller

The mirror features smart touch buttons for controlling lighting and defogging functions:

• Tænd/sluk: Short press the power icon to turn the mirror lights on or off.
• Juster lysstyrke: Long press the brightness icon to dim or brighten the lights (0% to 100%). The memory function will recall your last brightness setting.
• Skift farvetemperatur: Short press the color temperature icon to cycle through warm (3000K), natural (4000K), and cold white (6000K) lighting modes.
• Anti-tåge funktion: Press the defogger icon to activate or deactivate the anti-fog feature. This keeps the mirror clear in humid conditions.

Figure 4: Adjusting Light Color Temperature.

Figure 5: Brightness Dimmer and Memory Function.

Figur 6: Anti-dug-funktion i drift.

6.2 Interne funktioner

• Electrical Outlets and USB Ports: Located inside the cabinet, these allow for convenient charging of electric razors, toothbrushes, or other devices. Ensure the door is open when using these ports.
• Justerbare hylder: The glass shelves can be repositioned to accommodate items of various heights, optimizing your storage space.

Figure 7: Internal Features: Outlets, USB, Hinges, and Light Strip.

Figure 8: Spacious Interior Storage with Adjustable Shelves.

7. Vedligeholdelse

For at sikre dit medicinskabs levetid og optimale ydeevne, skal du følge disse vedligeholdelsesretningslinjer:

• Rengøring af spejlet: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Spray the cleaner onto the cloth, not directly onto the mirror, to prevent liquid from seeping into the electrical components.
• Rengøring af kabinettets inderside: Wipe down interior surfaces and shelves with a damp klud og mild sæbe. Tør grundigt.
• Elektriske komponenter: Keep the electrical outlets and USB ports clean and dry. Do not use water or liquid cleaners near these components.
• Hængsler: Periodically check the soft-close hinges for smooth operation. No lubrication is typically required.

8. Fejlfinding

Hvis du støder på problemer med dit medicinskab, kan du se følgende almindelige problemer og løsninger:

If you are unable to resolve an issue using these steps, please contact HBEZON customer support for further assistance.

9. Specifikationer

10. Garanti og support

For information regarding product warranty, returns, or technical support, please refer to the warranty card included with your purchase or visit the official HBEZON website. Customer support is available to assist with any questions or concerns you may have.
