TREKURE 4-in-1 Car Jump Starter with Air Compressor

Produkt overview

The TREKURE 4-in-1 Car Jump Starter with Air Compressor is a versatile and essential tool for vehicle owners. This device combines a powerful jump starter, a smart digital air compressor, a portable power bank, and a multi-function LED light into a single compact unit. It is designed to provide reliable assistance for various roadside emergencies and outdoor activities.

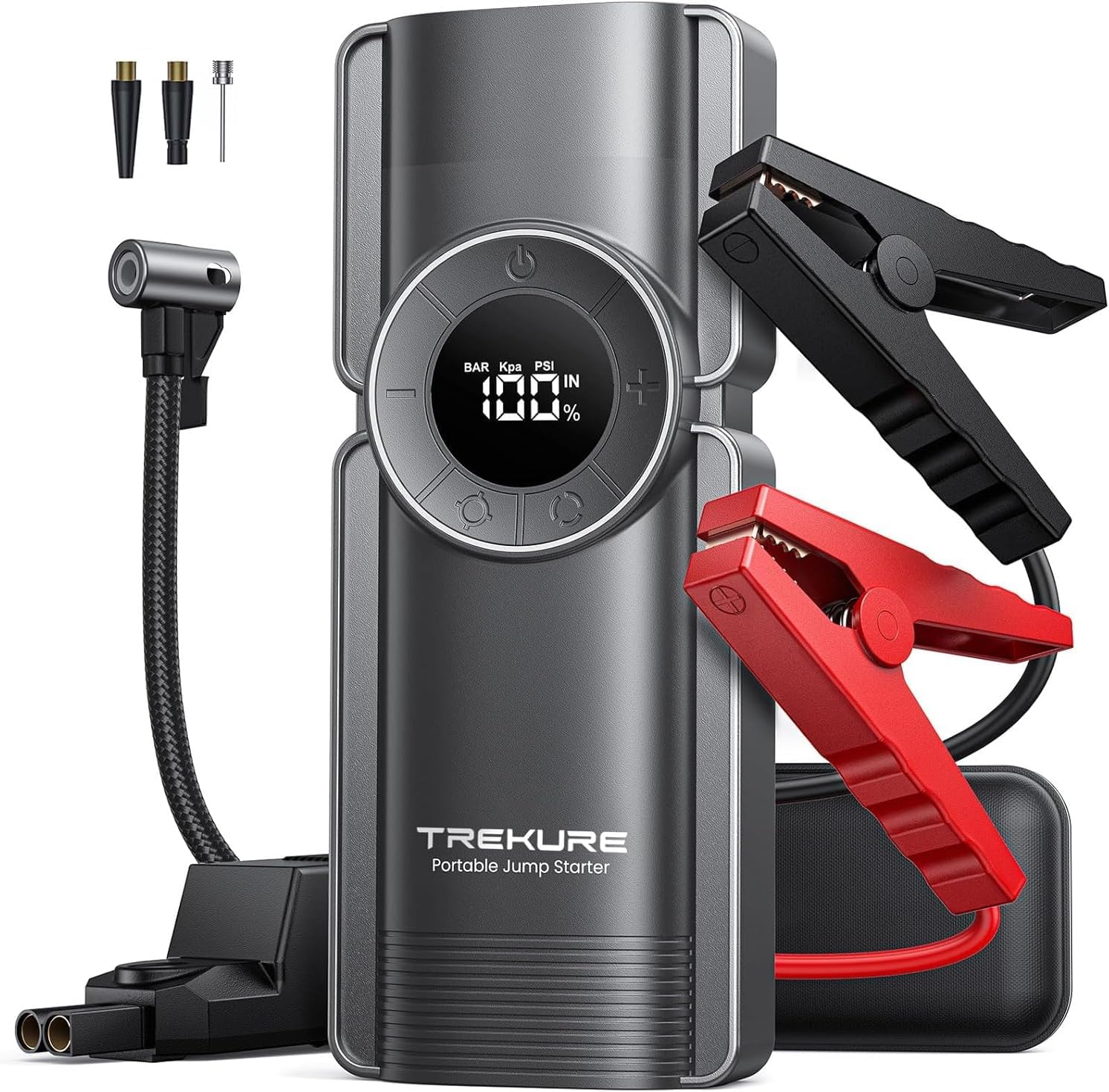

Image: The TREKURE 4-in-1 Car Jump Starter, showcasing its main unit, jumper cables, and air hose attachment.

Key features include a 3500A peak current for starting large engines, a 150 PSI air compressor with auto shut-off, dual USB ports for charging electronic devices, and an LED light with Flash, Strobe, and SOS modes. Its robust design ensures safe and reliable performance in various conditions.

Pakkens indhold

Før første brug skal du sørge for, at alle dele er til stede i pakken:

• 1x TREKURE Jump Starter with Air Compressor
• 1x Heavy Duty Smart Clamp (Jumper Cables)
• 1x luftslange
• 1x USB-C opladerkabel
• 3x Valve Adapters (for various inflatables)
• 1x Premium EVA Protection Case
• 1x Brugermanual (dette dokument)

Image: All components included in the TREKURE 4-in-1 Jump Starter package, laid out neatly with dimensions.

Opsætning og første opladning

It is recommended to fully charge the TREKURE Jump Starter before its first use to ensure optimal performance and battery longevity. The device comes with a USB-C charging cable.

1. Connect the USB-C charging cable to the USB-C input port on the jump starter.
2. Connect the other end of the USB-C cable to a compatible USB wall adapter (not included) or a car charger.
3. LCD-displayet viser opladningsstatus. Oplad indtil displayet viser 100%.
4. Når det er fuldt opladet, skal du frakoble ladekablet.

For best results, recharge the unit every 3-6 months, even if not used, to maintain battery health.

Betjeningsvejledning

1. Start af et køretøj med startkabler

This jump starter is designed for 9.0L gas and 8.0L diesel engines. Always ensure the jump starter is sufficiently charged before attempting to jump start a vehicle.

1. Klargør køretøjet: Turn off the vehicle's ignition and all accessories (lights, radio, A/C). Engage the parking brake.
2. Connect Jumper Cable to Unit: Insert the blue end of the smart clamp cable into the jump starter's EC5 port. Ensure a firm connection.
3. Tilslut Clamps til bilbatteri:
   • Tilslut RØD positiv (+) clamp til den positive (+) pol på køretøjets batteri.
   • Tilslut SORT negativ (-) clamp til den negative (-) pol på køretøjets batteri.
   Sørg for at clamps make good contact with the battery terminals. The smart clamp has built-in safety protections to prevent sparks and damage from incorrect connections.
4. Start køretøjet: Once connected, the jump starter's display will indicate readiness. Start your vehicle's engine. If it doesn't start immediately, wait 30 seconds before trying again. Do not crank for more than 3 seconds per attempt.
5. Fjern Clamps: Once the vehicle starts, immediately remove the SORT negativ (-) clamp først, derefter RØD positiv (+) clamp. Disconnect the smart clamp cable from the jump starter.

Image: A visual guide demonstrating the four easy steps to operate the TREKURE jump starter: connecting the cable, attaching clamps, starting the car, and removing clamps.

Sikkerhedsforanstaltninger: The device incorporates 10 advanced safety protections including reverse polarity, short circuit, overcurrent, and overcharge protection. Always follow the connection order to ensure safety.

2. Brug af luftkompressoren

The built-in air compressor delivers up to 150 PSI and features smart preset options with an auto shut-off function.

1. Fastgør luftslange: Screw the air hose onto the air output port of the jump starter.
2. Forbind til element: Attach the appropriate valve adapter to the air hose and connect it to the tire valve or inflatable item.
3. Sæt tryk: Turn on the jump starter. Use the digital display and control buttons to select the desired pressure unit (PSI, BAR, KPA) and set the target pressure.
4. Start inflation: Tryk på oppustningsknappen for at starte. Kompressoren stopper automatisk, når det forudindstillede tryk er nået.
5. Afbryde: Remove the air hose from the item and then from the jump starter.

Image: The TREKURE unit being used as a cordless digital air pump to inflate a car tire, highlighting its versatility for various items like balls and inflatables.

3. Brug som en bærbar powerbank

The unit features dual USB ports (5V 2.4A) to charge smartphones, tablets, and other USB-powered devices.

1. Tilslut enhed: Plug your device's USB charging cable into one of the USB output ports on the jump starter.
2. Begynd opladning: The jump starter will automatically begin charging your device. The LCD display may show the remaining battery percentage.
3. Afbryde: Once your device is charged, disconnect the cable.

Image: The TREKURE unit acting as a power bank, simultaneously charging a tablet and a smartphone via its USB ports.

4. Using the Multi-Function LED Light

The integrated LED light offers Flashlight, Strobe Light, and SOS Light modes for various situations.

1. Aktiver lys: Press and hold the light button (usually marked with a flashlight icon) to turn on the flashlight mode.
2. Cyklustilstande: Briefly press the light button again to cycle through Strobe Light and SOS Light modes.
3. Sluk: Press and hold the light button again to turn off the LED light.

Image: The TREKURE unit's LED light illuminated, demonstrating its use as an emergency light with Flash, Strobe, and SOS functions.

Opretholdelse

• Rensning: Tør enheden af ​​med en blød, tør klud. Brug ikke skrappe kemikalier eller slibende rengøringsmidler. Sørg for, at alle porte er fri for støv og snavs.
• Opbevaring: Store the jump starter in its premium EVA protection case in a cool, dry place, away from direct sunlight and extreme temperatures.
• Batteripleje: To prolong battery life, fully charge the unit every 3-6 months, even if not in use. Avoid completely draining the battery before recharging.

Fejlfinding

If problems persist, please contact TREKURE customer support.

Specifikationer

Garanti og support

The TREKURE 4-in-1 Car Jump Starter with Air Compressor comes with a 2 års garanti from the date of purchase. This warranty covers manufacturing defects and ensures peace of mind with every use.

TREKURE also provides livslang teknisk support for this product. If you encounter any issues, have questions about operation, or require assistance, please do not hesitate to contact our customer support team.

For support, please visit the official TREKURE website or refer to the contact information provided on your purchase receipt or product packaging.
