1. Introduktion
Thank you for choosing the Kanlux ZEPO Cabinet Luminaire. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new lighting fixture. Please read this manual thoroughly before installation and keep it for future reference.
The Kanlux ZEPO luminaire is designed for installation under cabinets, such as kitchen worktops, providing elegant and functional accent lighting. Its compact design and various color options (black, white, silver/chrome) allow it to seamlessly integrate into various interior styles.
Figur 1: Eksample of Kanlux ZEPO luminaire installed in a kitchen setting, illuminating a countertop.
2. Sikkerhedsoplysninger
Overhold altid følgende sikkerhedsforanstaltninger for at forhindre personskade eller beskadigelse:
- Ensure the power supply is disconnected before installation, maintenance, or bulb replacement.
- This luminaire is rated Class III, meaning it requires a safety extra-low voltage (SELV) power supply. Do not connect directly to mains voltage without an appropriate transformer.
- The luminaire has an IP20 rating, indicating protection against solid objects larger than 12.5mm. It is not protected against water. Install only in dry, indoor environments.
- Do not cover the luminaire with insulating material.
- Use only G4 bulbs with a maximum power of 10W.
- Installationen bør udføres af en kvalificeret elektriker, hvis du er i tvivl.
- Opbevares utilgængeligt for børn.
3. Opsætning og installation
Follow these steps for proper installation of your Kanlux ZEPO luminaire:
- Forbered installationsområdet: Choose a suitable location under a cabinet or shelf. Ensure there is enough space for the luminaire and access for wiring.
- Marker monteringspunkter: Use the luminaire as a template to mark the screw holes on the underside of the cabinet. The luminaire has a triangular shape with sides of approximately 130mm.
- Bor pilothuller: Carefully drill small pilot holes at the marked points.
- Secure the Luminaire: Attach the luminaire to the cabinet using appropriate screws (not included).
- Tilslut ledninger: Connect the luminaire to a compatible Class III (SELV) power supply. Ensure all connections are secure and insulated. Refer to your power supply's instructions for specific wiring details.
- Indsæt pære: Gently insert a G4 bulb (max 10W) into the luminaire's socket.
- Prøve: Gendan strømmen og test armaturet.

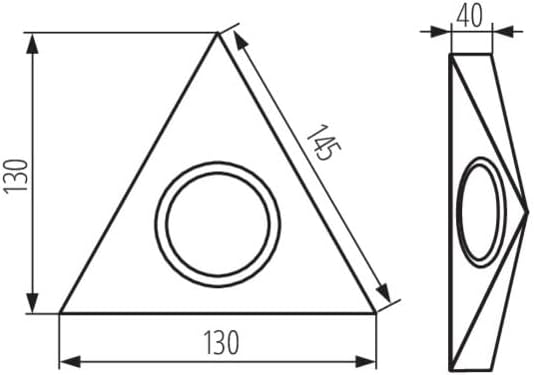

Figure 2: Technical diagram showing the dimensions of the Kanlux ZEPO luminaire (130mm x 130mm x 40mm depth).
Figur 3: Nærbillede view of the Kanlux ZEPO luminaire, showing the G4 bulb socket and integrated power switch.
4. Betjeningsvejledning
The Kanlux ZEPO luminaire is designed for simple operation:
- Tænd/sluk: If your luminaire model includes an integrated switch (as shown in Figure 3), use it to turn the light on or off. Otherwise, control the luminaire via the external switch connected to your power supply.
- Udskiftning af pære: To replace the G4 bulb, first disconnect the power supply. Carefully remove the old bulb and insert the new G4 bulb into the socket. Ensure the bulb is securely seated before restoring power.
5. Vedligeholdelse
To ensure the longevity and optimal performance of your luminaire:
- Rensning: Disconnect power before cleaning. Wipe the luminaire with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish.
- Inspektion: Periodically check the wiring and connections for any signs of wear or damage.
- Pære type: Always use the specified G4 bulb type with a maximum power of 10W. Using higher wattage bulbs can cause overheating and damage.
6. Fejlfinding
If you encounter issues with your luminaire, try the following:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | No power supply, faulty bulb, loose connection, faulty switch. | Check power source. Replace bulb. Check all wiring connections. Test the switch. |
| Lyse flimrer. | Loose bulb, unstable power supply, incompatible bulb. | Ensure bulb is seated correctly. Check power supply stability. Use a compatible G4 bulb. |
| Luminaire gets too hot. | Forkert pære wattage (for høj). | Ensure you are using a G4 bulb with a maximum of 10W. |
If the problem persists after attempting these solutions, please contact Kanlux customer support or a qualified electrician.
7. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Kanlux |
| Modelnummer | 36632 |
| Magt | 10 watt MAKS |
| Cap Type | G4 |
| Protection Index (IP) | IP20 |
| Elektrisk klasse | Klasse III |
| Materiale | Legeret stål |
| Stil | Moderne |
| Varens vægt | 140 gram |
| Dimensioner (ca.) | 130mm (Length) x 130mm (Width) x 40mm (Depth) |
| Batterier påkrævet | Ingen |
8. Garanti og support
Kanlux products are manufactured to high quality standards. For information regarding warranty terms and conditions, please refer to the warranty card included with your product or visit the official Kanlux website. For technical support or inquiries, please contact Kanlux customer service through their official channels.
Kanlux Official Webwebsted: www.kanlux.com
