1. Vigtige sikkerhedsadvarsler
Please read this user manual carefully before operating the desk. Failure to follow these instructions may result in injury or damage to the product.
- Keep fingers and other objects clear of the lifting columns to prevent injury during height adjustments.
- Overskrid ikke den maksimale lasteevne for 160 kg (352 lbs). Ensure the weight is evenly distributed.
- Sørg for, at skrivebordet er placeret på en stabil, plan overflade for at forhindre, at det vælter.
- Hold børn og kæledyr væk fra skrivebordet under drift.
- Do not disassemble or modify the desk's components. Contact support for assistance.
2. Opsætning og montering
The FLEXISPOT EC5 PRO+DT desk is designed for straightforward assembly. All necessary tools and step-by-step instructions are included in the package.
2.1 Udpakning
Carefully unpack all components and verify against the parts list provided in the separate assembly guide. Ensure no parts are missing or damaged.
2.2 Monteringstrin
- Attach the lifting columns to the desk frame using the provided screws.
- Secure the feet to the bottom of the lifting columns.
- Carefully place the tabletop onto the assembled frame. The tabletop features pre-drilled holes for easy alignment.
- Fasten the tabletop to the frame using the designated screws.
- Connect all motor and control panel cables according to the assembly diagram. Ensure all connections are secure.
- It is recommended to have two people for assembly, especially when handling the heavy tabletop and frame, to ensure safety and ease of installation.
3. Betjeningsvejledning
The FLEXISPOT EC5 PRO+DT desk features a powerful dual-motor system for smooth and quiet height adjustments.
3.1 Kontrolpanelfunktioner
The control panel allows for precise height adjustments and includes memory presets for convenience.
- Op/ned-pile (▲ / ▼): Press and hold to adjust the desk height continuously. Release to stop.
- Height Display: Viser den aktuelle skrivebordshøjde i centimeter.
- Hukommelsesforudindstillinger (1, 2, 3): Press 'M' then a number (1, 2, or 3) to save the current height. To recall a saved height, simply press the corresponding number button.
- Timed Reminder (A): Activates a reminder to change posture after a set period. Refer to the full assembly guide for setting specific intervals.
3.2 Height Adjustment Range
Skrivebordet kan justeres fra en minimumshøjde på 62 cm til en maksimal højde på 127 cm (without tabletop). The dual motors provide a smooth soft-start and soft-stop motion, with an adjustment speed of up to 35 mm/s and a low operating noise level of less than 50 dB.
4. Vedligeholdelse
Proper maintenance ensures the longevity and optimal performance of your FLEXISPOT desk.
4.1 Rengøring
- The tabletop features a scratch-resistant and easy-to-maintain surface. For general cleaning, wipe with a soft, damp klæde.
- For stubborn marks, use a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive materials that could damage the finish.
- Sørg for, at der ikke trænger væske ind i kontrolpanelet eller motorkomponenterne.
4.2 Generel pleje
- Kontrollér regelmæssigt alle skruer og forbindelser for at sikre, at de forbliver fastspændte.
- Avoid placing excessively heavy or sharp objects on the desk that could scratch or dent the surface.
- Do not drag the desk across the floor; lift it when moving to prevent damage to the feet or floor.
5. Fejlfinding
If you encounter issues with your FLEXISPOT desk, refer to the following common troubleshooting steps:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Skrivebordet bevæger sig ikke | Power cable disconnected; Control panel cable loose; Overload; Motor error. | Check power connection. Ensure all cables are securely plugged in. Reduce weight on desk. Unplug for 10 seconds, then plug back in to reset. |
| Skrivebordet bevæger sig ujævnt | Uneven weight distribution; Obstruction. | Distribute weight evenly. Check for any obstructions under or around the desk. |
| Fejlkode på display | Specifik systemfejl. | Refer to the detailed troubleshooting section in the full assembly manual for specific error code interpretations and solutions. Often, a power cycle (unplug and replug) can resolve minor errors. |
If the problem persists after attempting these solutions, please contact FLEXISPOT customer support for further assistance.
6. Specifikationer
Detailed technical specifications for the FLEXISPOT EC5 PRO+DT Height Adjustable Desk:
- Mærke: FLEXISPOT
- Modelnummer: EC5 PRO+DT
- Desk Dimensions (L x W x H): 160 cm x 80 cm x 62-127 cm (justerbar højde)

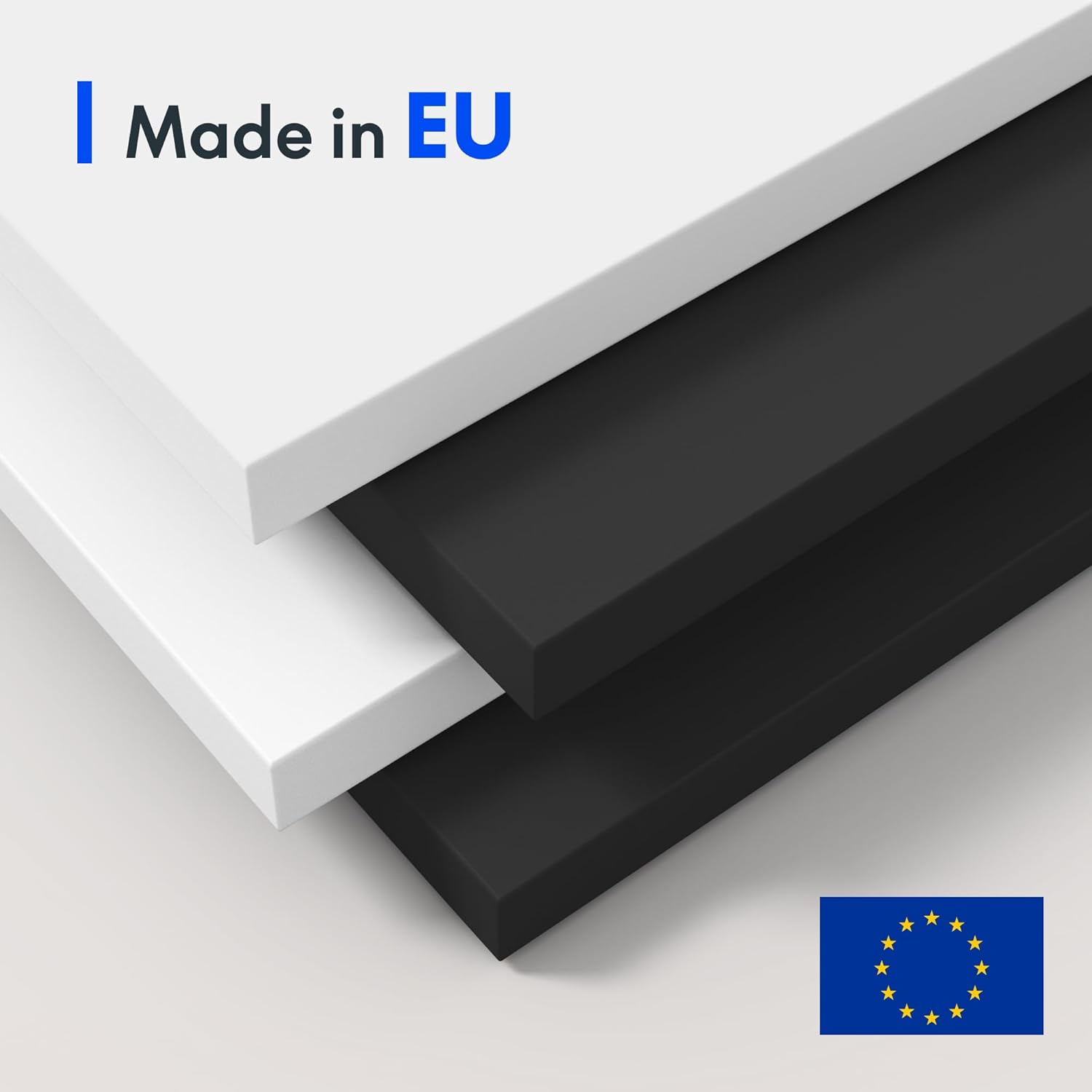

- Bordplademateriale: Wood (FSC-certified MDF with scratch-resistant high-pressure laminate)
- Rammemateriale: Metal
- Farve: White Top + White Frame
- Motortype: Dobbelt motor
- Belastningskapacitet: 160 kg (352 lbs)
- Height Adjustment Speed: 35 mm/s (maks.)
- Støjniveau: < 50 dB
- Funktioner: Memory Presets, Timed Reminder, Soft Start/Stop
7. Garantioplysninger
Specific warranty terms and conditions for the FLEXISPOT EC5 PRO+DT desk may vary by region and retailer. Please consult your purchase documentation or contact the retailer from whom you purchased the product for detailed warranty information.
Typically, warranties cover manufacturing defects and functional issues under normal use. Damage resulting from misuse, unauthorized modifications, or exceeding load capacity may not be covered.
8. Support
For technical assistance, spare parts, or any questions not covered in this manual, please contact FLEXISPOT customer support or your authorized retailer.
When contacting support, please have your product model number (EC5 PRO+DT) and proof of purchase readily available.
