ELISWEEN Wireless PC Gaming Controller User Manual

1. Introduktion

Thank you for choosing the ELISWEEN Wireless PC Gaming Controller. This controller is designed to provide a superior gaming experience across multiple platforms, including PC, Nintendo Switch, Android, and iOS devices. Featuring advanced Hall Effect joysticks, programmable back buttons, and customizable vibration, this manual will guide you through its setup, operation, and maintenance to ensure optimal performance.

2. Pakkens indhold

• ELISWEEN Wireless PC Gaming Controller
• USB-C ladekabel (1.5m)
• 2.4 GHz USB-dongle
• Brugermanual

3. Produktet er slutview

Familiarize yourself with the controller's components:

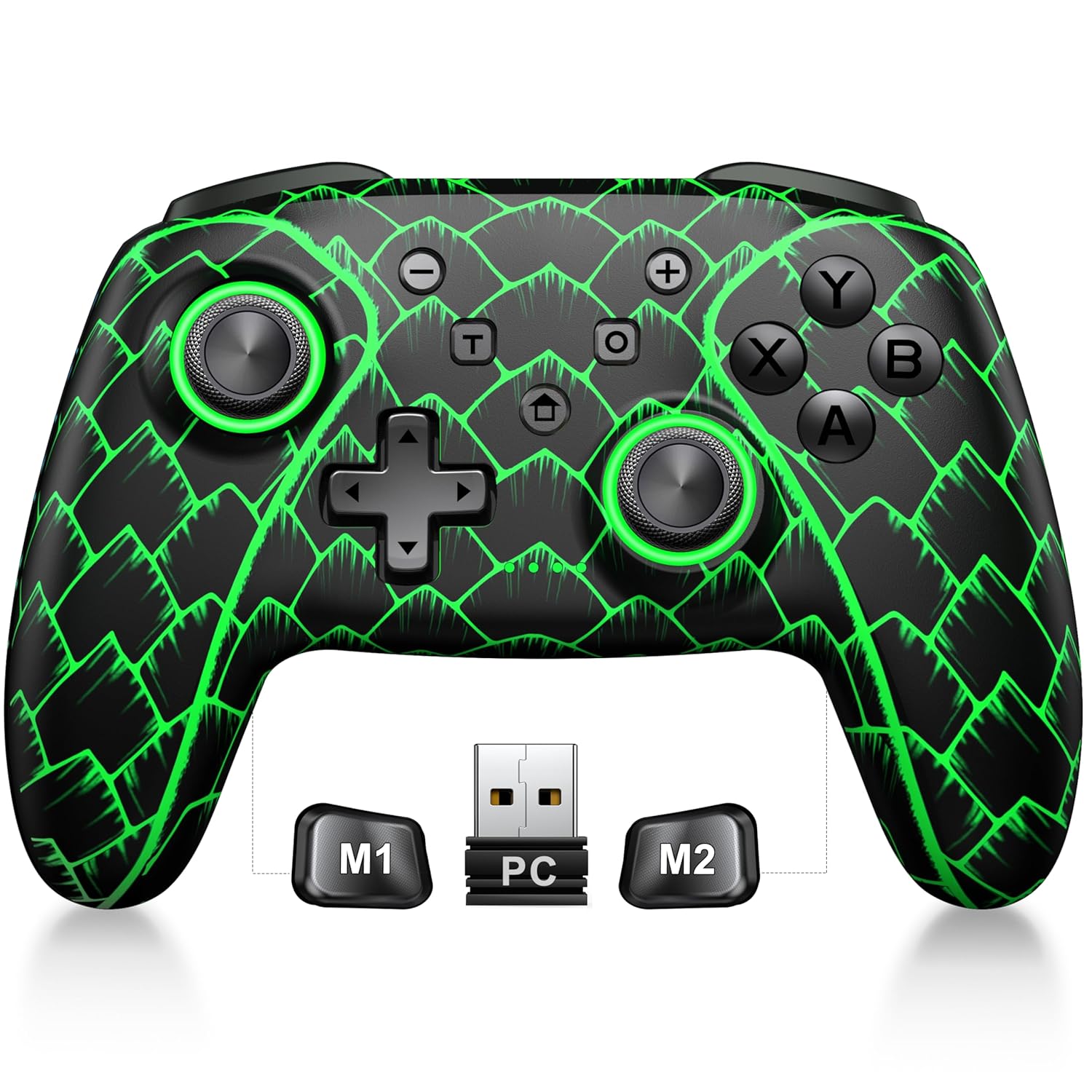

Figure 3.1: ELISWEEN Wireless PC Gaming Controller with its 2.4GHz USB dongle and highlighted M1/M2 programmable buttons.

• Venstre/højre analoge pinde: Hall Effect joysticks for precise movement.
• D-Pad: Retningsbestemt input.
• Handlingsknapper (A/B/X/Y): Standard knapper til spilinput.
• Shoulder Buttons (L/R): Topmonterede knapper.
• Trigger Buttons (ZL/ZR): Hall Effect analog triggers.
• M1/M2 knapper: Programmerbare tilbageknapper.
• Hjemknappen: Powers on/off and returns to system home screen.
• +/- knapper: System navigation/menu buttons.
• Skærmbillede-knap: Tager skærmbilleder.
• Turbo knap: Aktiverer/deaktiverer turbofunktionen.
• USB-C-port: Til opladning og kabelforbindelse.

4. Opsætning og tilslutning

4.1 Opladning af controlleren

Before first use, fully charge the controller. Connect the USB-C cable to the controller's USB-C port and the other end to a USB power source (e.g., PC, USB wall adapter). The charging indicator will show status and turn off when fully charged. A full charge takes approximately 3 hours.

4.2 Connecting to PC (Wireless 2.4GHz)

Figure 4.1: Multi-platform compatibility of the ELISWEEN controller, including PC, Switch, Android, and iOS.

1. Insert the 2.4GHz USB dongle into an available USB port on your PC.
2. Press the Home button on the controller to power it on.
3. The controller will automatically connect to the dongle. The indicator lights will stabilize once connected.

4.3 Connecting to PC (Wired USB-C)

1. Connect the USB-C cable to the controller and the other end to your PC.
2. The controller will be recognized as a plug-and-play device.

4.4 Tilslutning til Nintendo Switch

1. On your Nintendo Switch, go to System Settings > Controllers and Sensors > Disconnect Controllers.
2. Then, go to Controllers and Sensors > Change Grip/Order.
3. Press and hold the Home button on the ELISWEEN controller until the indicator lights begin to flash rapidly.
4. Once paired, the indicator light(s) corresponding to the player number will remain solid.

4.5 Connecting to Android/iOS (Bluetooth)

1. Sørg for, at Bluetooth er aktiveret på din Android- eller iOS-enhed.
2. On the controller, press and hold the X + Home buttons simultaneously until the indicator lights flash rapidly, indicating pairing mode.
3. On your device, search for Bluetooth devices and select "STK-7040RG" (or similar) to pair.
4. Once connected, the indicator light will stabilize. Supports iOS 13+ MFi titles.

5. Betjeningsvejledning

5.1 Hall-effekt joysticks

The controller features precision Hall Effect joysticks and triggers, designed to prevent stick drift and provide accurate, responsive control. These magnetic, contactless sensors ensure long-term durability and precision.

Figur 5.1: Intern view of Hall Effect joystick technology, highlighting its magnetic, contactless design for enhanced accuracy and durability.

Zero Deadzone Mode: For competitive gaming, activate a temporary 0 deadzone mode by holding the T knap + R3 (right stick click) or L3 (left stick click). A green light confirms activation. To revert to default calibration, press the same combo (blue light indicator). The controller automatically resets to factory default settings upon restart for consistent anti-drift performance.

5.2 Programmerbare tilbageknapper (M1/M2)

The M1 and M2 back buttons can be programmed to map up to 21 different key combinations, allowing for quick execution of complex actions.

Figure 5.2: The M1 and M2 programmable back buttons, capable of mapping up to 21 different actions for enhanced control.

Refer to the Keylinker App (search "NC300") for detailed instructions on programming and customizing these buttons.

5.3 Turbofunktion

The controller supports Turbo fire functionality for 10 action buttons with adjustable speeds (5, 12, or 20 presses per second).

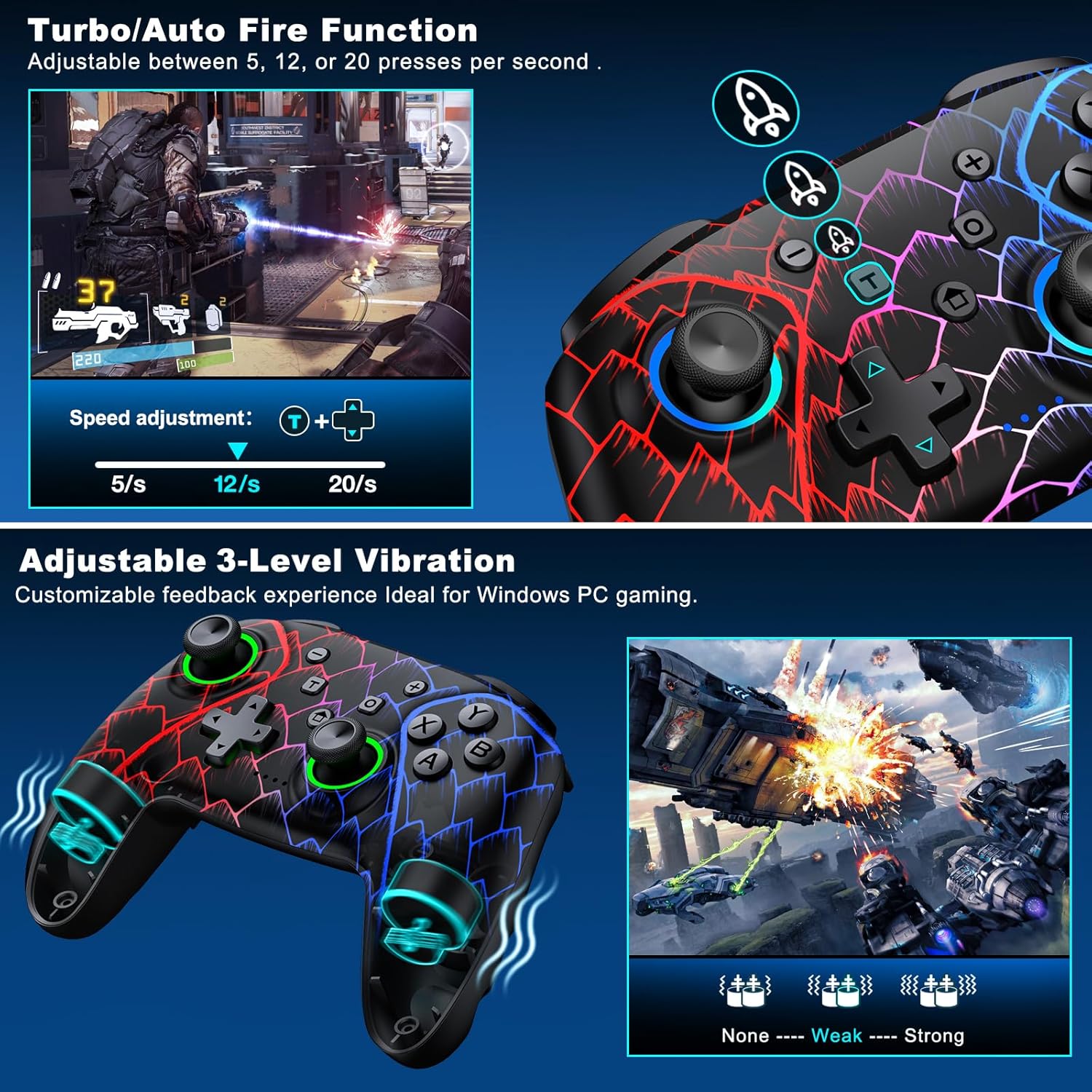

Figure 5.3: Visual representation of the Turbo/Auto Fire function and the adjustable 3-level vibration feature.

• Aktivér Turbo: Tryk på Turbo button + the desired action button.
• Juster hastighed: Trykke Turbo + Up arrow (increase) or Ned arrow (decrease) on the D-pad.
• Klar turbo: Hold Minus knap + Ned arrow on the D-pad to instantly clear all Turbo binds.

5.4 Vibrationsjustering

Experience immersive feedback with dual vibration motors offering 3 intensity levels.

• Adjust intensity by pressing L + R + ZL + ZR simultaneously. Cycle through levels: None, Weak, Strong.
• Note: Vibration is disabled on mobile platforms. Gyro functionality works only with Nintendo systems.

5.5 Hårtriggerlåse

Shorten trigger pulls for faster response times in games requiring quick inputs, such as first-person shooters.

5.6 Batterilevetidstyring

The controller is equipped with a 1000mAh battery, providing over 20 hours of continuous gameplay on a single charge. Charging takes approximately 3 hours via USB-C.

Figure 5.4: The ELISWEEN controller's 1000mAh battery provides extended playtime with quick charging capabilities.

5.7 Dynamic Lighting Effects

Customize the controller's lighting effects via the Keylinker App (search "NC300").

5.8 Automatic Power-off

To conserve battery, the controller will automatically power off after 20 minutes of inactivity.

6. Vedligeholdelse

• Rensning: Brug en blød, tør klud til at rengøre controlleren. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Opbevaring: Opbevar controlleren et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
• Batteripleje: Avoid fully discharging the battery frequently. Charge it regularly to prolong its lifespan.

7. Fejlfinding

• Controlleren forbinder ikke:
  • Sørg for, at controlleren er opladet.
  • Verify the correct connection method for your device (2.4GHz dongle for PC, Bluetooth for mobile, pairing for Switch).
  • Try restarting the controller and the device you are connecting to.
  • For PC, try a different USB port for the dongle or wired connection.
• Stick drift or inaccurate input:
  • Activate the 0 deadzone mode (T + R3/L3) to recalibrate.
  • Ensure the controller firmware is up to date via the Keylinker App.
• Knapper reagerer ikke:
  • Kontroller, om controlleren er korrekt tilsluttet.
  • Sørg for, at der ikke sidder snavs fast under knapperne.
  • Perform a factory reset if issues persist (refer to Keylinker App or contact support).
• Opladningsproblemer:
  • Prøv et andet USB-C-kabel og en anden strømkilde.
  • Ensure the USB-C port on the controller is clean and free of obstructions.

8. Specifikationer

9. Garanti og support

The ELISWEEN Wireless PC Gaming Controller comes with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the product packaging or contact our customer support.

For any technical assistance, troubleshooting, or inquiries, our 24/7 Expert Support team is available to help. Please refer to the contact information provided on the product packaging or our official webwebsted.
