RIAARIO 1/10 Brushless RC Monster Truck Instruction Manual

1. Sikkerhedsoplysninger

ADVARSEL: KVÆLINGSFARE — Small parts. Not for children under 3 years. This product is recommended for ages 12 years and up.

• Brug altid fjernstyrede lastbiler i åbne områder, væk fra mennesker, kæledyr og forhindringer.
• Må ikke anvendes i nærheden af ​​offentlige veje eller i områder med mange mennesker.
• Hold fingre, hår og løsthængende tøj væk fra bevægelige dele.
• Sørg for, at batterierne oplades korrekt og håndteres forsigtigt.
• Sluk altid køretøjet og fjernbetjeningen, når de ikke er i brug.
• Voksenopsyn anbefales til yngre brugere.

2. Produktet er slutview

The RIAARIO 1/10 Brushless RC Monster Truck (Model RZ001B-C) is a high-performance, 4WD remote-controlled vehicle designed for off-road use. It features a brushless motor system, durable construction, and advanced control capabilities.

Figure 2.1: RIAARIO 1/10 Brushless RC Monster Truck, Model RZ001B-C.

Nøglefunktioner:

• Brushless Motor System: Equipped with a 3650 2650KV motor, metal heatsink, and cooling fan for high-speed operation.
• Advanced Electronics: Includes a 7075 gear servo with 11kg torque, a gyroscope for stability, a 5-channel independent receiver, and a 60A ESC.
• Durable Drivetrain: Features a sturdy intermediate differential shaft, CNC central differential, 1M-34T CNC-driven teeth, and 1M-11T CNC bevel gear.
• Robust Chassis: Constructed with a 2.5mm hardened aluminum alloy chassis and a 4.5mm swing arm fixing block.
• Carbon Fiber Components: Second floor plate and shock tower are made from carbon fiber for enhanced strength.
• Suspensionssystem: Multi-terrain airless tires and adjustable oil-filled absorbers for various terrains.
• Vandtæt Design: Designed to withstand splashes and wet conditions.
• Advanced Remote Control: 2.4GHz 5-channel transmitter with a data-enabled screen and adjustable throttle limits (0-25-70-100%).

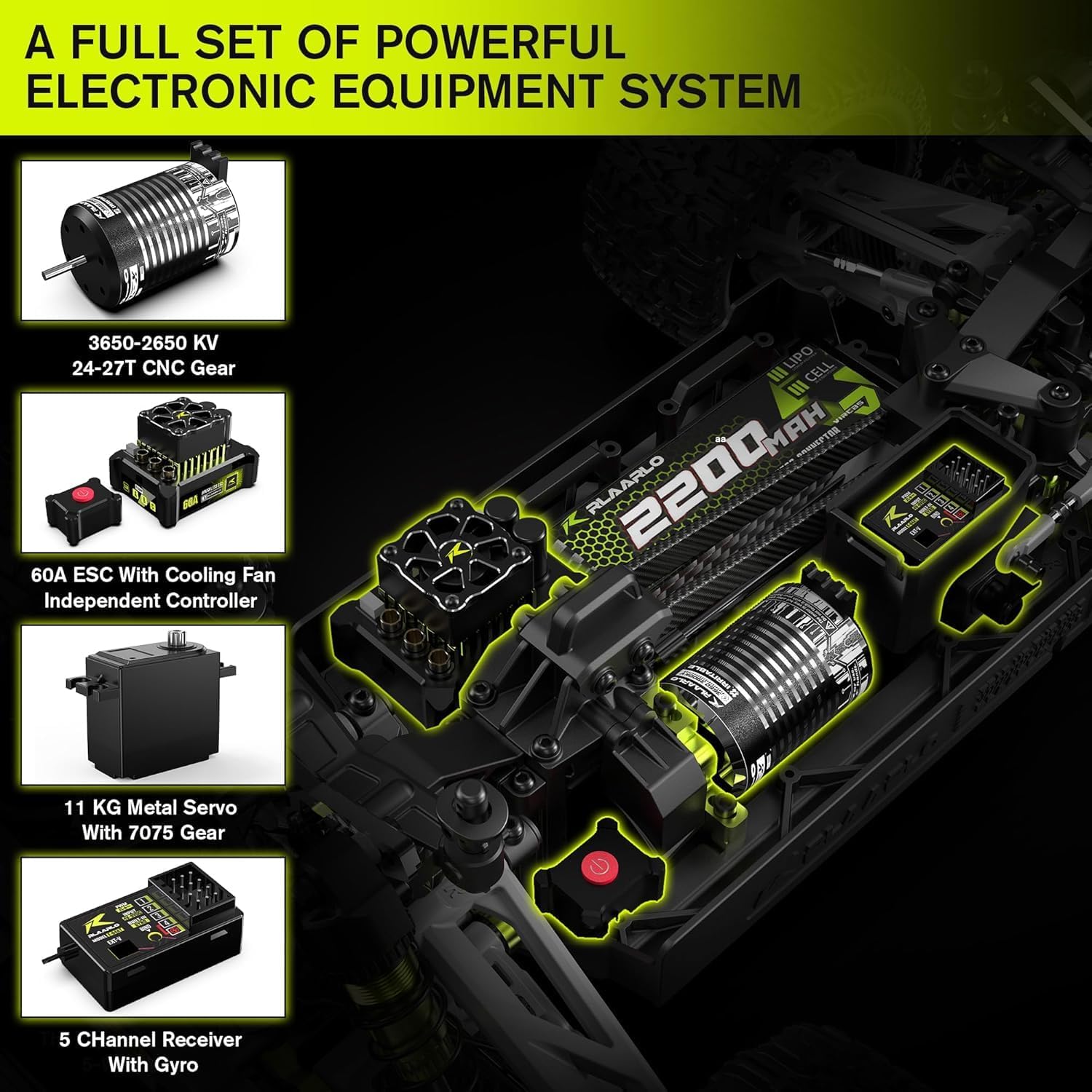

Figure 2.2: A full set of powerful electronic equipment system.

Figure 2.3: Central transmission system with medium differential structure.

Figure 2.4: Adjustable oil-filled shocks and head-up wheels for stability.

3. Pakkens indhold

Bekræft, at alle nedenstående varer er inkluderet i din pakke:

Figure 3.1: Included accessories and tools.

• RIAARIO 1/10 Brushless RC Monster Truck (RZ001B-C)
• 2.4GHz 5-channel Transmitter
• 12V Battery (included, quantity 1)
• Cross socket (1)
• Motor gear (1)
• H1.5 wrench (1)
• H2.0 wrench (1)
• H2.5 wrench (1)
• Lynlåsbånd (2)
• Dobbeltsidet tape (1)
• EVA pads (2)
• Maskinskruer (1)
• Flat head screws (6)
• Skruer med panorer (4)
• Product Instruction Manual (this document)

4. Specifikationer

Detailed specifications for the RIAARIO RZ001B-C RC Monster Truck:

Figur 4.1: Detaljerede produktspecifikationer.

Figur 4.2: Produktdimensioner.

5. Indledende opsætning

5.1. Batteriinstallation og opladning

The RC truck requires one 12V battery (included). The remote control requires 4 AA batteries (not included).

1. Oplad køretøjets batteri: Use the provided USB cable charger. Connect the USB cable to a 5V 1A adapter (not included). The solid red light indicates charging. A blinking green light after 3-4 hours indicates a defective battery.
2. Installer køretøjets batteri: Open the battery compartment on the RC truck. Insert the fully charged battery, ensuring correct polarity. Secure the battery compartment cover.
3. Installer fjernbetjeningsbatterier: Open the battery compartment on the back of the remote control. Insert 4 AA batteries, observing correct polarity. Close the cover.

Figure 5.1: Battery compartment and compatible battery sizes.

5.2. Transmitter Overview

Gør dig bekendt med fjernbetjeningens funktioner:

Figur 5.2: Fjernbetjeningens layout.

Figure 5.3: Remote control functions and descriptions.

• Indbygget antenne: Increases signal strength.
• Retur Voltage: Screen displays voltage data.
• Throttle Trim+: Justerer gashåndtagets neutrale punkt.
• Rat: Controls vehicle turning (right/left).
• Gashåndtag: Controls vehicle movement (forward/backward) and brake.
• Channel 4/SWB Channel: Press to activate/deactivate Channel 4 function.
• Channel 3/SWB Channel: Press to activate/deactivate Channel 3 function.
• Channel 5, Channel 6: Additional channel controls.
• Styring Dual Rate: Adjusts the size of the throttle direction.
• Gasbegrænser: Limits throttle output to 0-25-70-100%.
• Steering Trim-: Adjusts the steering center point.
• Hybrid kontrol: Controls hybrid mode.
• Kanal omvendt: Controls channel reverse.

5.3. Parring af fjernbetjeningen

To pair the remote control with the RC truck:

1. Ensure the vehicle battery is fully charged and installed.
2. Tænd den fjernstyrede lastbil.
3. Tænd for fjernbetjeningen.
4. Within 3 seconds of turning on the remote, press the bind button (refer to remote control diagram for location).
5. The indicator light on the receiver should become solid, indicating successful pairing.
6. If pairing fails, repeat the process 2-3 times. If issues persist, press the switch on the receiver for 3 seconds to restart it.

6. Betjeningsvejledning

6.1. Grundlæggende betjening

• Frem/tilbage: Pull the throttle trigger towards you to move forward. Push it away from you to brake, then push again for reverse.
• Styretøj: Turn the steering wheel left or right to steer the vehicle.
• Gasbegrænser: For beginners, set the throttle limiter to 0-25% or 70% to control speed. Gradually increase as you gain experience.
• Gyroskop: The built-in gyroscope helps maintain stability, especially at high speeds or on uneven terrain. Ensure it is enabled for optimal control.

6.2. Køretilstande

The truck is designed to handle various situations:

Figure 6.1: Illustrates rollover, power flip, and normal operating states.

• Normal tilstand: Standard driving on various terrains.
• Rollover State: The truck can withstand rollovers due to its durable design.
• Power Flip: The truck may be capable of self-righting or performing flips with proper technique.

7. Vedligeholdelse

Regular maintenance ensures optimal performance and longevity of your RC truck.

7.1. Almen pleje

• Rensning: After each use, especially in dirty or wet conditions, clean the truck to remove dirt, dust, and debris. Use a soft brush or compressed air. Avoid using water directly on electronic components.
• Inspektion: Regularly inspect all screws, nuts, and moving parts for looseness or damage. Tighten as necessary.
• Smøring: Periodically lubricate moving parts such as gears and bearings with appropriate RC-grade lubricant.
• Opbevaring: Store the RC truck in a dry, cool place away from direct sunlight. Remove batteries from both the truck and remote control during long-term storage.

7.2. Component Access and Disassembly

The truck is designed for easy access to key components for maintenance and repair.

Figure 7.1: Quick disassembly methods for differential and motor module.

• Differential Access: The differential can be quickly disassembled for cleaning or replacement by removing the indicated screws.
• Motor Module: The motor module is designed for quick assembly and disassembly, facilitating maintenance of the motor and associated gears.
• Gear: Inspect the chromium steel spiral gears and other drivetrain components for wear. Replace worn parts as needed.
• Shock Towers: The 4mm shock towers provide robust support. Inspect them for damage after impacts.

Figure 7.2: Chromium Steel Spiral Gears.

Figure 7.3: Front and rear 4mm shock towers.

8. Fejlfinding

Refer to the tables below for common problems and their solutions.

Figure 8.1: Troubleshooting guide for steering and battery issues.

Figure 8.2: Troubleshooting guide for vehicle movement and runtime issues.

Figure 8.3: Troubleshooting guide for sluggish performance and control issues.

If you encounter problems not listed here, or if the suggested solutions do not resolve the issue, please contact RIAARIO customer support.

9. Garanti og support

For warranty information, technical support, or replacement parts, please contact RIAARIO customer service. Details can typically be found on the product packaging or the official RIAARIO webwebsted.

Kontaktoplysninger: Refer to your purchase documentation or the RIAARIO brand store on Amazon for the most current support contact details. The seller for this product is "RIAARIO STORE".
