Zephyr Siena ZSI-E36D vægmonteret emhætte brugsanvisning

1. Introduktion

This manual provides essential instructions for the installation, operation, and maintenance of your Zephyr Siena ZSI-E36D Wall Mounted Range Hood. Please read this manual thoroughly before installation and use to ensure proper function and safety. Retain this manual for future reference.

Figur 1: Forside view of the Zephyr Siena ZSI-E36D Wall Mounted Range Hood.

2. Sikkerhedsoplysninger

ADVARSEL: For at reducere risikoen for brand, elektrisk stød eller personskade skal følgende overholdes:

• Installationsarbejde og elektriske ledninger skal udføres af kvalificeret(e) person(er) i overensstemmelse med alle gældende regler og standarder, inklusive brandklassificeret konstruktion.
• Tilstrækkelig luft er nødvendig til korrekt forbrænding og udstødning af gasser gennem aftrækket (skorstenen) på brændstofbrændende udstyr for at forhindre tilbagetræk. Følg varmeudstyrsproducentens retningslinjer og sikkerhedsstandarder, såsom dem, der er offentliggjort af National Fire Protection Association (NFPA), og American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) og de lokale myndigheder.
• Når du skærer eller borer i væg eller loft, må du ikke beskadige elektriske ledninger og andre skjulte værktøjer.
• Duct fans must always be vented to the outdoors.

Forslag 65 Advarsel:

Dette produkt kan udsætte dig for kemikalier, herunder bly, som er kendt af staten Californien for at forårsage kræft og fødselsdefekter eller anden reproduktionsskade. For mere information gå til www.P65Warnings.ca.gov.

3. Opsætning og installation

The Zephyr Siena ZSI-E36D is designed for wall-mounted installation. Proper installation is crucial for optimal performance and safety. Refer to the separate detailed installation guide provided with your product for specific instructions, diagrams, and required tools.

3.1 Kontrol før installation

• Verify that the mounting surface is structurally sound and capable of supporting the hood's weight (approximately 55 pounds).
• Ensure adequate electrical supply (120 Volts) is available at the installation location.
• Confirm the chosen ventilation type (ducted or recirculating) and prepare the necessary ductwork or recirculating kit.

3.2 Montering

The range hood is designed to be mounted directly to the wall above your cooking surface. Precise measurements and secure fastening are essential. Consult the installation guide for recommended mounting heights and stud placement.

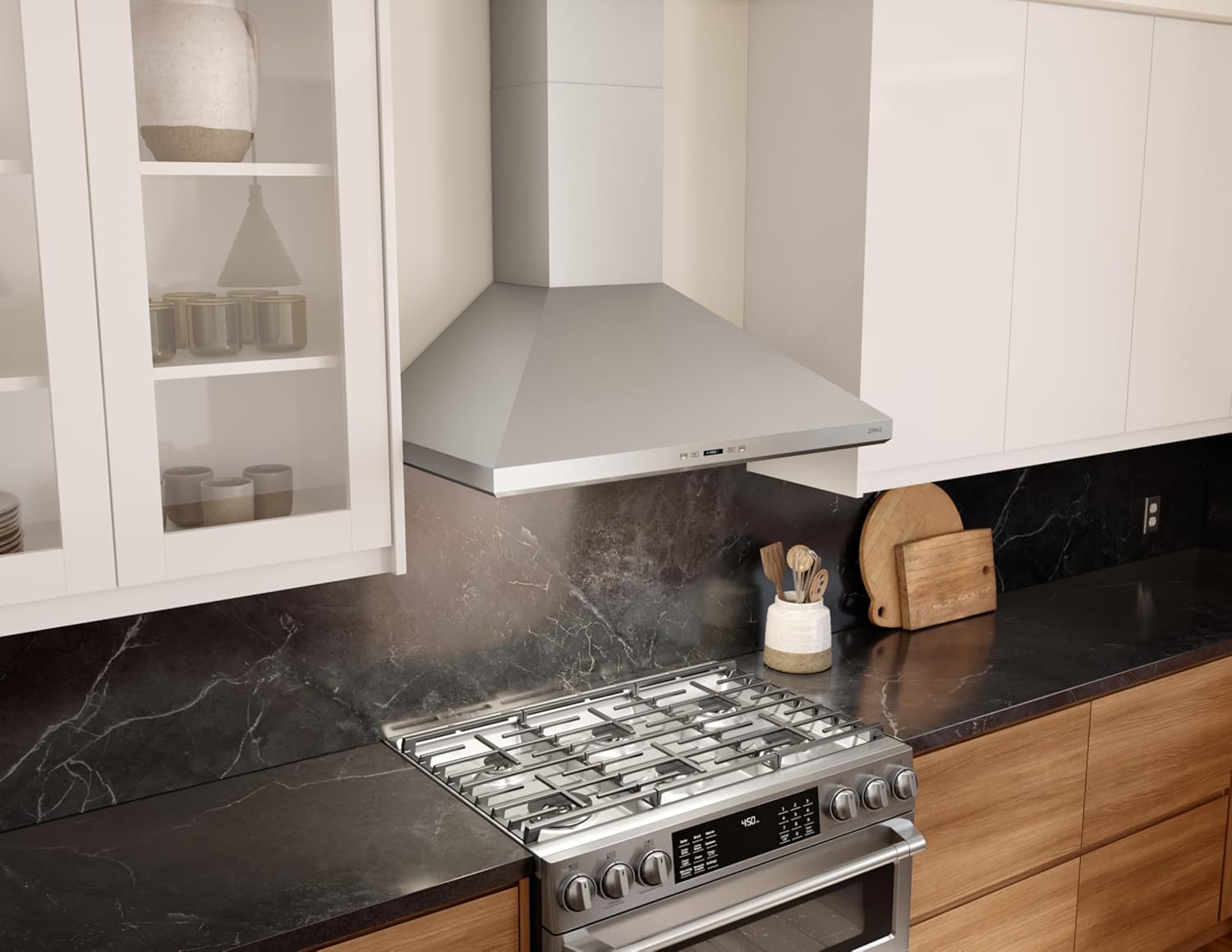

Figure 2: Zephyr Siena ZSI-E36D Range Hood installed in a kitchen setting, showing its wall-mounted design.

3.3 Kanaler

This model supports both ducted and ductless/recirculating ventilation. For ducted installations, ensure the ductwork is properly sealed and vented to the outdoors. For recirculating installations, a separate recirculating kit (sold separately) is required to filter and return air to the kitchen.

4. Betjeningsvejledning

The Zephyr Siena ZSI-E36D features intuitive ICON Touch® LCD controls for easy operation of its various functions.

4.1 Power and Fan Speed

• Tænd/sluk: Press the power button on the control panel to turn the hood on or off.
• Justering af blæserhastighed: Use the '+' and '-' buttons to cycle through the available fan speeds. The hood offers a maximum airflow capacity of 650 Cubic Feet Per Minute (CFM).
• Airflow Control Technology (ACT™): This feature allows for precise control over the maximum CFM output, which can be adjusted during installation to comply with local building codes. Refer to the installation guide for ACT™ configuration.

4.2 Belysning

The hood is equipped with dual-level LumiLight LED lighting featuring TruHue™ technology, allowing you to adjust the light intensity to match your kitchen's primary lighting.

• Lys til/fra: Press the light button to turn the LED lights on or off.
• Justering af lysstyrke: Press and hold the light button to cycle through different brightness levels.

Figure 3: The range hood with its LumiLight LED lighting activated, providing illumination over the cooking surface.

4.3 Optional ADA-Compliant Remote Control

An optional ADA-compliant remote control is available for enhanced accessibility. Refer to the remote control's separate instructions for pairing and operation.

5. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer din emhættes levetid og optimale ydeevne.

5.1 Baffle Filter Cleaning

The Zephyr Siena ZSI-E36D uses baffle filters to capture grease and cooking odors. These filters should be cleaned regularly, typically every 3-6 weeks depending on cooking frequency.

• Fjernelse: Carefully slide the baffle filters out of their slots.
• Rensning: Wash the filters in hot, soapy water or place them in a dishwasher. Ensure they are completely dry before reinstallation.
• Geninstallation: Slide the clean, dry baffle filters back into their original positions.

5.2 Udvendig rengøring

The hood's exterior is made of stainless steel. To maintain its finish:

• Wipe surfaces regularly with a clean cloth dampafsluttes med varmt vand og et mildt rengøringsmiddel.
• For stubborn stains, use a non-abrasive stainless steel cleaner, following the product's instructions.
• Tør altid i træets retning for at undgå ridser.
• Avoid using abrasive cleaners, steel wool, or harsh chemicals, as these can damage the finish.

Figur 4: Vinklet view of the Zephyr Siena ZSI-E36D, showcasing its stainless steel construction which requires specific cleaning methods.

6. Fejlfinding

If you encounter issues with your range hood, refer to the following common troubleshooting steps. For more complex problems, contact Zephyr customer support.

• Emhætten tænder ikke: Kontroller, om netledningen er tilsluttet korrekt, og om afbryderen er udløst.
• Fan is not operating or is weak: Ensure the fan speed is set correctly. Check if the baffle filters are clean and not obstructed. Verify that the ductwork is clear of blockages.
• Lysene virker ikke: Check if the light button has been pressed. If individual lights are out, they may need replacement (consult the service manual or Zephyr support).
• Overdreven støj: Ensure the hood is securely mounted. Check for loose parts or obstructions in the fan or ductwork.

7. Specifikationer

Detailed technical specifications for the Zephyr Siena ZSI-E36D Wall Mounted Range Hood.

8. Garanti og support

For warranty information, please refer to the warranty card included with your product or visit the official Zephyr website. For technical assistance, parts, or service, please contact Zephyr customer support directly.

Zephyr Customer Support:

• Refer to your product documentation for contact details.
• Visit the official Zephyr webwebsted for supportressourcer og kontaktoplysninger.
