Imation opladningsdock til Logitech MX Master 3S / MX Anywhere 3S brugermanual

1. Introduktion

Thank you for choosing the Imation Magnetic Charging Dock. This dock is designed to provide effortless and convenient magnetic charging for your compatible Logitech MX series mice, including the MX Master 3S, MX Master 3S for MAC, MX Anywhere 3S, and MX Anywhere 3S for MAC. Its modern design, integrated RGB lighting, and premium build quality enhance your workspace while keeping your mouse charged and ready.

The Imation Charging Dock, designed for seamless integration with your Logitech MX mouse.

2. Pakkens indhold

Kontroller venligst, at alle varer er til stede i din pakke:

• Imation Charging Dock
• Magnetic Unit (USB-C adapter)
• Hurtig startvejledning

Note: A USB-C charging cable is not included and must be supplied by the user, preferably the one packed with your mouse.

Illustration of the Imation Charging Dock package contents.

3. Produktet er slutview

Familiarize yourself with the different parts of your Imation Charging Dock:

Labeled diagram of the Imation Charging Dock components.

• LED lys: Provides visual feedback on charging status and aesthetic lighting.
• Mode knap: Used to cycle through different LED lighting modes.
• Mouse Docking Area: The designated area where the mouse rests for charging.
• Magnetic Charging Area: The specific point where the magnetic unit connects for power transfer.
• Kabelhul: For routing the USB-C charging cable neatly.
• Cable Connect Port (USB-C): Main power input for the charging dock.
• Mouse Receiver Connect Port (USB-A): A pass-through port for connecting your mouse's USB receiver or other low-power devices.

4. Opsætning

4.1 Indledende opsætning

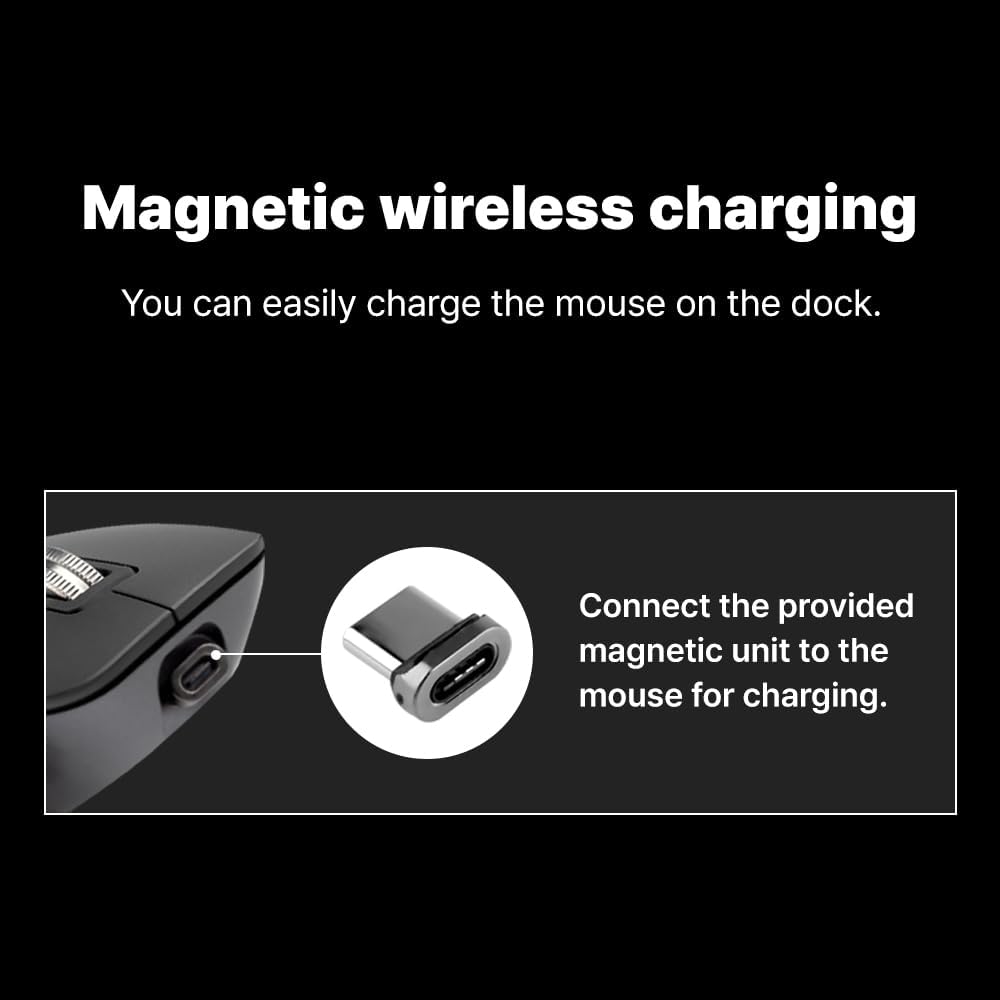

1. Connect the Magnetic Unit: Insert the provided magnetic USB-C unit into the USB-C charging port of your Logitech MX mouse. This unit enables the magnetic charging feature with the dock.


Insert the magnetic unit into your mouse's USB-C port.

2. Connect Power to the Dock: Plug a USB-C cable (not included) into the Cable Connect Port (USB-C) on the back of the charging dock and connect the other end to a suitable power source (e.g., computer USB port, wall adapter).
3. Place Your Mouse on the Dock: Gently place your Logitech MX mouse, with the magnetic unit inserted, onto the mouse docking area of the charging dock. The magnetic connection will align the mouse for charging.

Official product video demonstrating the unboxing, setup, and magnetic charging functionality of the Imation Charging Dock.

5. Betjeningsvejledning

5.1 Charging Your Mouse

Once the magnetic unit is installed in your mouse and the dock is powered, simply place your mouse onto the dock. The magnetic connection will secure it, and charging will begin automatically. The LED light on the dock will illuminate to indicate charging status.

5.2 LED-tilstande

The Imation Charging Dock features 4 distinct LED lighting modes to enhance your desk aesthetic and provide visual feedback. To cycle through these modes, press the Mode Button located on the front of the charging dock.

Visual representation of the four LED lighting modes: Breathing, Dimming, Night, and Off.

• Åndedrætstilstand: The light gently pulses on and off.
• Dæmpningstilstand: The light remains on at a reduced brightness.
• Nattilstand: A very subtle light for minimal disturbance.
• Fra-tilstand: The LED light is turned off completely.

5.3 USB Pass-Through

The USB-A port on the underside of the dock can be used to connect your mouse's USB receiver, or other low-power USB devices, helping to keep your desk tidy and organized.

6. Kompatibilitet

The Imation Charging Dock is specifically designed for compatibility with the following Logitech MX series mice:

• Logitech MX Master 3S
• Logitech MX Master 3S for MAC
• Logitech MX Anywhere 3S
• Logitech MX Anywhere 3S for MAC

Compatible Logitech MX mouse models.

7. Vedligeholdelse

7.1 Rengøring

To clean your charging dock, gently wipe it with a soft, dry cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these may damage the surface or internal components.

7.2 Kabelstyring

The meticulous design of the charging dock includes a cable hole at the base, allowing you to neatly route your USB-C charging cable and hide the mouse's USB receiver. This helps maintain a clean and organized desk setup.

The dock's design allows for neat cable and receiver management.

8. Fejlfinding

• Musen oplader ikke:
  • Ensure the magnetic unit is securely inserted into your mouse's USB-C port.
  • Verify that the charging dock is properly connected to a power source via its USB-C port.
  • Ensure the mouse is correctly aligned on the magnetic charging area of the dock.
• LED modes not saving:
  • The LED modes do not have a separate setting-saving feature. They reset to default upon reconnecting after the product's power has been completely shut off.
• Charging mouse when PC is off:
  • To charge your MX mouse even when your PC is off, please set up standby power mode in your PC BIOS settings.

9. Tekniske specifikationer

10. Garanti og support

For warranty information and customer support, please refer to the contact details provided on the product packaging or visit the official Imation webwebsted. Gem din købskvittering som købsbevis i tilfælde af garantikrav.

11. Legal Disclaimers

1. The mouse shown alongside this product is for illustrative purposes to aid in understanding the product and is not included in the basic package contents.
2. Only Logitech MX series mouse are compatible. (Please check the compatible mouse models.)
3. To charge your MX mouse even when your PC is off, please set up standby power mode in your PC BIOS.
4. LED modes do not have a separate setting-saving feature, so they reset to default upon reconnecting after the product's power has been completely shut off.
5. When you charge your mouse properly with the Charging Dock, you must use the magnetic unit provided with the product.
6. This product does not include a USB cable. Please use your USB-C cable packed with your mouse.

Imation and the Imation logo are trademarks of O-Jin Corp. All other logos and trademarks are the property of their respective owners. Imation will not be liable for any lost data or other indirect, incidental or consequential damages.

Important legal disclaimers regarding product use and compatibility.
