GT POWER AC Adapter Model 102 User Manual

1. Introduktion

This manual provides essential information for the safe and effective use of your GT POWER AC Adapter, Model 102. This adapter is specifically designed to provide power to the Cadence Blood Pressure Monitor TMB-2092-G. It features built-in protection mechanisms to ensure reliable operation and device safety.

2. Sikkerhedsoplysninger

ADVARSEL: For at mindske risikoen for elektrisk stød, brand eller personskade skal du altid følge disse grundlæggende sikkerhedsforanstaltninger.

• This adapter is designed for KUN INDENDØRS BRUG. Do not expose to rain, moisture, or extreme temperatures.
• Ensure the adapter is connected to a power outlet with the correct voltage as specified on the adapter label.
• Do not disassemble, modify, or attempt to repair the adapter. Refer all servicing to qualified personnel.
• Keep the adapter and its cable away from heat sources, sharp edges, and excessive pressure.
• Unplug the adapter from the power outlet when not in use for extended periods or during electrical storms.
• Do not operate the adapter with a damaged cord or plug.

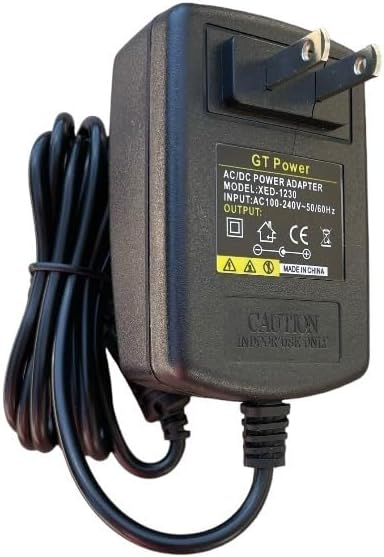

Figur 1: Forside view of the GT POWER AC Adapter. The label indicates "GT Power AC/DC Power Adapter", "MODEL: XED-1230", "INPUT: AC100-240V~50/60Hz", and "OUTPUT: DC". A "CAUTION INDOOR USE ONLY" warning is visible.

3. Opsætning

1. Undersøg adapteren: Before first use, visually inspect the AC adapter and its cable for any signs of damage. Do not use if damaged.
2. Opret forbindelse til enhed: Locate the power input port on your Cadence Blood Pressure Monitor TMB-2092-G. Carefully insert the DC output plug of the GT POWER AC Adapter into this port. Ensure a secure connection.
3. Tilslut til stikkontakten: Plug the two-prong AC input plug of the adapter into a standard wall power outlet (AC 100-240V, 50/60Hz).
4. Bekræft strøm: Once connected, your blood pressure monitor should receive power. Refer to your blood pressure monitor's manual for specific power indicators.

Figure 2: Close-up of the DC output connector, which plugs into the Cadence Blood Pressure Monitor.

4. Betjeningsvejledning

Once properly connected, the GT POWER AC Adapter will continuously supply power to your Cadence Blood Pressure Monitor TMB-2092-G. The adapter is designed for continuous operation within its specified limits.

This adapter incorporates several protection features:

• OVP (Over Voltage beskyttelse): Safeguards your device from damage due to excessive input voltage.
• OCP (Over Current Protection): Prevents damage from excessive output current.
• SCP (Kortslutningsbeskyttelse): Automatically shuts down power in case of a short circuit, protecting both the adapter and the connected device.

Figur 3: Side view of the adapter, illustrating the compact design and the attached power cord.

5. Vedligeholdelse

• Rensning: Disconnect the adapter from the power outlet and the device before cleaning. Use a soft, dry cloth to wipe the adapter. Do not use liquid cleaners or aerosols.
• Opbevaring: Når adapteren ikke er i brug, skal den opbevares køligt og tørt, væk fra direkte sollys og fugt. Undgå at vikle kablet stramt op for at forhindre skader.
• Kabelpleje: Do not pull on the cable to disconnect the adapter. Always grasp the plug firmly. Avoid placing heavy objects on the cable or bending it sharply.

Figure 4: The 48-inch heavy-duty power cable, designed for durability.

6. Fejlfinding

If you experience issues with your GT POWER AC Adapter, refer to the following common solutions:

• Ingen strøm til enheden:
  • Ensure the adapter is securely plugged into both the wall outlet and the blood pressure monitor.
  • Kontroller om stikkontakten fungerer ved at tilslutte en anden enhed.
  • Inspect the adapter cable and plugs for any visible damage. If damaged, discontinue use.
• Adapteren føles varm:
  • Det er normalt, at adapteren føles en smule varm under brug.
  • If the adapter becomes excessively hot, unplug it immediately and discontinue use. This could indicate an internal fault or an overloaded circuit.
• Enhedsfejl:
  • If the blood pressure monitor is not functioning correctly even with power, consult the monitor's own instruction manual or contact its manufacturer for support.

7. Specifikationer

8. Garanti og support

Your GT POWER AC Adapter Model 102 comes with the following:

• 30 dages pengene-tilbage-garanti: Hvis du ikke er tilfreds med dit køb, kan du returnere det inden for 30 dage for at få pengene tilbage.
• Et års garanti: This product is covered by a one-year warranty against manufacturing defects from the date of purchase.

For technical support or warranty claims, please contact your retailer or the manufacturer, GTPOWER, directly. Please have your purchase information and product model number (102) available.
