1. Introduktion
This user manual provides detailed instructions for the safe and efficient operation of the WANPTEK DPS305U Switching DC Power Supply. This device is a high-precision, four-digit LED display power supply offering adjustable voltage from 0-30V and current from 0-5A. It is designed for various applications including laboratory research, electronic production lines, communication equipment maintenance, and product development.
Læs venligst denne manual grundigt, inden du bruger enheden, for at sikre korrekt brug og for at forhindre skader eller personskade.
2. Sikkerhedsforanstaltninger
- Tilslut altid strømforsyningen til en jordet stikkontakt.
- Brug ikke enheden i vådt eller damp forhold.
- Ensure proper ventilation; do not block the ventilation openings.
- Åbn ikke c'enasing af strømforsyningen. Der er ingen dele indeni, som brugeren kan servicere. Overlad al service til kvalificeret personale.
- Bekræft input voltage matches the power supply's requirements before connecting to the mains.
- Disconnect power before making or changing connections to the output terminals.
- Avoid short-circuiting the output terminals for extended periods, although the device has protection features.
3. Produktet er slutview
The WANPTEK DPS305U features a compact design with intuitive controls and a clear LED display for precise readings.
3.1 Frontpanelets layout
Figur 3.1: Forside view of the WANPTEK DPS305U DC Power Supply, showing the LED display, control knobs, USB ports, and output terminals.
Frontpanelet indeholder:
- LED display: Viser realtidsvolumentage (V), current (A), and power (W) readings with four digits of precision.
- Voltage Adjustment Knobs (V-COARSE, V-FINE): Bruges til at indstille udgangsvolumentage. V-COARSE for large adjustments, V-FINE for precise tuning.
- Current Adjustment Knobs (A-COARSE, A-FINE): Used to set the output current limit. A-COARSE for large adjustments, A-FINE for precise tuning.
- USB-A and USB-C Ports: For charging compatible devices or powering low-current USB devices.
- OCP (Over Current Protection) Indicator: Lights up when over-current protection is active.
- Tænd/sluk-knap (tænd/sluk): For at tænde eller slukke for enheden.
- Output Terminals (+, -, Ground): For connecting loads using banana plugs or bare wires.
Figur 3.2: Detaljeret view of the digital display, indicating voltage, current, and power output, along with status indicators.
The display provides clear, real-time feedback on the power supply's output, essential for precise control during operation.
3.2 Bagpanellayout
Figur 3.3: Bagside view of the power supply, showing the power input socket and ventilation fan.
The rear panel typically includes the AC power input socket and a cooling fan for thermal management.
3.3 Pakkens indhold

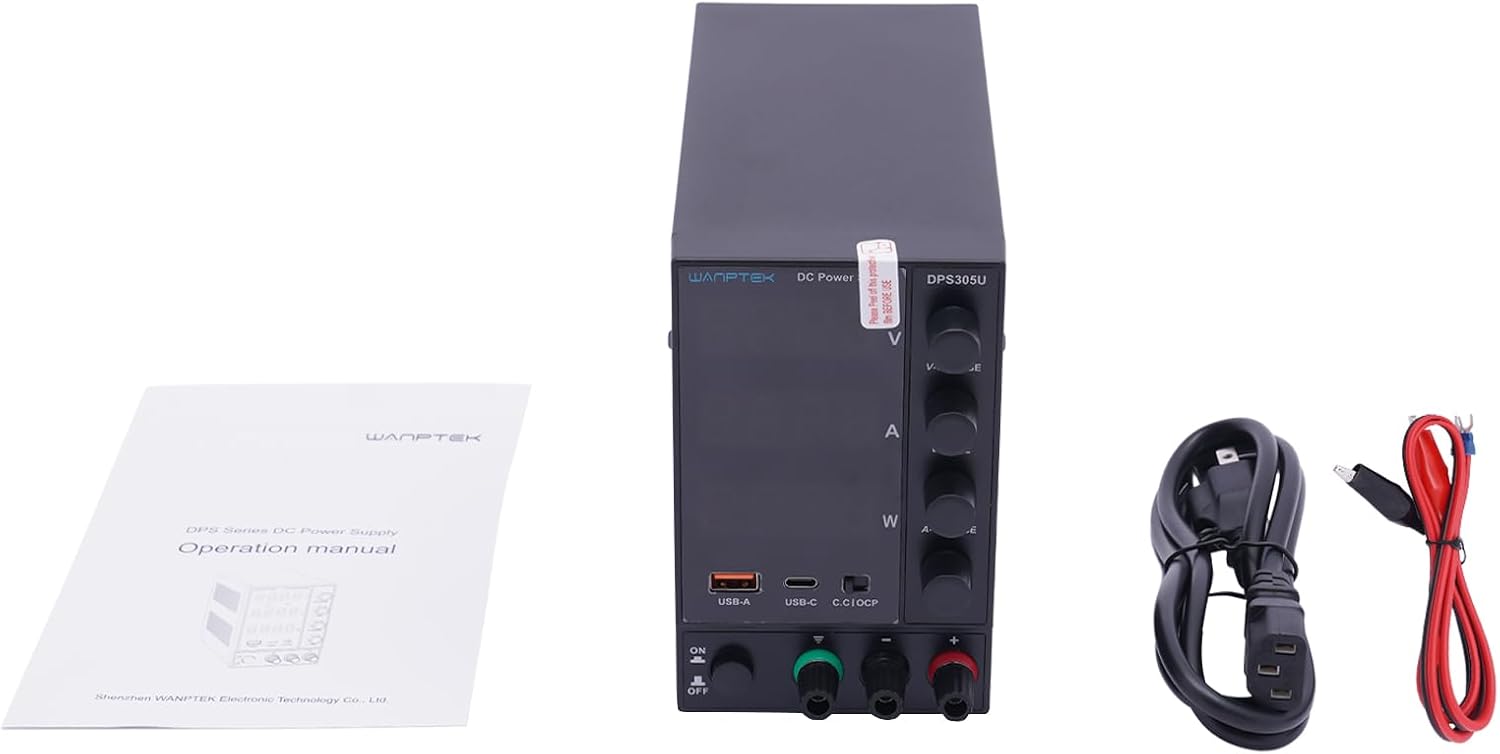

Figure 3.4: The standard package contents for the DPS305U, including the power supply unit, user manual, and necessary power and output cables.
Ved udpakning skal du kontrollere, at alle dele er til stede:
- WANPTEK DPS305U DC Power Supply Unit
- AC strømledning
- Output Test Leads (Banana Plug to Alligator Clip)
- Brugermanual
4. Opsætning
- Placering: Place the power supply on a stable, level surface with adequate ventilation space around it. Ensure no objects block the air vents on the sides and rear.
- Strømtilslutning: Connect the supplied AC power cord to the power input socket on the rear panel of the power supply, then plug the other end into a grounded AC outlet.
- Indledende kontrol: Before connecting any load, ensure the power supply is off. Turn the voltage and current adjustment knobs to their minimum settings (fully counter-clockwise).
5. Betjeningsvejledning
5.1 Indstilling Voltage and Current Limits (Constant Voltage / Constant Current Mode)
- Tænd: Turn on the power supply using the ON/OFF switch. The LED display will illuminate.
- Forindstilling af lydstyrketage: Without a load connected, adjust the V-COARSE and V-FINE knobs to set the desired output voltage. Bemærk voltage-aflæsning på displayet.
- Pre-setting Current Limit: To set the current limit, temporarily short the positive and negative output terminals using a test lead (or a low-resistance load). The display will show the current. Adjust the A-COARSE and A-FINE knobs to set the desired maximum current. Remove the short circuit after setting.
- Tilslutningsbelastning: Connect your device or circuit to the output terminals. Ensure correct polarity (+ to +, - to -).
- Operation: The power supply will operate in Constant Voltage (CV) mode if the load current is below the set limit, or in Constant Current (CC) mode if the load attempts to draw more current than the set limit. The corresponding CV or CC indicator on the display will light up.

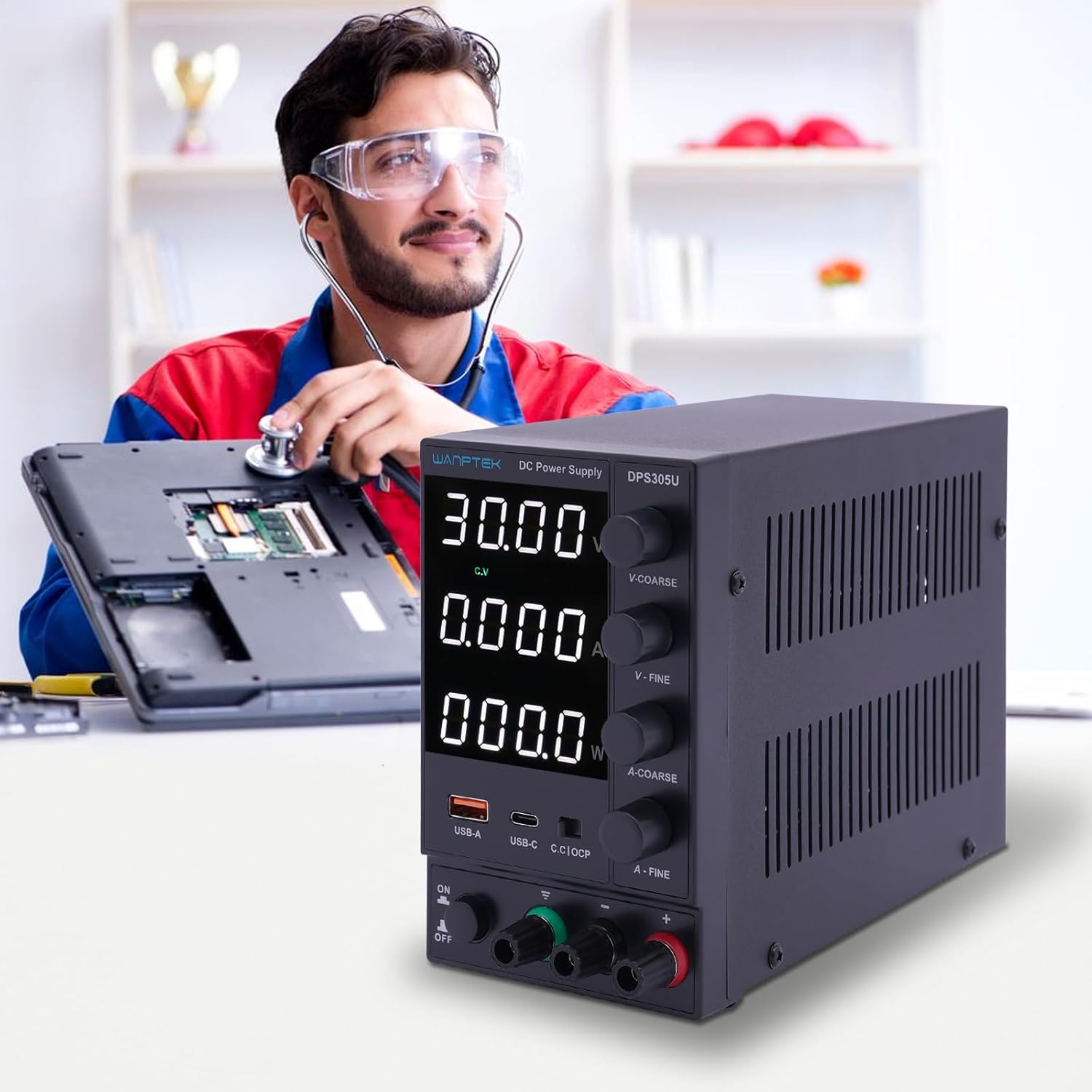

Figure 5.1: The DPS305U in use, demonstrating its application in electronic testing and repair environments.
5.2 Using USB-A and USB-C Output Ports
The integrated USB-A and USB-C ports provide a convenient 5V output for charging or powering compatible USB devices. These ports operate independently of the main adjustable DC output.
- Sørg for, at strømforsyningen er tændt.
- Connect your USB device to either the USB-A or USB-C port using an appropriate cable.
- The device will begin charging or operating.

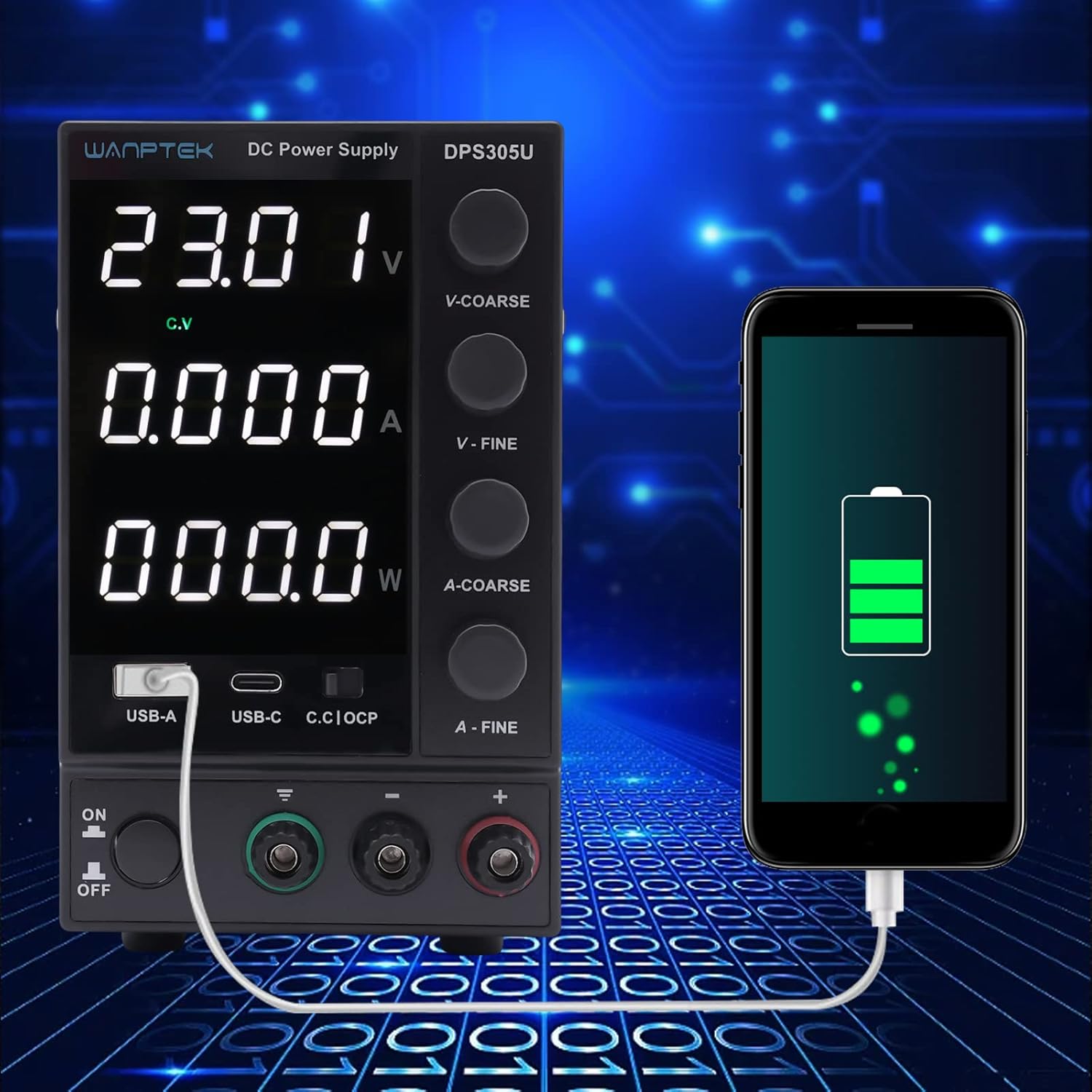

Figure 5.2: Demonstration of the power supply's USB-A port being used to charge a smartphone, highlighting its versatility.
5.3 Overstrømsbeskyttelse (OCP)
The OCP function protects the connected load from excessive current. When the output current exceeds the preset limit, the OCP indicator will light up, and the power supply will limit the current to the set value. This prevents damage to both the power supply and the connected device.
6. Vedligeholdelse
- Rensning: Afbryd strømforsyningen fra lysnettet før rengøring. Brug en blød, tør klud til at tørre ydersiden af. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Ventilation: Kontrollér regelmæssigt, at ventilationsåbningerne er fri for støv og snavs for at sikre korrekt luftgennemstrømning og forhindre overophedning.
- Opbevaring: Når strømforsyningen ikke er i brug i længere perioder, skal den opbevares køligt og tørt, væk fra direkte sollys og ekstreme temperaturer.
7. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen strøm/skærm slukket | Power cord not connected; Power switch off; Blown fuse. | Check power cord connection; Turn on power switch; Check and replace fuse (if accessible and safe to do so, otherwise contact support). |
| Ingen output voltage/aktuel | Udgangsterminaler ikke tilsluttet; Voltage/current knobs set to zero; OCP activated. | Ensure proper connection to load; Adjust voltage/current knobs; Check for short circuit in load, remove it, and reset OCP if necessary. |
| Udgang voltage/current fluctuates | Unstable input power; Loose connections; Faulty load. | Ensure stable AC input; Check all connections; Test with a different load. |
| Enheden overophedes | Blokeret ventilation; For stor belastning. | Ensure vents are clear; Reduce load or operate within specified limits. |
8. Specifikationer
| Parameter | Værdi |
|---|---|
| Model | DPS305U |
| Input bindtage | AC 110V/220V ±10% (Switchable) |
| Udgang Voltage | 0-30V DC |
| Udgangsstrøm | 0-5A DC |
| Vise | 4-digit LED (Voltage, Strøm, Effekt) |
| Load Regulation (Voltage) | ≤0.5% + 10mV |
| Load Regulation (Current) | ≤0.5 % + 3mA |
| Ripple & Noise (Voltage) | ≤5mVrms |
| Ripple & Noise (Current) | ≤3mArms |
| Beskyttelse | Overload, Over-temperature, Over-voltage, Overstrøm |
| USB udgang | USB-A: 5V/2A, USB-C: 5V/3A |
| Dimensioner (L×B×H) | Approx. 19cm × 9cm × 14.5cm (7.48in × 3.54in × 5.7in) |
| Vægt | Ca. 1.5 kg |
Figure 8.1: Physical dimensions of the WANPTEK DPS305U power supply.
9. Garanti og support
This product is covered by a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact the seller directly.
For technical support, troubleshooting assistance, or inquiries regarding parts and service, please contact your point of purchase or the manufacturer's customer service department. Please have your model number (DPS305U) and serial number (if applicable) ready when contacting support.
