1. Introduktion
This manual provides detailed instructions for the installation, operation, and maintenance of your TURBRO Greenland Series 9,000 BTU Ductless Mini Split Inverter AC with Heat Pump, model Greenland-9K230. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.
Billede 1.1: Overview of the TURBRO Greenland Series Mini Split AC system, including the indoor unit, outdoor unit, remote control, and a representation of the smartphone application for control.
2. Sikkerhedsoplysninger
Always adhere to basic safety precautions to reduce the risk of fire, electric shock, or injury. This appliance uses refrigerant R454B, which requires specific handling procedures. Installation and servicing should only be performed by qualified personnel.
- Elektrisk sikkerhed: Ensure the unit is connected to a dedicated 230V, 20 amp circuit with an appropriate outdoor disconnect switch, as per local electrical codes.
- Kølemiddelhåndtering: The system contains R454B refrigerant. Only certified technicians should handle refrigerant lines and charging. Improper handling can lead to leaks or system damage.
- Professionel installation: While a step-by-step guide is provided, professional installation is recommended to ensure optimal performance and compliance with safety standards.
- Forsendelse Bemærk: The complete system may arrive in two separate boxes, potentially at different times. Verify all packages upon delivery before scheduling installation.
3. Produktet er slutview
3.1 Inkluderede komponenter
The TURBRO Greenland Mini Split AC system is shipped in two boxes. Please ensure all components are present before proceeding with installation.
Image 3.1: Detailed breakdown of components included in the two shipping boxes. Note that the 9,000 BTU model does not include a guide plate.
3.2 Nøglefunktioner
- Inverter Technology with Heat Pump: Provides efficient cooling and heating across a wide range of ambient temperatures, from 131°F in cooling mode to -13°F in heating mode.
- Hurtig betjening: Achieves rapid cooling in approximately 30 seconds and heating in about 60 seconds.
- Høj energieffektivitet: Features a 24 SEER2 rating, qualifying for federal tax credits and contributing to lower electricity bills.
- Wide Air Distribution: Designed for long-distance air blowing, effectively cooling or heating areas up to 450 sq. ft.
- Stille drift: Operates with a minimum noise level of 27 decibels.
- WiFi aktiveret: Allows for smart control via a dedicated smartphone application.
- Selvrensende funktion: Incorporates a 133°F high-temperature self-cleaning feature for improved air quality and maintenance.
Image 3.2: The inverter system's capability to provide cooling at high ambient temperatures (131°F) and heating at low ambient temperatures (-13°F).
Image 3.3: Summary of the unit's cooling capacity, energy efficiency, voltage, coverage area, and rapid cooling/heating times.
Image 3.4: Illustration of the energy efficiency benefits of the 23.5 SEER2 rating compared to lower SEER2 units.
Image 3.5: Visual representation of the unit's quiet operation and effective air distribution.
4. Opsætning og installation
The TURBRO Greenland Mini Split AC comes with a step-by-step installation guide and a numbered wiring diagram. However, due to the complexity of refrigerant handling and electrical connections, professional installation is strongly recommended.
4.1 Kontrol før installation
- Verify that all components from both shipping boxes have been received.
- Ensure the installation location has a dedicated 20 amp, 240V electrical circuit and an accessible outdoor disconnect switch.
- Confirm that necessary tools are available, including a vacuum pump, gauge set for evacuating the line set, a 2 7/8-inch hole saw for wall penetration, and a long 1/4-inch drill bit for pilot holes.
4.2 Installationstrin (Oversigt)
- Mount the indoor unit using the provided mounting plate. Ensure adequate clearance (more than 8 inches from the ceiling).
- Drill the necessary hole through the wall for the refrigerant lines, drain hose, and electrical cables.
- Install the outdoor unit on a stable surface or wall mount, ensuring proper drainage and ventilation.
- Connect the refrigerant lines between the indoor and outdoor units. This step requires specialized tools and expertise to prevent refrigerant leaks and ensure system integrity.
- Connect the electrical wiring according to the numbered wiring diagram.
- Tøm kølemiddelledningerne med en vakuumpumpe for at fjerne luft og fugt.
- Slip kølemidlet ud i systemet.
- Check for leaks and perform a test run of the unit.
Refer to the detailed installation guide included with your product for comprehensive instructions and safety warnings.
5. Betjeningsvejledning
Your TURBRO Greenland Mini Split AC offers multiple operating modes and control options for optimal comfort.
5.1 driftstilstande
- Cool tilstand: Giver køling for at sænke rumtemperaturen.
- Varmetilstand: Giver varme for at hæve rumtemperaturen.
- Affugtningstilstand: Reducerer luftfugtigheden uden væsentlig afkøling.
- Ventilatortilstand: Circulates air without heating or cooling, offering 8 fan speeds.
Image 5.1: Visual representation of the four primary operating modes.
5.2 Kontrolmuligheder
- Fjernbetjening: Use the included wireless remote control to adjust settings, change modes, and set temperatures.
- WiFi-app-kontrol: Download the TURBRO smartphone application to control the unit remotely, monitor status, and schedule operations.
- Stemmestyring: The unit is compatible with smart home systems like Google Home and Amazon Alexa, allowing for voice commands.
Billede 5.2: Overview of the various methods to control your mini split AC unit.
6. Vedligeholdelse
Regular maintenance ensures the longevity and efficient operation of your mini split AC unit.
6.1 Selvrensende funktion
The unit features a 133°F high-temperature self-cleaning function. Activate this function periodically to clean the indoor coil and reduce the buildup of dust and mold, improving air quality and efficiency. Refer to your remote control or app instructions for activating this feature.
Image 6.1: The self-cleaning process using high temperature to maintain hygiene of the indoor unit.
6.2 Generel rengøring
- Luftfiltre: Clean the air filters of the indoor unit regularly (e.g., every 2-4 weeks, depending on usage) to maintain airflow and efficiency. Wash with mild soap and water, then dry completely before reinserting.
- Indoor Unit Exterior: Tør ydersiden af indendørsenheden af med en blød, tør klud.amp klæde. Brug ikke skrappe kemikalier eller slibende rengøringsmidler.
- Udendørs enhed: Periodically clear any debris (leaves, dirt) from around the outdoor unit to ensure proper airflow to the condenser coil. For deeper cleaning of the coil, professional service is recommended.
7. Fejlfinding
This section provides solutions to common issues you might encounter. For more complex problems, contact customer support or a qualified technician.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke | No power supply; circuit breaker tripped; remote control batteries low. | Kontroller strømtilslutningen og afbryderen. Udskift batterierne i fjernbetjeningen. |
| Utilstrækkelig køling/opvarmning | Dirty air filters; blocked outdoor unit; incorrect mode/temperature setting; refrigerant leak. | Clean air filters. Clear obstructions from outdoor unit. Verify settings. Contact technician for refrigerant issues. |
| Usædvanlig støj | Løse dele; blokering af ventilator; normale driftslyde (f.eks. kølemiddelstrøm). | Check for loose components or obstructions. If noise persists or is abnormal, contact support. |
| Problemer med WiFi-forbindelse | Router issues; incorrect WiFi password; unit not in pairing mode. | Restart router. Re-enter WiFi password. Follow app instructions for pairing mode. |
8. Specifikationer
Detailed technical specifications for the TURBRO Greenland Series 9,000 BTU Ductless Mini Split Inverter AC with Heat Pump.

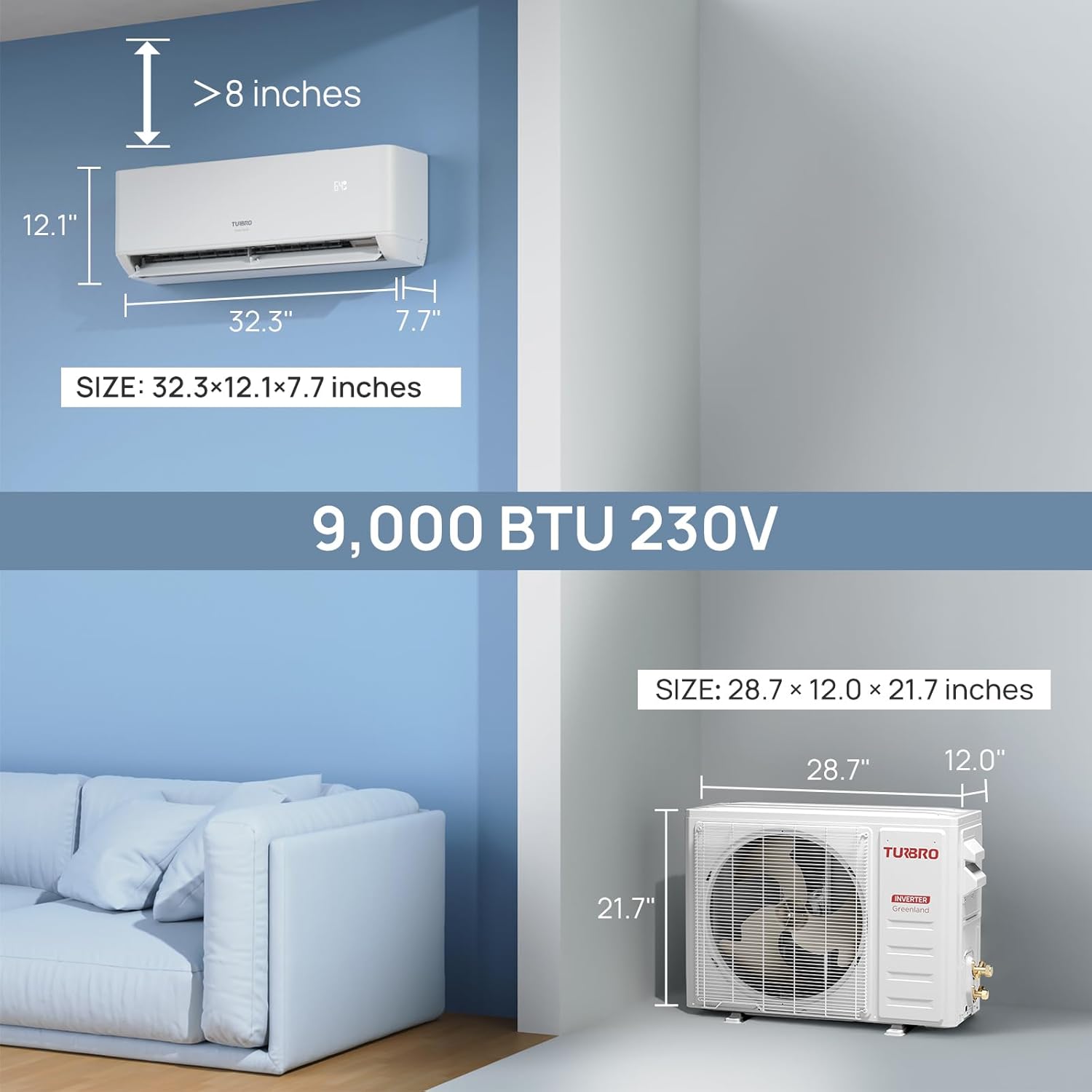

Image 8.1: Dimensions of the indoor and outdoor units for planning installation space.
| Specifikation | Værdi |
|---|---|
| Mærke | TURBRO |
| Modelnummer | Greenland-9K230 |
| Kølekraft | 9,000 britiske termiske enheder (BTU) |
| Dækningsområde | Op til 450 kvadratmeter |
| Sæsonbestemt energieffektivitetsforhold (SEER2) | 24 |
| Energy Star-certificeret | Ja |
| Voltage | 230 volt |
| Wattage | 710 watt |
| Støjniveau | 27 decibel (minimum) |
| Kølevæsketype | R454B |
| Indendørsenheds dimensioner (D x B x H) | 7.7 cm x 32.3 cm x 12.1 cm |
| Udendørsenheds dimensioner (D x B x H) | 28.8" x 34.7" x 24.8" (Note: Product dimensions listed in specifications are 28.8 x 34.7 x 24.8 inches, while image 8.1 shows 28.7 x 21.7 x 12.0 inches for outdoor unit. Please refer to the product packaging for exact dimensions.) |
| Varens vægt | 25 pounds (indoor unit) |
| Særlige funktioner | Fast Cooling, Heating & Cooling Function, WiFi Enabled, Self-Cleaning |
9. Garanti og support
For warranty information, please refer to the warranty card included with your product or visit the official TURBRO website. For technical assistance, troubleshooting beyond this manual, or to inquire about replacement parts, please contact TURBRO customer support.
Kundesupport: Refer to the contact information provided in your product packaging or on the TURBRO official webwebsted.
