maXpeedingrods 2.5" Front & 3" Rear Lift Kit Instruction Manual

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of the maXpeedingrods 2.5" Front and 3" Rear Lift Kit, Model KY32DK. This kit is specifically designed for Honda CR-V 4WD models manufactured between 2002 and 2006. Proper installation and adherence to safety guidelines are crucial for optimal performance and vehicle safety.

The lift kit is engineered to increase ground clearance and allow for larger tire fitment, enhancing the vehicle's appearance and off-road capability while maintaining factory ride quality.

2. Sikkerhedsoplysninger

Advarsel: Installation of this product requires specialized tools and automotive knowledge. Improper installation can lead to serious injury, vehicle damage, or loss of vehicle control. It is strongly recommended that installation be performed by a qualified professional technician.

• Brug altid passende personlige værnemidler (PPE), herunder sikkerhedsbriller og handsker.
• Sørg for, at køretøjet er sikkert understøttet på donkrafte eller en lift, før du påbegynder arbejdet. Stol aldrig udelukkende på en donkraft.
• Disconnect the vehicle's battery before working on electrical components.
• Follow all torque specifications provided by the vehicle manufacturer and any specific instructions included with the lift kit components.
• After installation, perform a thorough inspection of all components and ensure proper alignment.

3. Pakkens indhold

Verify that all components listed below are present and undamaged before beginning installation. If any parts are missing or damaged, contact maXpeedingrods customer support immediately.

Billede 1: Overview of all components included in the maXpeedingrods 2.5" Front & 3" Rear Lift Kit.

Billede 2: Another detailed view of the lift kit components, including spacers, adjustable camber arms, and various hardware.

Billede 3: Close-up of one of the front lift spacers, showing its construction and bolt holes.

Billede 4: Close-up of an adjustable rear camber arm, highlighting its robust design and adjustment mechanism.

Komponentliste:

• Front Lift Spacers (2.5")
• Rear Lift Spacers (3")
• Adjustable Rear Camber Arms
• Monteringsudstyr (bolte, møtrikker, skiver)
• Additional Spacers/Bushings (as required for specific fitment)

4. Setup and Installation Instructions

This section outlines the general steps for installing the lift kit. Refer to a professional service manual for your specific Honda CR-V model for detailed disassembly and reassembly procedures.

4.1. Forinstallation

1. Parkér køretøjet på en plan overflade, og aktiver parkeringsbremsen.
2. Loosen the lug nuts on all wheels.
3. Lift the vehicle using a suitable jack and support it securely with jack stands.
4. Fjern hjulene.

4.2. Front Lift Installation

1. Carefully disconnect the necessary suspension components (e.g., sway bar links, brake lines, ABS sensors) to allow for sufficient droop of the lower control arm.
2. Remove the factory front strut assembly.
3. Install the 2.5" front lift spacers on top of the strut assembly, aligning the bolt holes. Secure with the provided hardware.
4. Reinstall the modified strut assembly into the vehicle. Ensure all bolts are tightened to factory specifications.
5. Reconnect all disconnected components, ensuring proper routing and clearance.

4.3. Rear Lift Installation

1. Understøt bagakslen med en donkraft.
2. Disconnect the necessary suspension components (e.g., shocks, sway bar links) to allow the axle to drop.
3. Install the 3" rear lift spacers between the coil spring and the vehicle's frame/axle.
4. Replace the factory rear camber arms with the provided adjustable camber arms. Adjust them to a neutral position initially.
5. Reassemble all components, ensuring proper fitment and torque.

Billede 5: This diagram explains that the actual lift height achieved can be greater than the spacer thickness due to suspension geometry. The spacer alters the angle of the lower control arm, providing additional lift.

4.4. Efterinstallation

1. Reinstall the wheels and tighten lug nuts to factory specifications.
2. Sænk køretøjet til jorden.
3. Vigtig: Immediately after installation, the vehicle must undergo a professional wheel alignment. Failure to do so can result in premature tire wear, poor handling, and unsafe driving conditions.

5. Driftsmæssige overvejelser

After installing the lift kit, the vehicle's center of gravity will be higher, which can affect handling characteristics. Drive cautiously until you become accustomed to the altered vehicle dynamics.

• Bremsning: Increased stopping distances may occur.
• Hjørne: Reduced stability during sharp turns. Avoid aggressive cornering.
• Terrænkørsel: While the kit enhances off-road capability, always drive within the limits of the vehicle and your skill level.
• Dækafstand: Verify adequate tire clearance at full suspension compression and extension, and during steering lock-to-lock.

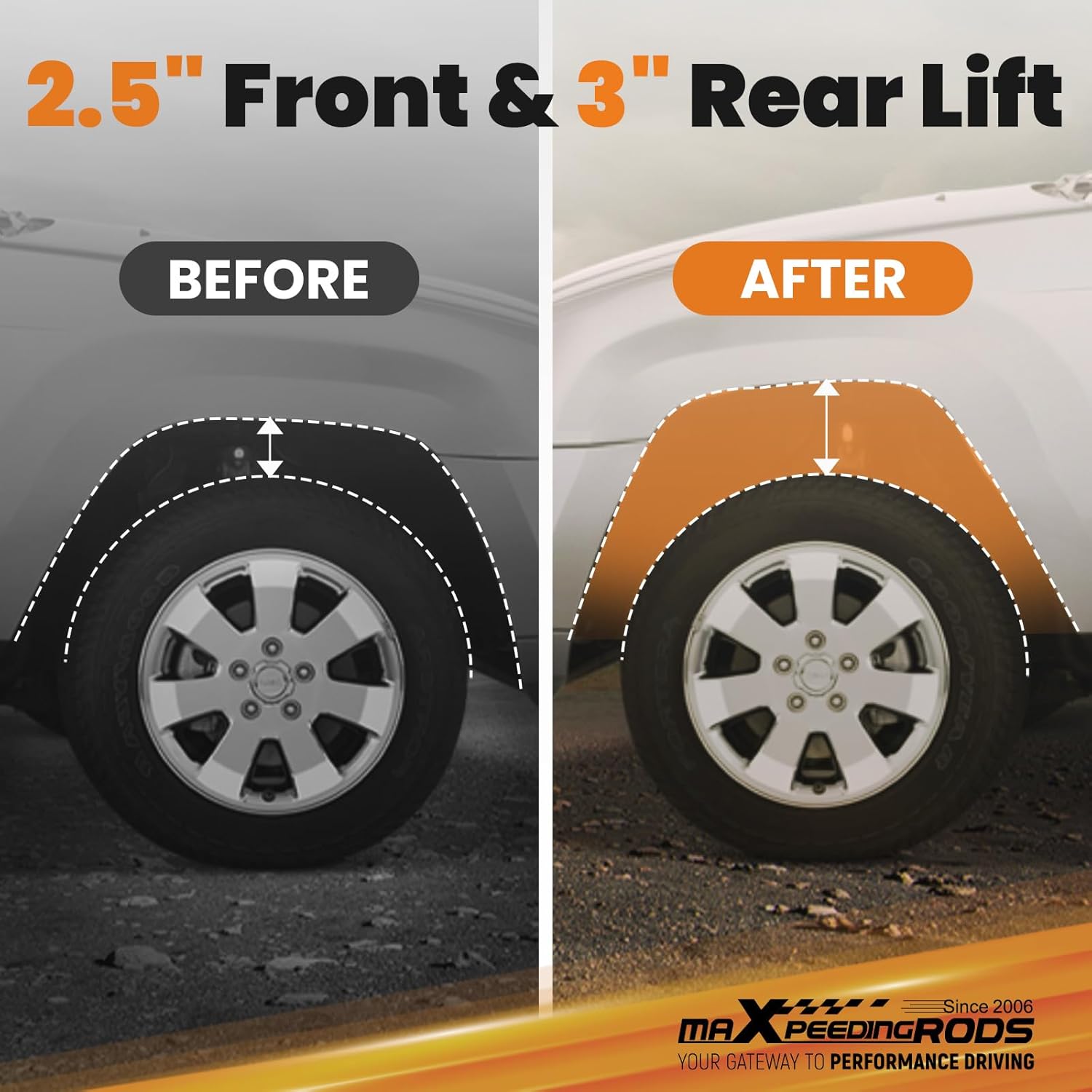

Billede 6: Visual comparison showing the increased ground clearance and altered stance of a vehicle after the lift kit installation.

6. Vedligeholdelse

Regular inspection and maintenance are essential to ensure the longevity and safe operation of your lift kit components.

• Periodisk eftersyn: Every 3,000-5,000 miles or during routine oil changes, inspect all lift kit components for signs of wear, damage, or loose fasteners. Pay close attention to bolts, bushings, and the adjustable camber arms.
• Momentkontroller: Re-torque all fasteners to their specified values after the first 500 miles of driving and periodically thereafter.
• Rensning: Keep components free of excessive dirt, mud, and debris, especially after off-road use.
• Justering: Recheck wheel alignment periodically, especially if you notice uneven tire wear or changes in handling.

Billede 7: This image emphasizes the durable construction materials, including high-strength carbon steel and a powder-coated surface for anti-corrosion, which contribute to the product's longevity.

Billede 8: Detail showing the high tensile Grade 10.9 bolts used for secure connections, designed for strength and durability.

7. Fejlfinding

Hvis du støder på problemer efter installationen, kan du overveje følgende almindelige problemer og løsninger:

• Ujævn kørehøjde:
  • Verify that the correct spacers were installed on the appropriate corners (front vs. rear).
  • Ensure all components are seated correctly and fasteners are tightened to specification.
• Usædvanlige lyde (klonken, knirken):
  • Check all bolts and nuts for proper torque. Loose hardware is a common cause of noise.
  • Inspect for any components making contact with other parts of the vehicle (e.g., brake lines, sway bar).
• Poor Handling or Steering Issues:
  • This is often a sign of incorrect wheel alignment. Have the vehicle professionally aligned immediately.
  • Ensure the adjustable camber arms are set correctly.
• Premature Tire Wear:
  • Typically caused by incorrect wheel alignment.
  • Tjek dæktrykket regelmæssigt.

If troubleshooting steps do not resolve the issue, contact maXpeedingrods technical support.

8. Specifikationer

9. Garanti og support

maXpeedingrods tilbyder en 1 års begrænset garanti for quality issues from the date of purchase. Additionally, lifetime technical support is available for this product.

For warranty claims, technical assistance, or any questions regarding your lift kit, please contact maXpeedingrods customer service through their official website or the platform where the product was purchased. Please have your purchase details and model number (KY32DK) ready when contacting support.
