LINOVISION 24 Ports L2 Administreret PoE Switch (POE-SW324GM-4BT) Brugermanual

1. Introduktion

This user manual provides detailed instructions for the LINOVISION 24 Ports L2 Managed PoE Switch, Model POE-SW324GM-4BT. It covers product features, package contents, setup procedures, operating guidelines, maintenance tips, troubleshooting, and technical specifications. Please read this manual thoroughly before operating the device to ensure proper installation and functionality.

Billede 1.1: Forside view of the LINOVISION 24 Ports L2 Managed PoE Switch.

2. Pakkens indhold

Verify that all items listed below are included in your package. If any item is missing or damaged, please contact LINOVISION support.

• PoE Switch (POE-SW324GM-4BT)
• Strømadapter
• Brugermanual
• Tilbehør til stativmontering

Image 2.1: Contents of the LINOVISION PoE Switch package, including the switch, power adapter, user manual, and rack mount accessories.

3. Produktet er slutview

3.1 Frontpanel

The front panel of the LINOVISION POE-SW324GM-4BT features various ports and LED indicators for monitoring network activity and power status.

Billede 3.1: Detaljeret view of the switch's front panel, highlighting the console port, 4x 90W Gigabit PoE ports (P1-P4), 20x 30W Gigabit PoE ports (P5-P24), and 4x Gigabit Combo ports (Uplink 1-4).

3.2 Bagpanel

The rear panel includes the power input, power switch, and a ground terminal for safety.

Billede 3.2: Kombineret view of the front and rear panels. The rear panel shows the power switch, ground terminal, and AC power input.

4. Funktioner

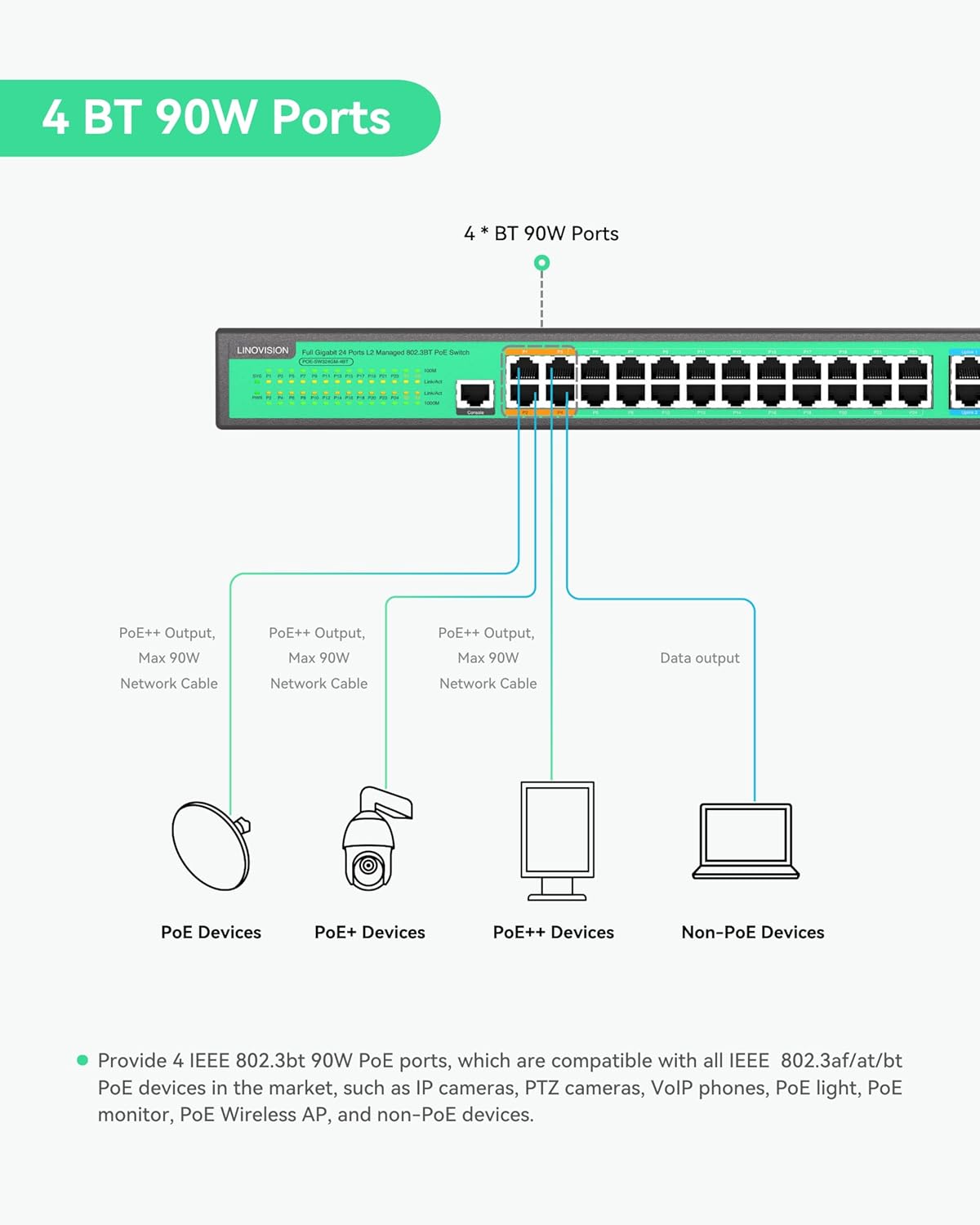

• 4 BT 90W PoE++ Ports: Ports 1-4 support up to 90W output, providing sufficient power for IEEE 802.3af/at/bt compliant PoE devices such as IP cameras, PTZ cameras, access points, VoIP phones, and PoE monitors.


Image 4.1: Illustration of the 4 BT 90W PoE ports and their compatibility with different PoE device types.

• Built-in 370W PoE Power Budget: The switch features a maximum total PoE budget of 370W, with 4 BT 90W ports and 20 AT 30W ports, capable of supporting multiple high-power PoE devices.


Image 4.2: Visual representation of the switch's PoE power distribution and total budget.

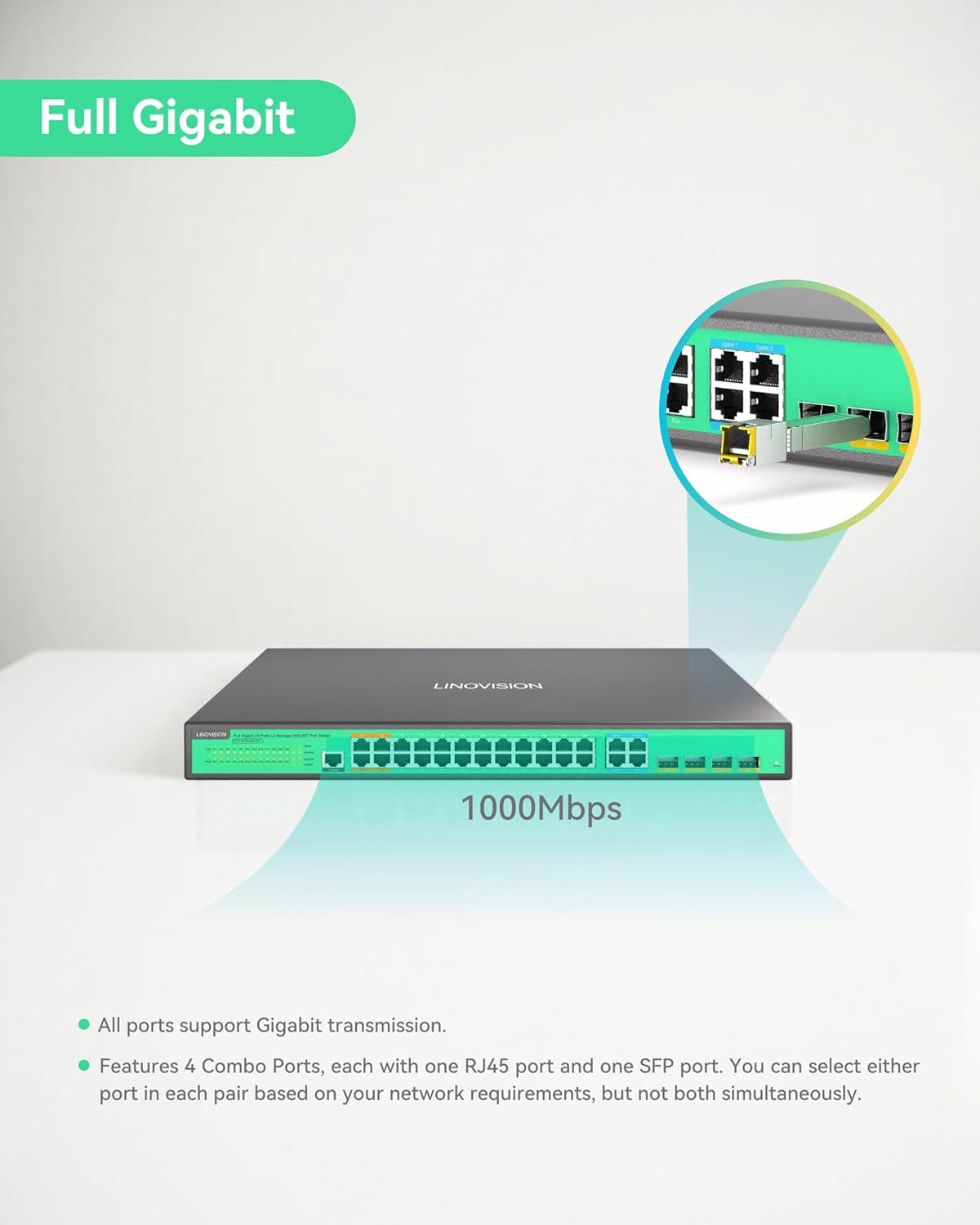

• Full Gigabit Connectivity: Provides 4x 10/100/1000Mbps PoE++ ports, 20x 10/100/1000Mbps PoE+ ports, and 4x Combo Ports. Each Combo Port includes one RJ45 port and one SFP port, allowing selection of either based on network requirements, but not both simultaneously.


Image 4.3: Illustration of the switch's full Gigabit speed and the flexibility of its combo ports.

• L2 Managed Capabilities: Supports Layer 2 management functions including VLAN, QoS, ACL, and PoE control (On/Off). Management can be performed via WEB interface, Command Line Interface (CLI), or SNMP.


Billede 4.4: Eks.ample of the L2 Management interface, demonstrating various configurable network settings.

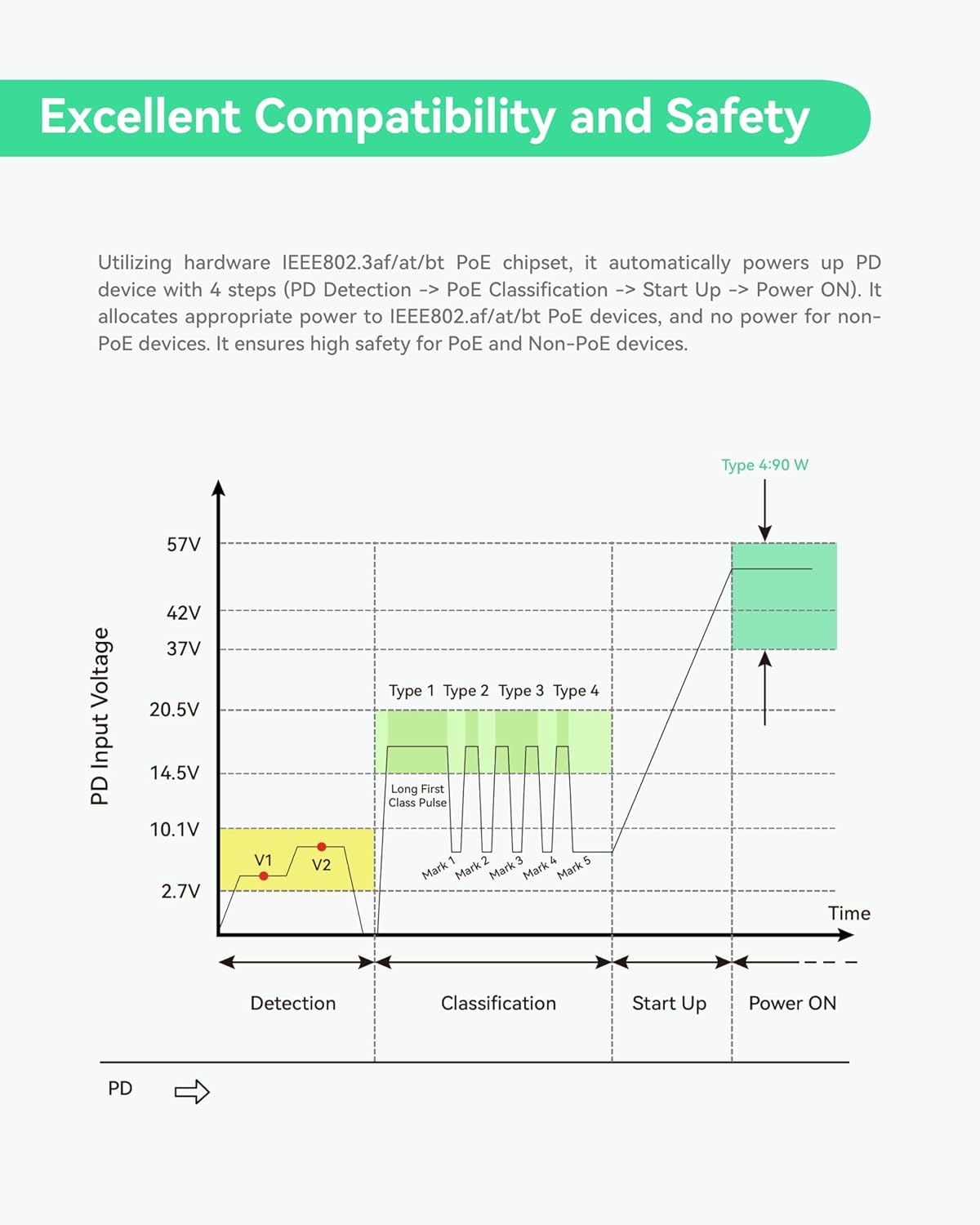

• Advanced Safety for PoE and Non-PoE Devices: Utilizes a standard 4-step PoE power-up process (PD Detection -> PoE Power Classification negotiation -> Start up -> Power ON). This ensures appropriate power delivery to 802.3af/at/bt devices, preventing overloading, and avoids supplying power to non-PoE devices to prevent damage.


Image 4.5: Graph detailing the safe power negotiation process for PoE devices.

• Solidt og holdbart design: Features a full metal enclosure with dimensions of 17.32'' x 11.42'' x 1.75'' (440mm x 290mm x 44.5mm), and a built-in 370W power supply. It offers a wide operating temperature range (-10°C to 45°C), 64Gbps switching capacity, IP40 protection, and 6KV surge protection.


Billede 4.6: Overview of the switch's robust physical design and protective features.

• Important PoE++ Compatibility Note: The term "PoE++" does not have a single unified standard and may not fully correspond to the IEEE 802.3bt protocol. Users should confirm if their "PoE++" Powered Device (PD) is also an IEEE 802.3bt device for guaranteed compatibility and proper operation.

5. Opsætning

This section guides you through the initial setup of your LINOVISION PoE Switch.

5.1 Udpakning og første inspektion

Carefully unbox the switch and its accessories. Inspect all components for any signs of damage during transit. Refer to the 'Package Contents' section to ensure all items are present.

Video 5.1: This video demonstrates the unboxing process of the LINOVISION 24 Port L2 Managed BT 90W PoE Switch, showing how to safely remove the product and its accessories from the packaging.

5.2 Fysisk installation

1. Montering: Use the provided rack mount accessories to install the switch into a standard 19-inch server rack, if applicable. Ensure adequate ventilation around the device.
2. Jording: Connect the ground terminal on the rear panel to a proper earth ground using a grounding wire for electrical safety.
3. Strømtilslutning: Connect the power adapter to the AC input on the rear panel and then to a suitable power outlet. Ensure the power switch is in the OFF position before connecting.

5.3 Netværksforbindelser

1. Connecting PoE Devices: Connect your IEEE 802.3af/at/bt compliant PoE devices (e.g., IP cameras, access points) to the PoE ports (P1-P24) on the front panel using standard Ethernet cables.
2. Connecting Non-PoE Devices: Non-PoE network devices can also be connected to the PoE ports; the switch will automatically detect and not supply power to them.
3. Uplink-forbindelser: Use the Gigabit Combo Ports (Uplink 1-4) to connect the switch to your core network, router, or other switches. You can use either the RJ45 or SFP port for each combo pair.
4. Konsolforbindelse: For initial configuration or advanced management via CLI, connect a console cable to the Console Port on the front panel and to a computer.

6. Betjeningsvejledning

Once the switch is physically installed and connected, you can begin operation and configuration.

6.1 Tænd

Flip the power switch on the rear panel to the ON position. The Power Indicator LED on the front panel should illuminate, indicating the device is receiving power. The System Indicator LED will also light up, and PoE/Link indicators will show port status.

6.2 L2 Management Access

The LINOVISION PoE Switch supports various Layer 2 management methods:

• Web-baseret ledelse: Få adgang til kontaktens web grænseflade ved at indtaste dens IP-adresse i en web browser. The default IP address and login credentials can be found in the full user manual or quick start guide.
• Kommandolinjegrænseflade (CLI): Connect via the Console Port using a terminal emulator (e.g., PuTTY) for command-line configuration.
• SNMP: The switch can be managed remotely using Simple Network Management Protocol (SNMP) for network monitoring and configuration.

6.3 Key Management Functions

Through the management interface, you can configure:

• VLAN (virtuelt lokalnetværk): Segmentér dit netværk for forbedret sikkerhed og ydeevne.
• QoS (Quality of Service): Prioriter netværkstrafik til kritiske applikationer.
• ACL (Adgangskontrolliste): Filtrer netværkstrafik baseret på definerede regler.
• PoE Control: Enable/disable PoE on specific ports, monitor power consumption, and schedule PoE operation.

7. Vedligeholdelse

Regular maintenance ensures the longevity and optimal performance of your LINOVISION PoE Switch.

• Rensning: Hold kontakten ren og fri for støv. Brug en blød, tør klud til rengøring. Brug ikke flydende rengøringsmidler eller rengøringsmidler på sprayform.
• Ventilation: Sørg for, at ventilationsåbningerne ikke er blokerede. Korrekt luftgennemstrømning er afgørende for at forhindre overophedning.
• Firmwareopdateringer: Periodically check the LINOVISION webwebsted for firmwareopdateringer. At holde firmwaren opdateret kan forbedre ydeevnen, tilføje nye funktioner og afhjælpe sikkerhedssårbarheder.
• Miljøforhold: Operate the switch within the recommended temperature and humidity ranges specified in the 'Specifications' section.

8. Fejlfinding

If you encounter issues with your LINOVISION PoE Switch, refer to the following common troubleshooting steps:

• Ingen strøm:
  • Check if the power cable is securely connected to the switch and the power outlet.
  • Ensure the power switch on the rear panel is in the ON position.
  • Kontroller, at stikkontakten fungerer.
• Ingen netværksforbindelse:
  • Check the Ethernet cables for secure connections and damage.
  • Verify the Link/Act LED indicators for the connected ports are active.
  • Ensure IP address settings are correct if configured manually.
• PoE-enhed modtager ikke strøm:
  • Confirm the connected device is IEEE 802.3af/at/bt compliant.
  • Check the PoE/Link indicator for the specific port.
  • Ensure the total PoE budget (370W) is not exceeded by all connected devices.
  • Verify PoE is enabled for the port in the L2 management interface.
• Adgang Web Interface Issues:
  • Sørg for, at din computer er på samme netværkssegment som switchen.
  • Try pinging the switch's IP address to confirm network reachability.
  • Ryd din browsers cache, eller prøv en anden browser.

If these steps do not resolve the issue, please consult the full user manual or contact LINOVISION technical support.

9. Specifikationer

Detailed technical specifications for the LINOVISION 24 Ports L2 Managed PoE Switch (POE-SW324GM-4BT).

10. Garanti og support

LINOVISION products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please refer to the official LINOVISION website or contact their customer service directly. Details regarding warranty periods and support channels are typically provided with your purchase documentation or on the manufacturer's webwebsted.

Manufacturer: LINOVISION

For yderligere hjælp, besøg: LINOVISION Official Store on Amazon
