1. Introduktion
This manual provides detailed instructions for the installation, operation, and maintenance of the LINOVISION POE-SWR510GMP Outdoor 8-Port Gigabit PoE Switch. This device is designed for outdoor network deployments, offering robust performance and advanced management capabilities.
The POE-SWR510GMP is an IP65-rated, L2+ managed Power over Ethernet (PoE) switch featuring 8 full Gigabit PoE ports and 2 Gigabit SFP uplink ports. It supports a total PoE budget of 140W and includes remote cloud management functionalities.
2. Sikkerhedsoplysninger
Læs og forstå alle sikkerhedsinstruktioner, før du installerer eller bruger denne enhed. Undladelse af at gøre dette kan resultere i personskade eller beskadigelse af udstyret.
- Elektrisk sikkerhed: For safety, a Ground Fault Circuit Interrupter (GFCI) circuit breaker is required at the power input side. Installation should be performed by a licensed electrician.
- Strømforsyning: Sørg for, at strømkilden voltage matches the device's requirements (100-240V AC).
- Miljøforhold: The switch is designed for outdoor use within a temperature range of -20°C to 60°C (-4°F to 140°F). Avoid exposing the device to extreme conditions outside this range.
- Overspændingsbeskyttelse: The device includes 4kV PoE surge protection. However, additional external surge protection is recommended in areas prone to lightning.
- Montering: Securely mount the device using the provided brackets to prevent accidental falls.

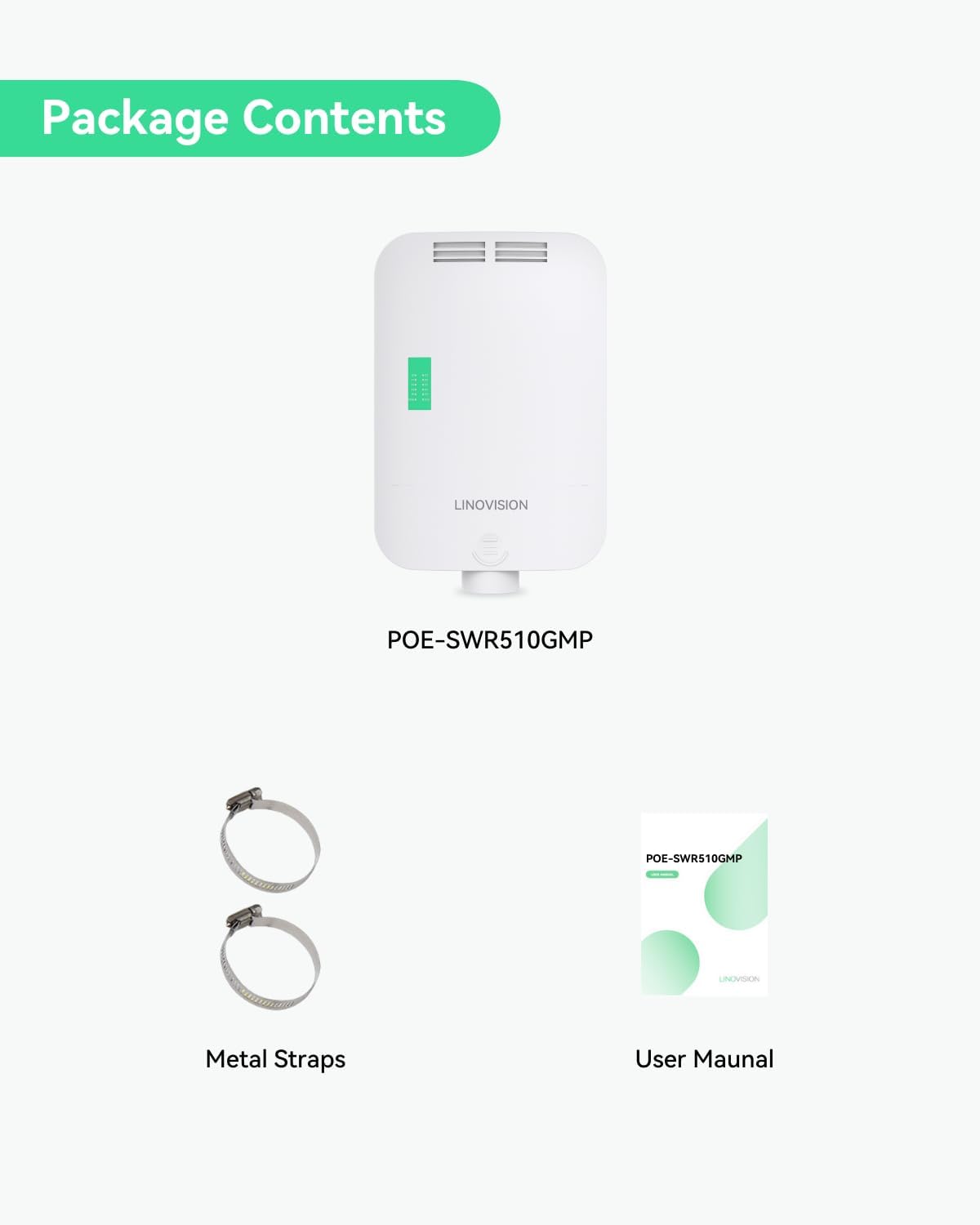

3. Pakkens indhold
Bekræft at alle varer er til stede i pakken:
- LINOVISION POE-SWR510GMP Outdoor PoE Switch
- Metal Straps (for pole mounting)
- Brugermanual
4. Produktet er slutview
4.1 Hardwarebeskrivelse
The LINOVISION POE-SWR510GMP features a robust, waterproof enclosure designed for outdoor environments. Key components include:
- 8 Gigabit PoE Ports: Provide data and power to connected PoE-compatible devices (e.g., IP cameras, wireless access points). Each port supports up to 30W (IEEE802.3af/at).
- 2 Gigabit SFP Ports: For fiber optic uplinks, enabling long-distance network connections.
- 100-240V AC Input: Power connection terminal.
- Nulstil switch: For restoring factory default settings.
- LED-indikatorer: For power, PoE status, and network activity.
4.2 Industrial Design Features
The switch is engineered for durability and reliable operation in challenging outdoor conditions:
- IP65 Waterproof Enclosure: Protects against dust and water ingress.
- Bred driftstemperatur: Functions reliably from -20°C to 60°C (-4°F to 140°F).
- 4kV Surge Protection: Built-in protection against electrical surges.
- Large-Area Pure Aluminum Heat Sink: Efficiently dissipates heat to prevent overheating, ensuring stable performance.
5. Opsætning og installation
5.1 Monteringsmuligheder
The POE-SWR510GMP supports both pole mount and wall mount installations. Brackets are included in the package.
- Stangmontering: Use the provided metal straps to secure the switch to a pole.
- Vægbeslag: Use appropriate screws and anchors (not included) to fix the switch to a wall.
5.2 Strømtilslutning
Connect the 100-240V AC power source to the designated terminal block on the switch. Ensure the GFCI circuit breaker is installed as per safety guidelines.
5.3 Netværksforbindelser
- PoE-enheder: Connect IP cameras, wireless access points, or other PoE-powered devices to the 8 Gigabit PoE ports using standard Ethernet cables.
- Uplink: Use the 2 Gigabit SFP ports for fiber optic connections to your core network or other switches, especially for long-distance data transmission.
6. Betjeningsvejledning
6.1 L2+ Management Functions
The POE-SWR510GMP is an L2+ managed switch, offering advanced network configuration and monitoring capabilities via its WEB GUI, Telnet, SSH, CLI, SNMP, and MQTT Cloud interfaces.
Key L2+ management features include:
- VLAN: Virtual Local Area Network for network segmentation.
- QoS: Quality of Service for prioritizing network traffic.
- ACL: Access Control List for network security.
- Statisk routing: For defining fixed paths for network traffic.
- Link sammenlægning: Combining multiple network connections for increased throughput and redundancy.
- ONVIF Camera Discovery: Automatic detection of ONVIF-compliant cameras.
6.2 Remote Cloud Management
The switch supports remote monitoring and control of PoE ports through LINOVISION's RemoteMonit Cloud platform or other compatible 3rd party cloud platforms using MQTT protocol. This feature allows for:
- PoE Port On/Off Control
- Port Speed Limit Configuration
- PoE Power Control
- Port Priority Settings
A one-year free subscription for RemoteMonit Cloud is included.
6.3 PoE Compatibility and Safety
The switch utilizes IEEE802.3af/at PoE chipset technology for intelligent power allocation. It automatically detects and classifies Powered Devices (PDs) in four steps: Detection, Classification, Start Up, and Power ON. This ensures appropriate power delivery to IEEE802.3af/at compliant devices and prevents power delivery to non-PoE devices, enhancing safety and compatibility.
7. Vedligeholdelse
To ensure optimal performance and longevity of your LINOVISION POE-SWR510GMP switch, follow these maintenance guidelines:
- Regelmæssig inspektion: Periodically check the enclosure for any signs of damage, corrosion, or loose connections.
- Rensning: Keep the exterior of the switch clean. Use a soft, dry cloth to wipe away dust. Do not use liquid cleaners or solvents.
- Ventilation: Ensure that the heat dissipation vents are not obstructed to allow for proper airflow.
- Firmwareopdateringer: Check the LINOVISION website for available firmware updates to enhance performance and security.
8. Fejlfinding
If you encounter issues with your POE-SWR510GMP switch, refer to the following common troubleshooting steps:
- Ingen strøm: Verify the AC power connection and ensure the GFCI circuit breaker is not tripped. Check the power LED indicator on the switch.
- Ingen netværksforbindelse: Check Ethernet cable connections for all devices. Ensure the link/activity LEDs on the switch ports are active. Verify IP settings for connected devices.
- PoE-enhed tænder ikke: Confirm the connected device is PoE-compatible (IEEE802.3af/at). Check the PoE status LED for the specific port. Ensure the total PoE budget (140W) is not exceeded. Try connecting the device to a different PoE port.
- Kan ikke få adgang Web GUI: Ensure your computer's IP address is in the same subnet as the switch's default IP (refer to specifications for default IP). Clear browser cache or try a different browser.
- Enhedsfejl: If the switch is unresponsive, try performing a soft reset by power cycling the device. If issues persist, use the reset button to restore factory default settings (note: this will erase all configurations).
9. Specifikationer
Detailed technical specifications for the LINOVISION POE-SWR510GMP switch:
| Feature | Specifikation |
|---|---|
| Modelnummer | POE-SWR510GMP |
| Antal havne | 8 Gigabit PoE Ports, 2 Gigabit SFP Ports |
| PoE Standard | IEEE802.3af/at |
| Maks. PoE-strøm pr. port | 30W |
| Samlet PoE-budget | 140W |
| Dataoverførselshastighed | 10/100/1000 Mbps (Gigabit) |
| Interface Type | RJ45, SFP |
| Ledelse | L2+ Managed (WEB GUI, Telnet, SSH, CLI, SNMP, MQTT Cloud) |
| Vandtæt vurdering | IP65 |
| Overspændingsbeskyttelse | 4kV PoE |
| Driftstemperatur | -20°C til 60°C (-4°F til 140°F) |
| Strømindgang | 100-240V AC |
| Produktdimensioner | 8.46 x 3.03 x 13.43 tommer (215 x 77 x 341 mm) |
| Varens vægt | 2.33 pund (1.06 kg) |
| Monteringsmuligheder | Pole Mount, Wall Mount |
| Kompatible enheder | Camera, Desktop, Laptop, Printer (PoE-compatible) |
10. Garanti og support
LINOVISION provides comprehensive support for its products. For warranty information, technical assistance, or service inquiries, please refer to the official LINOVISION webwebsted eller kontakt deres supportteam.
- Støtte: LINOVISION offers 24/7 US local and global technical support.
- Garanti: Warranty and replacement services are available from their Texas location.
- Online ressourcer: Besøg LINOVISION Store on Amazon eller deres embedsmand webwebsted med ofte stillede spørgsmål, downloads og kontaktoplysninger.
