Rohnson R-2887 MasterChef Air Fryer XXL User Manual

1. Introduktion

This manual provides essential instructions for the safe and efficient operation of your Rohnson R-2887 MasterChef Air Fryer XXL. This appliance is designed to prepare a variety of meals using hot air circulation, reducing the need for excessive oil. Please read this manual thoroughly before first use and retain it for future reference.

2. Vigtige sikkerhedsinstruktioner

ADVARSEL: Manglende overholdelse af disse sikkerhedsinstruktioner kan resultere i elektrisk stød, brand eller alvorlig personskade.

• Always ensure the appliance is placed on a stable, heat-resistant surface, away from walls and other appliances, to allow adequate air circulation.
• Hovedenheden, ledningen eller stikket må ikke nedsænkes i vand eller anden væske.
• Keep children and pets away from the appliance during operation. Hot surfaces can cause burns.
• Bloker ikke luftindtaget eller -udløbsåbningerne.
• Unplug the appliance from the outlet when not in use and before cleaning. Allow it to cool completely before handling.
• Brug ikke apparatet, hvis ledningen eller stikket er beskadiget, eller hvis apparatet ikke fungerer korrekt eller er blevet beskadiget på nogen måde.
• Brug kun tilbehør anbefalet af producenten.
• Exercise extreme caution when removing the basket or crisper plate, as hot steam and air may escape.
• Dette apparat er kun til husholdningsbrug. Må ikke bruges udendørs.

3. Produktet er slutview

The Rohnson R-2887 MasterChef Air Fryer XXL features a large capacity basket, an intuitive LED touch display, and unique oil and water spray functions for versatile cooking.

Komponenter:

• Hovedenhed med varmeelement og ventilator
• Removable Cooking Basket (7 Liter capacity)
• Non-stick Crisper tallerken
• LED Touch Display Control Panel
• Oil Spray Reservoir
• Water Spray Reservoir
• Gennemsigtig Viewi vinduet

Billede: Vinklet view of the Rohnson R-2887 MasterChef Air Fryer XXL, showcasing its sleek black design and transparent viewvindue.

Image: The removable cooking basket and non-stick crisper plate, designed for easy cleaning and food preparation.

4. Opsætning

4.1 Udpakning

1. Fjern alle emballagematerialer, klistermærker og etiketter fra apparatet.
2. Kontroller, at alle komponenter er til stede og ubeskadigede.

4.2 Indledende rengøring

1. Tør ydersiden af ​​hovedenheden af ​​med enamp klæde.
2. Wash the cooking basket and crisper plate with hot water, dish soap, and a non-abrasive sponge. Rinse thoroughly and dry completely.
3. Ensure the interior of the appliance is clean and dry before use.

4.3 Placering

1. Placer airfryeren på en stabil, jævn og varmebestandig overflade.
2. Ensure there is at least 10 cm (4 inches) of clear space around the back and sides of the appliance, and above it, for proper ventilation.
3. Placer ikke apparatet i nærheden af ​​brandfarlige materialer eller varmekilder.

4.4 Første brug (afbrænding)

It is recommended to run the air fryer empty for about 10-15 minutes during its first use to eliminate any manufacturing odors. A slight smell or smoke may occur, which is normal and will dissipate.

5. Betjeningsvejledning

5.1 Kontrolpanel

The appliance features an intuitive LED touch display for easy control of cooking functions.

Image: Close-up of the LED touch display, showing various program icons, temperature, and timer controls.

5.2 Grundlæggende betjening

1. Sæt netledningen i en jordforbundet stikkontakt. Displayet lyser kortvarigt op.
2. Pull out the cooking basket from the main unit. Place the crisper plate inside the basket.
3. Place your ingredients into the basket. Do not overfill.
4. Slide the cooking basket back into the air fryer until it clicks into place.
5. Tryk på Power-knappen for at tænde for apparatet.
6. Use the Temperature and Time controls to set your desired cooking parameters. The temperature range is 80°C to 200°C.
7. Tryk på Start/Pause-knappen for at begynde tilberedningen.

5.3 Forudindstillede programmer

The air fryer includes 8 pre-set programs for common dishes. Select a program by pressing the 'Menu' button and cycling through the options. The appliance will automatically set the optimal temperature and time for the selected program. You can manually adjust these settings if needed.

Image: Illustration of the air fryer's versatility, showing various dishes like steak, salmon, pizza, cake, and whole chicken that can be prepared.

5.4 Intelligent Oil and Water Spray Function

This feature allows you to customize the texture of your food.

1. Adding Oil/Water: Open the top cover to access the oil and water reservoirs. Fill the desired reservoir up to the 'MAX' line with cooking oil or water. Close the cover securely.
2. Using the Spray: During cooking, you can activate the oil or water spray function via the control panel. The oil spray helps achieve a crispy texture for items like fries and croquettes, while the water spray helps maintain moisture for meats, vegetables, and fish.

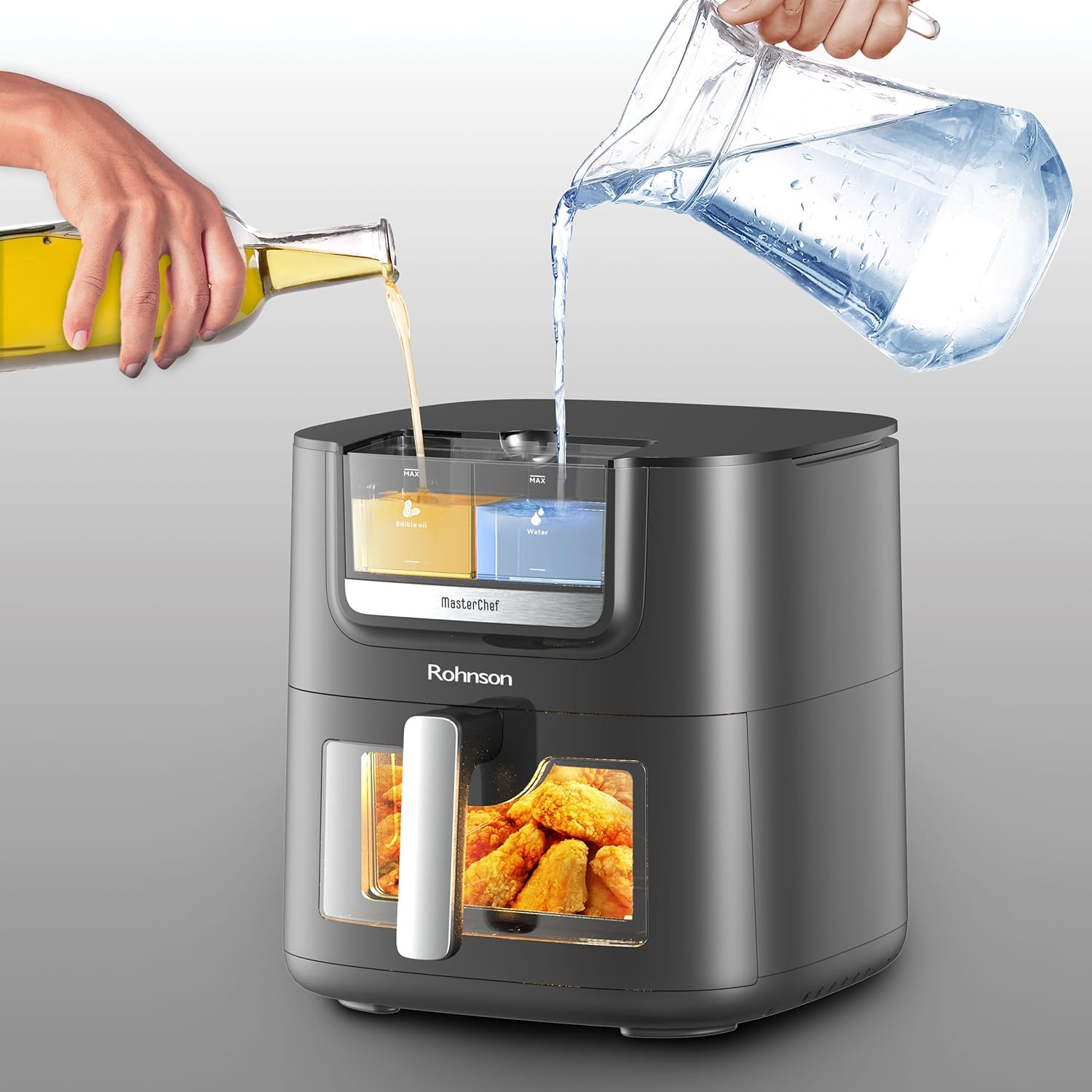

Image: Hands pouring cooking oil into the left reservoir and water into the right reservoir on top of the air fryer.

Image: A fine mist of oil being sprayed onto a pile of fries inside the air fryer basket, enhancing crispiness.

5.5 Cooking Process and Monitoring

• Shaking Reminder: For even cooking, some programs or recipes may require shaking the basket halfway through the cooking time. The appliance will emit a reminder sound and display a 'SHAKE' icon. Pull out the basket, shake the contents, and reinsert it to resume cooking.
• Viewing vindue: Det gennemsigtige viewing window and internal light allow you to monitor the cooking progress without opening the basket, preserving heat and cooking efficiency.

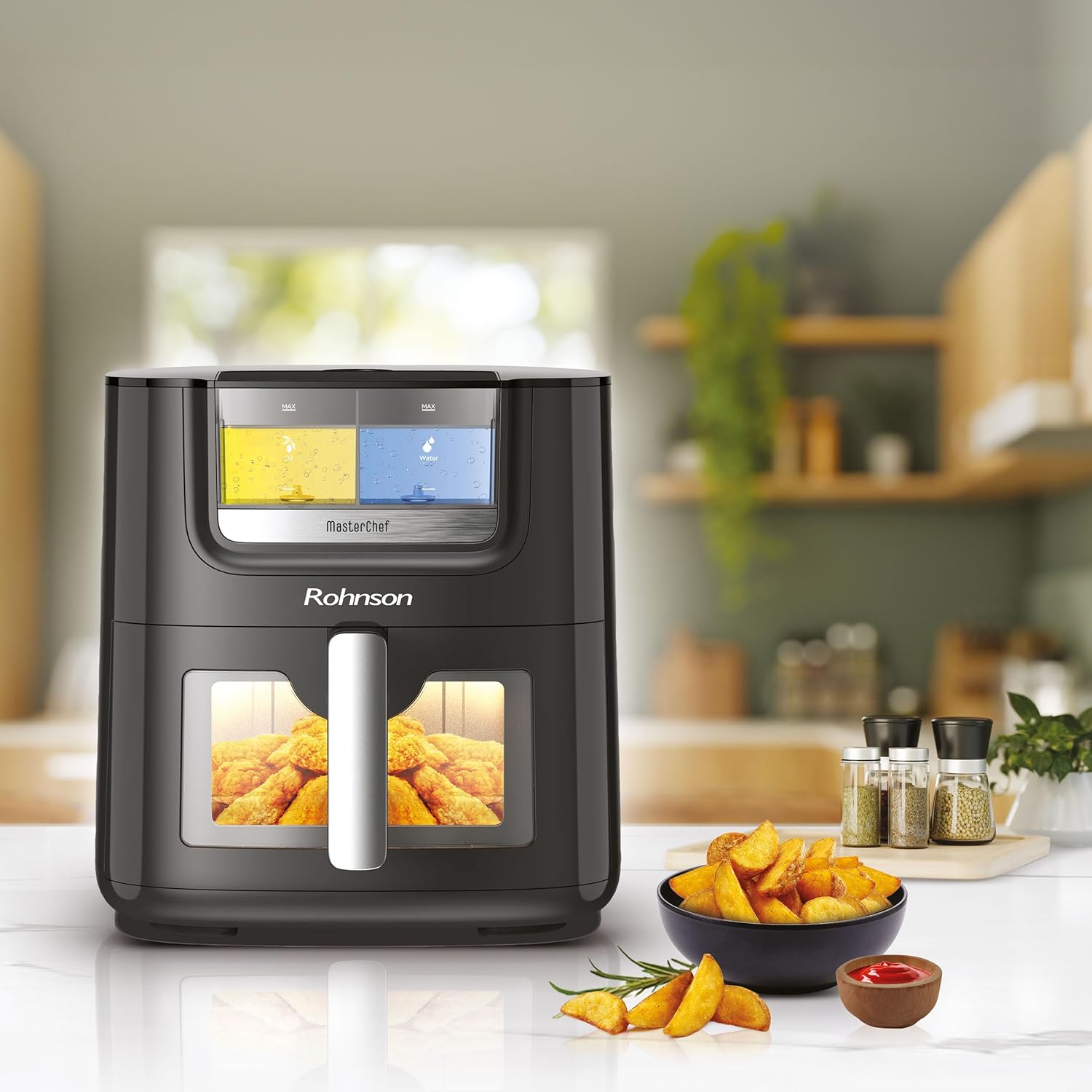

Image: The Rohnson R-2887 MasterChef Air Fryer XXL operating in a kitchen setting, with food visible through its transparent window, alongside a bowl of cooked fries.

Image: A family enjoying a meal, with the Rohnson R-2887 MasterChef Air Fryer XXL visible on the counter, highlighting its 7-liter capacity suitable for large portions.

6. Vedligeholdelse og rengøring

Regelmæssig rengøring sikrer optimal ydeevne og forlænger levetiden på din airfryer.

6.1 Før rengøring

1. Unplug the air fryer from the power outlet.
2. Lad apparatet afkøle helt inden rengøring.

6.2 Cleaning the Basket and Crisper Plate

The cooking basket and crisper plate are made with a non-stick coating and are dishwasher safe. Alternatively, they can be washed by hand:

• Wash in hot water with dish soap and a non-abrasive sponge.
• For stubborn food residue, soak the basket in hot water for about 10 minutes before cleaning.
• Skyl grundigt og tør helt, inden det monteres igen.

6.3 Rengøring af indersiden

• Tør apparatets indre af med adamp klæde.
• For any residue on the heating element, use a soft brush to gently remove it. Do not use abrasive cleaners or metal scouring pads.

6.4 Rengøring af ydersiden

• Tør den ydre overflade af med en blød,amp klæde.
• Brug ikke skrappe kemikalier eller slibende materialer, da de kan beskadige overfladen.

6.5 Opbevaring

Sørg for, at apparatet er rent og tørt, inden det opbevares. Opbevar det et køligt og tørt sted.

7. Fejlfinding

Hvis du støder på problemer med din airfryer, kan du se følgende almindelige problemer og løsninger:

8. Specifikationer

Technical details for the Rohnson R-2887 MasterChef Air Fryer XXL:

9. Garanti og support

9.1 Garantioplysninger

Your Rohnson R-2887 MasterChef Air Fryer XXL comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration. Keep your proof of purchase for warranty claims.

9.2 Kundesupport

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Rohnson customer support. Contact details can typically be found on the manufacturer's official webwebstedet eller på produktemballagen.
