1. Introduktion
This manual provides detailed instructions for the installation, operation, and maintenance of your Happybuy Spin Down Filter, model BSK-T2-N12-N. This 40-micron filter is designed to remove sediment from your water supply, improving water quality and protecting household appliances. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.
Billede 1.1: Overview of the Happybuy Spin Down Filter BSK-T2-N12-N. This image displays the main unit with its transparent filter housing, pressure gauge, and manual flush valve.
2. Sikkerhedsoplysninger
Overhold altid følgende sikkerhedsforanstaltninger for at forhindre personskade eller beskadigelse af produktet:
- Ensure the main water supply is turned off before installation or maintenance.
- Overskrid ikke det maksimale driftstryk, der er angivet i specifikationsafsnittet.
- Use appropriate tools and follow all local plumbing codes during installation.
- Protect the filter from freezing temperatures.
3. Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | BSK-T2-N12-N |
| Indløbs- og udløbsdiameter | 3/4" MNPT |
| Flowhastighed | 4 T/H (Tons per Hour) / 20 GPM (Gallons Per Minute) |
| Filtreringspræcision | 40 mikron |
| Produktmål (L x B x H) | 6.73 x 3.31 x 11.02 tommer (171 x 84 x 280 mm) |
| Nettovægt | 2.65 lbs (1.2 kg) |
| Materiale | Brass fittings, thickened bottle, 316L stainless steel filter mesh |
| Egnet vandtryk | 0.15 MPa - 1 MPa |
Image 3.1: Detailed dimensions of the Happybuy Spin Down Filter. The image shows the height (11 inches / 280 mm), length (6.7 inches / 171 mm), and width (3.3 inches / 84 mm) of the filter unit.
Image 3.2: This image highlights the durable construction of the filter, featuring corrosion-resistant brass fittings and a shockproof, explosion-proof filter bottle that has undergone various tests including a sub-water hammer test, anti-freeze test, and explosion-proof test.
4. Pakkens indhold
Kontroller, at alle komponenter er til stede, før installationen påbegyndes:
- Happybuy Spin Down Filter Unit (Model BSK-T2-N12-N)
- 3/4" MNPT Brass Fittings (2x)
- Sealing O-rings (various sizes)
- Wrench for filter housing
- Instruktionsmanual (dette dokument)
Image 4.1: The image shows the main filter unit along with included accessories: two brass fittings, several O-rings, and a filter housing wrench.
5. Installationsvejledning
This section outlines the steps for installing the Happybuy Spin Down Filter. Ensure you have all necessary tools and materials before starting.
5.1. Tjekliste før installation
- Beliggenhed: Install the filter on the main water line after the water meter, before any other water treatment systems or appliances. It can be installed indoors or outdoors, but protect it from direct sunlight and freezing temperatures.
- Nødvendige værktøjer: Pipe wrench, thread sealant (Teflon tape), bucket, towels.
- Vandtryk: Ensure your water pressure is within the recommended range of 0.15 MPa - 1 MPa.
5.2. Installationstrin
- Sluk for vandforsyningen: Locate the main water shut-off valve for your property and turn it off completely. Open a faucet at the lowest point in your house to drain the water from the pipes and relieve pressure.
- Cut Pipe: Select the installation point on your main water line. Measure and cut a section of pipe to accommodate the filter unit. Ensure enough space for maintenance.
- Prepare Fittings: Apply thread sealant (e.g., Teflon tape) to the male threads of the 3/4" MNPT brass fittings.
- Tilslut filter: Thread the brass fittings onto the inlet and outlet ports of the filter unit. Ensure the flow direction arrow on the filter housing matches the direction of water flow. Tighten securely with a pipe wrench, but do not overtighten.
- Install Filter into Pipeline: Connect the filter assembly into the cut section of your main water line. Ensure all connections are tight and leak-free. The filter can be installed horizontally or vertically.
- Skyllesystem: Slowly turn on the main water supply. Check for any leaks. Once water flow is restored, open the manual flush valve at the bottom of the filter (turn the knob to "ON") to flush out any air and initial sediment. Let it flush for a few minutes until the water runs clear. Then turn the knob to "OFF".
Image 5.1: Diagram illustrating the typical installation of the Happybuy Spin Down Filter on a main water line, showing its placement before household appliances like washing machines, dishwashers, and water heaters. The image highlights the 3/4" MNPT connections and suitable water pressure range.
6. Betjening
The Happybuy Spin Down Filter operates continuously once installed. Key operational aspects include monitoring water pressure and performing backwash cycles.
6.1. Water Pressure Monitoring
The filter is equipped with a visible pressure gauge. This gauge allows for real-time monitoring of your water pressure. Normal operating pressure should be within the specified range (0.15 MPa - 1 MPa). A significant drop in pressure may indicate a clogged filter mesh requiring a backwash.

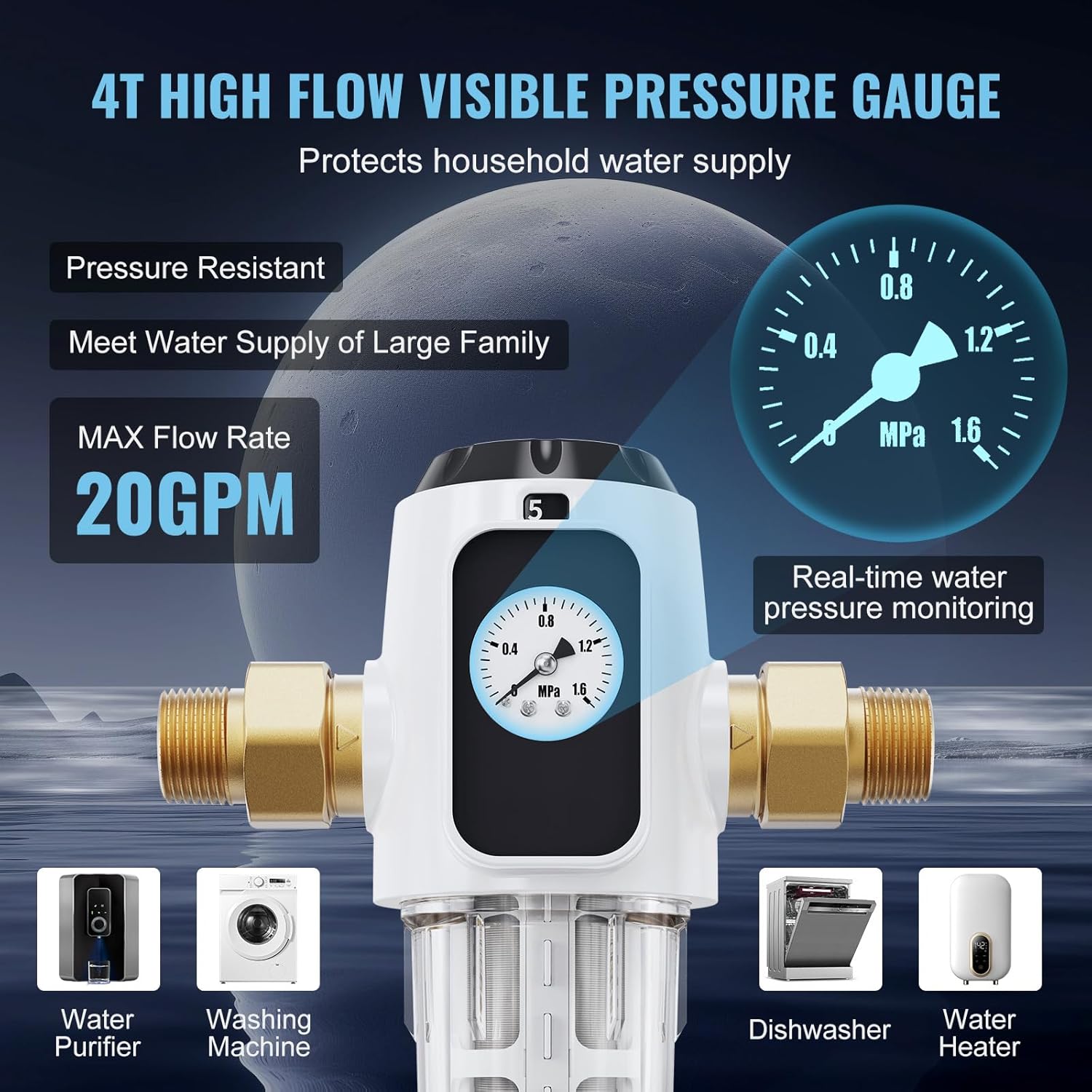

Billede 6.1: Nærbillede view of the pressure gauge on the Happybuy Spin Down Filter, indicating real-time water pressure monitoring. The gauge displays pressure in MPa.
6.2. Filtration Process
Water enters the filter and passes through a 40-micron 316L stainless steel filter mesh. This mesh intercepts particles such as sediment, rust, sludge, and algae, preventing them from entering your household water supply and protecting downstream appliances.
Image 6.2: Illustration of the 40µm precision filtration process, showing the 316L stainless steel filter mesh capturing various impurities like sediment, rust, sludge, and algae, thereby improving water quality.
7. Vedligeholdelse
Regular maintenance ensures optimal performance and extends the lifespan of your filter.
7.1. Siphon Backwash (Manual Flush)
The filter features a siphon backwash mechanism for efficient cleaning without disassembly. This process flushes accumulated sediment from the filter mesh.
- Frekvens: Perform a backwash cycle regularly, typically once a week or whenever a noticeable drop in water pressure occurs.
- Procedure:
- Place a bucket or drain hose under the manual flush valve at the bottom of the filter.
- Turn the knob on the flush valve to the "ON" position. Water will flow out, carrying away trapped sediment.
- Allow the water to flush for 30-60 seconds, or until the water runs clear.
- Turn the knob back to the "OFF" position to close the valve.
Image 7.1: The image demonstrates the siphon backwash feature of the Happybuy Spin Down Filter. It shows water being flushed out, indicating the removal of accumulated sediment. The manual flush knob is visible in the "ON" position.
7.2. Filter Mesh Cleaning (Deeper Clean)
For a more thorough cleaning or if the backwash is insufficient, the filter mesh can be removed and cleaned manually.
- Sluk for vandforsyningen: Shut off the main water supply to the filter.
- Lindre trykket: Open a nearby faucet to relieve water pressure in the line.
- Fjern filterhuset: Use the provided wrench to unscrew the transparent filter housing from the main unit.
- Remove Filter Mesh: Carefully pull out the stainless steel filter mesh.
- Clean Mesh: Rinse the filter mesh under running water. Use a soft brush if necessary to remove stubborn deposits. Do not use harsh chemicals or abrasive materials.
- Inspicer O-ringene: Check the O-rings for any signs of wear or damage. Replace if necessary.
- Saml igen: Insert the clean filter mesh back into the housing, ensuring it is seated correctly. Screw the filter housing back onto the main unit, hand-tighten, then use the wrench for a final snug turn. Do not overtighten.
- Genopret vandforsyningen: Tænd langsomt for hovedvandforsyningen og kontroller for lækager.
8. Fejlfinding
This section addresses common issues you might encounter with your Happybuy Spin Down Filter.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lavt vandtryk | Clogged filter mesh | Perform a siphon backwash. If pressure remains low, remove and manually clean the filter mesh. |
| Partially closed main water valve | Sørg for, at hovedvandforsyningsventilen er helt åben. | |
| Vandlækager | Løse forbindelser | Tighten all pipe connections and filter housing. Ensure thread sealant was applied correctly. |
| Beskadigede O-ringe | Turn off water, disassemble, inspect and replace O-rings if damaged. | |
| Filteret rengøres ikke effektivt | Heavy sediment load | Increase backwash frequency. Consider a deeper manual cleaning of the filter mesh. |
| Incorrect installation (flow direction) | Verify the filter is installed with the flow direction arrow matching water flow. |
9. Garantioplysninger
Happybuy products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your product or contact Happybuy customer support. Keep your purchase receipt as proof of purchase for warranty claims.
10. Kundesupport
If you have any questions, require technical assistance, or need to report an issue, please contact Happybuy customer support through their official webwebstedet eller de kontaktoplysninger, der følger med din produktemballage.
For mere information kan du besøge Happybuy-butik på Amazon.
