Indledning
This manual provides detailed instructions for the installation, operation, and maintenance of your Zalman T6 MINI Compact MATX PC Case. Please read this manual thoroughly before beginning assembly to ensure proper setup and optimal performance.
Billede: Forside view of the Zalman T6 MINI PC Case, showcasing its minimalist design and front panel I/O ports.
Nøglefunktioner
- Kompakt og effektivt design: Space-saving m-ATX mini tower suitable for compact builds.
- Moderne tilslutningsmuligheder: Includes 1 x USB 3.0 and 2 x USB 2.0 ports for convenient device connections.
- Hardwaresupport: Accommodates ATX PSUs (up to 160mm), GPUs (up to 250mm length), and CPU coolers (up to 147mm height).
- Opbevaringsmuligheder: Supports up to 2 x 3.5" HDDs and up to 4 x 2.5" SSDs.
- Kølesystem: Features 1 x preinstalled 80mm rear exhaust fan (1400±10% RPM) and supports 1 x 120mm side fan.
Product Dimensions and Compatibility
Understanding the dimensions and compatibility is crucial for component selection and installation.

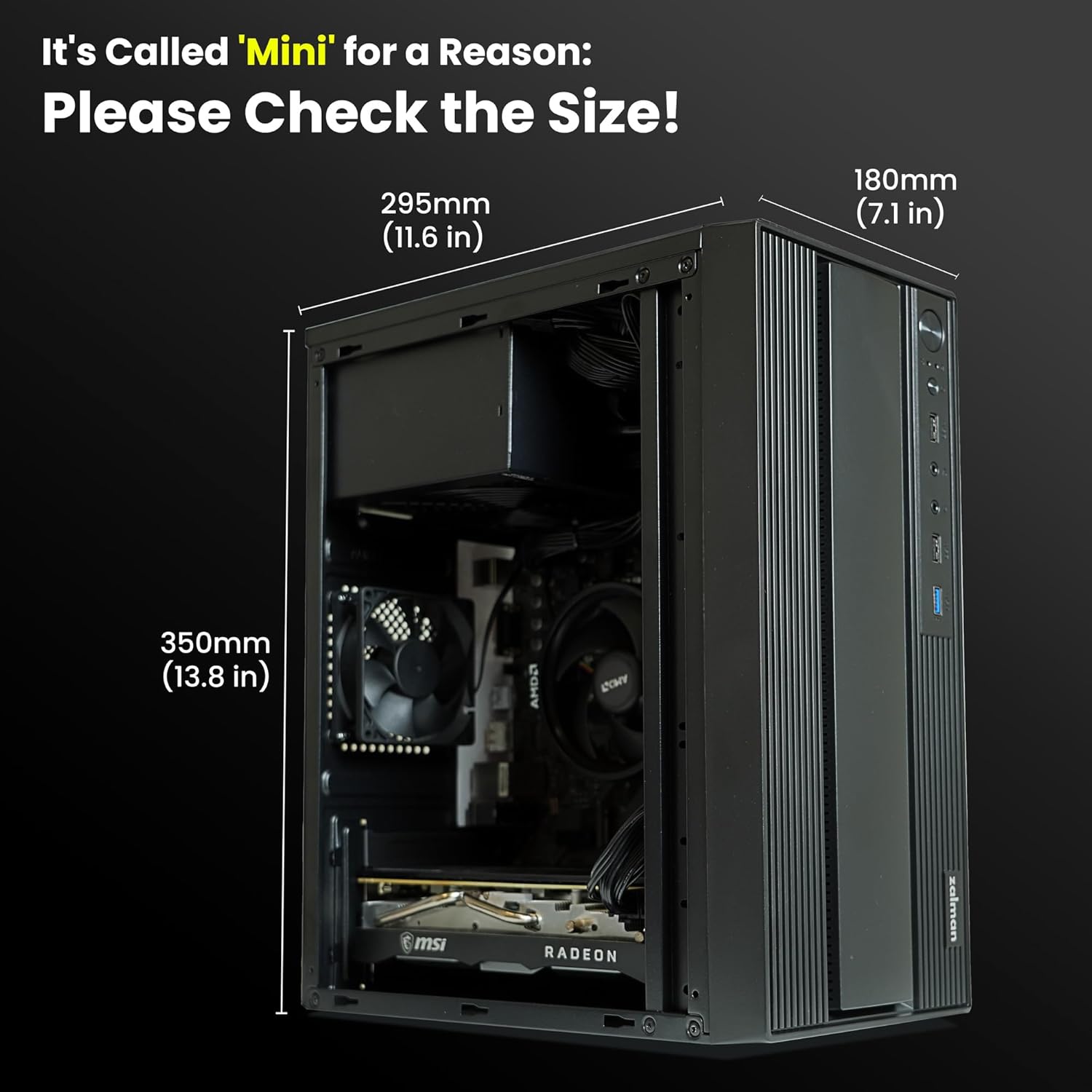

Image: Diagram illustrating the dimensions of the Zalman T6 MINI PC Case (11.6 in / 295mm depth, 7.1 in / 180mm width, 13.8 in / 350mm height).
Image: Visual guide detailing component compatibility, including motherboard (M-ATX, Mini-ITX), GPU length (max 250mm), CPU cooler height (max 147mm), and PSU length (max 160mm).
Opsætning og installation
Follow these steps for assembling your PC components within the Zalman T6 MINI case.
1. Forberedelse af sagen
Before installing components, ensure the side panels are removed. The case is designed for easy access to the interior.
Image: The Zalman T6 MINI PC Case with its side panel removed, revealing the internal structure and component mounting areas.
2. Installation af bundkort og grafikkort
Install your Micro-ATX or Mini-ITX motherboard. Ensure proper alignment with the standoffs. When installing the graphics card, note the maximum supported length of 250mm. For low-profile graphics cards, ensure the blocking plate is correctly replaced.
Video: A detailed tutorial demonstrating the installation process of components within a PC case, including motherboard and graphics card. This video is provided by the seller.
3. Installation af strømforsyning
The case supports ATX PSUs up to 160mm in length. Mount the power supply securely in its designated area.
4. Installation af lagerdrev
Install your 3.5" HDDs and 2.5" SSDs in the provided drive bays. The case supports up to 2 x 3.5" HDDs and up to 4 x 2.5" SSDs. Note: If installing an HDD, the CPU cooler height should not exceed 40mm to ensure proper clearance.
5. Kabelforvaltning
Utilize the internal routing options to manage cables neatly. This improves airflow and maintains a clean interior aesthetic.
Betjening af dit pc-kabinet
The front panel provides convenient access to essential controls and ports.
Image: Close-up of the front panel I/O of the Zalman T6 MINI, showing the Power button, Reset button, USB 2.0 ports, Microphone jack, Auxiliary Stereo jack, and USB 3.0 port.
- Power knap: Press to turn on/off your PC.
- Nulstil knap: Press to restart your PC.
- USB 3.0-port: For high-speed data transfer devices.
- USB 2.0-porte: Til tilslutning af standard USB-enheder.
- Lydstik: Separate ports for microphone and headphones/speakers.
Opretholdelse
Regelmæssig vedligeholdelse er med til at sikre lang levetid og optimal ydeevne for dit pc-kabinet og komponenter.
- Støvrensning: Periodically clean dust from the case interior and fan filters to maintain efficient airflow. Use compressed air or a soft brush.
- Ventilator inspektion: Check the preinstalled 80mm rear fan and any optional side fans for dust buildup or obstructions. Ensure they are spinning freely.
- Kabeltjek: Verify that all internal cables remain securely connected and are not obstructing airflow.
Fejlfinding
Hvis du støder på problemer, kan du overveje følgende almindelige fejlfindingstrin:
- Ingen strøm: Ensure the power supply is correctly installed and connected to the motherboard and wall outlet. Check all power cables.
- Overophedning: Verify that all fans are operating correctly and that there is no excessive dust buildup restricting airflow. Ensure proper component installation within the specified dimensions.
- USB-porte virker ikke: Check the internal USB headers connected to the motherboard. Ensure drivers are up to date.
- Problemer med komponenttilpasning: Refer to the "Product Dimensions and Compatibility" section to confirm all components adhere to the maximum supported sizes.
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Zalman |
| Modelnavn | T6 MINI |
| Sagstype | Mini-tårn |
| Bundkort kompatibilitet | Micro ATX, Mini ITX |
| Produktmål (LxBxH) | 11.6 x 7 x 13.8 tommer (295 x 180 x 350 mm) |
| Varens vægt | 4.49 pund |
| Materiale | Alloy Steel, Metal, Plastic |
| Farve | Sort |
| Max GPU-længde | 250 mm |
| Max CPU kølerhøjde | 147 mm |
| Max PSU-længde | 160mm (ATX PSU) |
| Drive Bays | Up to 2 x 3.5" HDDs, up to 4 x 2.5" SSDs |
| Front I / O-porte | 1 x USB 3.0, 2 x USB 2.0, Mic, Aux Stereo |
| Inkluderet fans | 1 x 80mm Rear Exhaust Fan (1400±10% RPM) |
| Fan Support | 1 x 120mm Side, 1 x 80mm Rear |
| Liquid AIO Cooler Support | Ikke understøttet |
Garanti og support
For garantioplysninger og teknisk support henvises til den officielle Zalman-side. webwebstedet eller kontakt din forhandler. Gem din købsbevis til garantikrav.
You can visit the official Zalman Store for more products and support: Zalman Store
