Radioddity DB50 50W UHF VHF Mobile Radio Transceiver User Manual

1. Introduktion

This manual provides comprehensive instructions for the safe and efficient operation of your Radioddity DB50 50W UHF VHF Mobile Radio Transceiver. The DB50 is a high-power, multi-band ham radio designed for reliable long-distance communication, featuring a detachable front panel for flexible installation and advanced functionalities like dual-band, dual display, and dual watch. Please read this manual thoroughly before using the device to ensure proper setup and optimal performance.

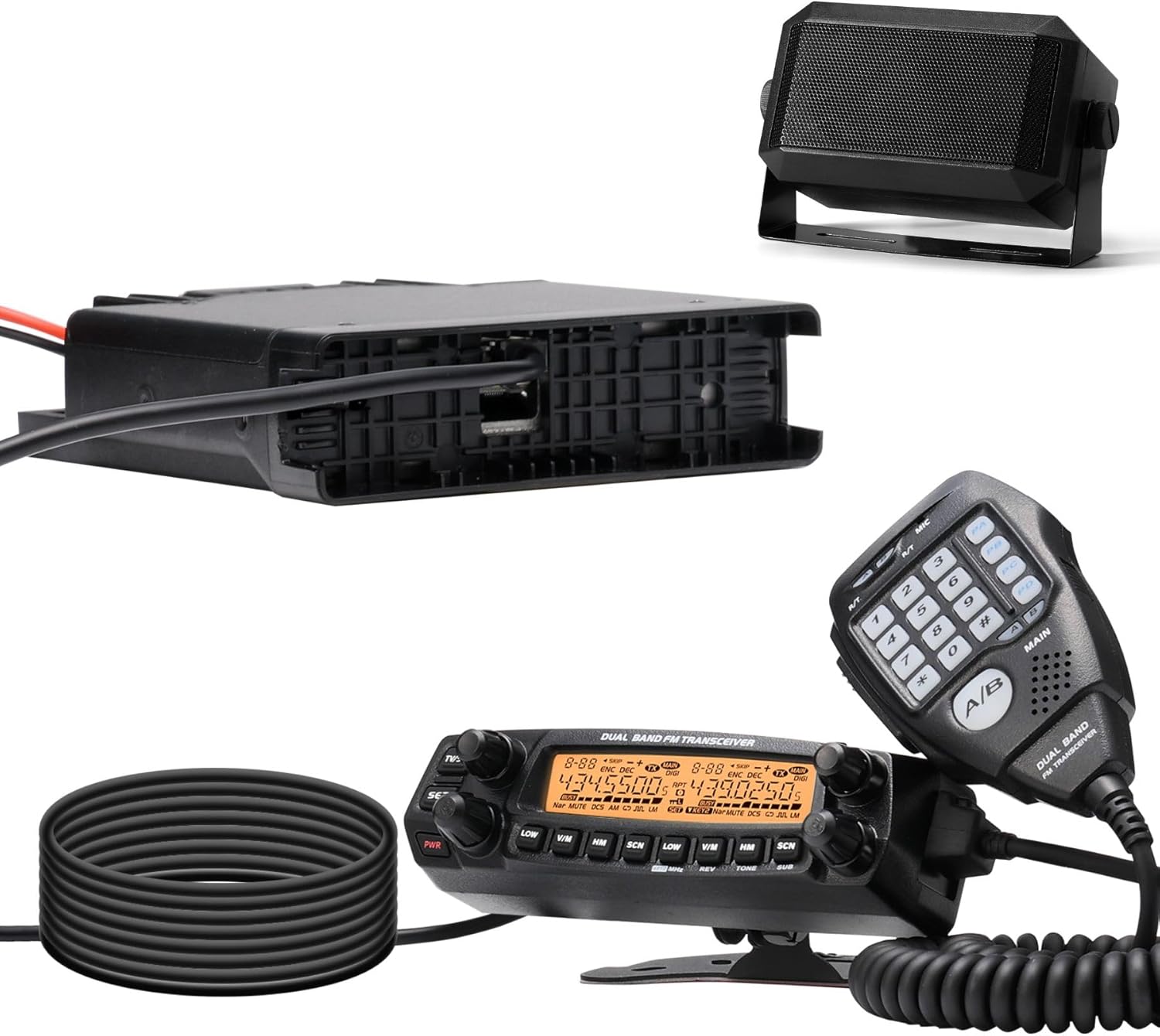

Figure 1.1: Radioddity DB50 Mobile Radio Transceiver and included accessories. This image displays the main radio unit with its display and controls, a hand microphone, an external speaker, and a power cable.

2. Sikkerhedsoplysninger

Observe the following safety precautions to prevent fire, injury, or damage to the radio.

• Brug ikke radioen i eksplosive atmosfærer (f.eks. brandfarlige gasser, støvpartikler, metalpulver).
• Do not transmit without an antenna connected.
• Sørg for korrekt strømforsyning voltage (DC 13.8V) to avoid damage.
• Hold radioen væk fra direkte sollys, overdreven varme og fugt.
• Do not attempt to disassemble or modify the radio. Refer all servicing to qualified technicians.
• Hold en sikker afstand fra antennen under transmission for at minimere RF-eksponering.
• This device is not water resistant. Avoid exposure to rain or moisture.

3. Pakkens indhold

Bekræft at alle varer er til stede i din pakke:

• Radioddity DB50 Mobile Radio Transceiver
• Håndmikrofon
• Strømkabel
• Monteringsbeslag
• Screws and Hardware
• Brugervejledning (dette dokument)
• RS58 Mini Speaker (if included in your specific kit)
• Programming Cable (if included in your specific kit)

Figure 3.1: Main components of the Radioddity DB50 package. This image shows the radio unit, an external speaker, and a coiled cable, representing the typical contents.

4. Produktet er slutview

The Radioddity DB50 is a versatile mobile radio designed for amateur radio enthusiasts. Key features include:

• 50W høj effekt: Ensures extended communication range.
• Detachable Front Panel: Allows flexible installation in vehicles or other setups.
• Dual-Band, Dual Display, Dual Watch: Overvåg to frekvenser samtidigt.
• 758 Kanalkapacitet: Ample storage for frequencies and settings.
• Multi-Band Reception & Transmission: Covers a wide range of frequencies.
• Avanceret kølesystem: Designed for stable operation during prolonged use.
• Chirp Compatible: Simplifies programming via software.

4.1. High Power Output

The DB50 delivers a robust 50W output power, facilitating clear and reliable communication over significant distances. This is particularly advantageous for users requiring strong signal penetration and extended reach.

Figure 4.1: Illustration of the DB50's 50W high power capability. The image shows the radio unit with a graphic indicating its high power output.

4.2. Detachable Front Panel

The detachable front panel feature provides installation flexibility. The main radio unit can be discreetly mounted, while the control panel is positioned for easy access and visibility, such as on a dashboard.

Figure 4.2: The detachable front panel installed in a vehicle. This image demonstrates how the control panel can be separated from the main unit and mounted conveniently on a car's dashboard.

4.3. Dual-Band, Dual Display, Dual Watch

This functionality allows the radio to operate on two different frequency bands simultaneously, displaying both on the screen. The dual watch feature enables monitoring of two channels at once, enhancing operational efficiency.

Figure 4.3: Close-up of the DB50's dual display. The screen clearly shows two distinct frequency readouts, illustrating the dual-band and dual watch capabilities.

4.4. Channel Capacity and Frequency Range

With 758 available channels, the DB50 offers extensive options for frequency allocation and management. It supports both VFO (Variable Frequency Oscillator) and Channel modes, allowing for flexible frequency tuning or selection from preset channels.

• Transmission (TX): 136-174MHz, 400-490MHz
• Modtagelse (RX): 108-180MHz, 220-260MHz, 400-523MHz, 350-399.995MHz

Figure 4.4: Multi-band reception and transmission capabilities. This graphic highlights the various frequency ranges supported by the DB50 for both transmitting and receiving.

4.5. Advanced Cooling System

The integrated advanced cooling system helps dissipate heat efficiently, ensuring stable and reliable performance even during extended periods of high-power transmission.

Figure 4.5: Visual representation of the DB50's advanced cooling system. Arrows indicate airflow and heat dissipation from the radio's heatsink and fan.

4.6. RS58 Mini Speaker (Optional)

If included in your kit, the RS58 Mini Speaker provides enhanced audio output for clearer communications.

Figure 4.6: The RS58 Mini Speaker. This image shows the external speaker with its specifications (8Ω, 5W) and its compact design.

5. Opsætning og installation

Korrekt installation er afgørende for optimal ydeevne og sikkerhed.

5.1. Installation af hovedenhed

1. Choose a secure, well-ventilated location for the main radio unit, away from direct heat sources and moisture.
2. Attach the mounting bracket to the desired surface using appropriate screws.
3. Secure the main radio unit to the mounting bracket.
4. Connect the power cable to the radio and then to a DC 13.8V power source (e.g., vehicle battery). Ensure correct polarity.
5. Connect a suitable antenna to the antenna connector on the rear of the radio.

5.2. Detachable Front Panel Installation

The front panel can be separated from the main unit for flexible placement.

1. Carefully detach the front panel from the main unit by releasing låsemekanismen.
2. Connect the extension cable (if provided) between the main unit and the detached front panel.
3. Mount the front panel in a convenient location using its dedicated bracket (e.g., on a dashboard).
4. Connect the hand microphone to the front panel.

Figure 5.1: Quick installation steps for the DB50. This image illustrates a 10-step process for assembling and connecting the radio unit, detachable panel, and accessories.

6. Betjeningsvejledning

6.1. Grundlæggende betjening

• Tænd/sluk: Press and hold the power button (usually on the front panel) to turn the radio on or off.
• Lydstyrkekontrol: Adjust the volume knob to a comfortable listening level.
• Frekvensvalg: Use the main tuning knob or numerical keypad on the microphone to enter desired frequencies.
• Bandvalg: Use the dedicated band buttons to switch between UHF and VHF bands.
• Valg af tilstand: Select between VFO (Variable Frequency Oscillator) mode for direct frequency input and Channel mode for selecting pre-programmed channels.

6.2. Dual Watch and Dual Display

The DB50 allows you to monitor two different frequencies simultaneously.

1. Ensure the radio is in dual display mode (refer to your radio's specific button layout for this function, often labeled A/B or similar).
2. Select the desired frequency for the 'A' band.
3. Select the desired frequency for the 'B' band.
4. The radio will monitor both frequencies, and you can switch the active transmit band as needed.

6.3. Channel Programming

The DB50 can be programmed manually or via computer software.

• Manuel programmering: Refer to the detailed instructions in the full user manual for step-by-step manual channel storage and settings configuration (e.g., CTCSS/DCS tones, offset, power level).
• Software Programming (Chirp Compatible): For easier and more extensive programming, connect the radio to a computer using a programming cable. Use the Chirp software (select "DB50" in the Radioddity section) to manage channels, frequencies, and other settings.

7. Vedligeholdelse

• Rensning: Brug en blød, tør klud til at rengøre radioens yderside. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Forbindelser: Periodically check all cable connections (power, antenna, microphone) for secure fit.
• Antenne: Ensure the antenna is properly mounted and free from damage. A damaged antenna can affect performance and potentially damage the radio.
• Opbevaring: Når radioen ikke er i brug i længere perioder, skal den opbevares et køligt og tørt sted.

8. Fejlfinding

9. Specifikationer

10. Garanti og support

For warranty information, technical support, or service inquiries, please refer to the official Radioddity webwebstedet eller kontakt deres kundeservice direkte. Behold din købskvittering som købsbevis.

Radioddity Official Webwebsted: www.radioddity.com
